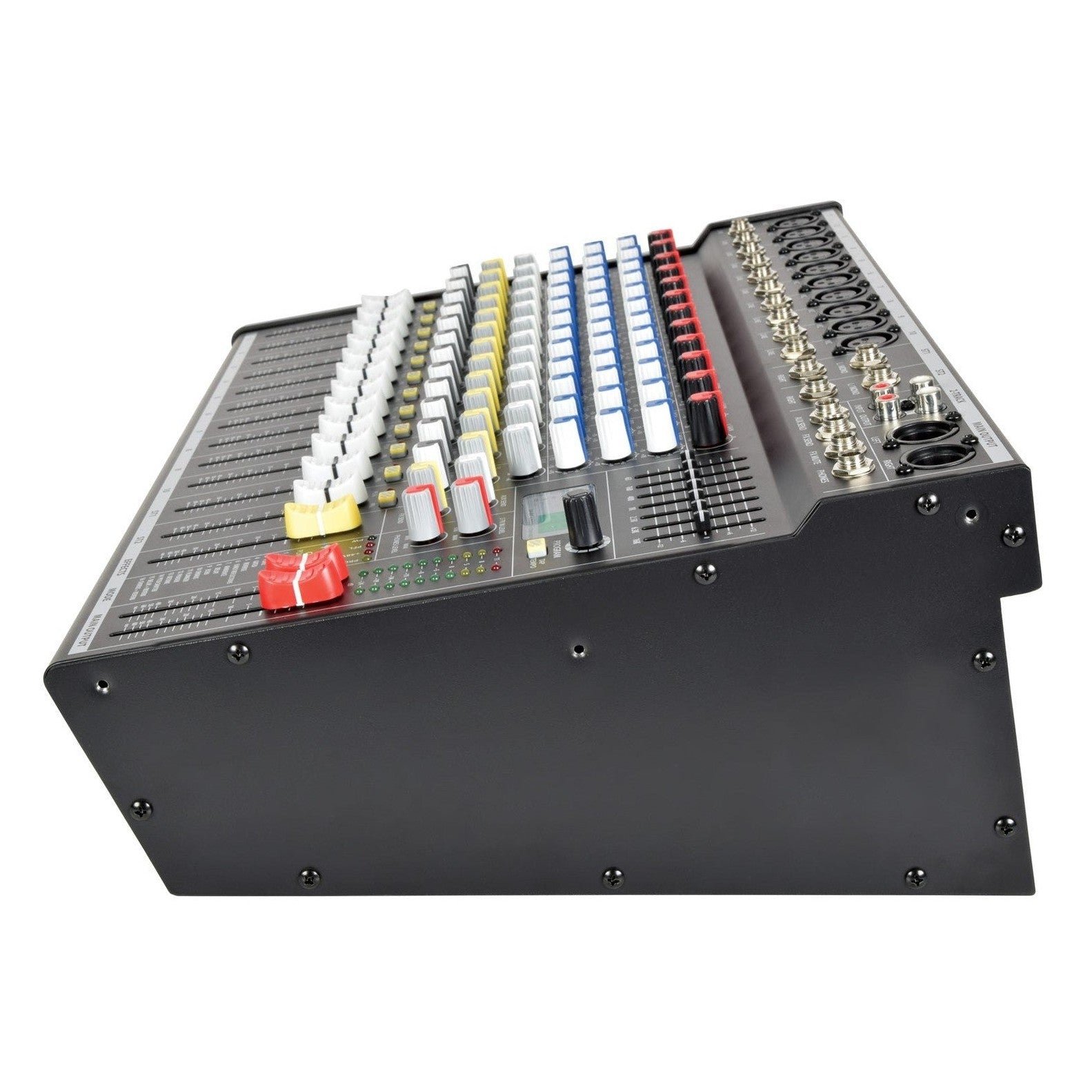

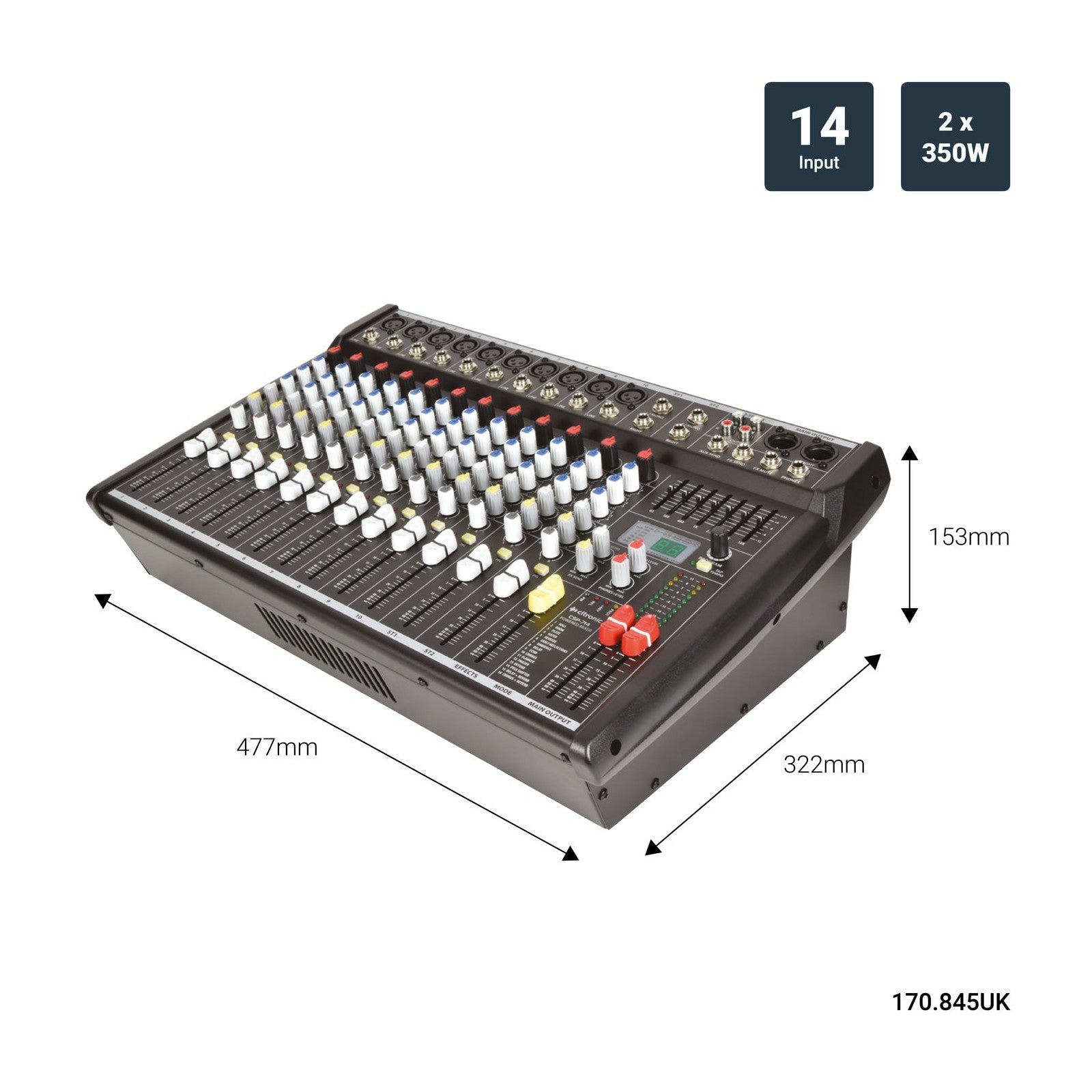

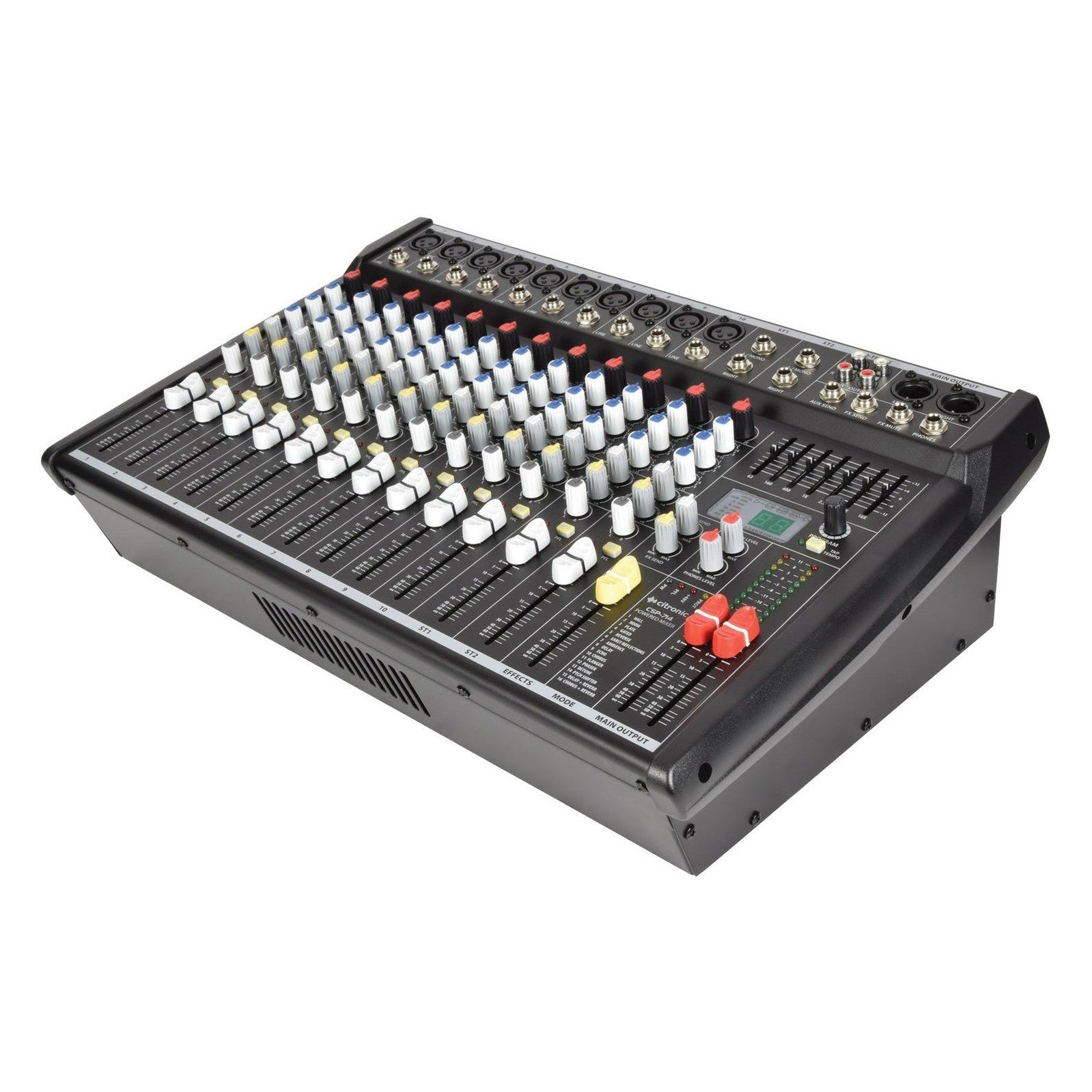

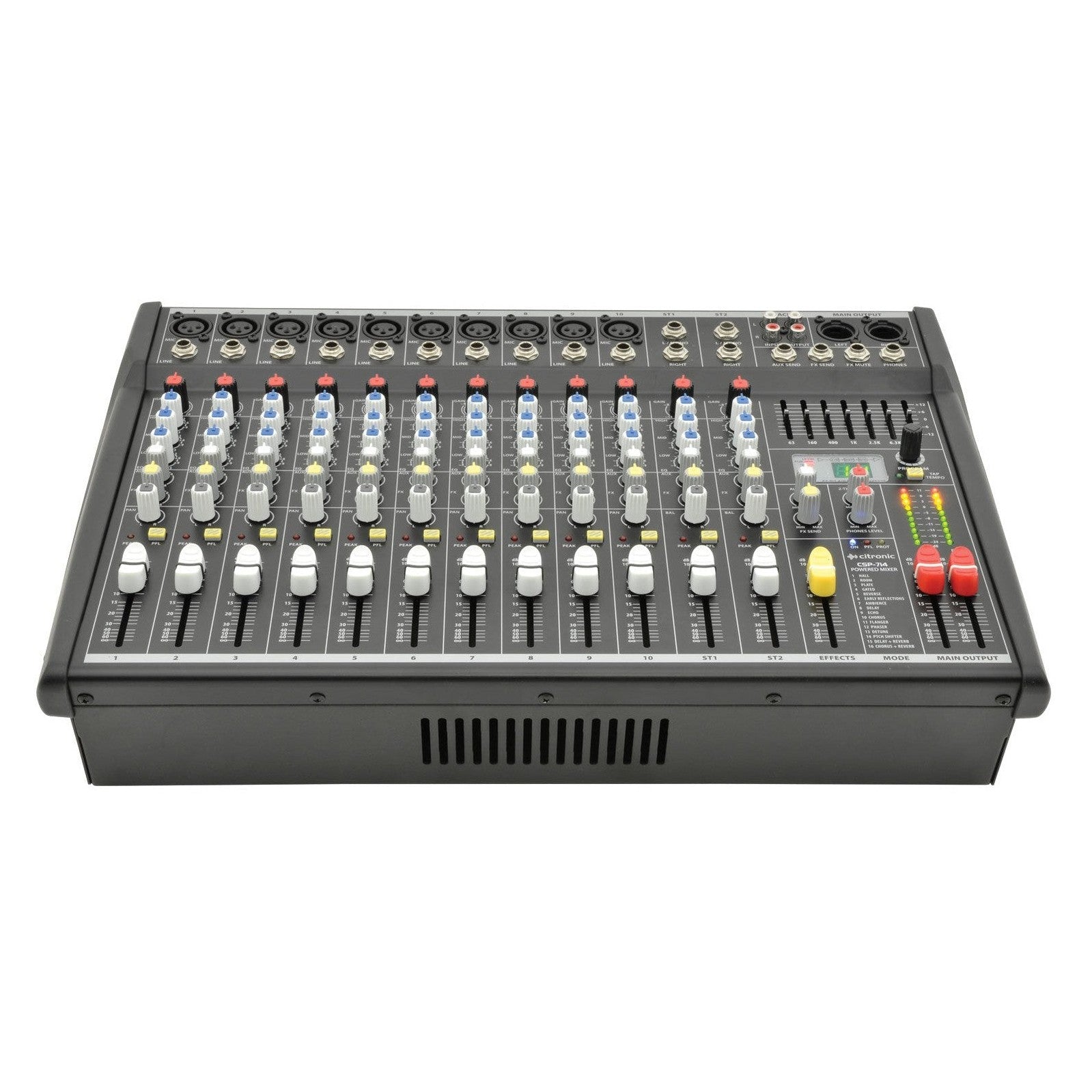

Citronic CSP-714 2 x 350W 14-Input Powered Mixer With DSP Effects

The Citronic CSP-714 is a powerful and fully featured 14-input 2 x 350W powered mixer designed for mobile PA, bars, live events and medium-to-large venue applications where a higher input count and greater amplifier headroom are required. Featuring ten balanced XLR/TRS combo mic/line inputs each with 3-band EQ and aux send, alongside two stereo inputs for a total of 14 inputs, it provides a flexible and comprehensive input stage capable of handling a wide variety of sources simultaneously. Switchable +48V phantom power supports condenser microphones on the XLR inputs, and a 7-band global graphic EQ provides effective overall tone shaping across the main output. The internal stereo amplifier delivers 2 x 350W RMS at 4 Ohms — providing substantial headroom to drive two or four speaker cabinets with confidence across larger venues and events.

A 24-bit 16-program DSP effects section with tap tempo delivers a versatile range of vocal and instrument effects, and balanced main XLR outputs allow connection to additional amplification or recording equipment. A 2-track RCA input and output and a 6.3mm headphone output complete the connectivity, making the CSP-714 the most capable model in the Citronic CSP powered mixer range and a genuinely comprehensive solution for demanding live audio applications.

14-Input Stage With Per-Channel EQ & Aux Send

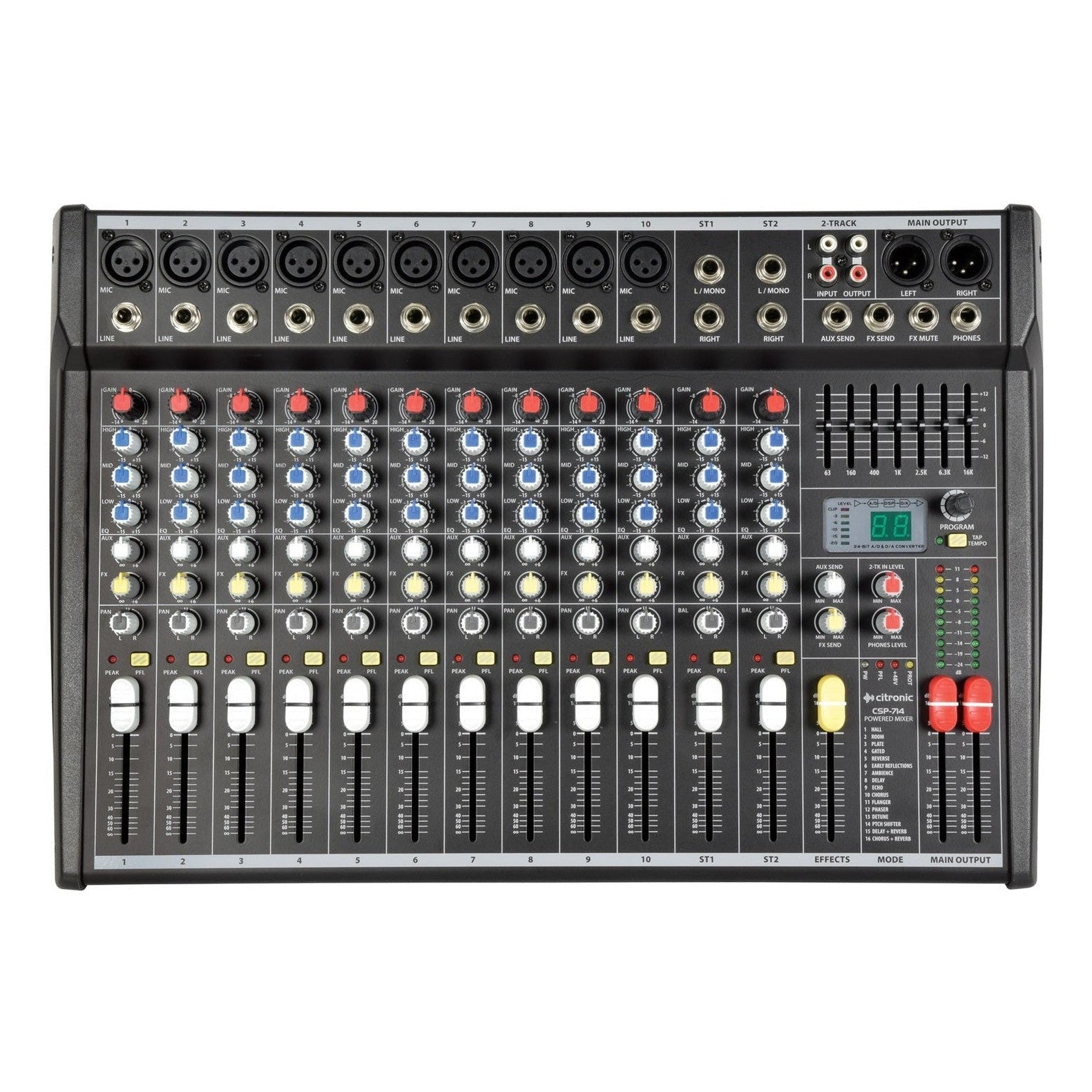

The CSP-714 features ten balanced XLR/TRS combo mic/line inputs alongside two stereo inputs, providing a total of 14 inputs for productions requiring a high source count. Each mic/line channel is equipped with 3-band EQ (80Hz shelving, 2.5kHz band pass and 12kHz shelving, all ±15dB) and an aux send for monitor or effects routing. Switchable +48V phantom power on the XLR inputs ensures full compatibility with condenser microphones, and with a mic sensitivity range of -60 to +14dBu the input stage handles a broad range of microphone types and sources with ease.

7-Band Graphic EQ & DSP Effects

The 7-band global graphic EQ provides clear and effective tone control across the main output, making it straightforward to compensate for room acoustics and tailor the sound to suit different venues and environments. The 24-bit 16-program DSP effects section operates at 40kHz with sigma-delta conversion, delivering a clean and high-quality effects signal chain with tap tempo for time-based effects. The combination of per-channel EQ, global graphic EQ and onboard DSP effects provides a high degree of sonic control without the need for additional external processing equipment.

High-Power Amplifier & Versatile Connectivity

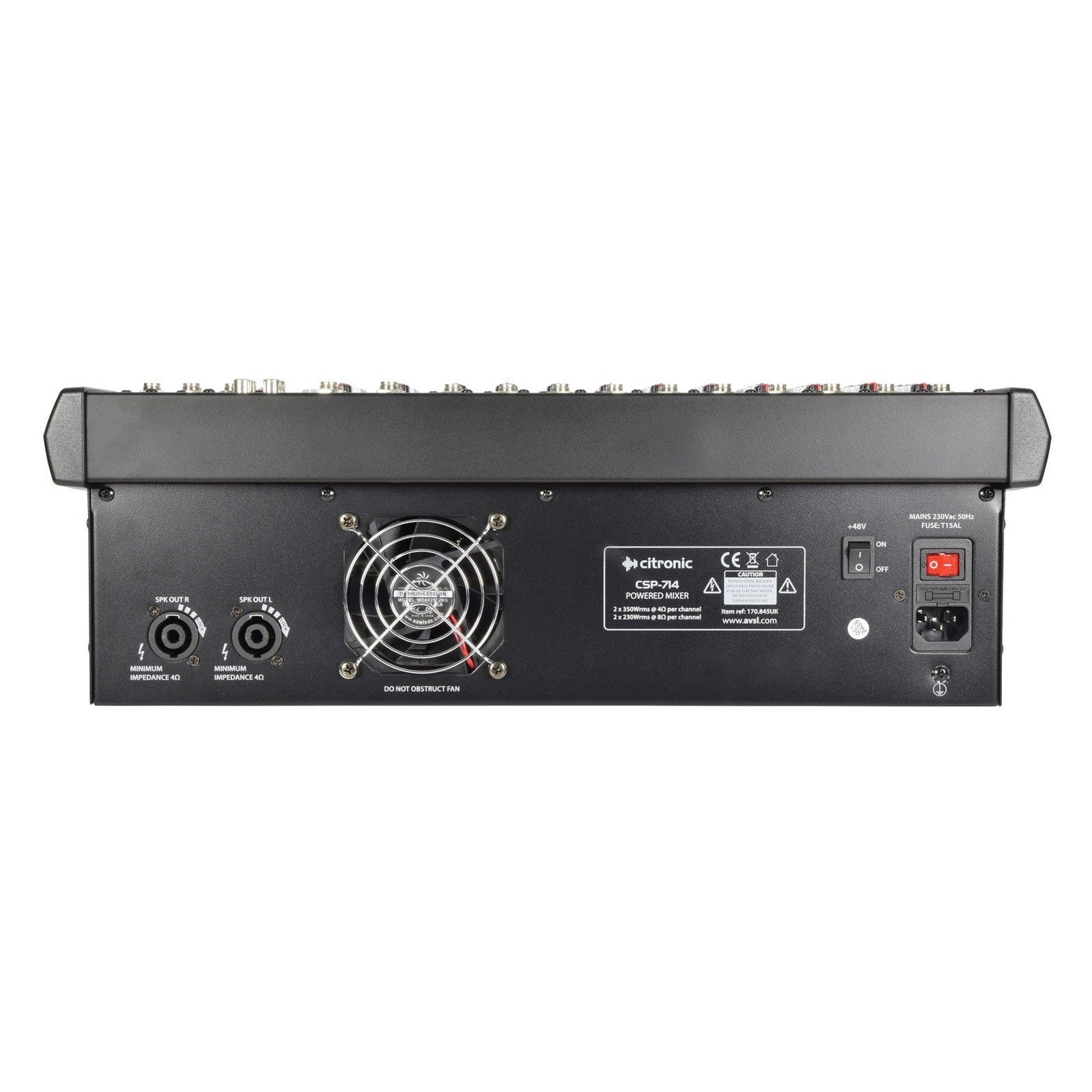

The internal stereo amplifier delivers 2 x 350W RMS at 4 Ohms or 2 x 230W RMS at 8 Ohms via L+R SPK connectors, providing substantial power and headroom to drive two or four passive speaker cabinets across medium-to-large venues and outdoor events. Balanced main XLR outputs allow for connection to additional power amplifiers or recording equipment, and 2-track RCA inputs and outputs provide convenient playback and recording connectivity. A 6.3mm headphone output supporting 30–600 Ohms impedance allows for private monitoring, rounding out a comprehensive and well-connected feature set.
