QTX RJ45 to DMX Multicore Adaptor Box – 4 x 3-Pin Female XLR Sockets

Transmit Up To 4 Channels Of DMX Over A Single CAT5/6/7 Cable With This Compact Adaptor Box – QTX RJ45 To DMX Multicore Adaptor Box 4 x 3-Pin Female XLR Sockets.

The QTX RJ45 to DMX Multicore Adaptor Box with 4 x 3-Pin Female XLR Sockets is a compact and robust solution for transmitting up to four channels of DMX lighting control data over a single shielded CAT5, CAT6 or CAT7 network cable. Designed for use as a matched pair alongside the male XLR socket version, it offers the same core functionality as the cable tail versions but in a neater panel-mount box format — making it particularly well suited to fixed installations, lighting bars, truss mounting points and any application where a more permanent and tidy DMX infrastructure is required.

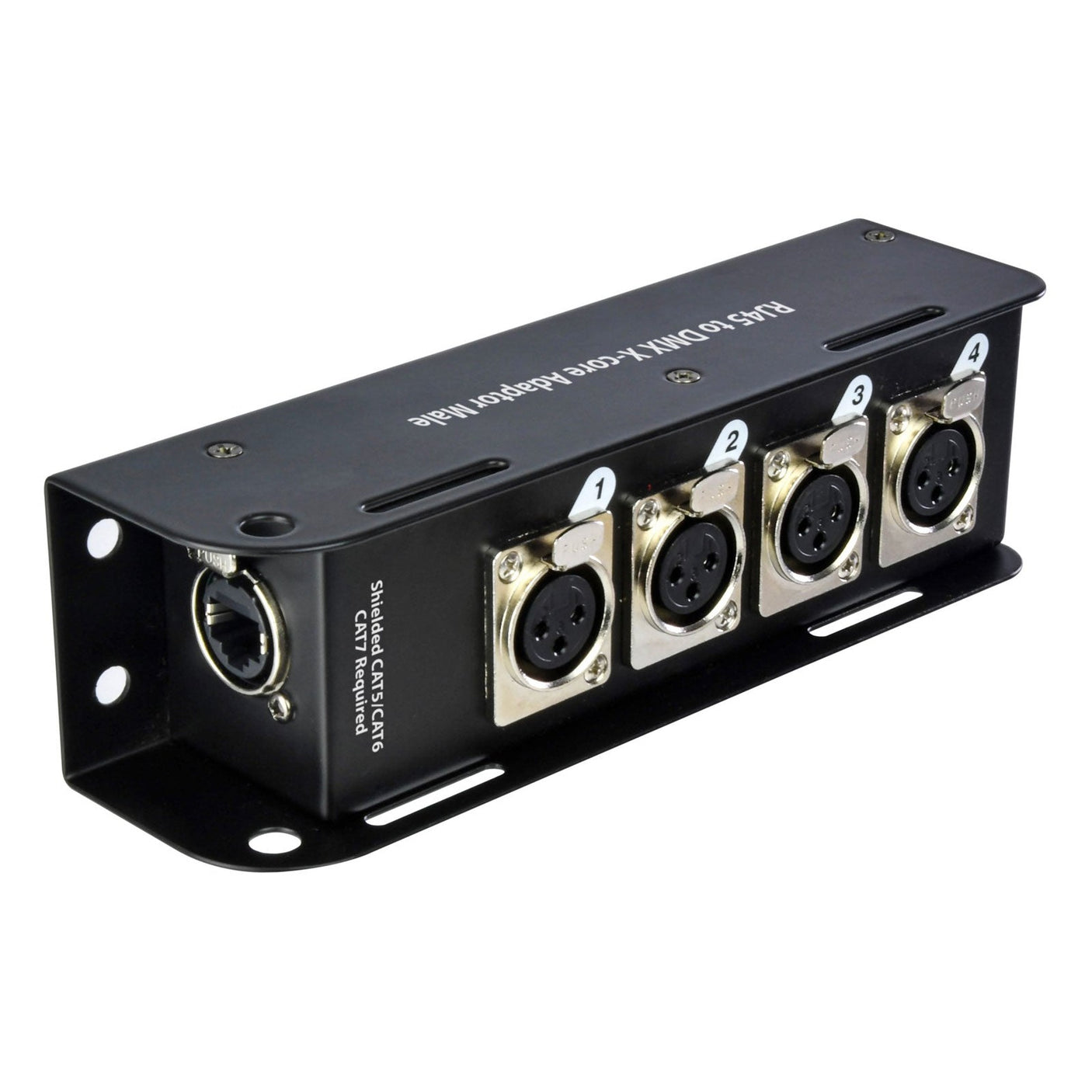

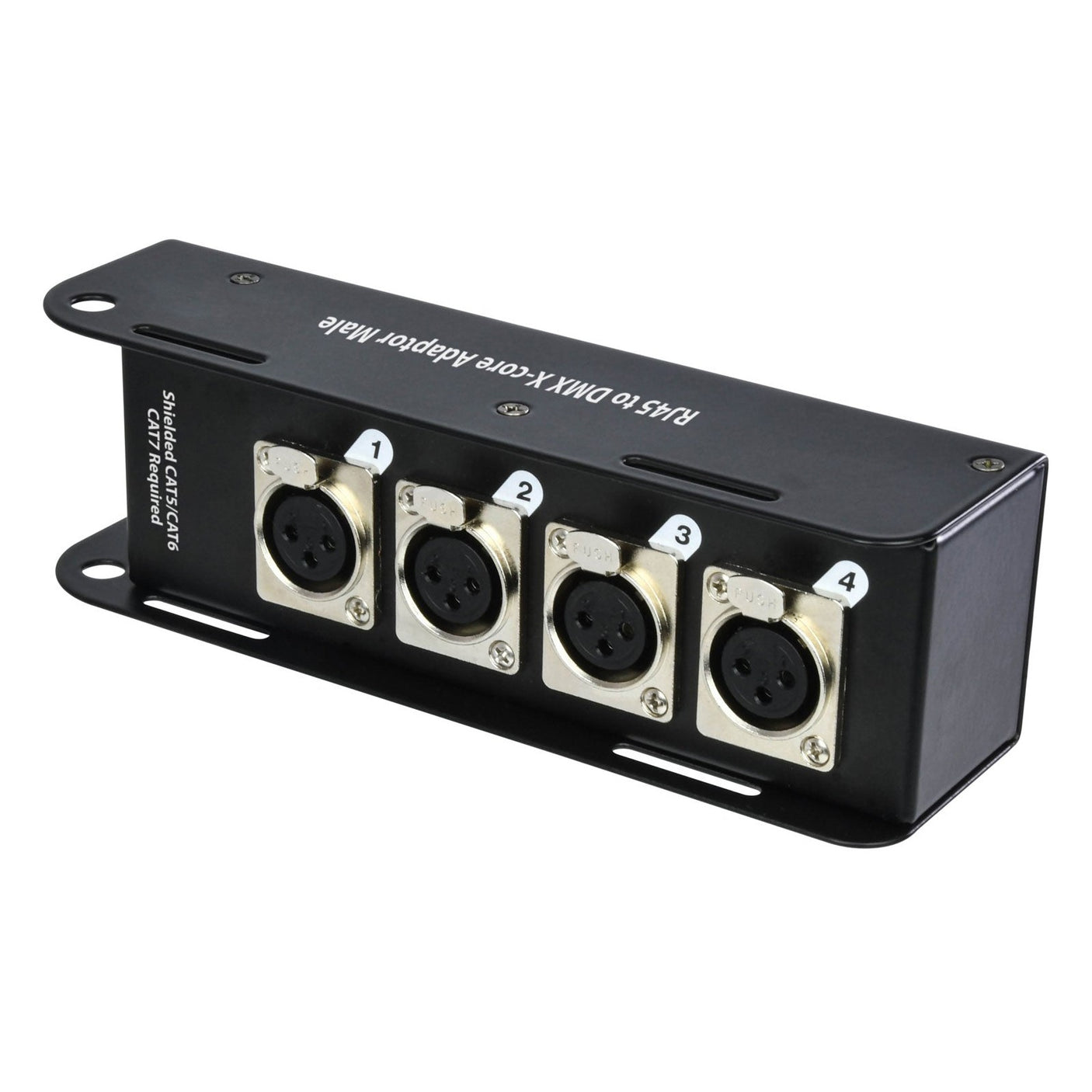

Each adaptor is housed in a rugged steel enclosure with multiple fixing points for secure and flexible mounting, and features an etherCON-style locking RJ45 connector for reliable network cable termination. The four 3-pin female XLR sockets are clearly numbered for fast and accurate channel identification and patching in both live and installation environments.

4-Channel DMX Over A Single Network Cable

By transmitting up to four independent DMX channels over a single CAT5, CAT6 or CAT7 cable, the QTX RJ45 to DMX Multicore Adaptor Box with Female XLR Sockets simplifies cable management considerably in both touring and fixed installation lighting rigs. A single network cable run replaces up to four individual DMX cables between the control position and the fixture or dimmer end of the rig — reducing weight, bulk and setup time while maintaining full DMX signal integrity throughout. The adaptors must be used as a matched pair at each end of the network cable run for correct operation.

Compact Box Format For Neat Installations

The adaptor box format houses all four XLR connections within a compact and self-contained steel enclosure measuring just 50 x 53 x 180mm, making it ideal for panel mounting on lighting bars, truss, equipment cases and fixed installation infrastructure. Multiple fixing points on the steel enclosure allow it to be securely mounted in a variety of orientations, and the etherCON-style locking RJ45 connector ensures a secure and reliable network cable connection that resists accidental disconnection in demanding live and installation environments.

Numbered Sockets For Fast & Accurate Patching

All four 3-pin female XLR sockets are clearly numbered for easy channel identification, making patching fast and accurate in live event and installation environments alike. The female XLR socket configuration makes this version ideal for use at the fixture end of the DMX run, accepting male XLR plugs from lighting fixtures, dimmer packs and other DMX-controlled devices directly into the box.

KEY FEATURES: QTX RJ45 to DMX Multicore Adaptor Box – 4 x 3-Pin Female XLR Sockets

• DMX Transmission: Transmits up to 4 independent DMX channels over a single CAT5, CAT6 or CAT7 shielded network cable when used as a matched pair, significantly simplifying cable infrastructure in live and installation environments.
• Panel-Mount Box Format: The compact self-contained box design is ideal for lighting bars, truss mounting and fixed installations where a neat and permanent DMX infrastructure is required.

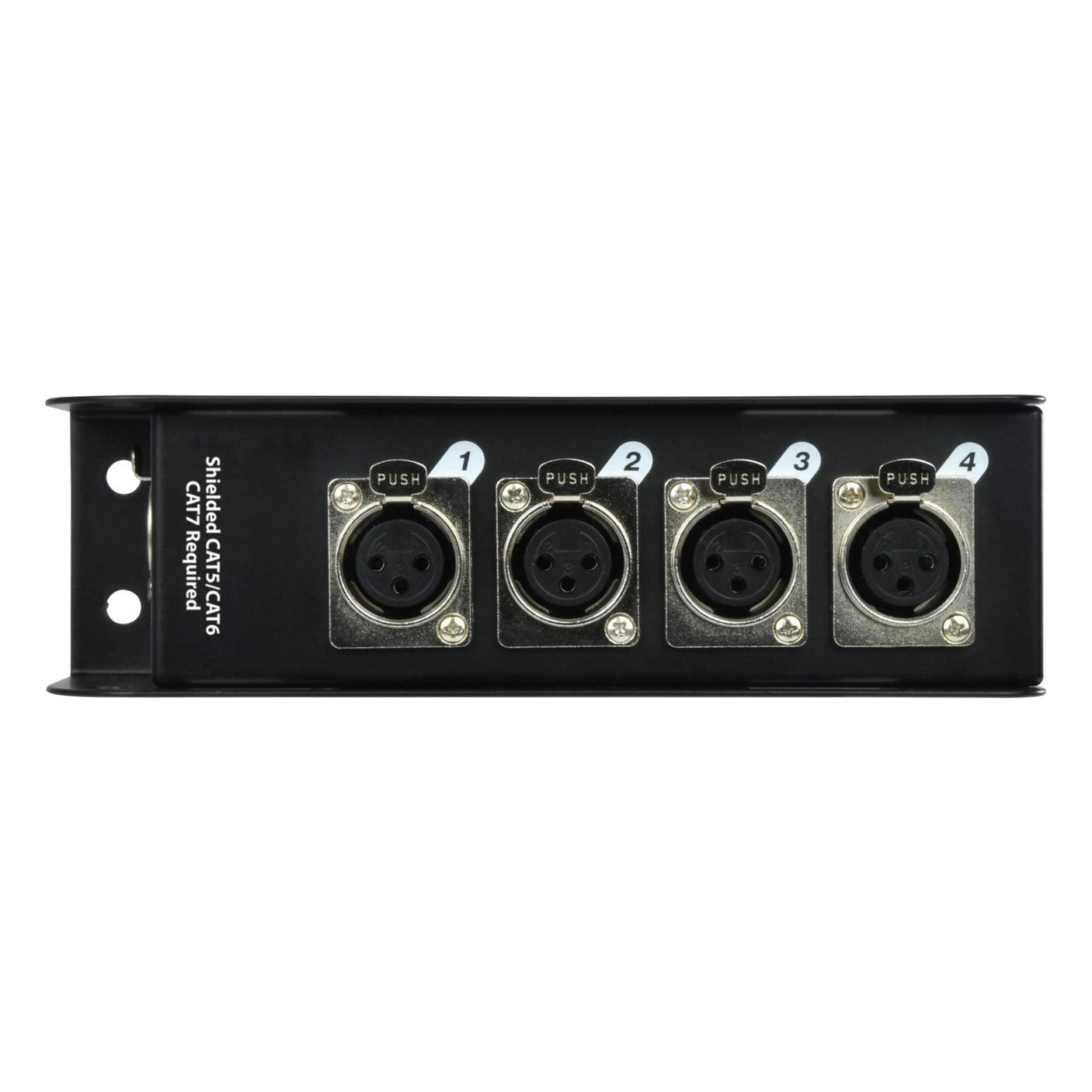

• Numbered XLR Sockets: All four 3-pin female XLR sockets are clearly numbered for fast and accurate channel identification and patching in live and installation environments.

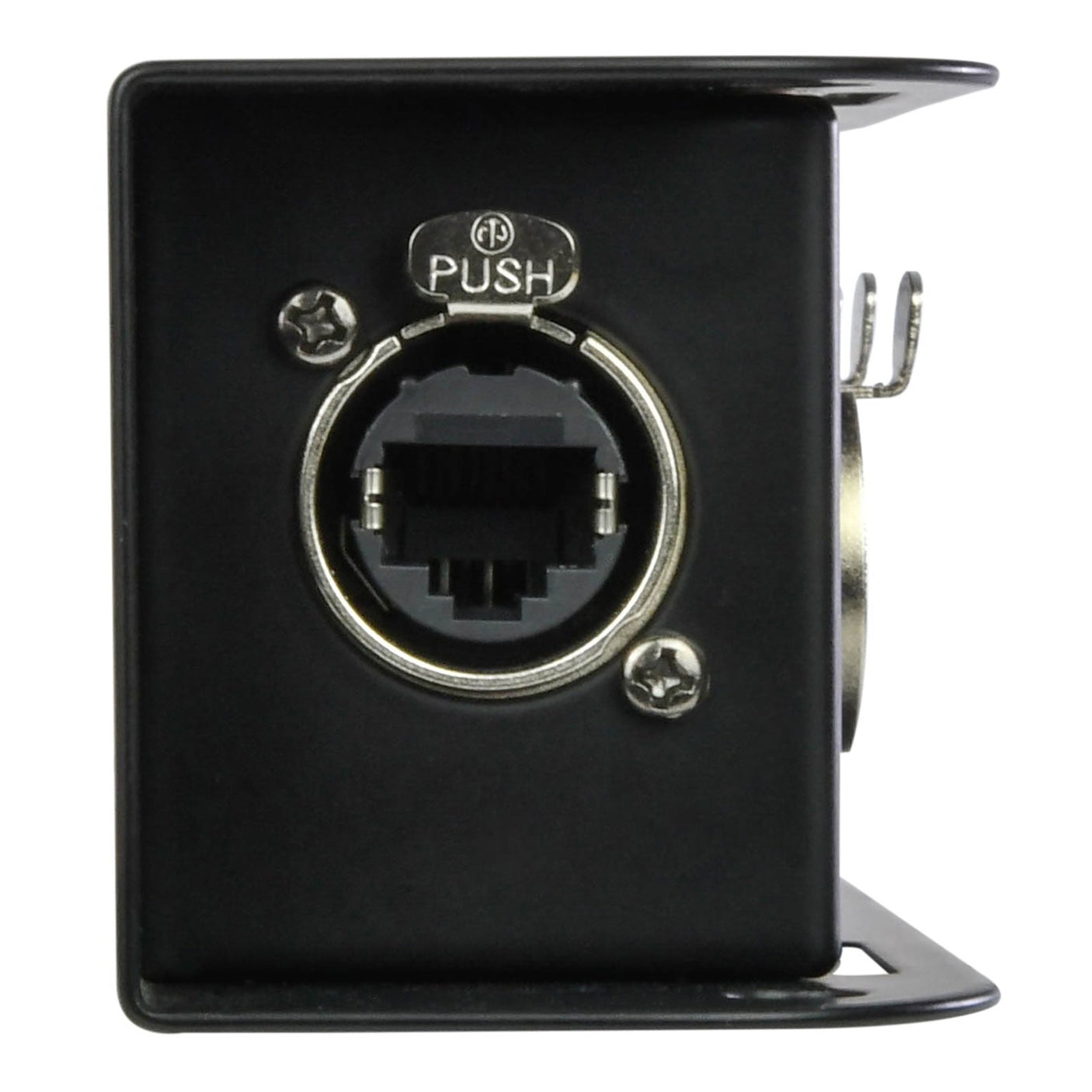

• EtherCON-Style Locking RJ45: The secure locking RJ45 connector prevents accidental disconnection during live use and installation, providing a dependable network cable termination.

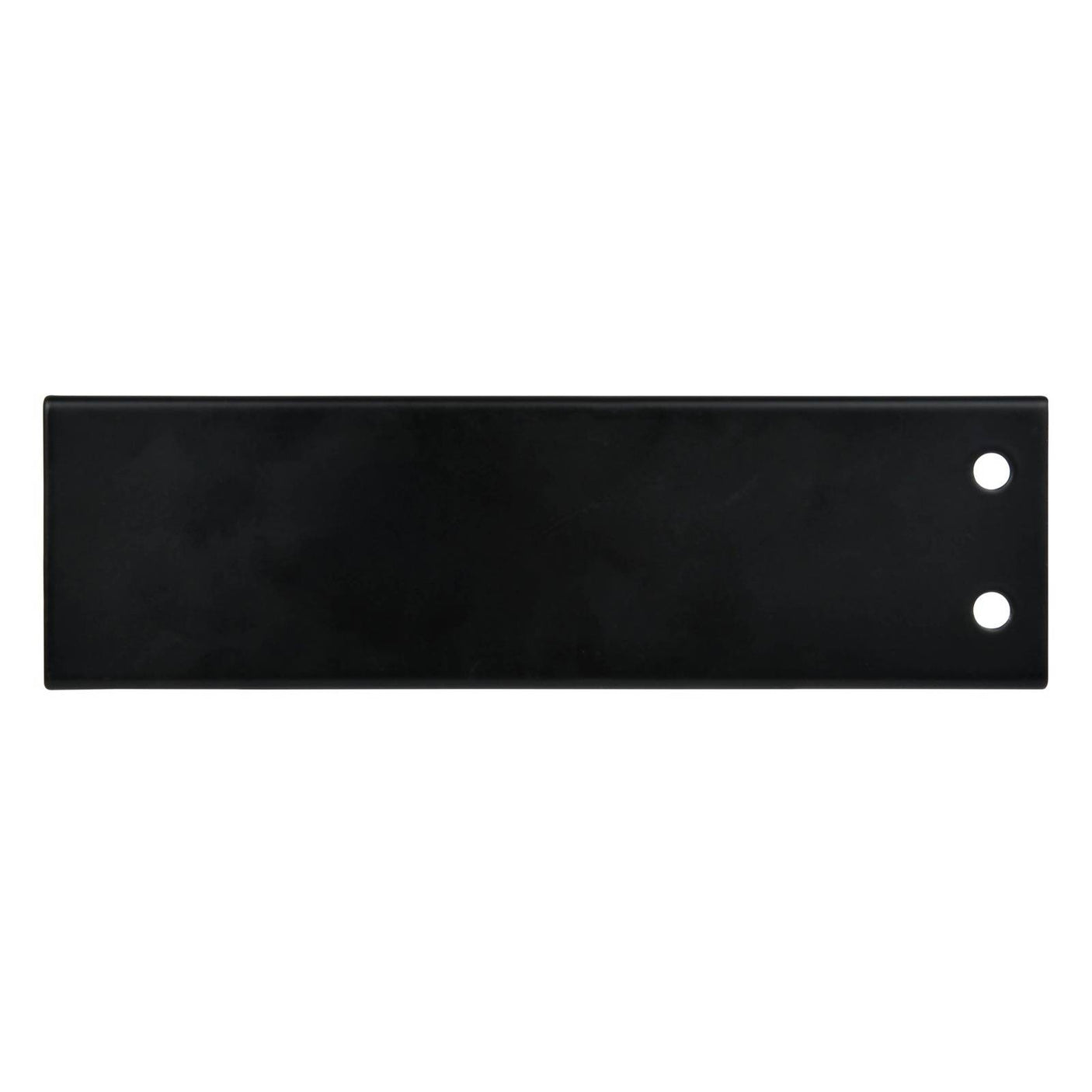

• Robust Steel Enclosure: The durable steel housing withstands the demands of live event and installation use, with multiple fixing points allowing secure and flexible mounting in a variety of orientations.
• Cable Compatibility: Designed for use with CAT5, CAT6 or CAT7 shielded network cable only for guaranteed signal performance.
• Connections: 1 x RJ45 and 4 x 3-pin female XLR sockets for straightforward integration into any DMX lighting rig.
