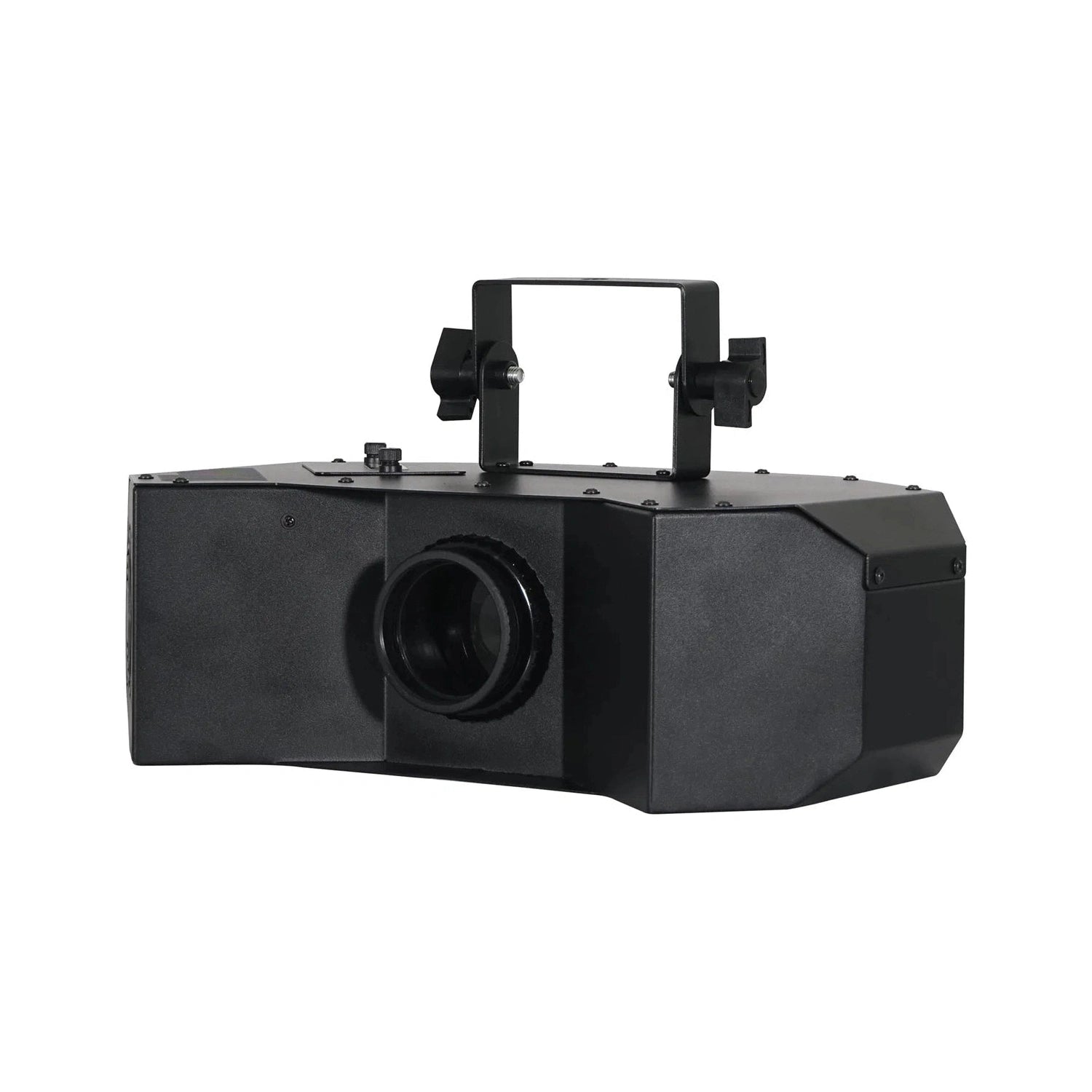

Equinox Helix XP 150W Gobo Flower LED Effect Light – Black

Powerful 150W Gobo Flower With Rotating Interchangeable Gobos & Synchronised Show Capability – Equinox Helix XP 150W Gobo Flower LED Effect Light In Black.

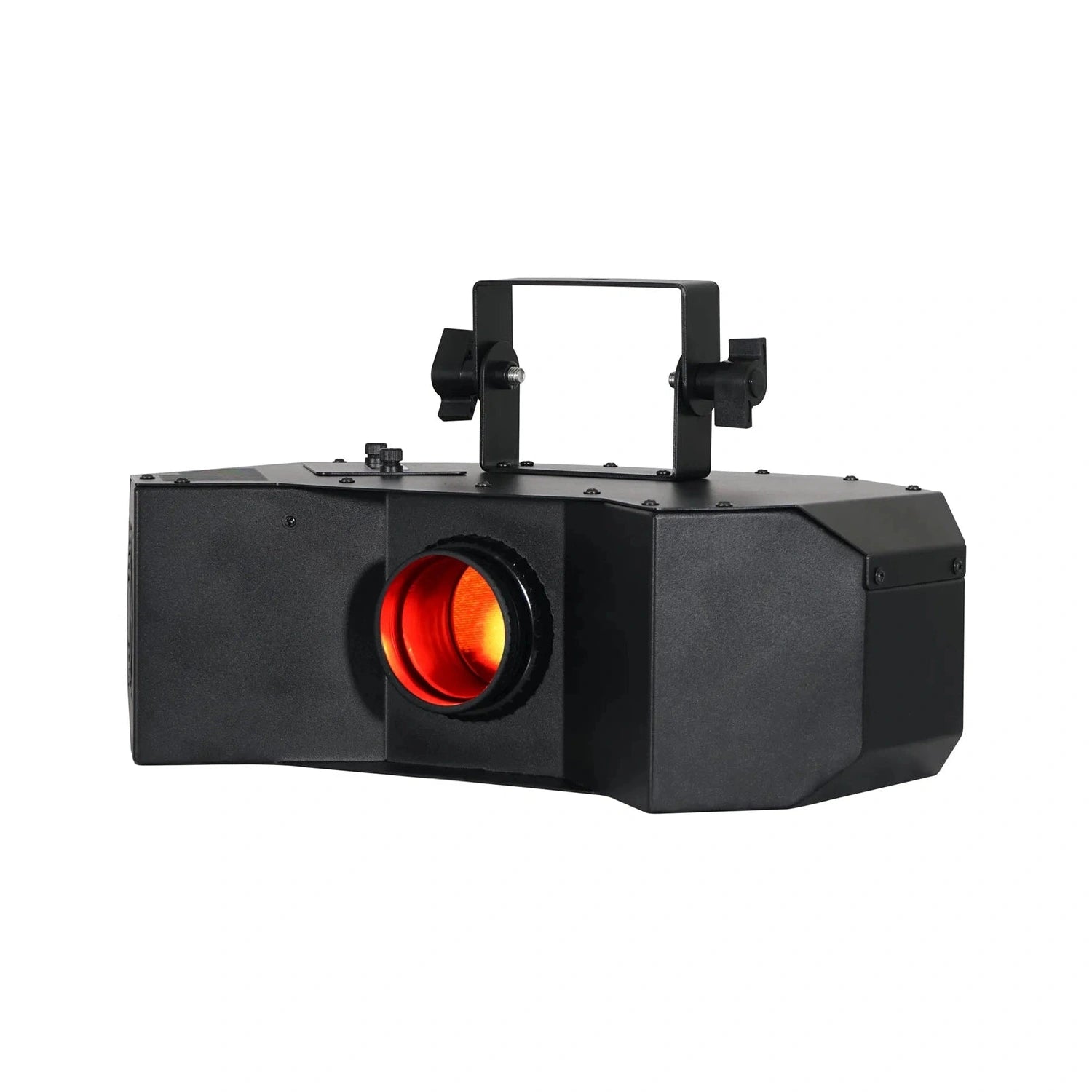

The Equinox Helix XP is a powerful 150W LED gobo flower producing an impressive array of multi-coloured rotating gobos, making it an ideal centrepiece effect for a wide range of events and venues. Featuring 8 rotating, interchangeable gobos alongside a 9-colour plus open colour wheel, it offers extensive creative flexibility straight out of the box. An additional 11-piece gobo pack is also included, covering many popular events and celebrations — giving operators a total of 19 gobos to choose from. Clever programming allows a single gobo to be selected and paired with specific colours from the colour wheel, activated automatically or via sound. Despite its compact footprint, superior optics and a high-output 150W LED ensure strong, punchy projection over long distances with a 42° beam angle.

The Helix XP can be linked with the Helix Scan XP and Helix Roller XP to create fully synchronised multi-fixture shows, making it a strong foundation for a wider Helix XP lighting rig. DMX channel modes of 2, 6 or 8 are selectable via the 4-button LED display menu, and auto, sound active and master/slave modes allow standalone operation. The optional CA 8 controller provides additional hands-on control, and PowerTwist input and output alongside 3-pin XLR connections support easy daisy chaining.

Discover The Equinox Helix XP Series In More Detail...

Rotating Interchangeable Gobos & Extensive Gobo Selection

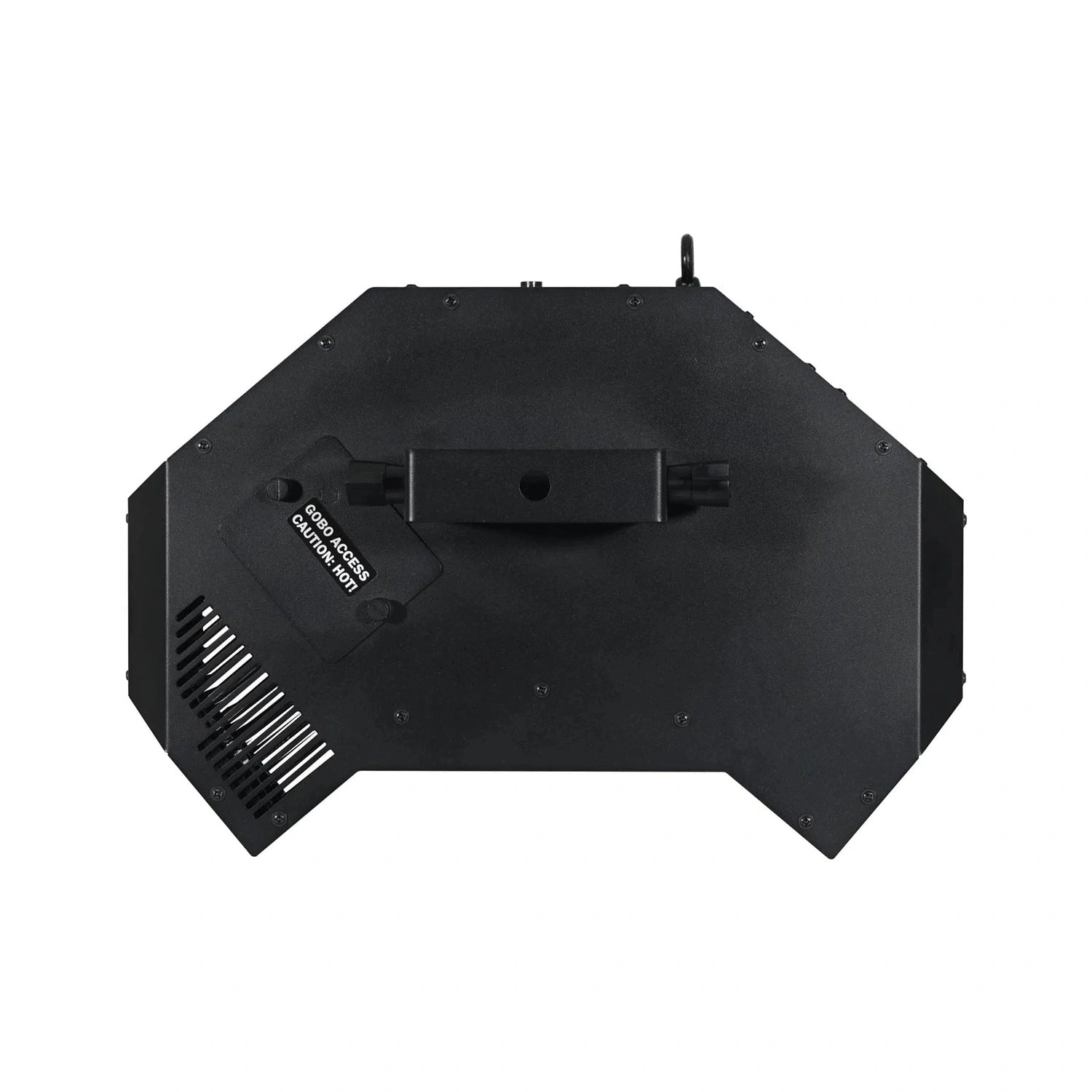

The Helix XP features 8 rotating gobos that are fully interchangeable, allowing operators to customise the fixture's output to suit any event theme or occasion. Combined with the included 11-piece additional gobo pack — which covers many popular events and celebrations — users have access to a total of 19 gobos, providing an exceptional level of versatility rarely found at this price point. The 9-colour plus open colour wheel adds further variety, enabling a wide range of colour and pattern combinations to be created.

Clever Programming & Synchronised Shows

Built-in programming allows a single gobo to be isolated and paired with a specific colour from the colour wheel, with the effect triggered automatically or via sound for a more tailored and dynamic result. The Helix XP can also be linked with the Helix Scan XP and Helix Roller XP to create fully synchronised multi-fixture shows, making it an ideal building block for a cohesive and impactful lighting rig across larger events and stages.

Compact Design, Long-Distance Projection

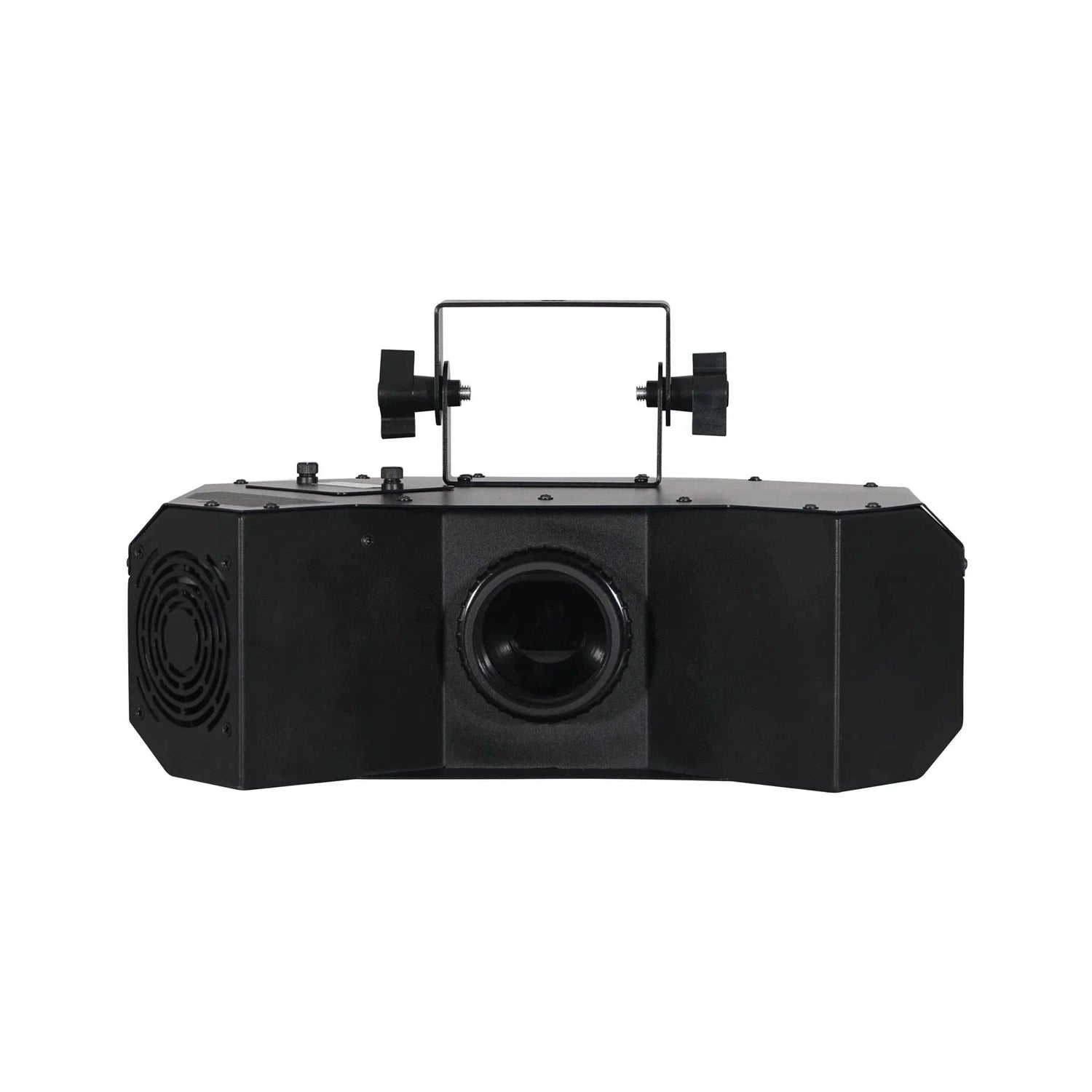

Despite its modest dimensions, the Helix XP delivers powerful, far-reaching gobo projection thanks to its 150W high-output LED and superior optics. The 42° beam angle ensures wide coverage across walls and dance floors, while manual focus allows precise sharpness adjustment to suit the throw distance and surface. Fan cooling ensures consistent performance throughout extended use, and the dual position mounting bracket supports a variety of rigging configurations.

KEY FEATURES: Equinox Helix XP 150W Gobo Flower LED Effect Light – Black

• LED Source: 1 x 150W cool white LED at 7,200K for bright, crisp gobo projection.
• Beam Angle: 42° with superior optics for strong long-distance projection.
• Focus: Manual focus for precise sharpness adjustment.
• Gobos: 8 rotating, interchangeable gobos plus an additional 11-piece gobo pack included.
• Colours: 9 colours plus open.
• DMX Channels: 2, 6 or 8 channel modes selectable.
• Control Modes: Auto, sound active and master/slave modes plus built-in programs.
• Dimming: 0–100% smooth dimming.
• Strobe: Variable strobe effect.
• Display: 4-button menu with LED display for straightforward on-fixture programming.

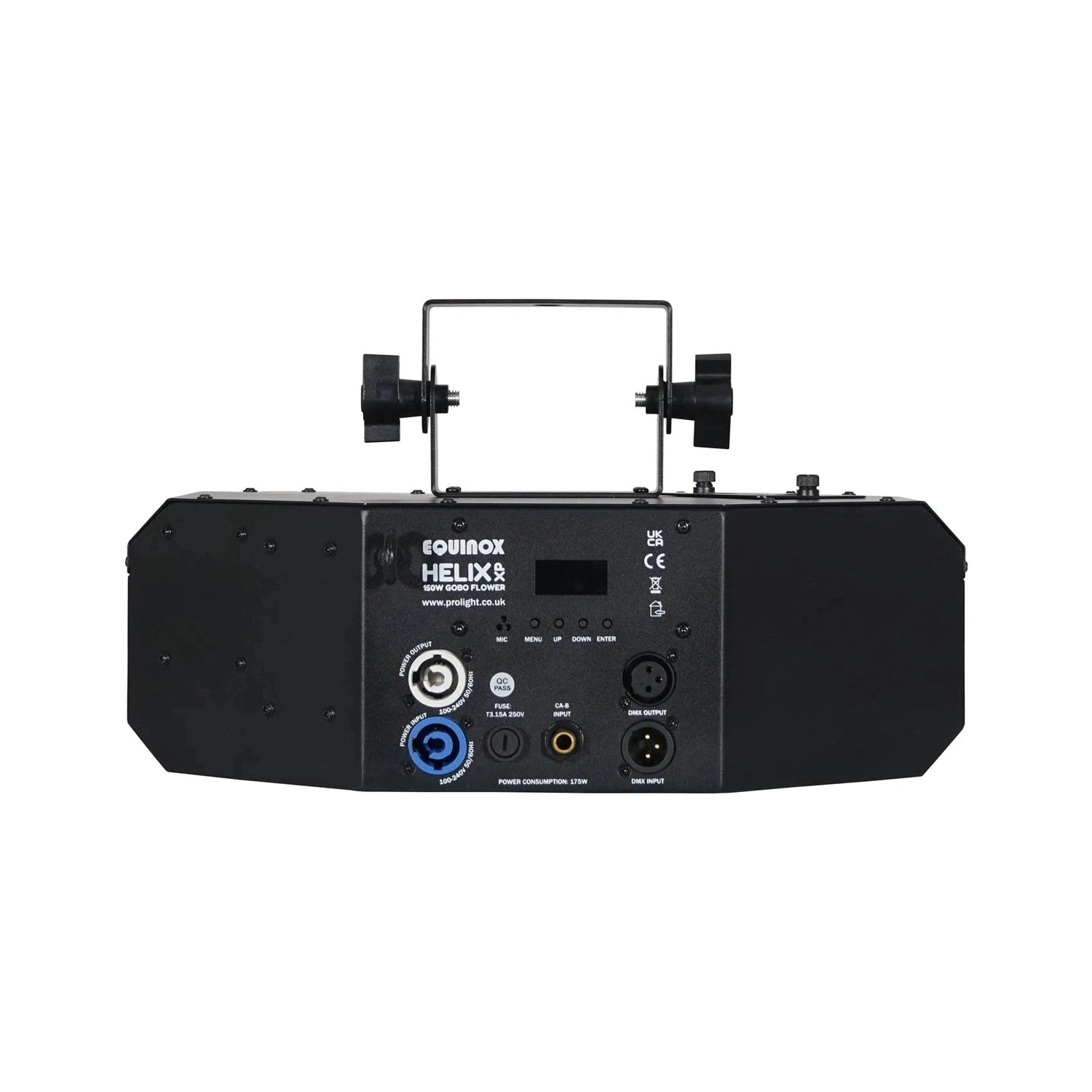

• Connections: PowerTwist input/output, 3-pin XLR input/output.

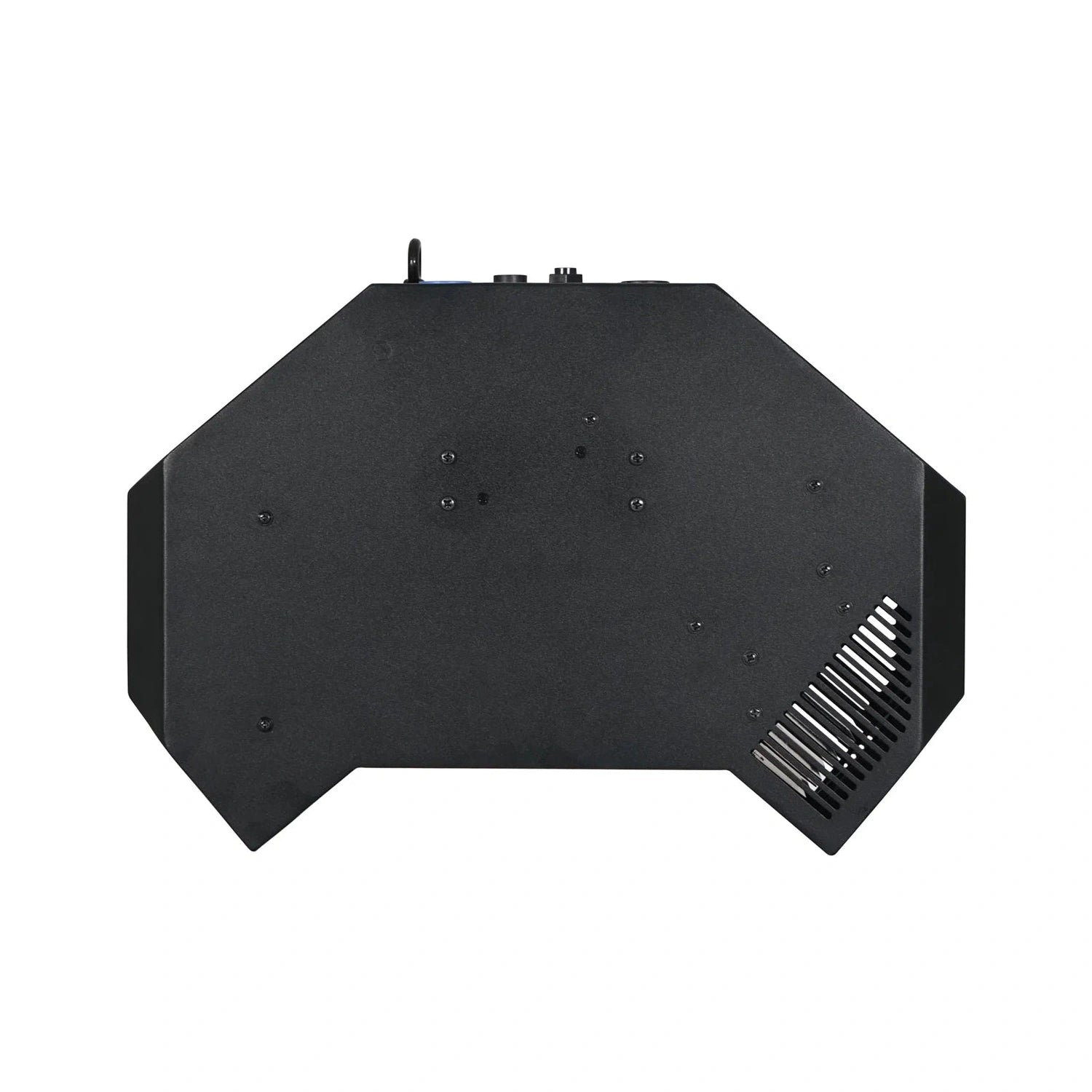

• Cooling: Fan cooled for reliable performance during extended use.

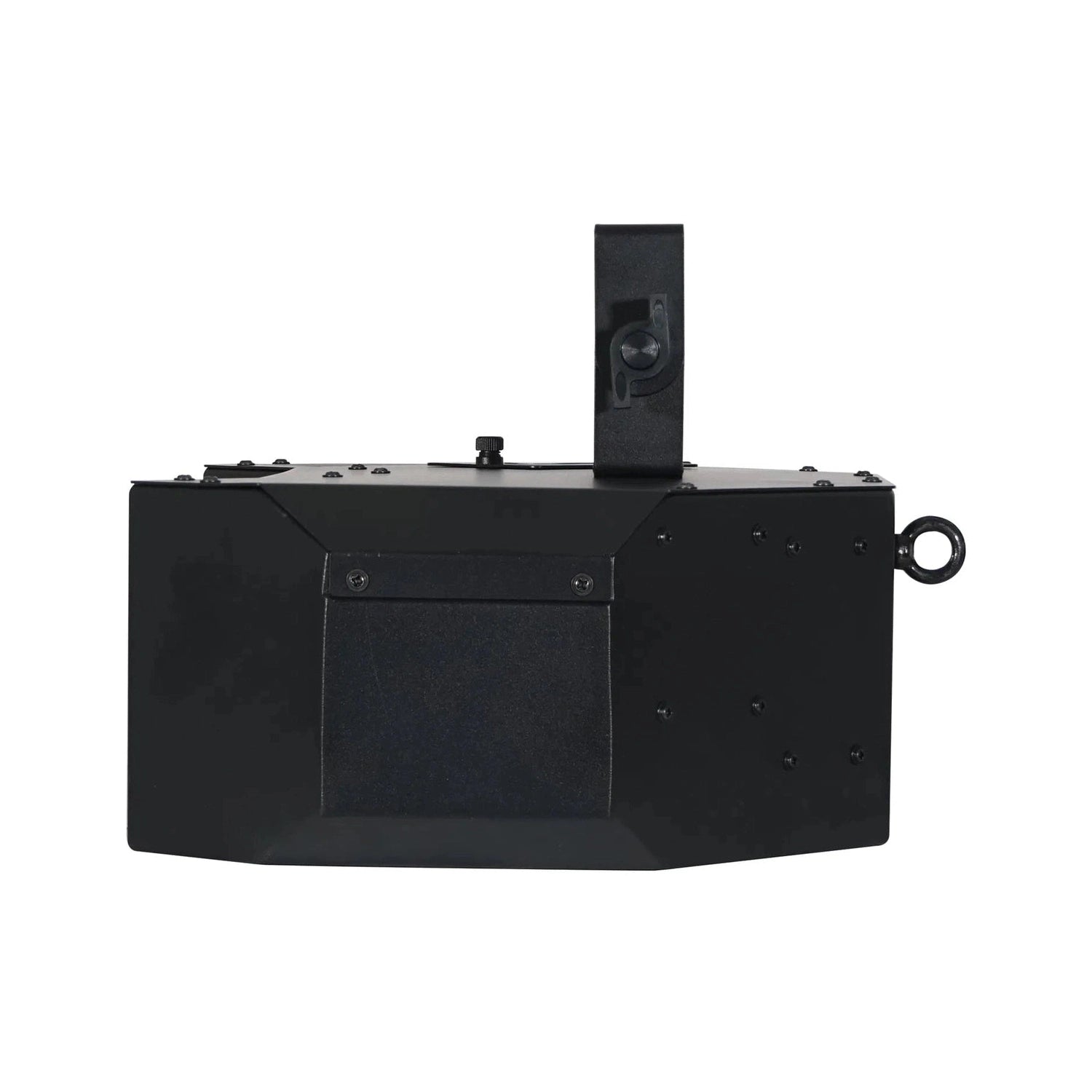

• Mounting: Dual position mounting bracket included.
• Optional Accessory: Compatible with CA 8 controller (sold separately).
• Linkable: Can be synchronised with the Helix Scan XP and Helix Roller XP.


Download the user manual here
