TrueTone 1-SPOT PRO XP8-PS - Output Expansion Box with Power Supply

TrueTone 1-SPOT PRO XP8-PS  – All-Inclusive, High-Current Isolated Power for Large Pedalboards

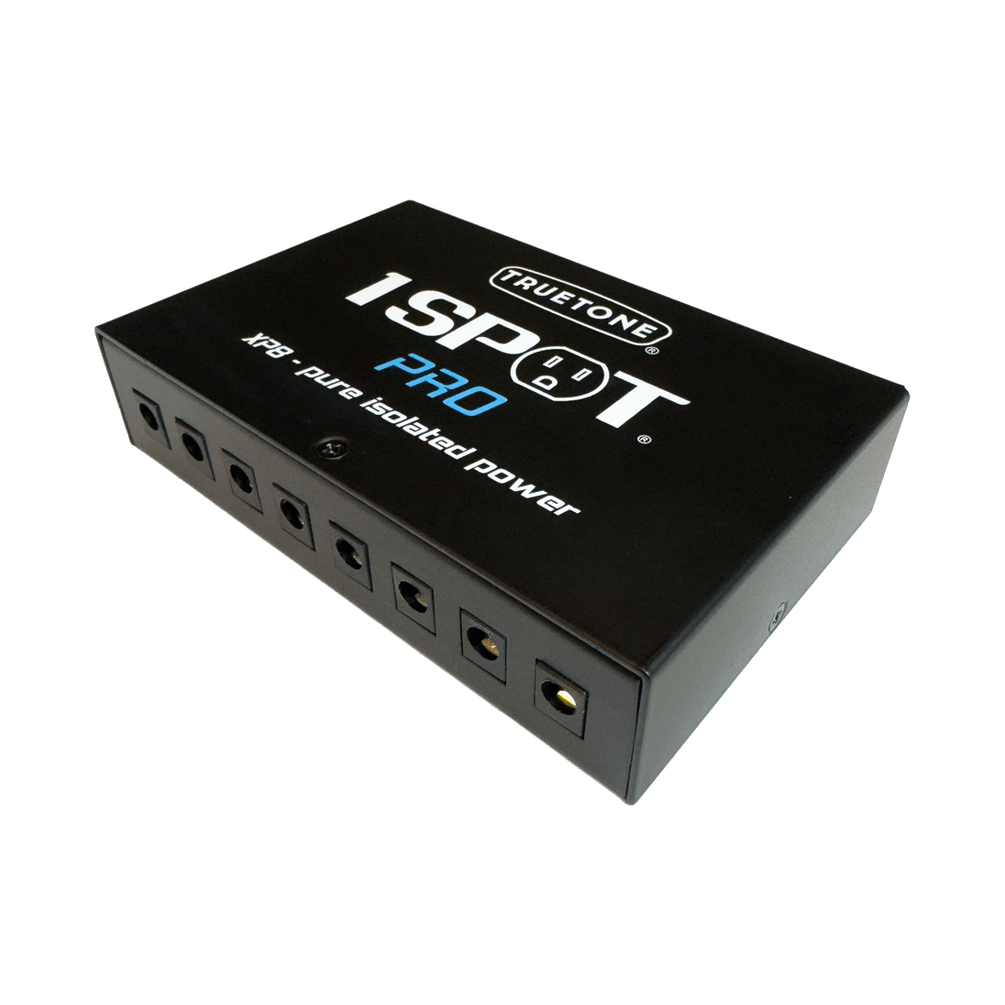

The TrueTone 1 SPOT Pro XP8-PS is a robust, compact, and fully self-contained isolated power supply designed to fuel demanding pedalboards with pristine, noise-free power. Unlike expansion units, the XP8-PS includes its own dedicated external power adapter with international plugs, making it a comprehensive solution ready for worldwide use right out of the box.

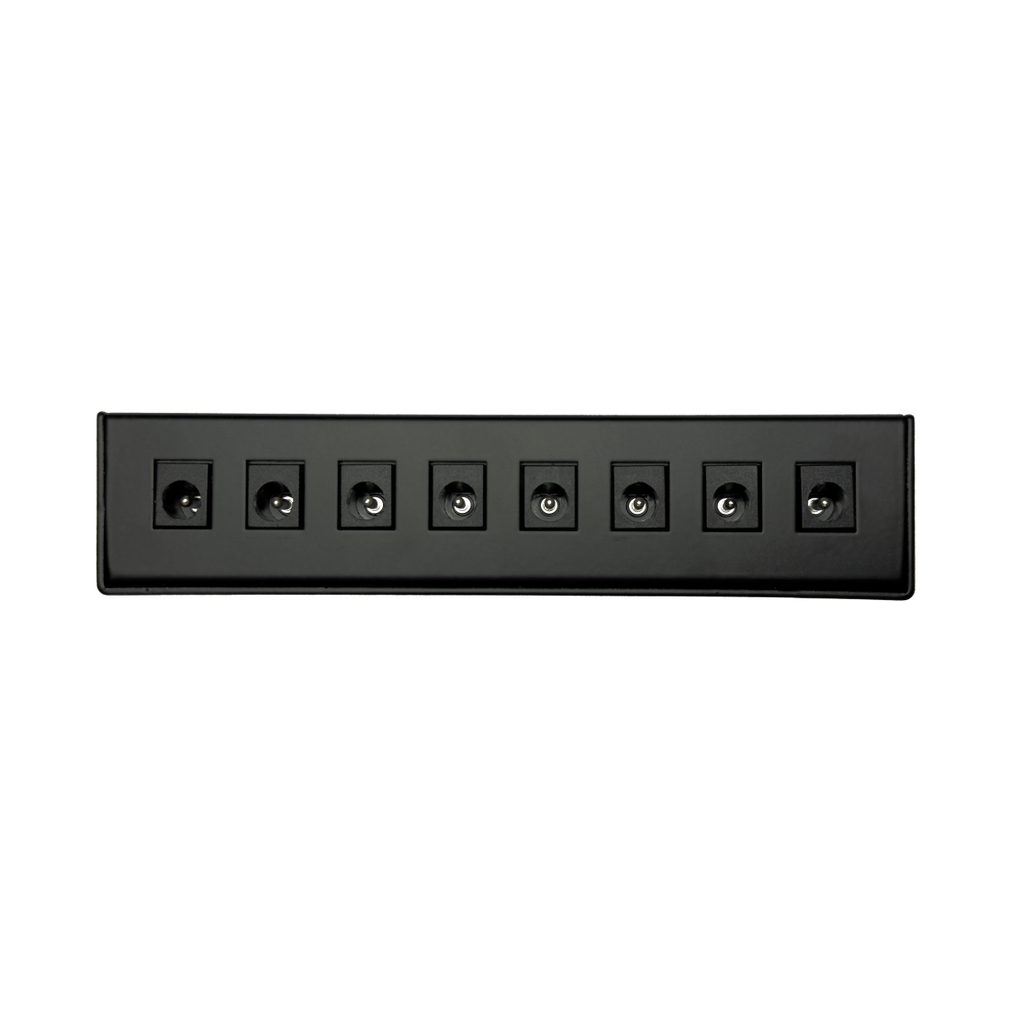

Featuring eight fully isolated, regulated, and filtered 9V DC outputs, each capable of delivering at least 500mA of current, the XP8-PS ensures reliable, hum-free performance for a wide array of digital and analog effects, even those with high current demands.

Pure Isolation Technology for Uncompromised Performance

Built with TrueTone's proprietary 1 SPOT Technology, the XP8-PS employs a advanced switching power supply design that eliminates noise, provides total electrical isolation between outputs, and delivers consistent, studio-clean power. Each of the eight outputs is engineered to handle substantial current draw, exceeding their labeled 500mA capacity when needed, allowing you to connect various power-hungry digital delays, reverbs, and multi-effects without compromise. This robust design safeguards your pedals from ground loops and electrical interference, ensuring the purest possible signal from your effects.

Compact, Expandable, and Globally Ready for Any Setup

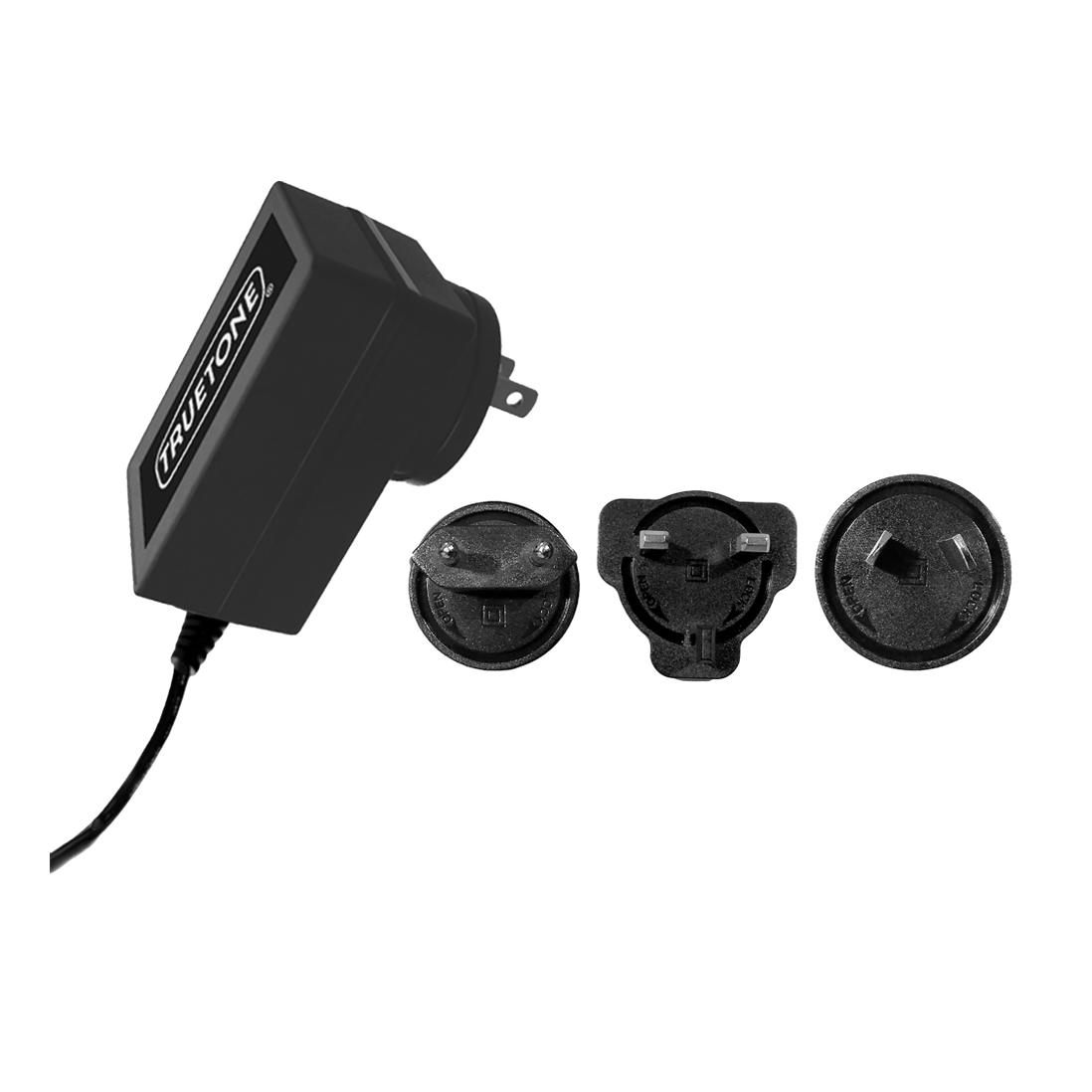

The XP8-PS boasts an incredibly low-profile and compact form factor, designed to fit seamlessly under virtually any pedalboard or even serve as a pedal riser on top. Its durable steel housing is built to withstand the rigours of touring and gigging. The included 12V DC, 4.0A external power adapter comes with four interchangeable plugs, guaranteeing compatibility in most regions worldwide. For expanding larger setups, the XP8-PS features two linked input jacks, allowing you to easily connect a second XP8 or XP5 unit, creating a scalable and versatile power system for growing pedal collections.

KEY FEATURES: TrueTone 1-SPOT PRO XP8-PS - Output Expansion Box with Power Supply

• 8 Fully Isolated Outputs: Provides clean, noise-free power by eliminating ground loops.
• High Current Capability: Each 9V DC output delivers at least 500mA for power-hungry digital pedals.
• Self-Contained Solution: Includes its own dedicated 12V DC, 4.0A external power adapter with international plugs.
• Ultra Low Profile Design: Compact dimensions (133 x 88 x 30mm) for easy pedalboard mounting.
• Worldwide Compatibility: Universal input voltage and interchangeable plugs for global use.

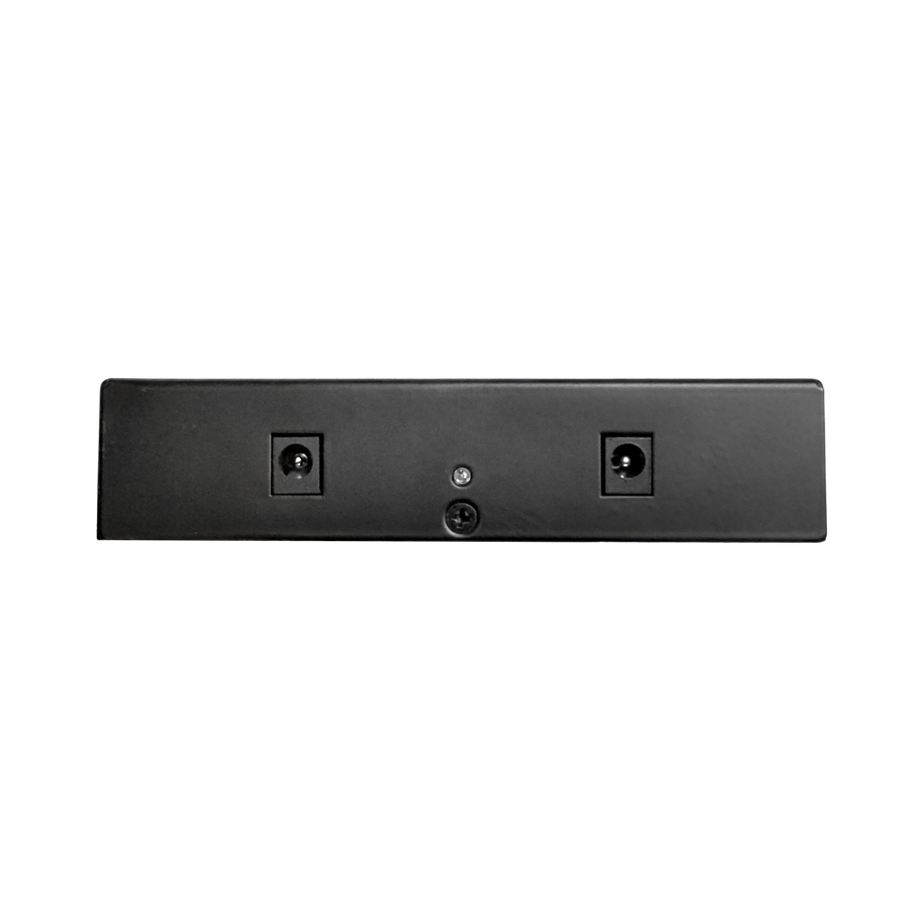

• Expandable System: Features linked input jacks to power additional TrueTone XP8 or XP5 units.


TrueTone 1 SPOT PRO XP8-PS - User Manual
