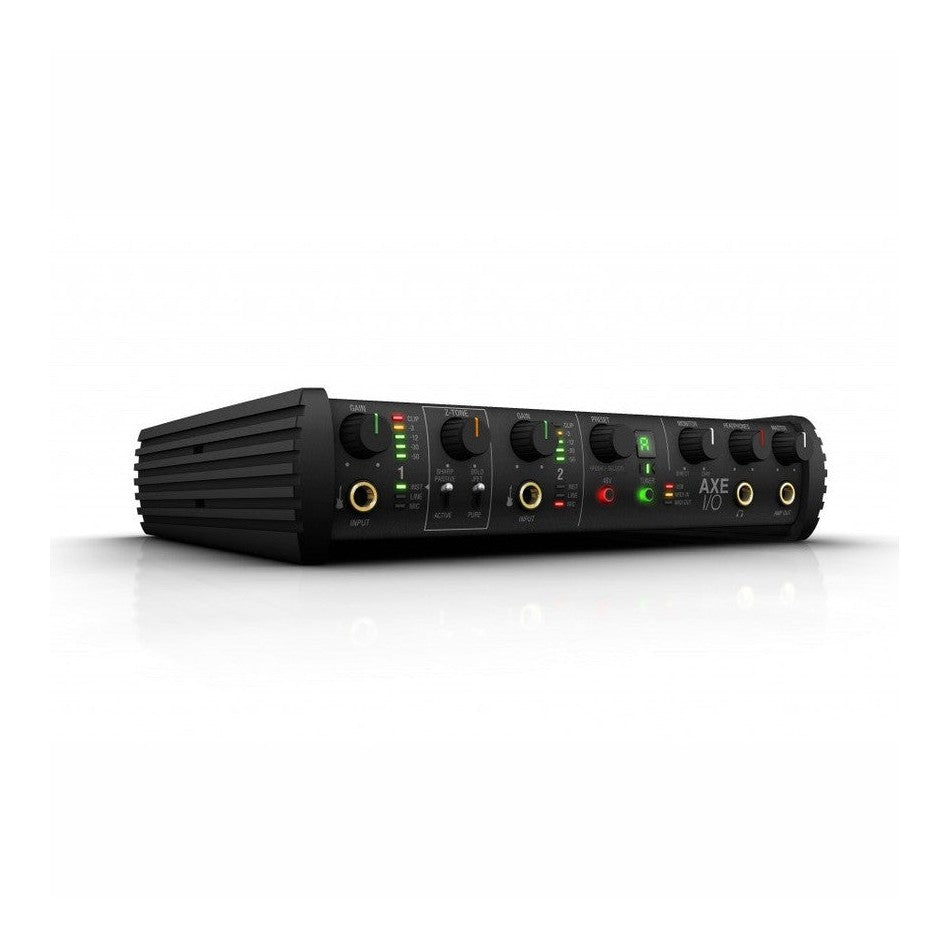

IK Multimedia AXE I/O USB Audio Interface with Advanced Guitar Tone Shaping

IK Multimedia | SKU: IP-INT-AXEIO-IN

Product Highlights

2-In / 5-Out Professional USB Audio Interface
Triple-Topology Guitar Input With Z-TONE® Impedance Control
PURE / JFET / ACTIVE Instrument Preamp Options
Dedicated Amp Out For Reamping & Tone Modeling
High-Resolution Class-A Mic Preamps With Phantom Power
2 Configurable Controller Inputs + MIDI I/O
Built-In Preset Knob & Tuner

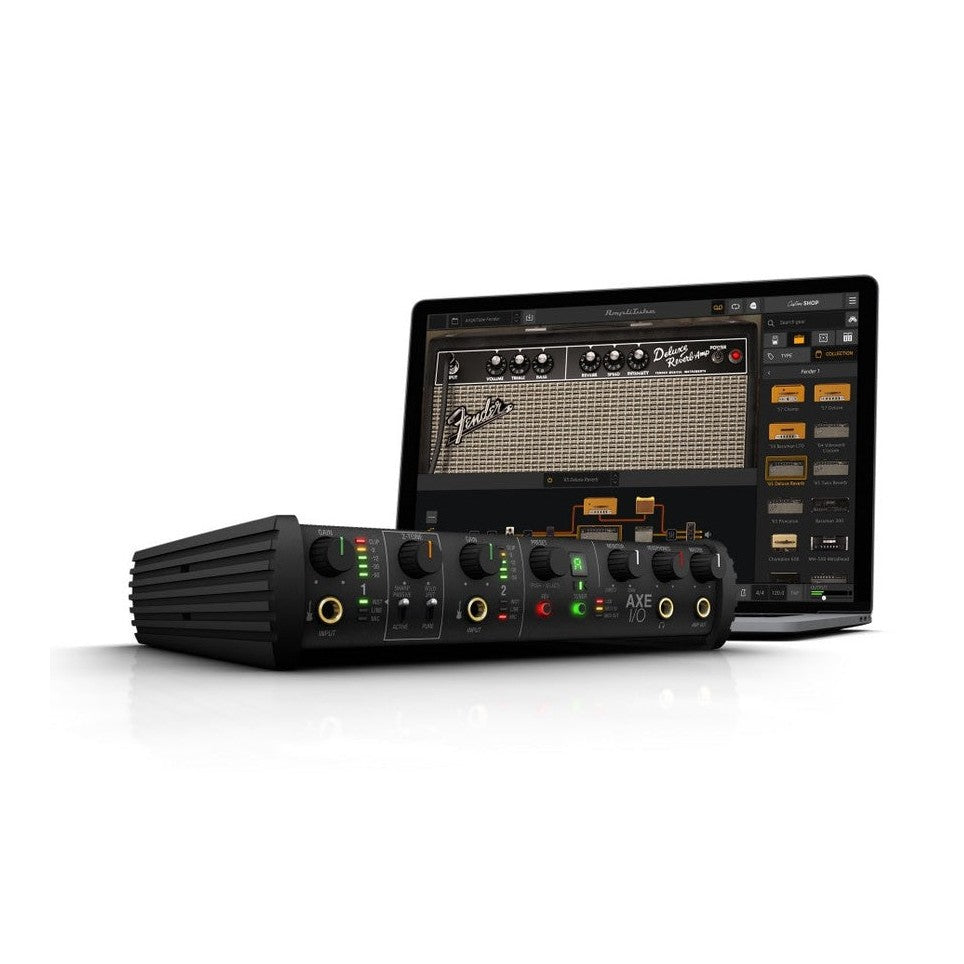

Includes AmpliTube 5 SE & TONEX SE Software
24-Bit / 192 kHz Conversion, 117 dB Dynamic Range

Rugged Compact Metal Housing

£283.00

Expert Advice, Click for Help

Need help? Call us on: 02476 369897

Use Live Chat or e-mail us directly at: sales@audiodirect.co.uk

OPEN: Mon to Fri - 9am to 5pm (Closed Sat/Sun)

We are more than online retailers, our sales staff have a passion for making music and give honest frank feedback on their experience with your chosen product. Call us for a chat or read all about us HERE>

FREE Delivery & Easy Returns Info

DELIVERY

FREE Mainland UK Shipping for orders over £99 (Standard Service 2-3 days)

£3.99 per order for orders below £99. (Standard Service 2-3 days)

FAST Delivery Needed? We got you! find express delivery options at checkout or read our: Comprehensive delivery information HERE>

EASY RETURNS

Not completely happy with your audio gear? No problem! simply return it back to us for a full refund within 60 days of purchase.

Find comprehensive return T/C instructions HERE>

Why Purchase from Us!

Est. in 2001, 25 years of 5-star reviews
Expert advice, before & after your purchase
Official® brand retailers, no grey imports!
Manufacturer warranties you can rely on
Price match promise, never knowingly beaten on price
Confidence at checkout. 100% Secure shopping
FREE UK delivery on purchases over £99.00
Fast next-day delivery, trustworthy delivery partners & secure packaging
Quick & easy 60 days returns

We are more than online retailers. We have a passion for playing, making, and recording music. We only sell products we would be happy to use and that you can rely upon.

Read All About Us HERE>

Description

High-End Guitar Recording Made Simple – IK Multimedia AXE I/O.

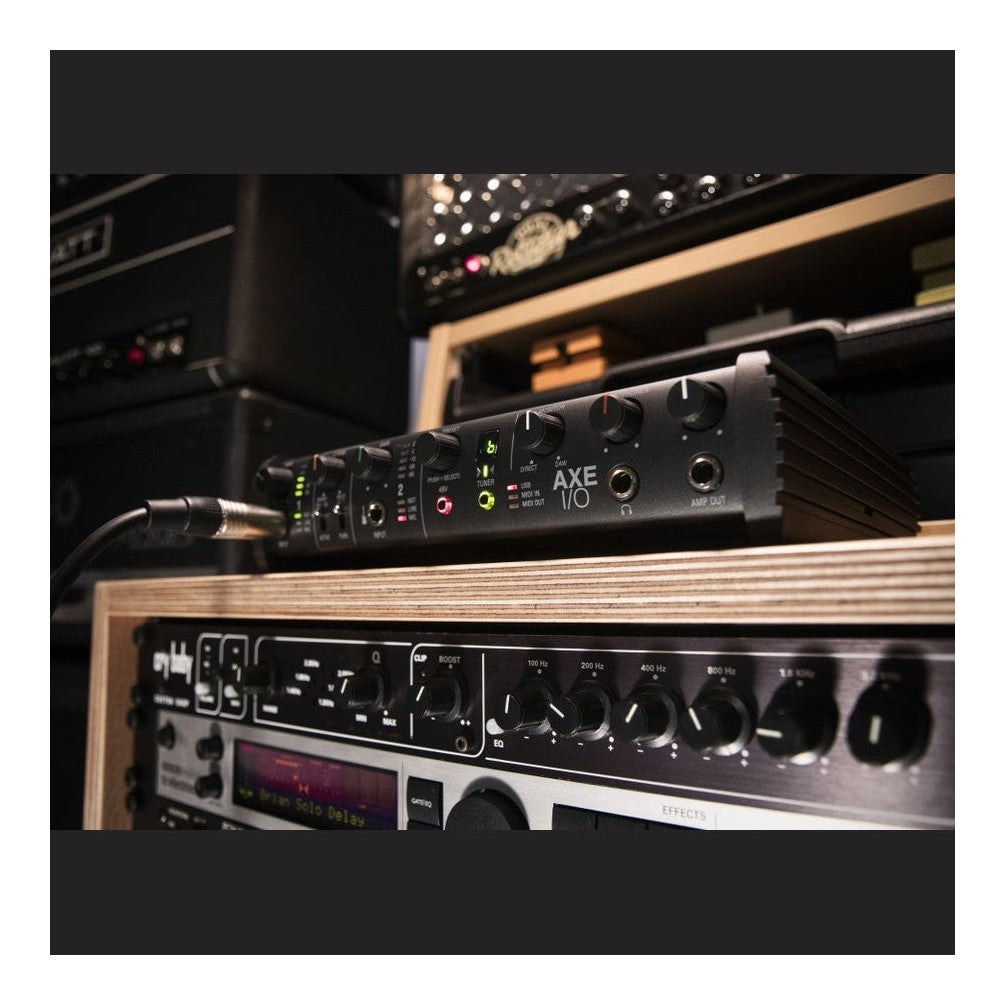

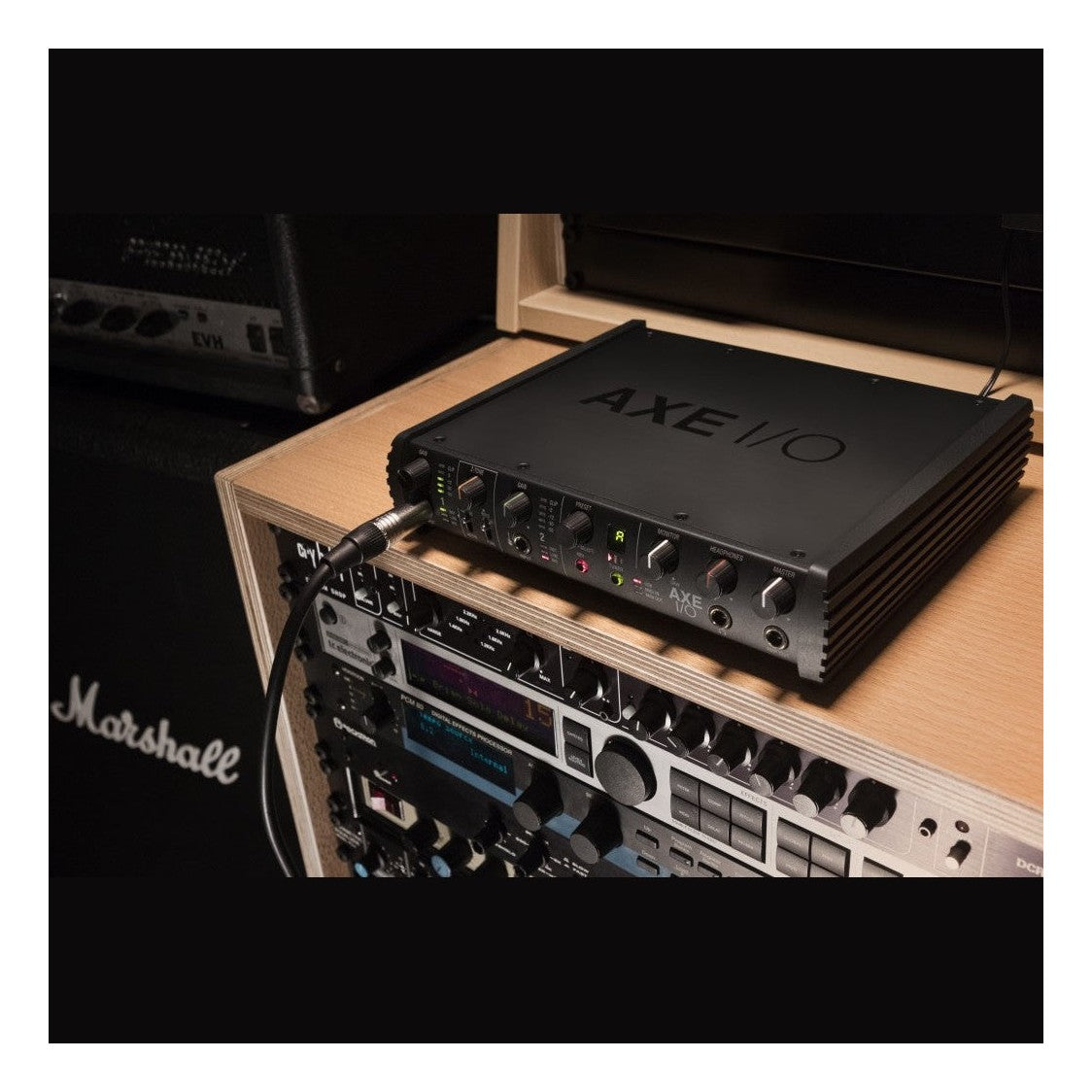

The IK Multimedia AXE I/O is a professional 2-in/5-out USB audio interface designed specifically for recording guitar and bass with exceptional tonal fidelity. Featuring Z-TONE® impedance control, triple-topology input stages, and a dedicated Amp Out, it allows guitarists to capture the pure character of their instruments while maintaining complete creative control. Perfect for home studios, rehearsal spaces, live streaming setups, and professional recording environments, AXE I/O combines studio-quality audio with guitarist-focused features.

Watch The IK Multimedia AXE I/O In Action...

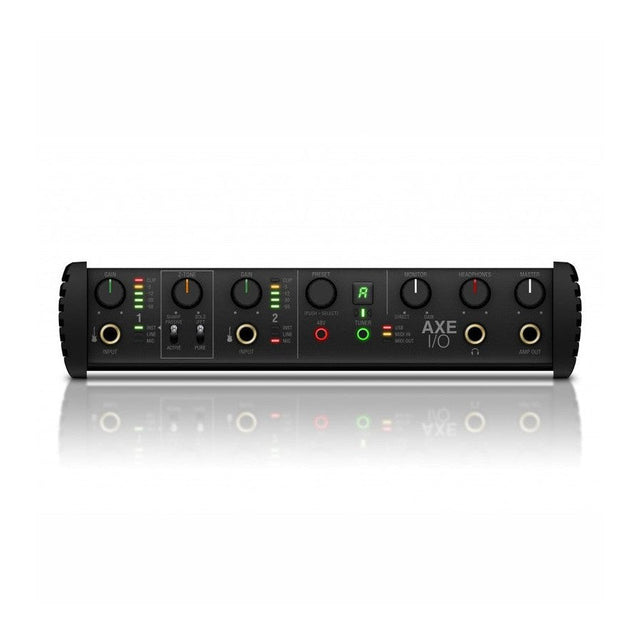

Flexible Guitar Input & Tone Control

AXE I/O’s triple-topology input provides three distinct modes—PURE, JFET, and ACTIVE—allowing you to capture transparent, harmonically rich, or active pickup tones. The patent-pending Z-TONE® circuit gives unprecedented control over pickup interaction, with impedance adjustable from 1 MΩ (“sharp”) to 2.2 kΩ (“bold”), enabling you to fine-tune your guitar’s character for recording or live performance.

Transparent Mic Recording

Equipped with two ultra-low-noise Class-A PURE mic preamps with phantom power, AXE I/O delivers crystal-clear recordings of vocals, acoustic instruments, and pianos. These preamps maintain a wide 5 Hz – 32 kHz frequency response and 116 dB dynamic range, preserving the true sonic character of your instruments without coloration.

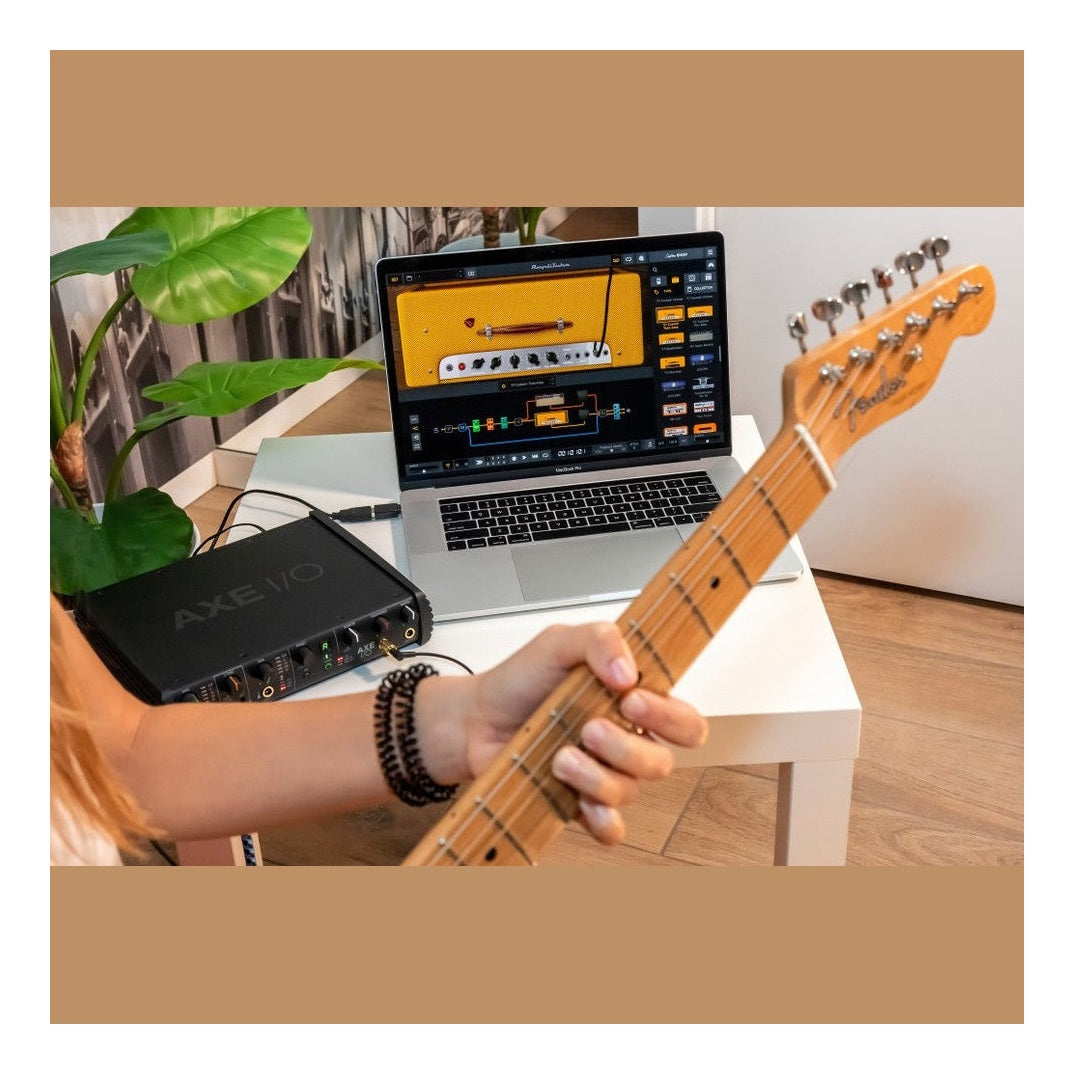

Tone Modeling, Reamping & Software Integration

The dedicated Amp Out allows direct connection to guitar amps or pedals for reamping, live Tone Modeling, or hybrid recording setups. Included AmpliTube 5 SE and TONEX SE software give access to thousands of amp, cabinet, and pedal models, as well as AI-driven Tone Modeling, with full integration into your DAW or standalone sessions. Use the included ToneNET service to explore over 6,000 presets and 10,000+ Tone Models for endless creative possibilities.

Advanced Control & Connectivity

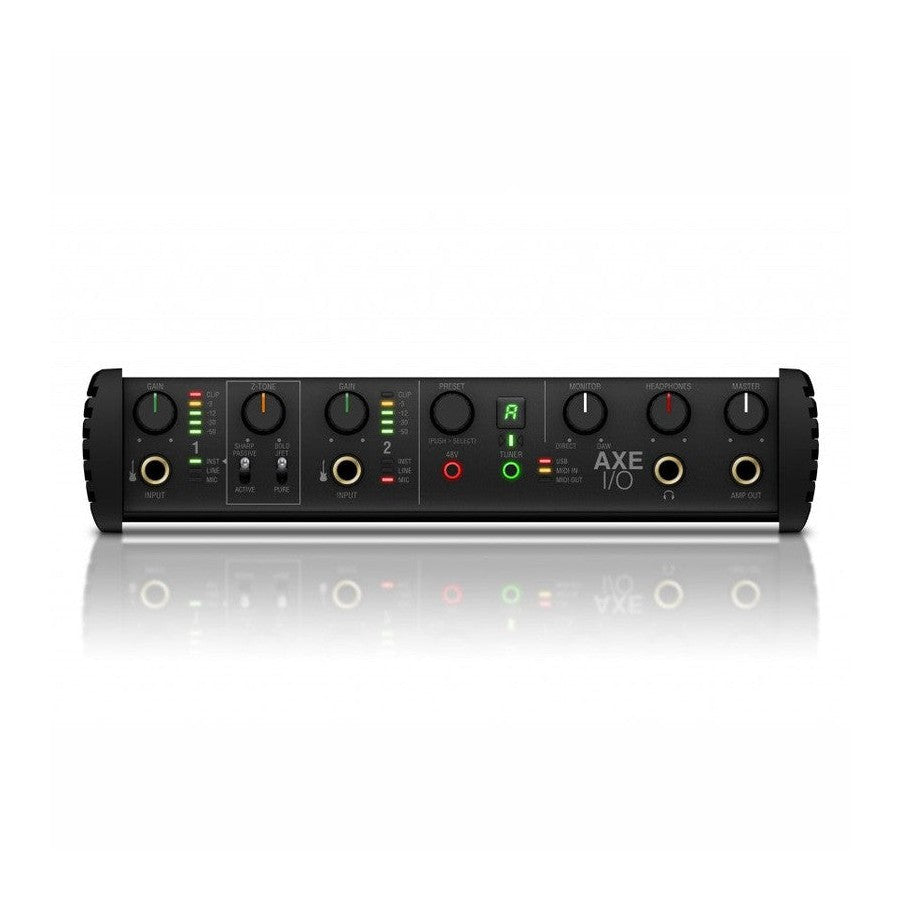

AXE I/O provides extensive routing and real-time control. Two fully assignable external inputs allow connection of expression pedals or single/double switches, while MIDI In/Out connects keyboards, controllers, or floor units like iRig Stomp I/O. The front-panel Preset Knob and built-in tuner simplify workflow, and the included Control Panel software allows detailed configuration of input/output routing, controller settings, and monitoring preferences.

KEY FEATURES: IK Multimedia AXE I/O USB Audio Interface

Triple-Topology Guitar Input: PURE, JFET, or ACTIVE modes for maximum tonal flexibility.
Z-TONE® Impedance Control: Adjust from 1 MΩ to 2.2 kΩ for sharp or bold tones.
Amp Out: Dedicated low-noise output for reamping or hybrid rigs.
PURE Class-A Mic Preamps: Transparent recording with 5 Hz – 32 kHz frequency response.
High-Resolution Conversion: 24-bit / 192 kHz audio, 117 dB dynamic range.
Controller Inputs & MIDI I/O: Two fully assignable inputs and full MIDI connectivity.
Preset Knob & Tuner: Scroll through AmpliTube presets or tune without extra devices.
Software Included: AmpliTube 5 SE, TONEX SE, plus ToneNET access.

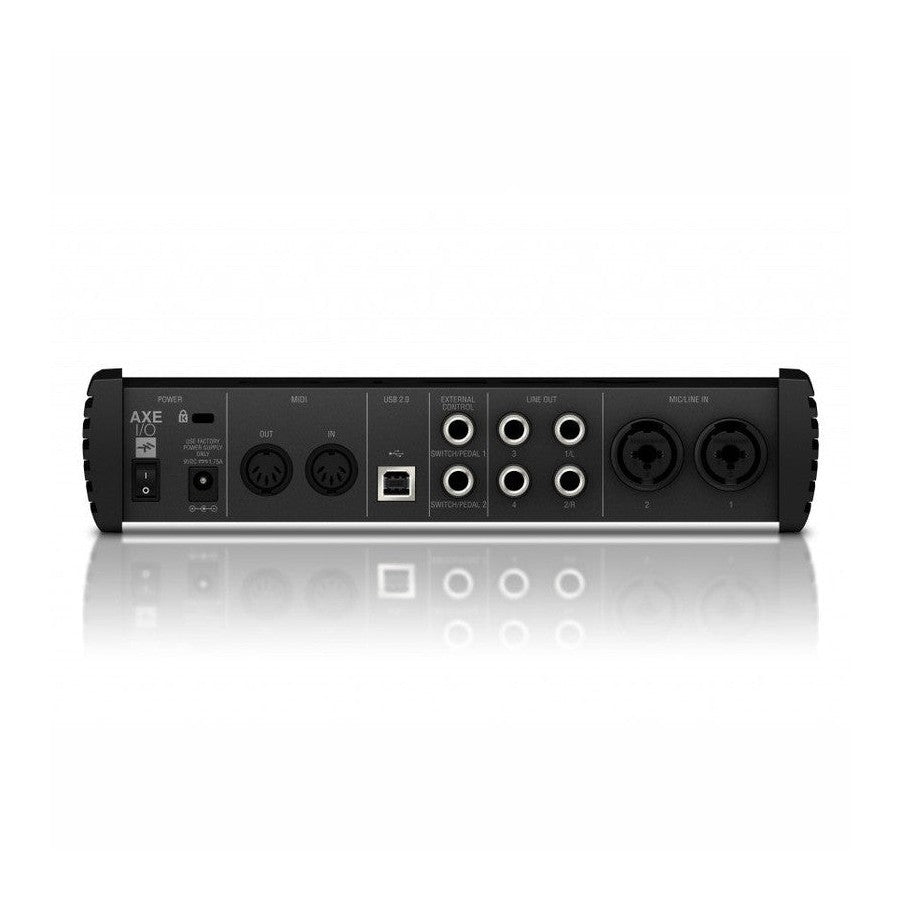

Versatile Outputs: 2 balanced monitor outs, 2 line outs, Amp Out, headphone out.

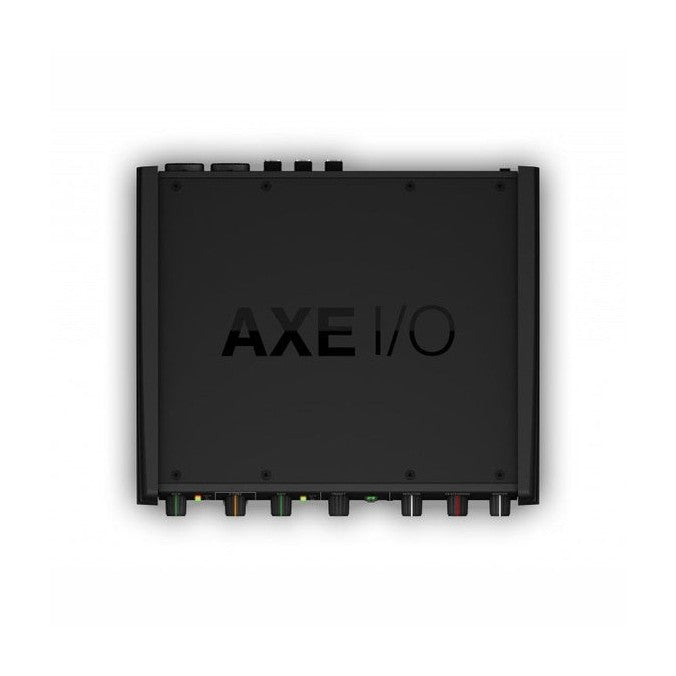

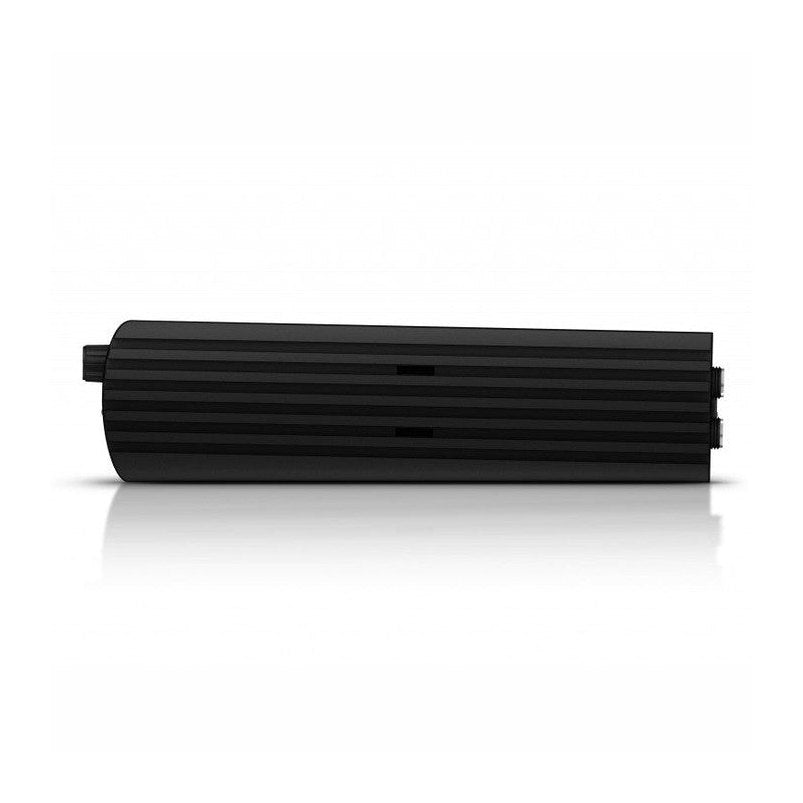

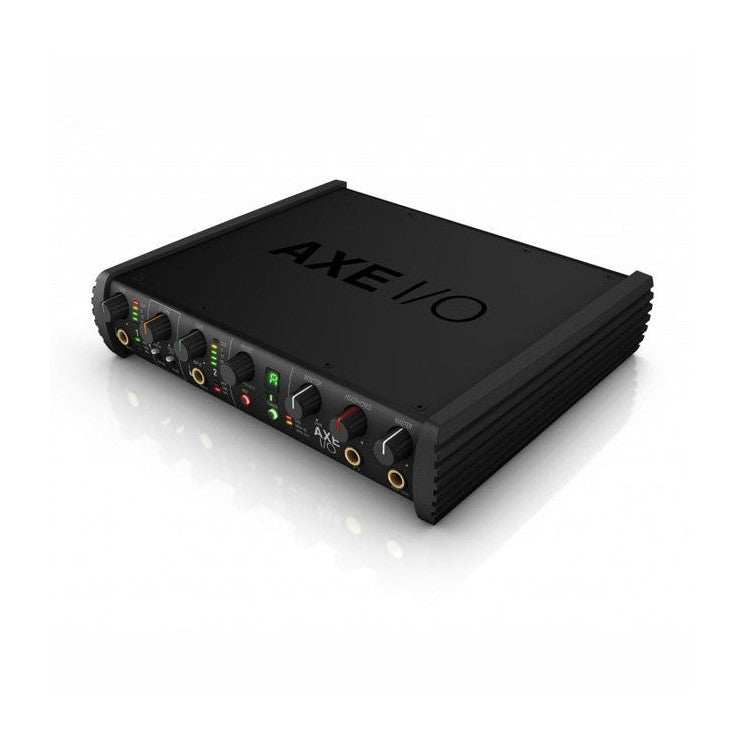

Compact & Durable: Rugged metal housing suitable for studio or mobile use.

Specification

Common

Conversion: 24-bit A/D, 24-bit D/A
Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz
Power: DC IN
Device Connection: USB B-Type 2.0
Enclosure: metal sheet

Line Outputs 1-2 (Monitor)

Configuration: Electronically balanced and floating, automatically compensates level when connection is balanced or unbalanced, tip hot.
Output impedance: 150 Ohms balanced, 75 Ohms unbalanced
Output Level: 0 dBFS corresponds to +21 dBu
Frequency response: From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
Dynamic Range: 116 dB(A)
THD+N: -106 dB(A) at -1 dBFS
Channels 1-2 crosstalk: 115 dB(A)

Line Outputs 3-4

Configuration: Unbalanced
Output impedance: 75 Ohms
Output Level: 0 dBFS corresponds to +16 dBu
Frequency response: From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
Dynamic Range: 115 dB(A)
THD+N: -102 dB(A)
Channels 3-4 crosstalk: 112 dB(A)

Output 5 (Amp output)

Configuration: Unbalanced, floating, with selectable ground lift
Output impedance: 100 Ohms
Output Level: 0 dBFS corresponds to -6 dBu
Frequency response: From 10 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
Dynamic Range: 110 dB(A)
THD+N: -104 dB(A)

Headphones Out

Output impedance: Virtually ideal source (zero Ohms) until clipping
Maximum Output level: +12 dBu into 50 Ohms load (approx 180 mW)
Frequency response: From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
Dynamic Range: 112 dB(A)
THD+N: -100 dB(A)

Mic Inputs 1-2

Configuration: Class-A discrete differential microphone preamp, pin 2 hot
Input impedance: 4 kOhms differential
Input level, min gain: 0 dBFS is obtained with a +12 dBu signal at the XLR input
Input level, max gain: 0 dBFS is obtained with a -37 dBu signal at the XLR input
Frequency response: From 5 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
Dynamic Range: 116 dB(A)
THD+N: -106 dB(A) at -10 dBFS

Line Inputs 1-2

Configuration: Class-A discrete differential line receiver, tip hot
Input impedance: 20 kOhms differential
Input level, min gain: 0 dBFS is obtained with a +26 dBu signal at the TRS input
Input level, max gain: 0 dBFS is obtained with a -24 dBu signal at the TRS input
Frequency response: From 5 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
Dynamic Range: 116 dB(A)
THD+N: -106 dB(A) at -10 dBFS

Instrument Inputs 1

Configuration: Multiple topology instrument preamp
Input impedance, PASSIVE mode: Variable from 1 MOhms down to 2.2 kOhms
Input impedance, ACTIVE mode: 10 kOhms
Input level, min gain: 0 dBFS is obtained with a +14 dBu signal at the TS input
Input level, max gain: 0 dBFS is obtained with a -17 dBu signal at the TS input
Frequency response: From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
Dynamic Range: 117 dB(A)
THD, PURE mode: 0.0015 %
THD, JFET mode: 0.5 %

Instrument Inputs 2

Configuration: Hi-Z instrument preamp
Input impedance: 1 MOhms
Input level, min gain: 0 dBFS is obtained with a +14 dBu signal at the TS input
Input level, max gain: 0 dBFS is obtained with a -17 dBu signal at the TS input
Frequency response: From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
Dynamic Range: 117 dB(A)
THD: 0.006%

Dimensions

Size: 23.8cm/9.37" x 21.1cm/8.31" x 5.3cm/2.09"
Weight: 1.3kg/2.9lb

Compatibility

Computers: 64-bit application. Requires a 64 bit CPU and Operating System.
Mac® (64-bits): Minimal: macOS 10.11 or later. One free USB port.
Windows® (64-bits): Minimal: Windows 10 or later. One free USB port.

Warranty

2-year warranty (product must be registered within 15 days from purchase date)

What's in the box?

AXE I/O
USB A-Type to USB B-Type connection cable (1.5m/4.32ft)
DC power supply

Downloads & Manuals

Download the User Manual Here
