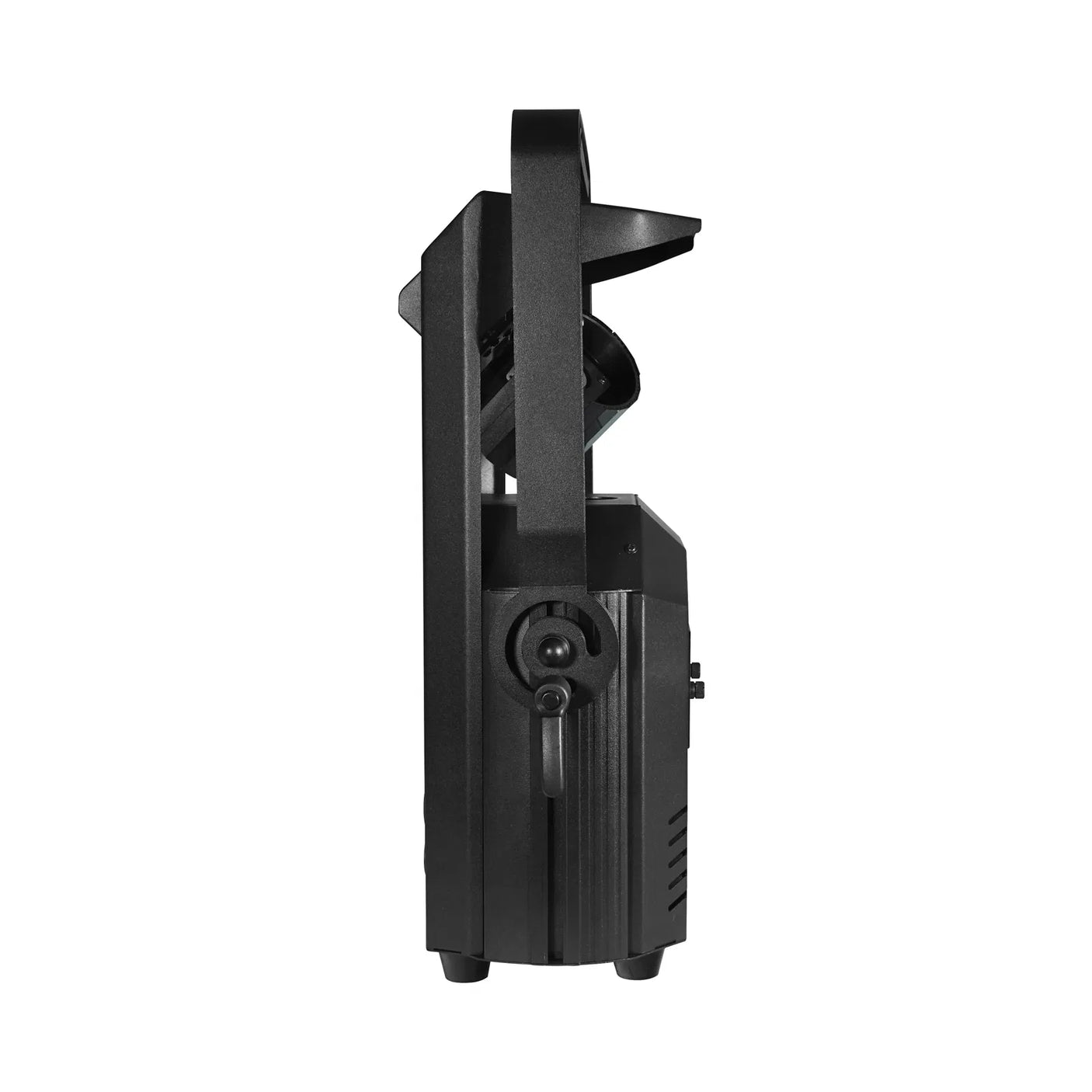

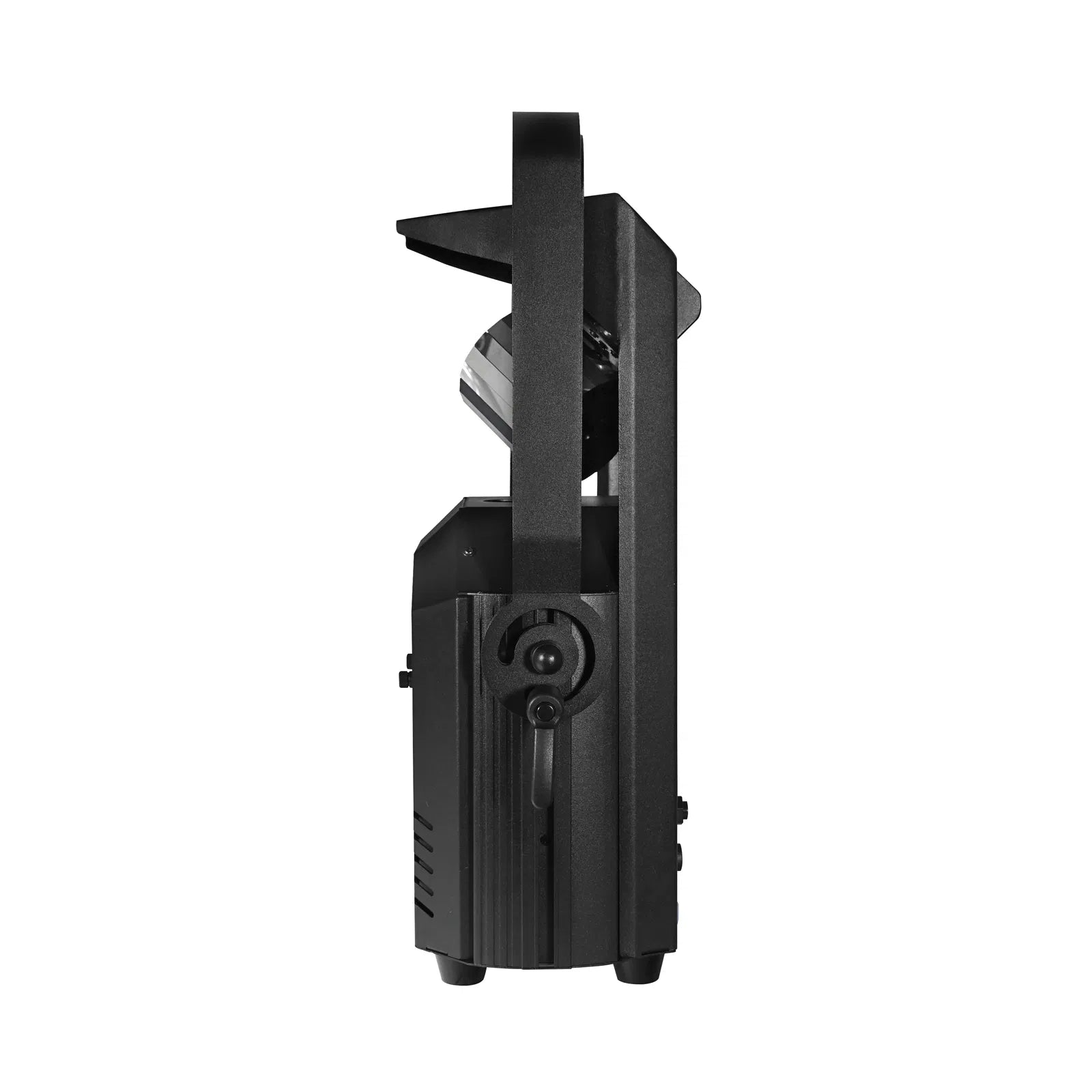

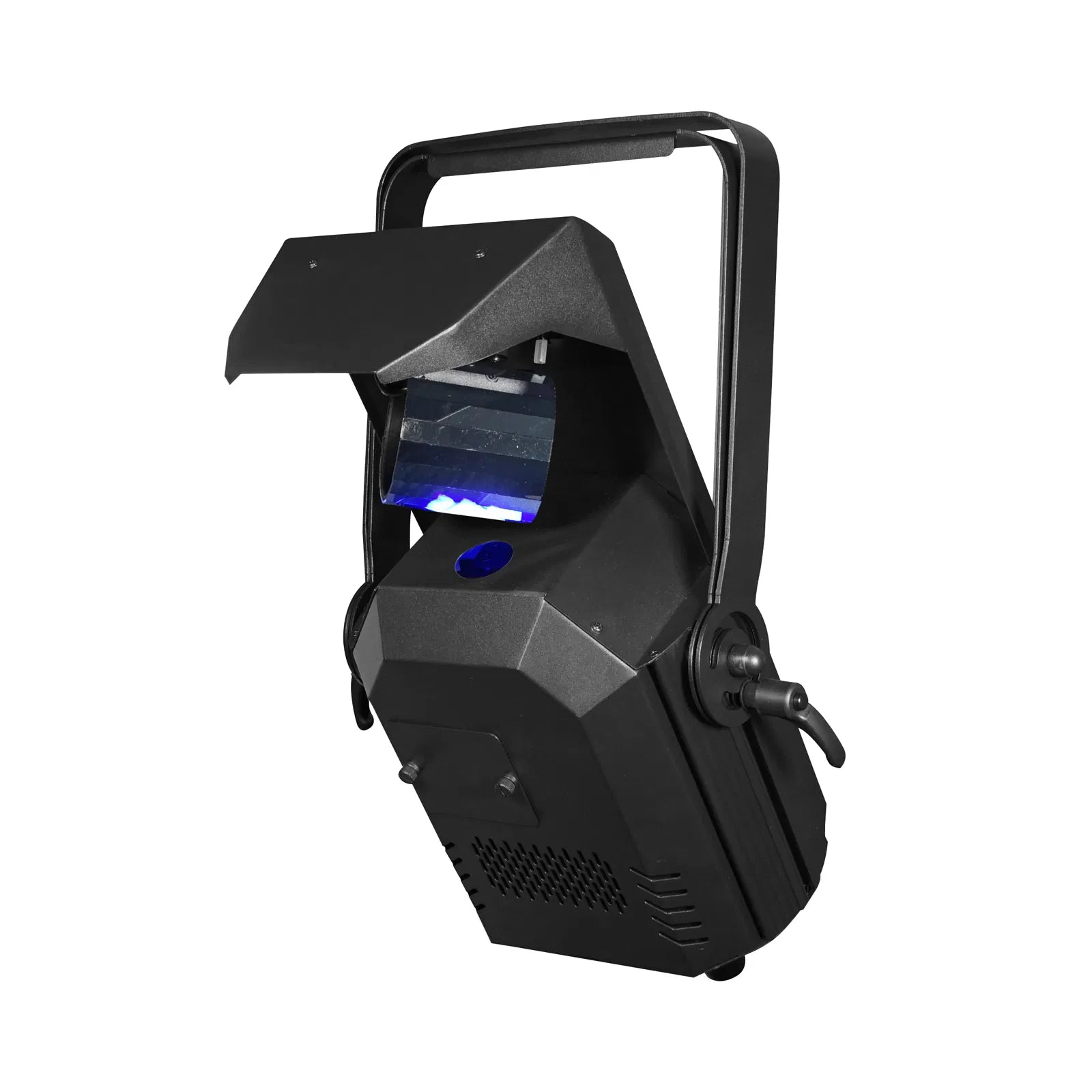

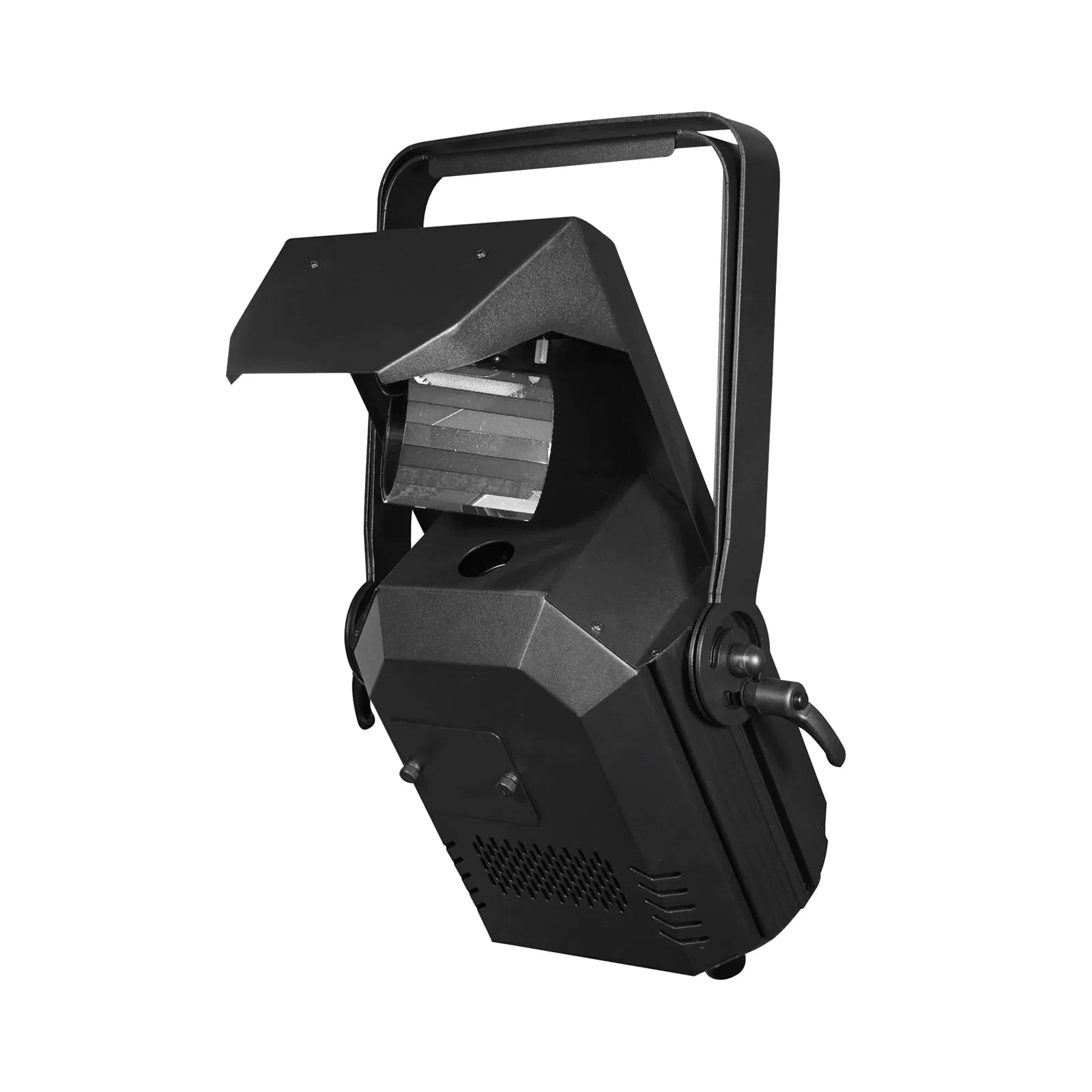

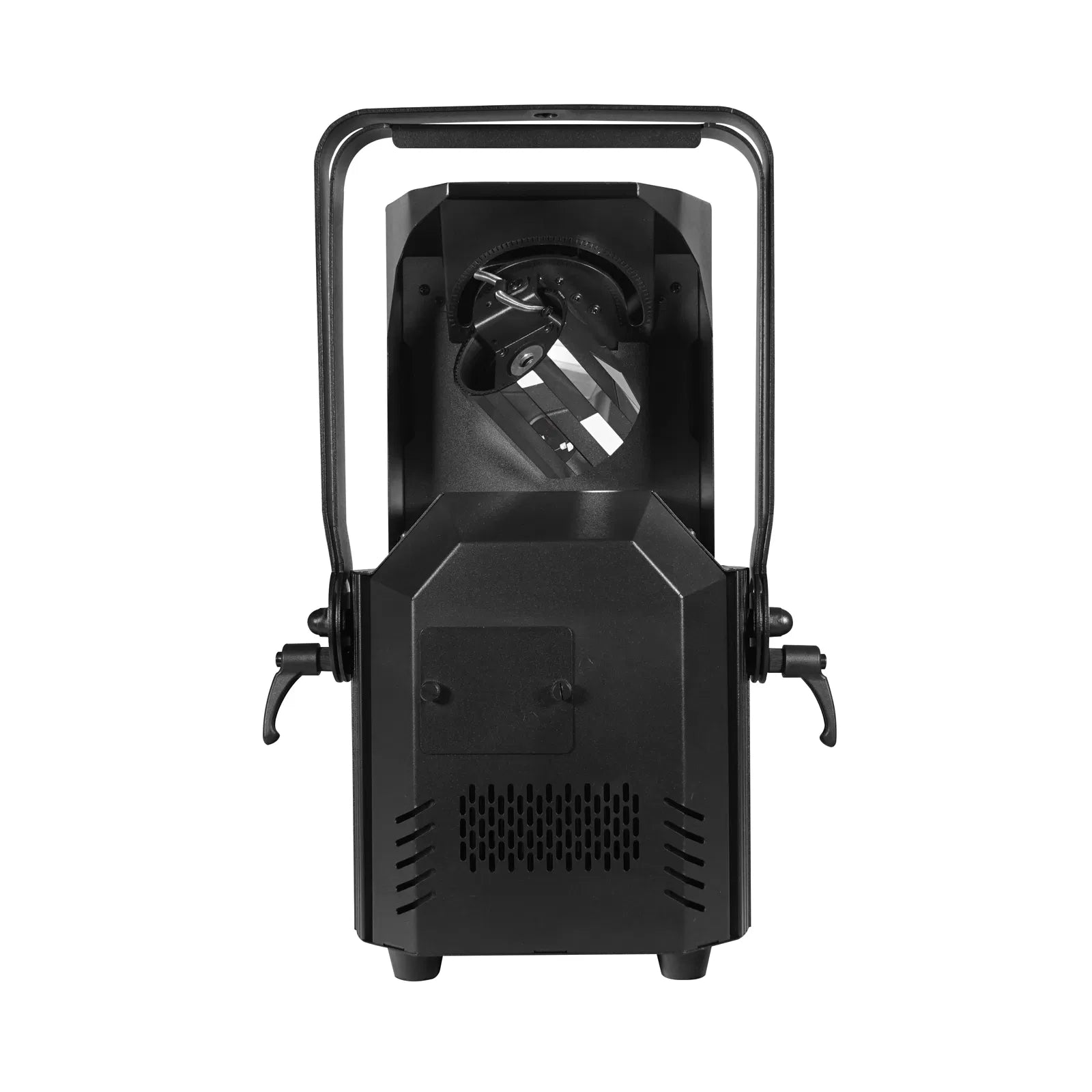

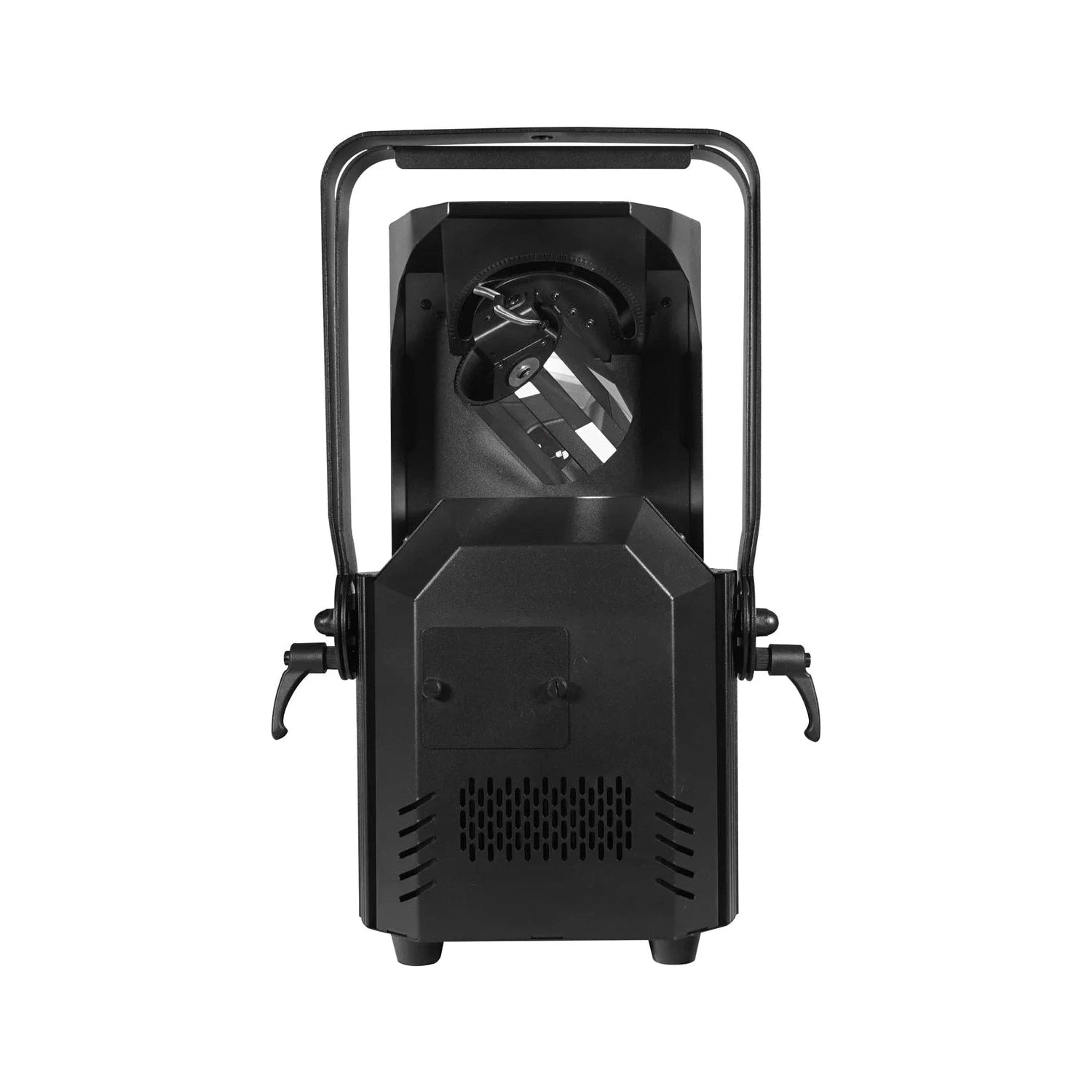

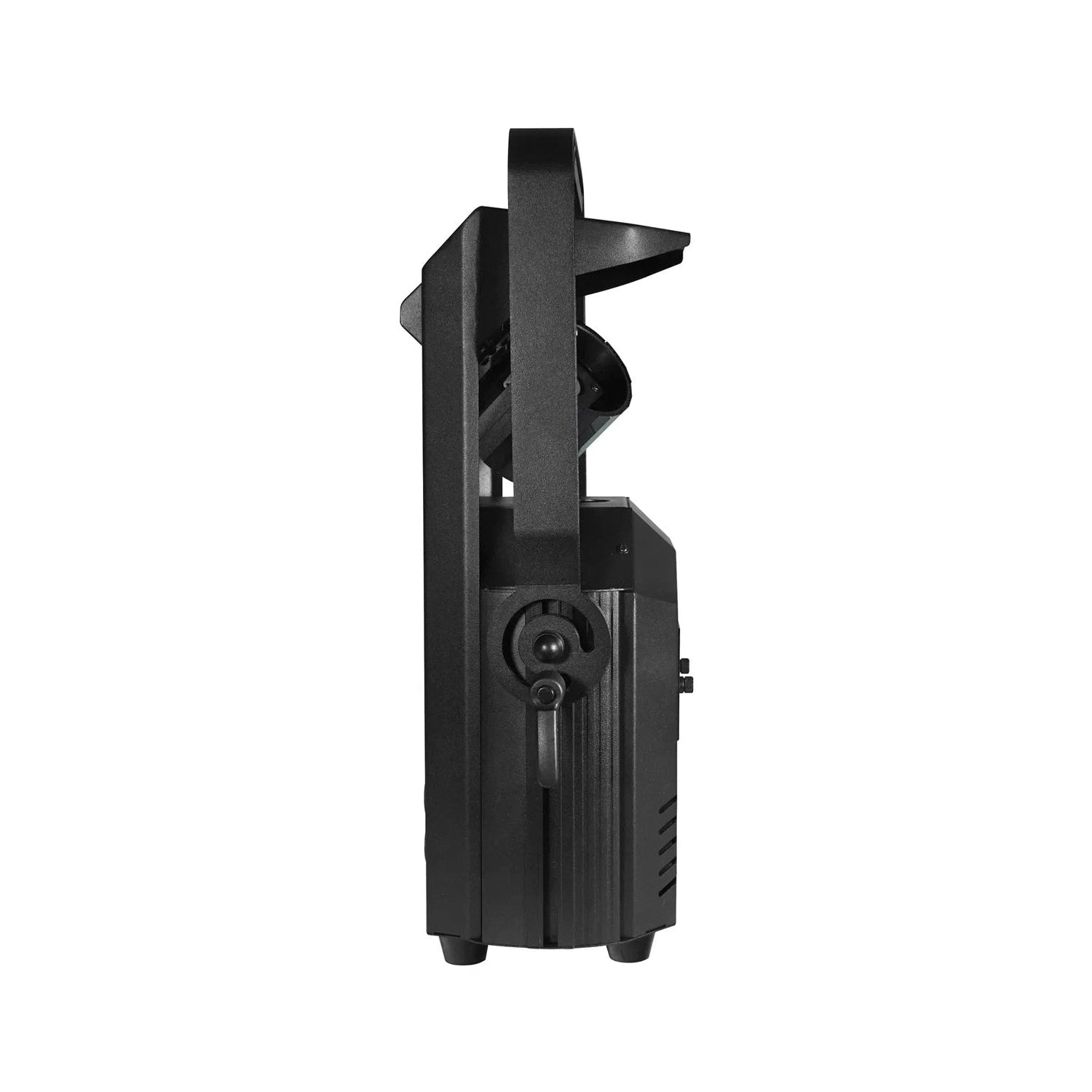

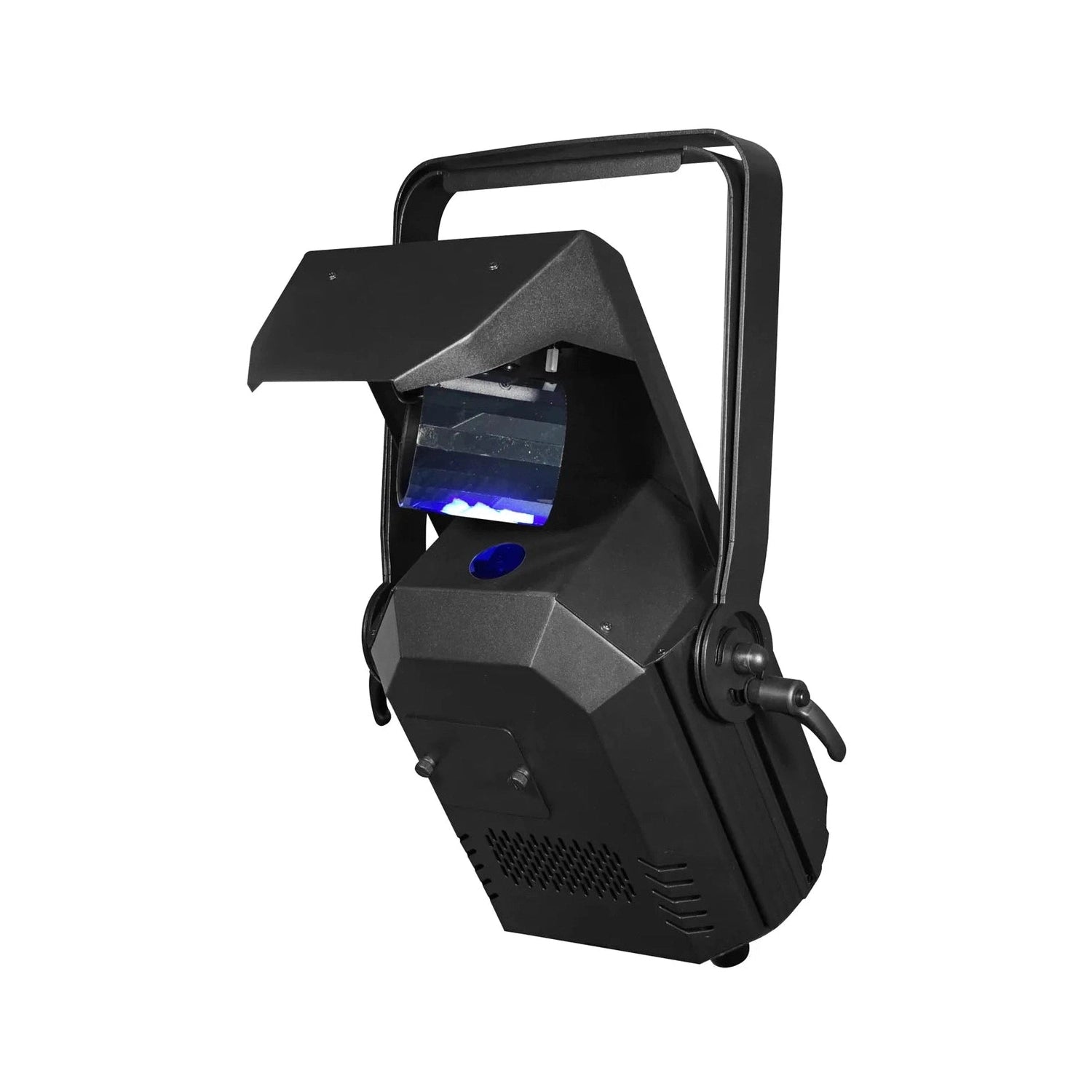

Equinox Helix Roller XP 150W Barrel LED Effect Light – Black

Powerful 150W Barrel LED Effect With Motorised Focus & Rotating Gobos – Equinox Helix Roller XP 150W Barrel LED Effect Light In Black.

The Equinox Helix Roller XP is a powerful 150W barrel LED effect light designed to deliver crisp, far-reaching gobo projections across large areas. A high-output 150W cool white LED (8,000K) combined with superior optics and a tight 10.2° beam angle produces an impressive 9,645 Lux at 2 metres, while the motorised focus ensures sharp, precise gobo projection at any distance. The multi-faceted rotating barrel distributes projections across a wide area, creating a dynamic and immersive effect well suited to stages, live events, clubs, weddings and large-scale entertainment venues.

Featuring 8 rotating, interchangeable gobos and a 9-colour plus open colour wheel, the Helix Roller XP offers extensive creative flexibility from the outset. An additional 11-piece gobo pack is included, covering many popular events and celebrations and bringing the total gobo selection to 19. The Helix Roller XP can be linked with the Helix Scan XP and Helix XP to create fully synchronised multi-fixture shows. DMX channel modes of 2, 9 or 11 are selectable via the 4-button LED display menu, and auto, sound active and master/slave modes support standalone operation.

Discover The Equinox Helix XP Series In More Detail...

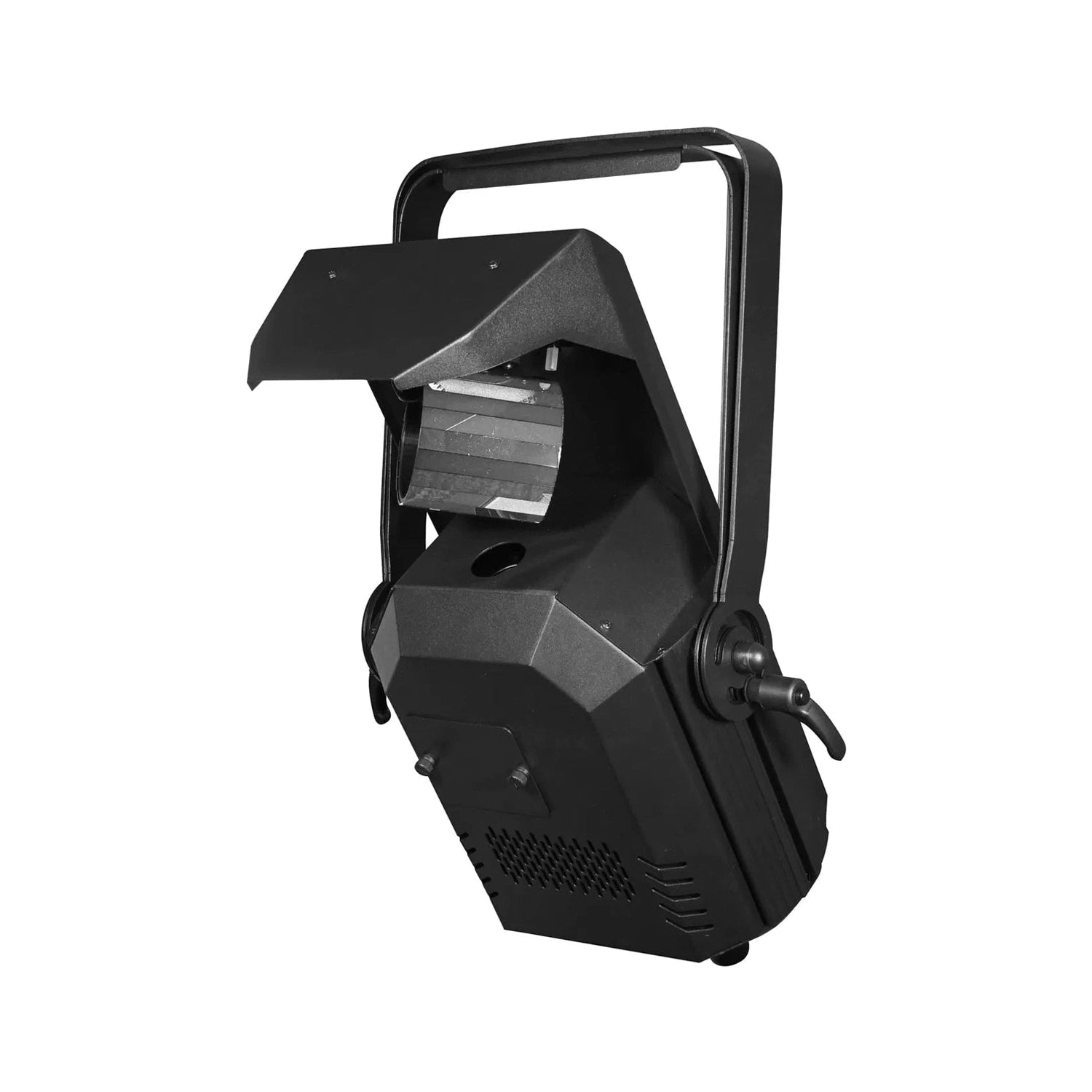

Motorised Focus & Multi-Faceted Rotating Barrel

The motorised focus system sets the Helix Roller XP apart from fixed-focus barrel effects, allowing crisp and well-defined gobo patterns to be maintained across varying throw distances without manual adjustment. The multi-faceted rotating barrel then distributes these projections across a large area simultaneously, creating a constantly moving, room-filling display that is far more dynamic than a single-point projection. With 180° pan and 360° tilt, the fixture can be positioned to cover virtually any surface or angle within a venue.

Extensive Gobo Selection & Clever Programming

Eight rotating, interchangeable gobos and a 9-colour plus open colour wheel provide a strong foundation for creative effect design, while the included 11-piece additional gobo pack expands the total selection to 19 gobos covering a wide range of popular events and celebrations. Built-in programming allows a single gobo to be isolated and paired with a specific colour, activated automatically or via sound — giving operators a high degree of creative control without the need for complex DMX programming.

Synchronised Shows & Flexible Control

The Helix Roller XP can be linked with the Helix Scan XP and Helix XP to create fully synchronised multi-fixture shows, making it an ideal component of a wider Helix XP lighting rig. DMX channel modes of 2, 9 or 11 are selectable to suit setups of varying complexity, and the optional CA 8 controller provides convenient hands-on control. PowerTwist input and output alongside 3-pin XLR connections allow easy daisy chaining, and a 5kHz refresh rate ensures flicker-free performance on camera.

KEY FEATURES: Equinox Helix Roller XP 150W Barrel LED Effect Light – Black

• LED Source: 1 x 150W cool white LED at 8,000K for powerful, crisp gobo projection.
• Beam Angle: 10.2° for focused, long-distance projection.
• Lux Output: 9,645 Lux at 2 metres.
• CRI: 72.
• Refresh Rate: 5kHz for flicker-free performance on camera.
• Focus: Motorised focus for precise, automatic sharpness adjustment.
• Barrel: Multi-faceted rotating barrel for wide area gobo projection.
• Pan/Tilt: 180° pan, 360° tilt.
• Gobos: 8 rotating, interchangeable gobos plus an additional 11-piece gobo pack included.
• Colours: 9 colours plus open.
• DMX Channels: 2, 9 or 11 channel modes selectable.
• Control Modes: Auto, sound active and master/slave modes plus built-in programs.
• Dimming: 0–100% smooth dimming.
• Strobe: Variable strobe effect.
• Display: 4-button menu with LED display for straightforward on-fixture programming.

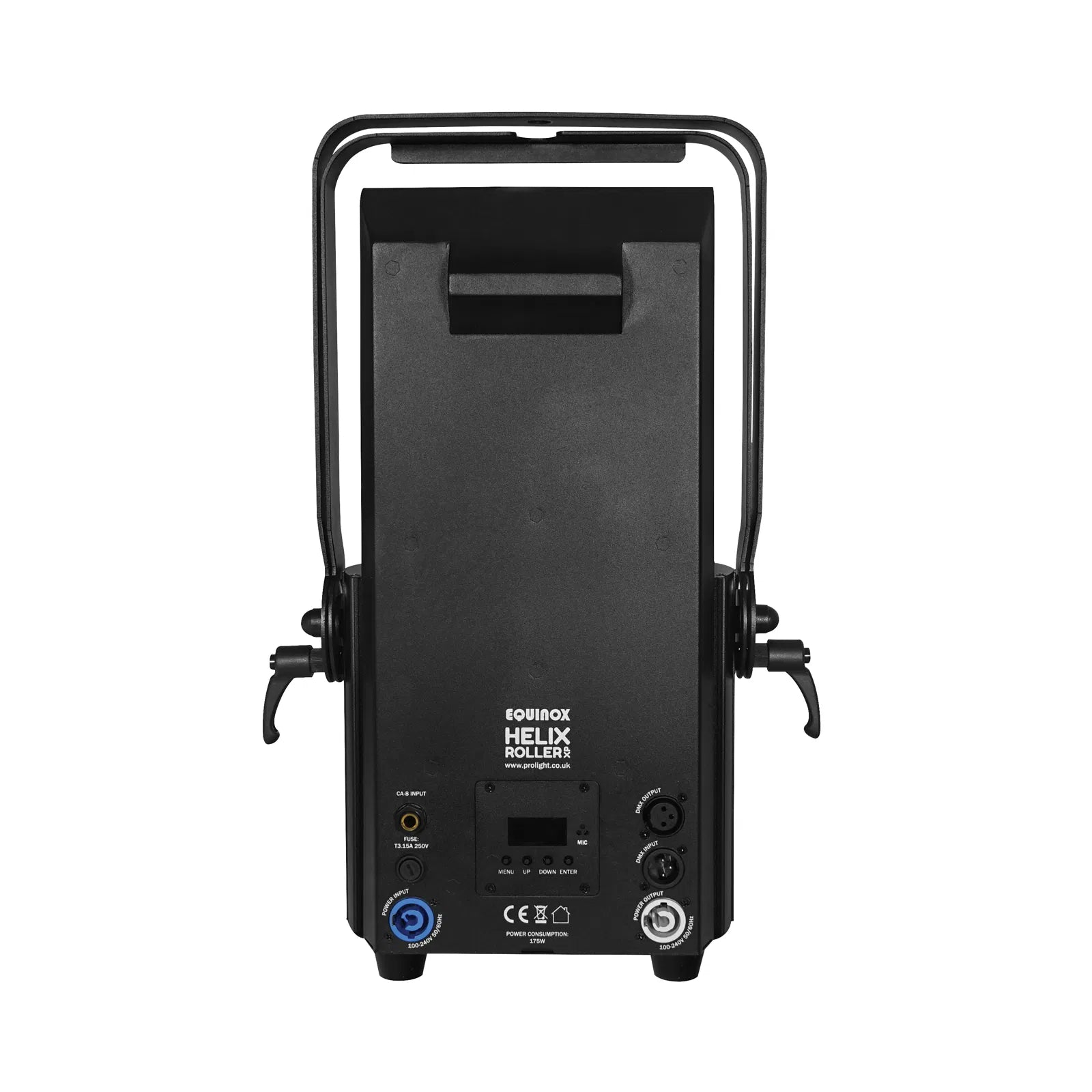

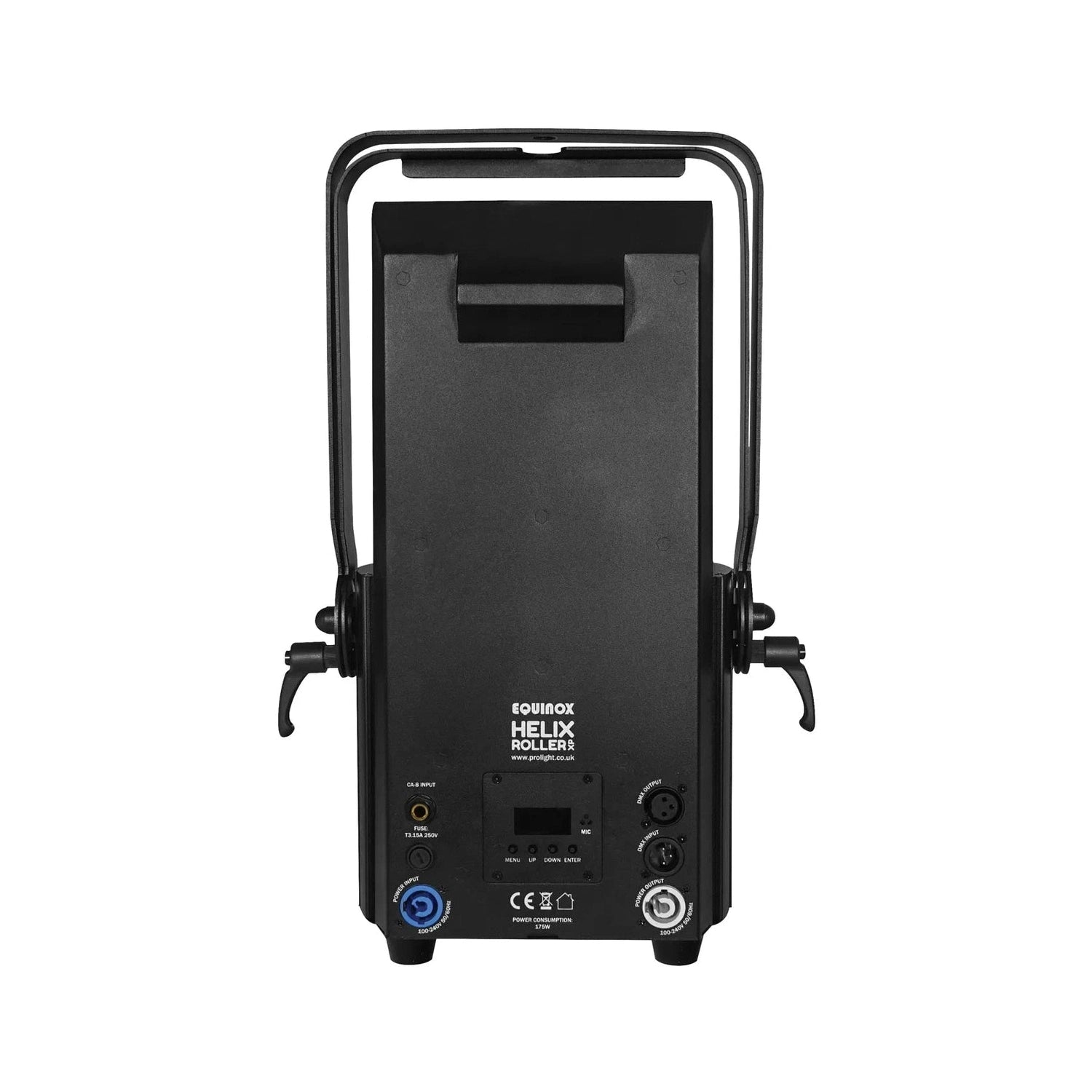

• Connections: PowerTwist input/output, 3-pin XLR input/output.
• Cooling: Fan cooled for reliable performance during extended use.

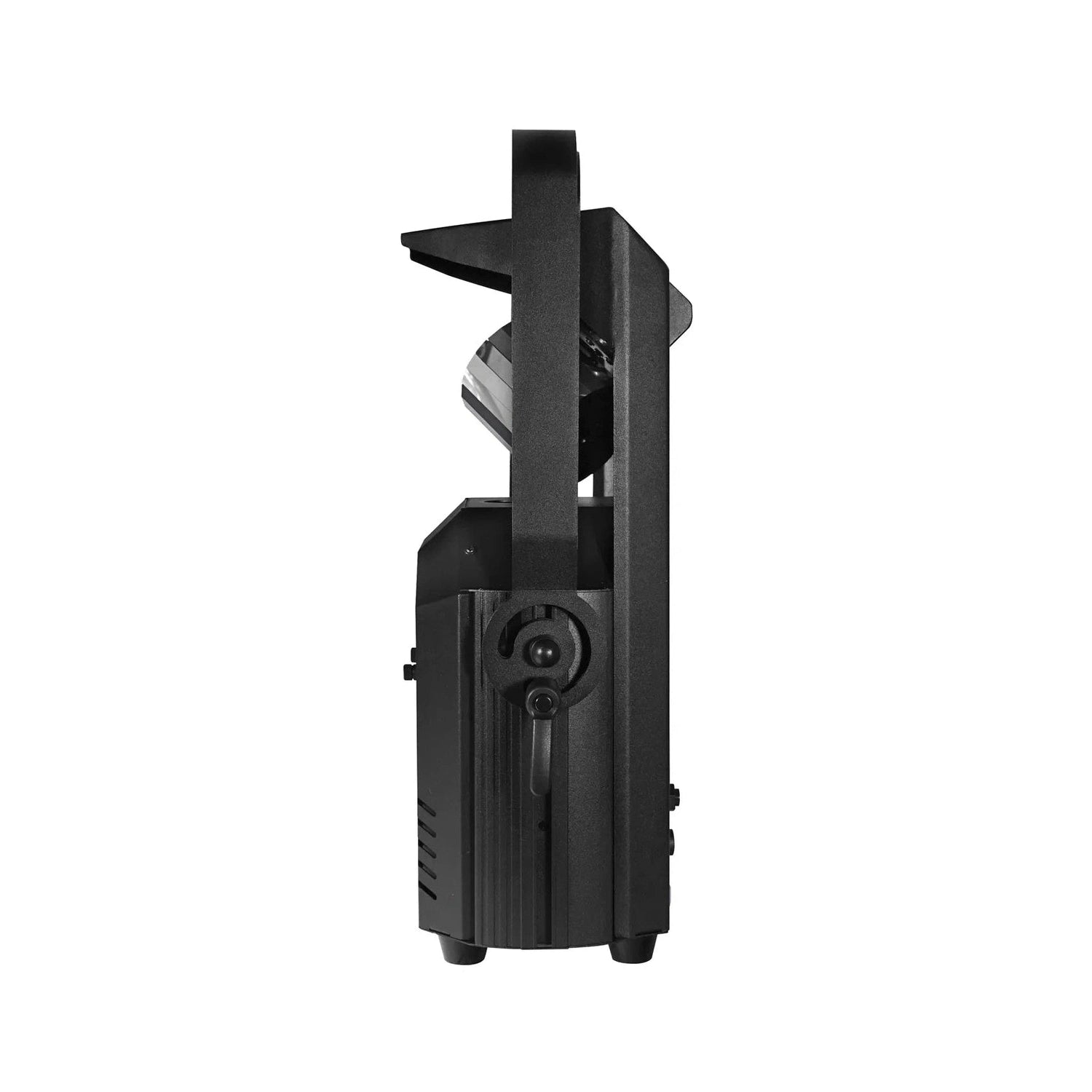

• Mounting: Bracket for multiple rigging or floor standing applications.
• Optional Accessory: Compatible with CA 8 controller (sold separately).
• Linkable: Can be synchronised with the Helix Scan XP and Helix XP.
