Equinox Microbar COB System T-Bar Lighting Package

Equinox Microbar COB System – Dynamic T-Bar Lighting In A Compact Package

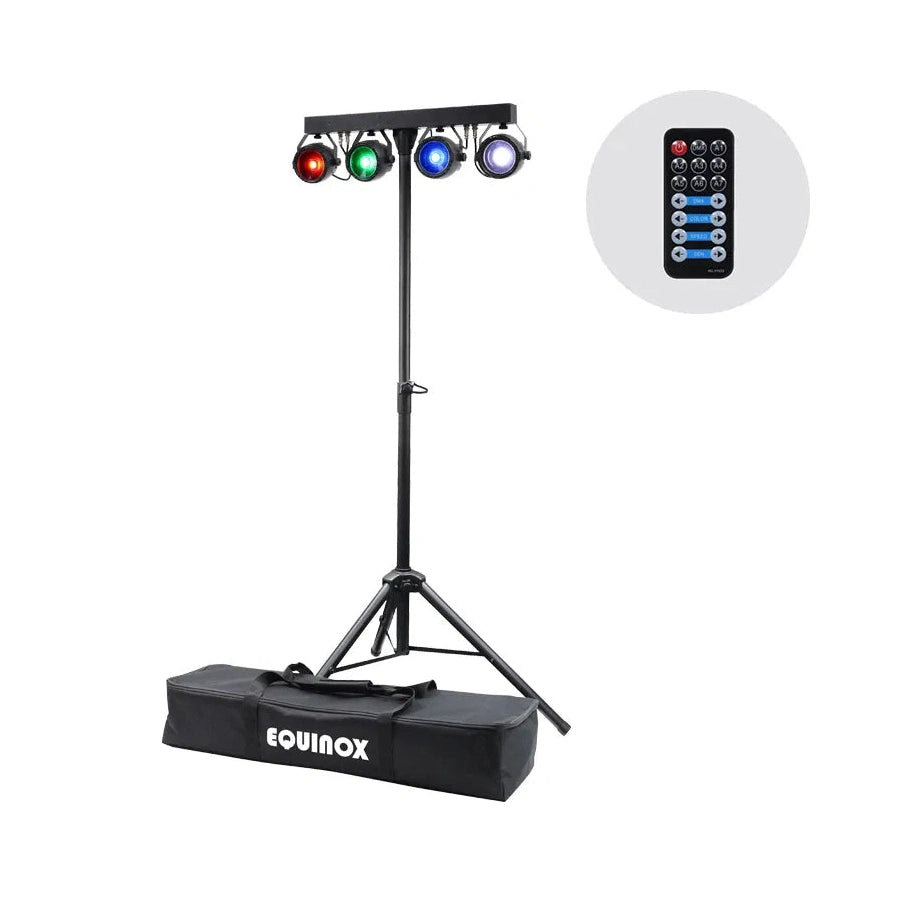

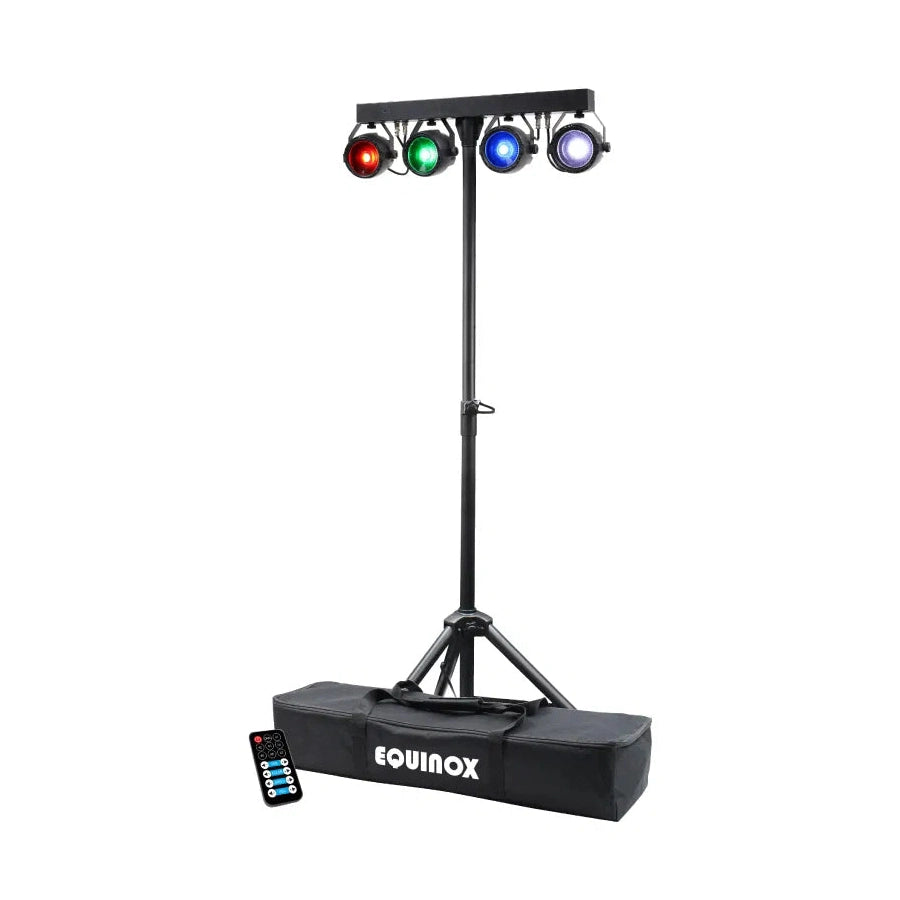

The Equinox Microbar COB System is a compact, all-in-one lighting solution ideal for DJs, entertainers, and mobile performers. Featuring four 20W tri-colour (RGB) LED Par panels mounted to a powered T-bar, this versatile system produces vibrant colours and dynamic effects, while each Par can operate independently for maximum creative flexibility. The included IR remote allows easy access to auto, sound active, and DMX modes, making setup and operation quick and intuitive.

Perfect for small events, parties, school functions, and mobile gigs, the Microbar COB System offers professional-quality lighting in a lightweight and portable form factor. Its robust adjustable stand and durable carry bag ensure that transporting and rigging the system is straightforward, while additional mounting points allow expansion with extra fixtures.

Compact, Yet Powerful Lighting Effects

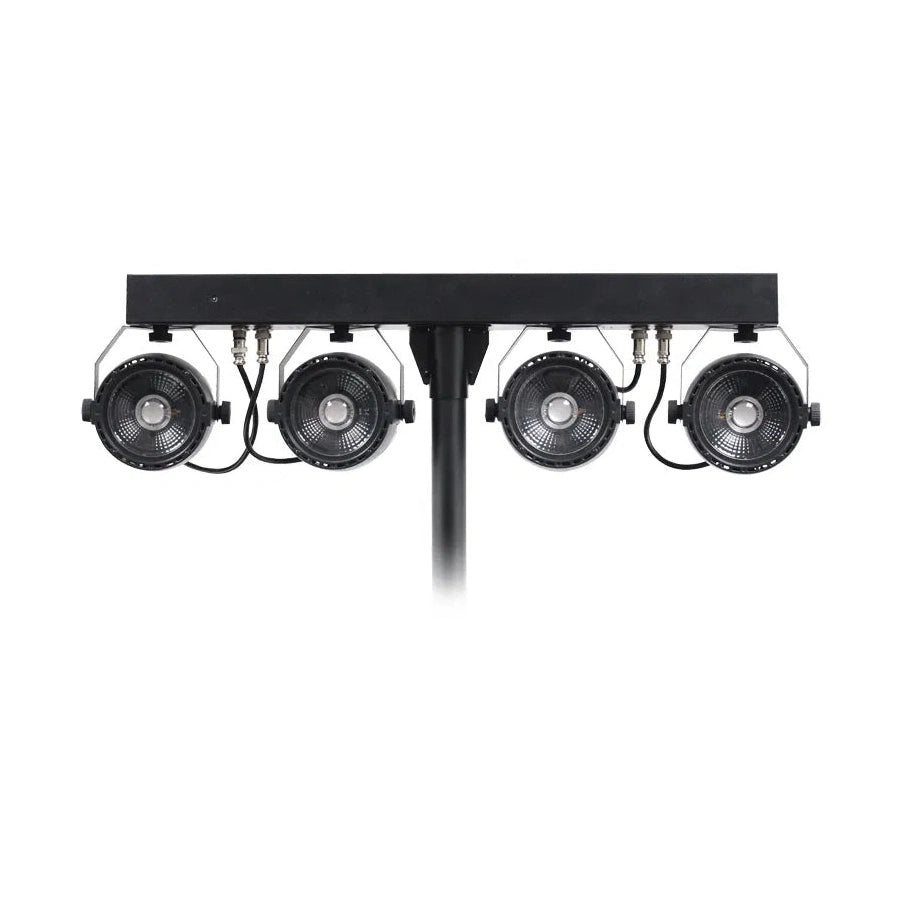

Each of the four Par panels contains a 20W tri-colour RGB LED, delivering rich colours and smooth mixing. The system supports DMX control with 4, 7, 12, or 16 channels, as well as auto, sound active, and master/slave modes. Independently controlled Pars allow for creative colour changes and strobe effects, while the 0–100% dimming range provides full control over brightness levels.

Flexible Operation And Connectivity

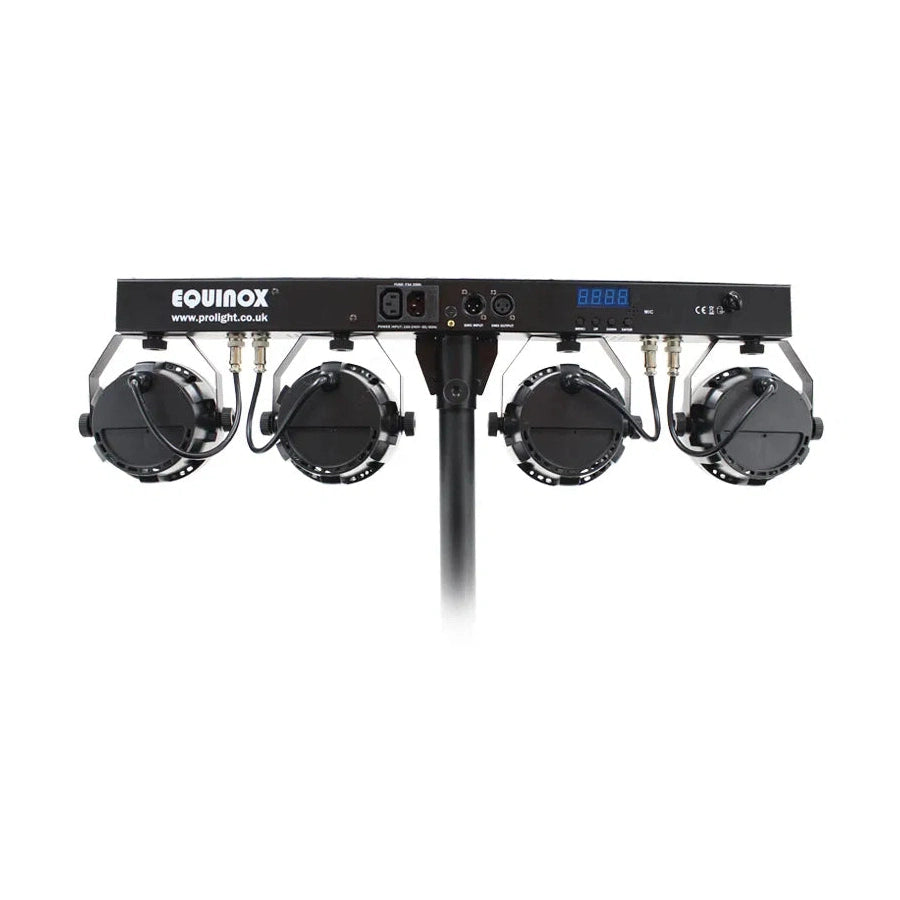

The Microbar COB System features a four-button LED display for menu navigation, allowing precise control over built-in programs and DMX settings. 3-pin XLR inputs/outputs and IEC power connections enable seamless daisy-chaining of multiple units, expanding the system for larger setups. Users can quickly tailor lighting effects to any event environment without complex programming.

Designed For Easy Setup And Portability

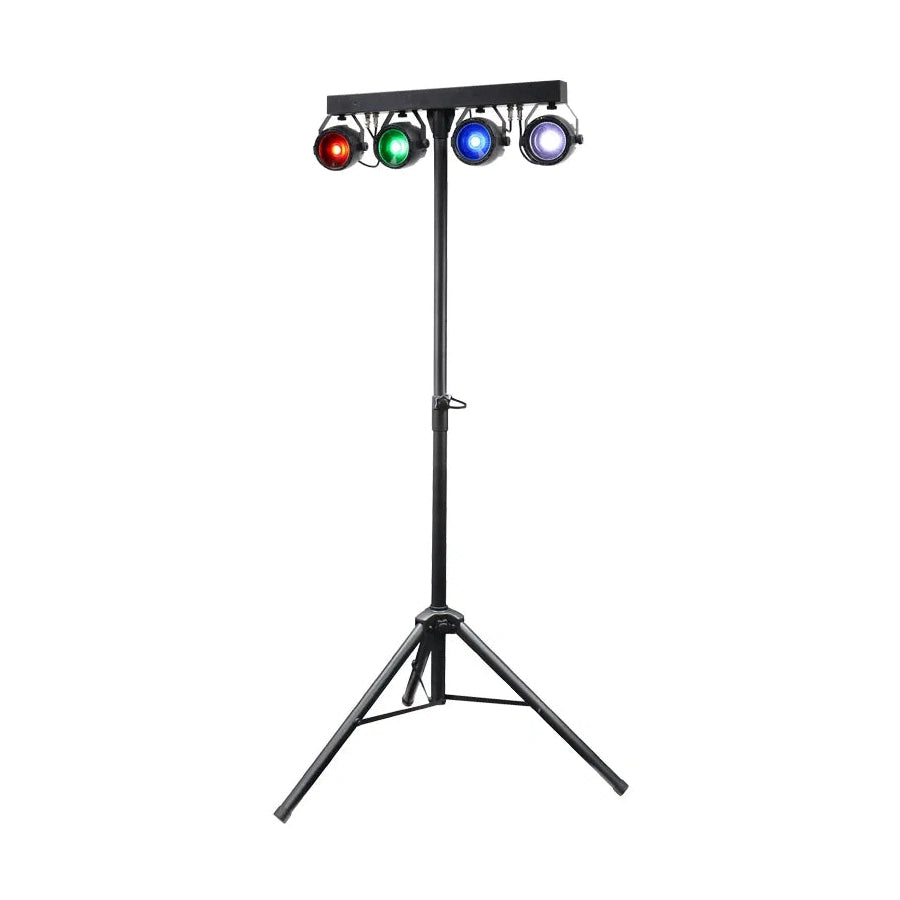

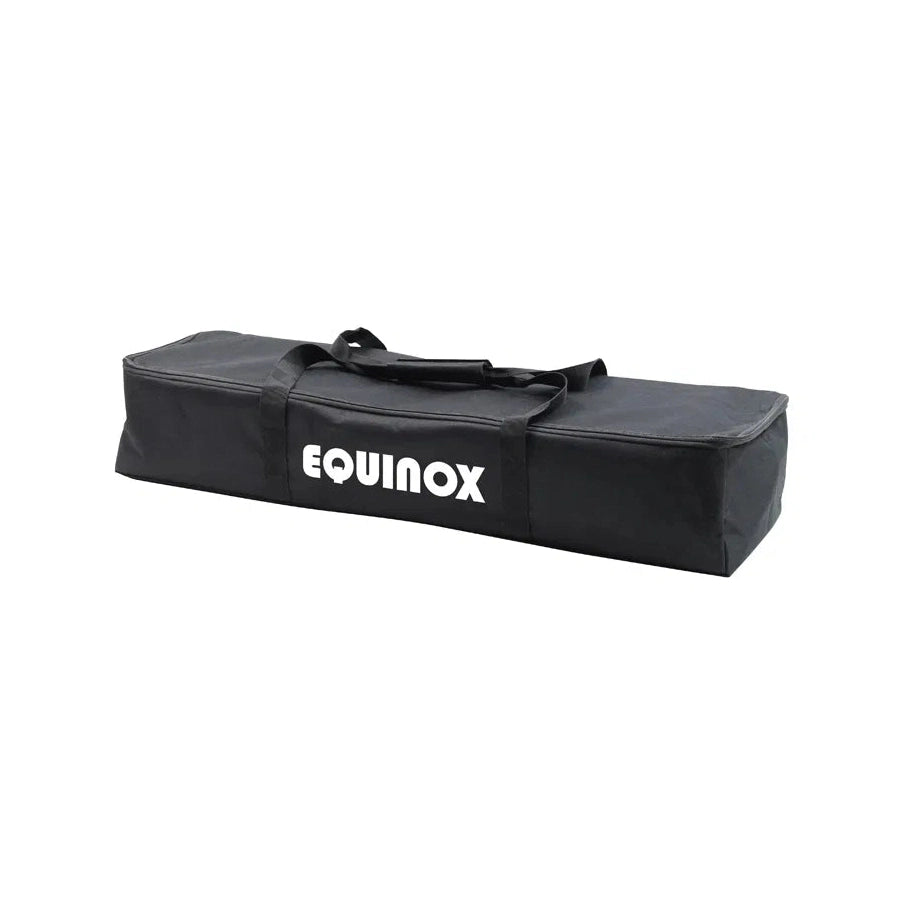

Weighing just 5.7kg, this system is highly portable and easy to assemble. The included adjustable stand (1600–1850mm) accommodates a variety of stage setups, while the top hat (35mm) and M8 mounting points allow extra fixtures to be attached for a more elaborate configuration. The robust carry bag provides protection during transport, making the Microbar COB System ideal for mobile entertainers, small event venues, and party DJs.

KEY FEATURES: Equinox Microbar COB System T-Bar Lighting Package

• LED Configuration: 4 Pars with 1 x 20W Tri-Colour LEDs (RGB) each.
• Beam Angle: 25° for precise stage coverage.
• Control Options: Auto, sound active, master/slave, and DMX (4/7/12/16 channels).
• Dimming & Strobe: 0–100% dimming and variable strobe effects.
• Display & Menu: 4-button LED display for built-in programs and DMX navigation.
• Connections: IEC power input/output and 3-pin XLR in/out.
• Mounting & Stand: Adjustable T-bar stand with 35mm top hat and M8 bolts for extra fixtures.

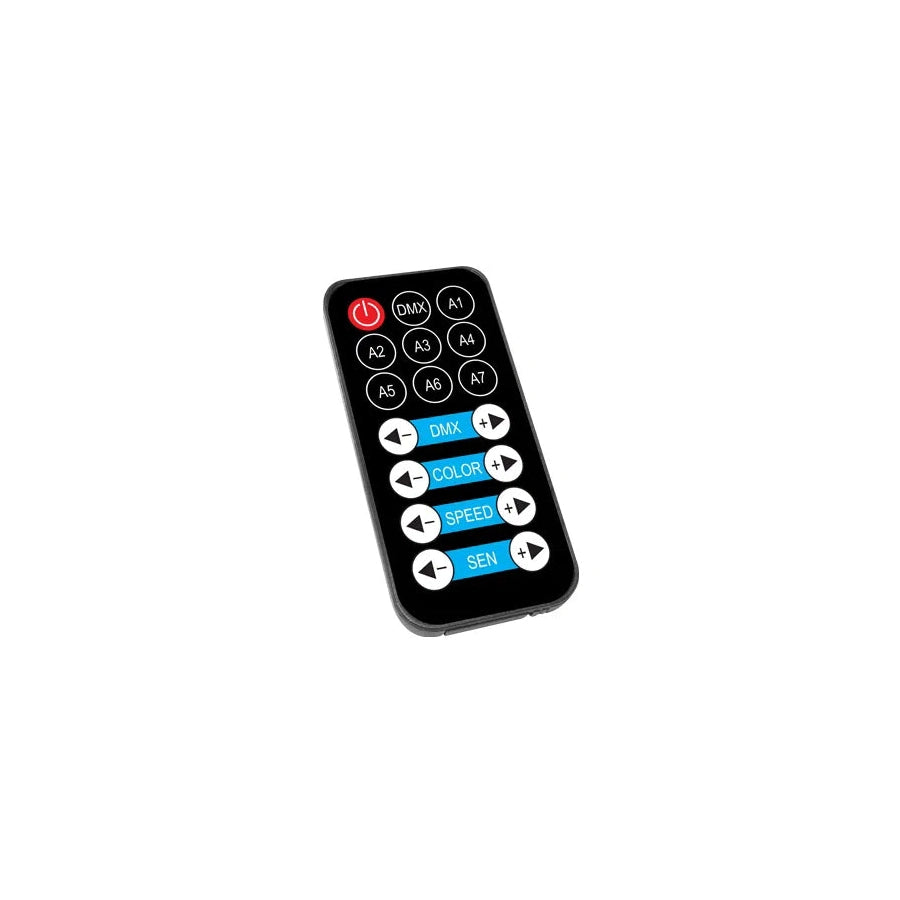

• Accessories: IR remote and heavy-duty carry bag included.
• Power Consumption: 90W | Power Supply: 100–240V AC, 50/60Hz.
• Dimensions: 200 x 720 x 110mm (without stand) | Weight: 5.7kg.


Download the PDF user manual here
