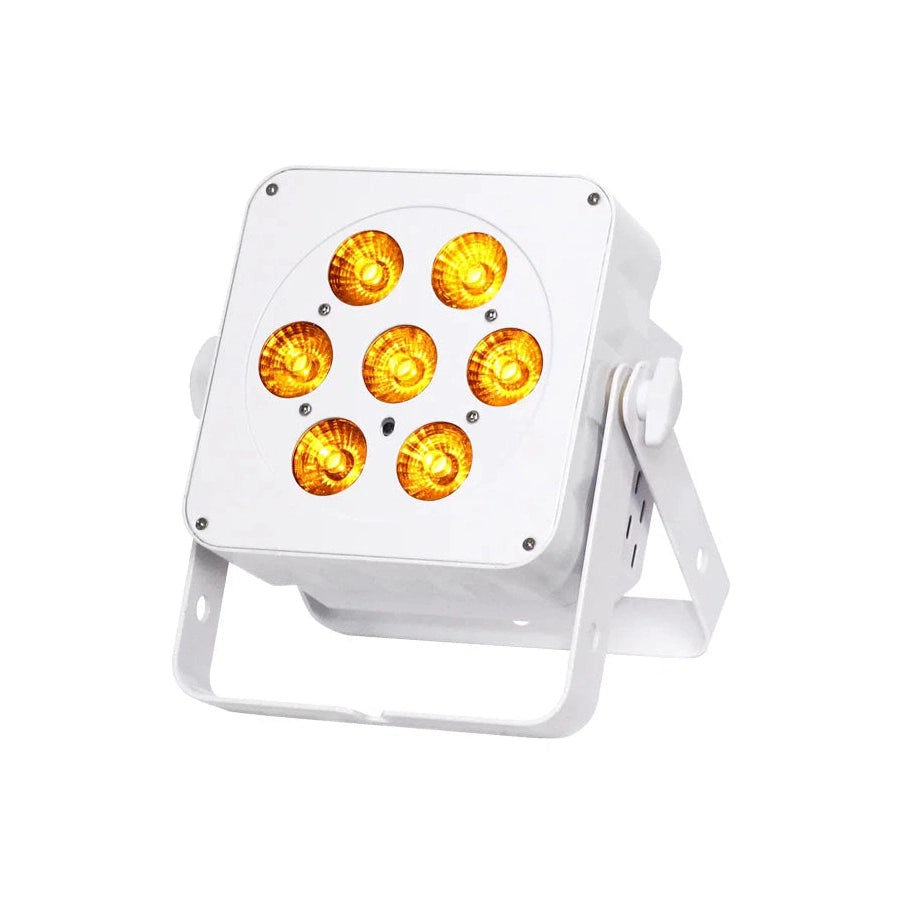

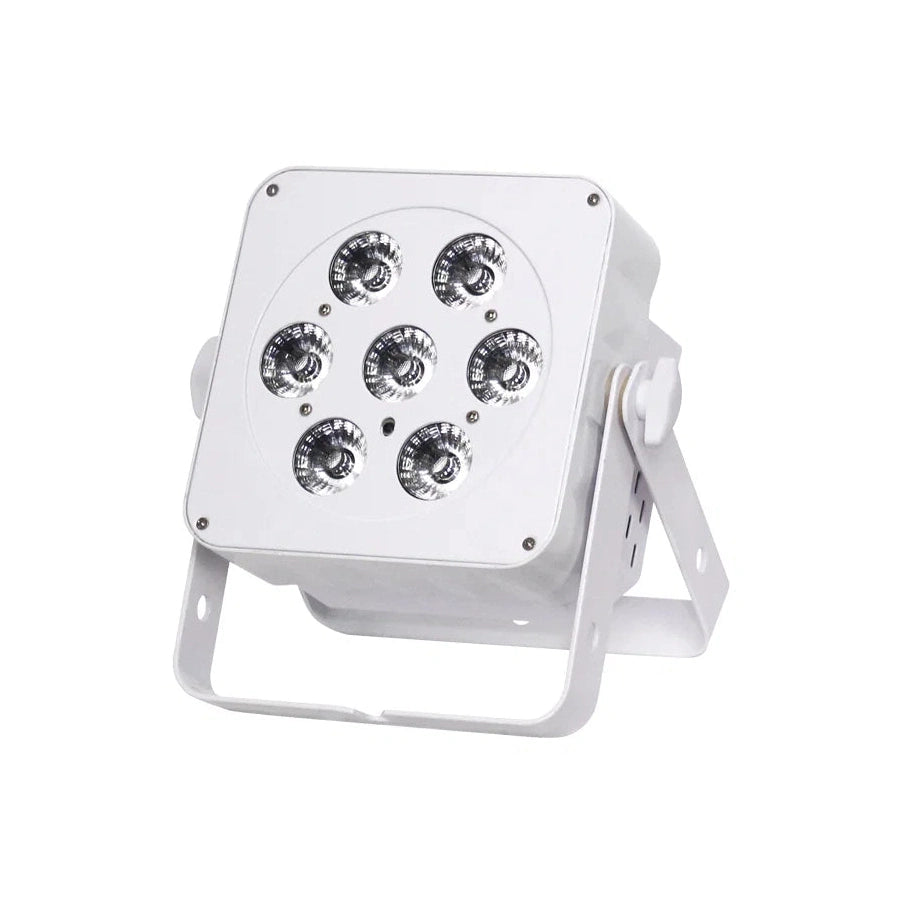

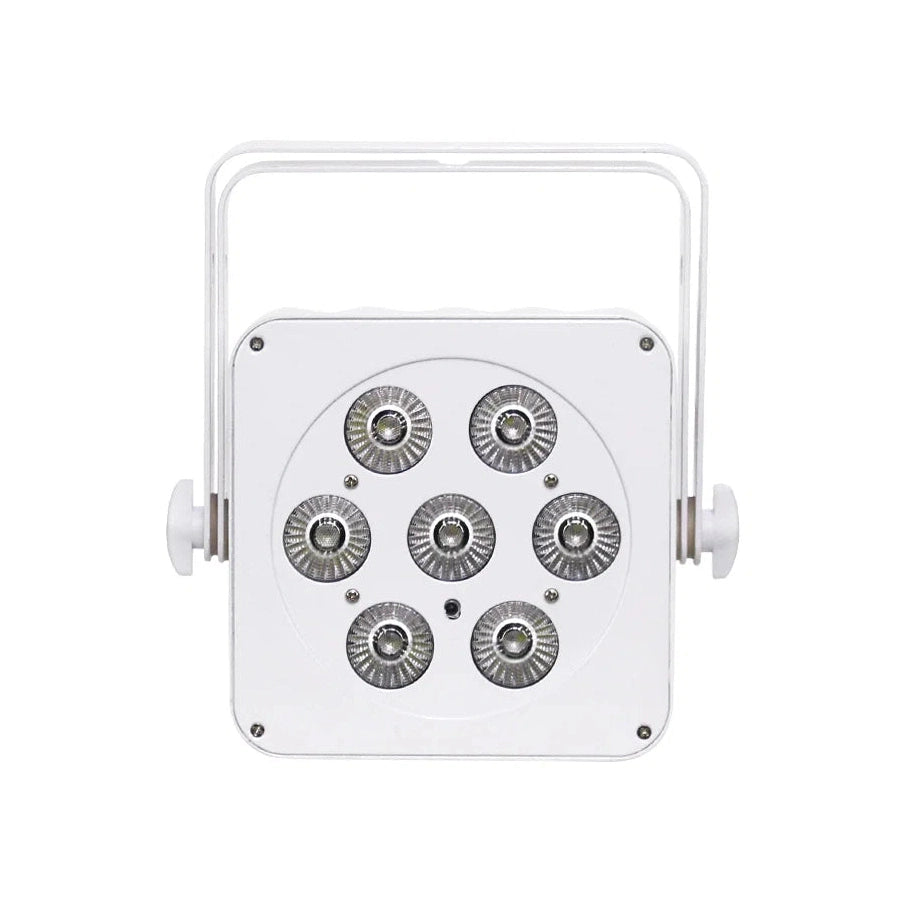

LEDj Slimline 7Q5 RGBA LED Par Can – White Housing

Compact 7 x 5W RGBA LED Par Can With Amber LEDs, Extended Colour Spectrum & Silent Convection Cooling In A Clean White Housing – LEDJ Slimline 7Q5 RGBA White.

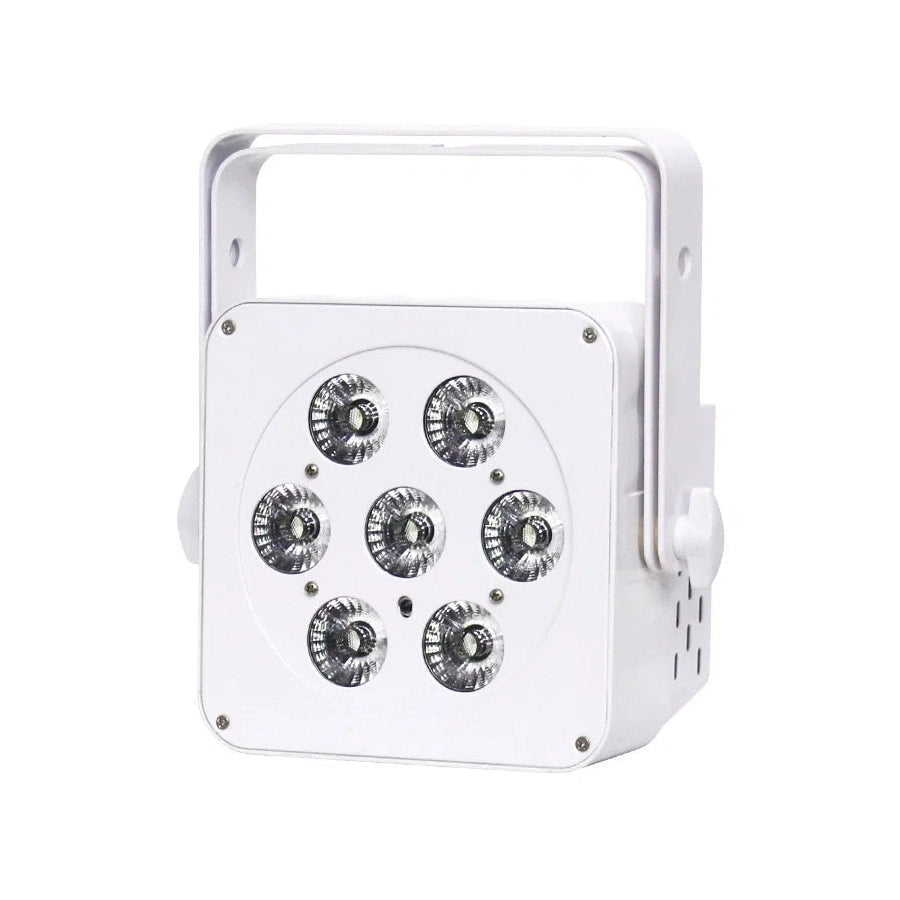

The LEDJ Slimline 7Q5 RGBA in White Housing is a compact and versatile LED par fixture featuring 7 x 5W quad-colour RGBA LEDs — incorporating amber alongside red, green and blue for a significantly wider and more nuanced colour spectrum than standard RGB fixtures. The addition of amber extends the palette into warm skin tones, golden hues and rich sunset colours that RGB mixing alone cannot accurately reproduce, delivering smooth colour mixing from deeply saturated hues through to subtle pastel shades across a 25° beam angle (40° field angle) with an output of 1,810 lux at 2 metres. The clean white housing makes it a particularly popular choice for weddings, corporate events, upscale venue installations and any application where a discreet and elegant fixture aesthetic is preferred alongside powerful colour output.

Housed in a rugged all-metal white casing measuring just 99mm in depth, it is easy to transport and install across stage, uplighting and venue applications. Four selectable DMX channel modes (2/3/4 or 7 channels) allow straightforward integration into rigs of all complexities, and static colour, colour change, colour fade, auto, sound active, master/slave and stand-alone modes make the 7Q5 RGBA White suitable for both professional DMX-controlled rigs and simpler setups. Convection cooling ensures completely silent running, IEC power and 3-pin XLR in/out connections provide flexible power and data linking, and the 4-button menu with LED display makes on-fixture programming quick and straightforward. A bracket and rubber feet are included for rigging, floor-standing and flat uplighting use, and an optional IR remote (LEDJ90C) adds wireless control convenience.

Watch The LEDJ Slimline 7Q5 RGBA In Action...

7 x 5W RGBA LEDs & Extended Colour Spectrum

The inclusion of amber as a fourth colour channel sets the 7Q5 RGBA apart from standard RGB fixtures, extending the colour palette into warm amber tones, rich golden hues and accurate skin tones that RGB mixing alone struggles to achieve. This makes it particularly well suited to theatre, concert lighting, warm architectural uplighting and any application where natural, flattering and nuanced colour rendering is important. The 25° beam angle delivers a well-defined and consistent output, and the 400Hz refresh rate ensures flicker-free performance across live and installation environments.

White Housing For Weddings & Upscale Events

The white housing of the 7Q5 RGBA makes it an ideal choice for events and installations where the fixture itself needs to complement the overall aesthetic as much as the lighting it produces. Particularly popular for weddings, corporate brand activations, upscale venue installations and fashion events, the clean white finish blends discreetly into light-coloured décor, white draping and neutral backdrops — making the fixture virtually disappear when not in use while delivering the same powerful RGBA colour output as the black housing version.

Silent Convection Cooling & Flexible Control

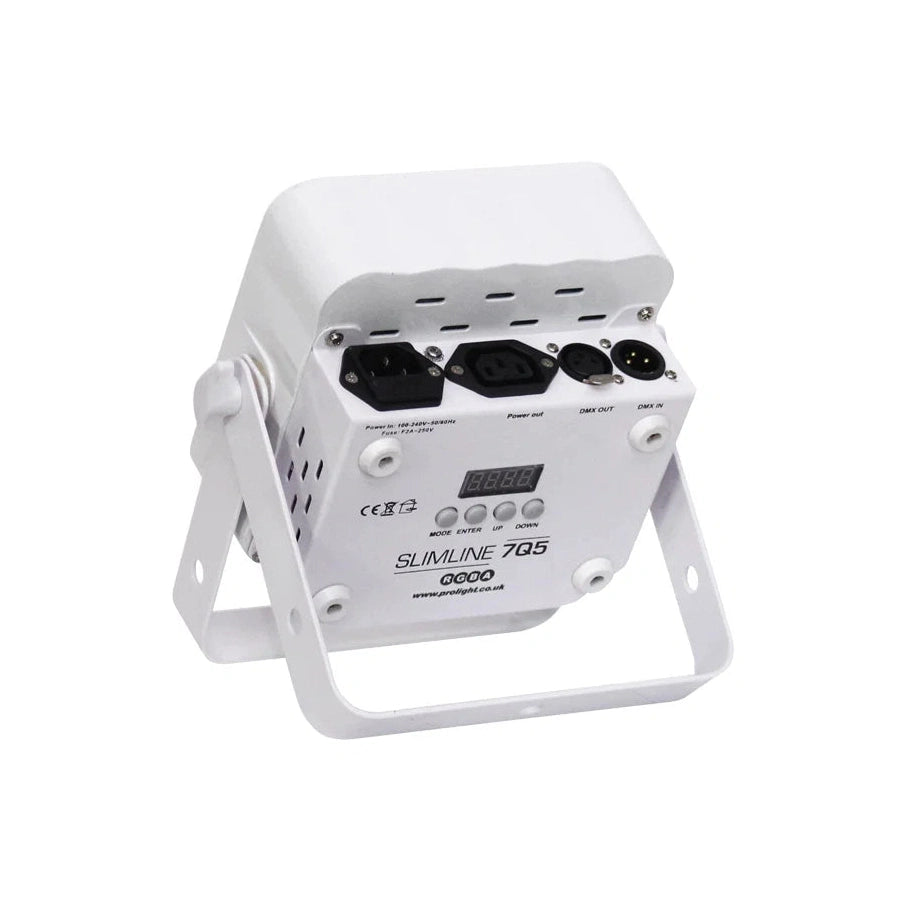

Convection cooling eliminates fan noise entirely for silent operation in noise-sensitive environments including theatre, corporate events and houses of worship. IEC power in/out and 3-pin XLR in/out connections provide versatile power and data linking for professional rigs, four selectable DMX channel modes accommodate a range of control workflows, and the 4-button menu with LED display simplifies on-fixture setup. The included bracket supports rigging and floor-standing deployment, rubber feet allow flat uplighting, and an optional IR remote (LEDJ90C) provides convenient wireless control when required.

KEY FEATURES: LEDj Slimline 7Q5 RGBA LED Par Can

• 7 x 5W RGBA LEDs: Quad-colour LED array with amber channel delivers an extended colour spectrum including warm skin tones and golden hues beyond the reach of standard RGB fixtures.
• White Housing: Clean white finish makes the fixture ideal for weddings, corporate events and upscale installations where a discreet and elegant aesthetic is preferred.
• 1,810 Lux @ 2m: Strong output for a fixture of its size, suitable for uplighting, stage wash and architectural colour applications.
• 400Hz Refresh Rate: Ensures reliable flicker-free performance across a wide range of live and installation environments.
• 4 Selectable DMX Modes: 2/3/4 or 7 channel modes provide flexible integration into lighting rigs of varying complexity.
• Multiple Operating Modes: DMX, static colour, colour change, colour fade, auto, sound active, master/slave and stand-alone modes for versatile deployment.
• Convection Cooled: Completely silent passive cooling makes the 7Q5 RGBA ideal for noise-sensitive applications including theatre, corporate and broadcast environments.
• IEC Power & 3-Pin XLR: In/out connections for flexible power and DMX data linking within the rig.
• Bracket & Rubber Feet: Included bracket supports rigging and floor-standing use; rubber feet allow flat uplighting without additional hardware.
• Optional IR Remote: Compatible with the LEDJ90C IR remote for convenient wireless control.
• Power Supply: 100–240V AC, 50/60Hz; 45W consumption; F2A 250V fuse; Dimensions: 202 x 224 x 99mm; Weight: 2.5kg.


LEDj Slimline 7Q5 RGBA User Manual
