LEDj Slimline 7Q5 RGBL LED Par Can – Black Housing

Compact 7 x 5W RGBL LED Par Can With Colour Temperature Presets, Silent Convection Cooling & Multiple Control Modes – LEDJ Slimline 7Q5 in Black Housing.

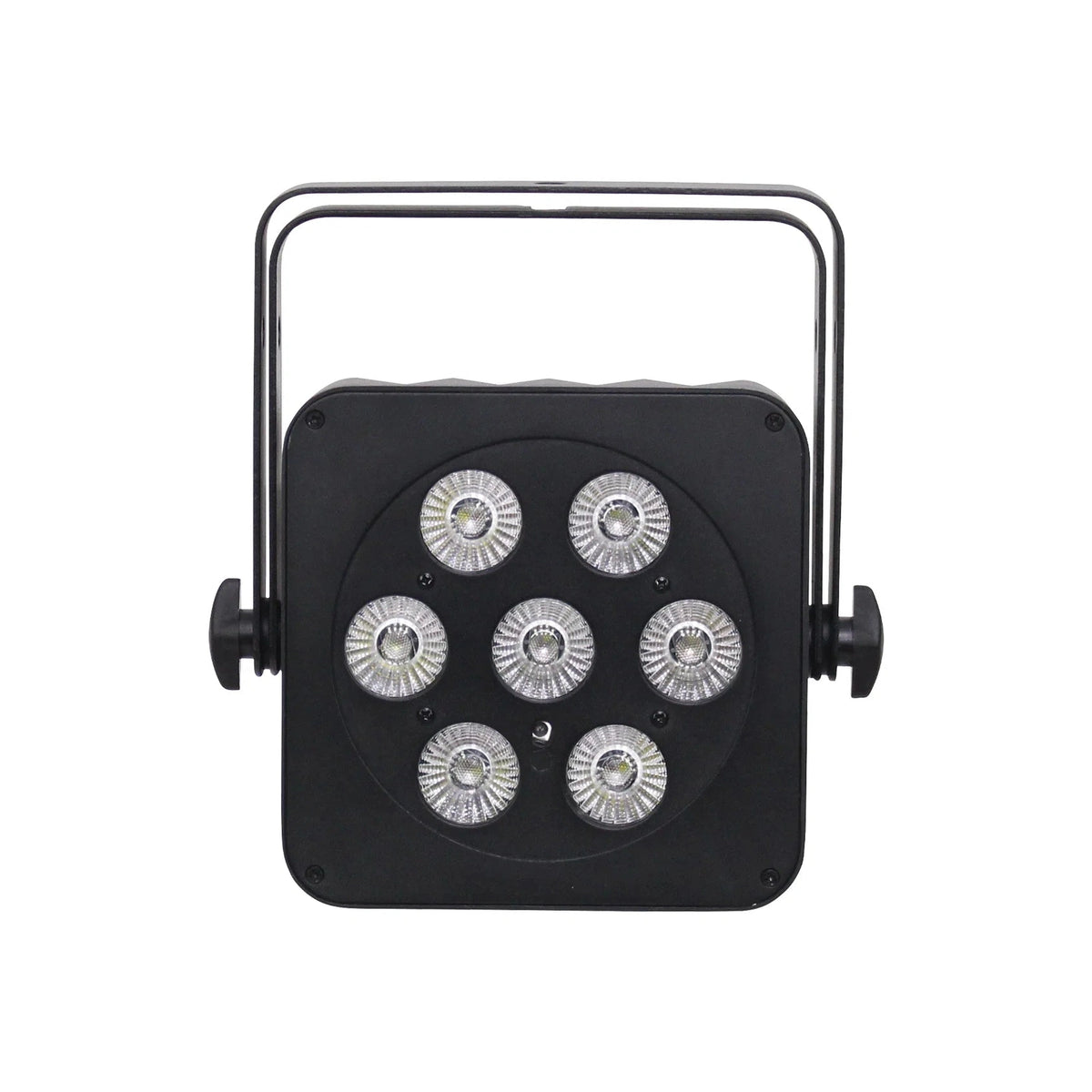

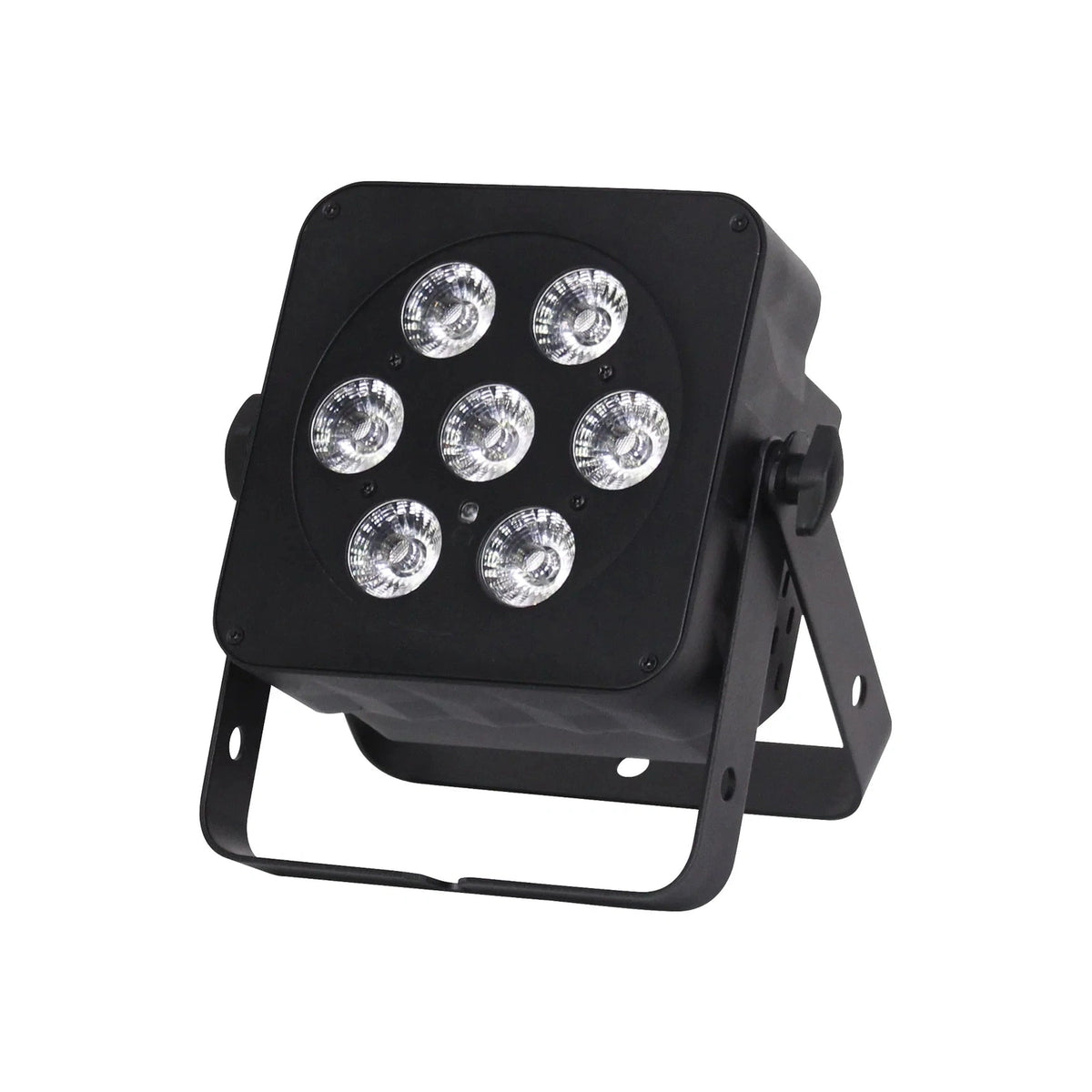

The LEDJ Slimline 7Q5 is a compact and versatile RGBL LED par fixture featuring 7 x 5W quad-colour LEDs, delivering smooth and consistent colour mixing across a 25° beam angle (40° field angle) in a slim 105mm-deep all-metal housing. Colour temperature macros spanning 2400K to 8500K with a CRI of 80 provide flexible white balance control for a wide range of stage, uplighting and venue installation applications, and six selectable DMX channel modes (2/3/4/4/5 or 7 channels) allow straightforward integration into lighting rigs of all complexities. Static colour, colour change, colour fade, sound active, primary/secondary and stand-alone modes make the 7Q5 equally at home in fully controlled professional DMX rigs and simpler plug-and-play setups.

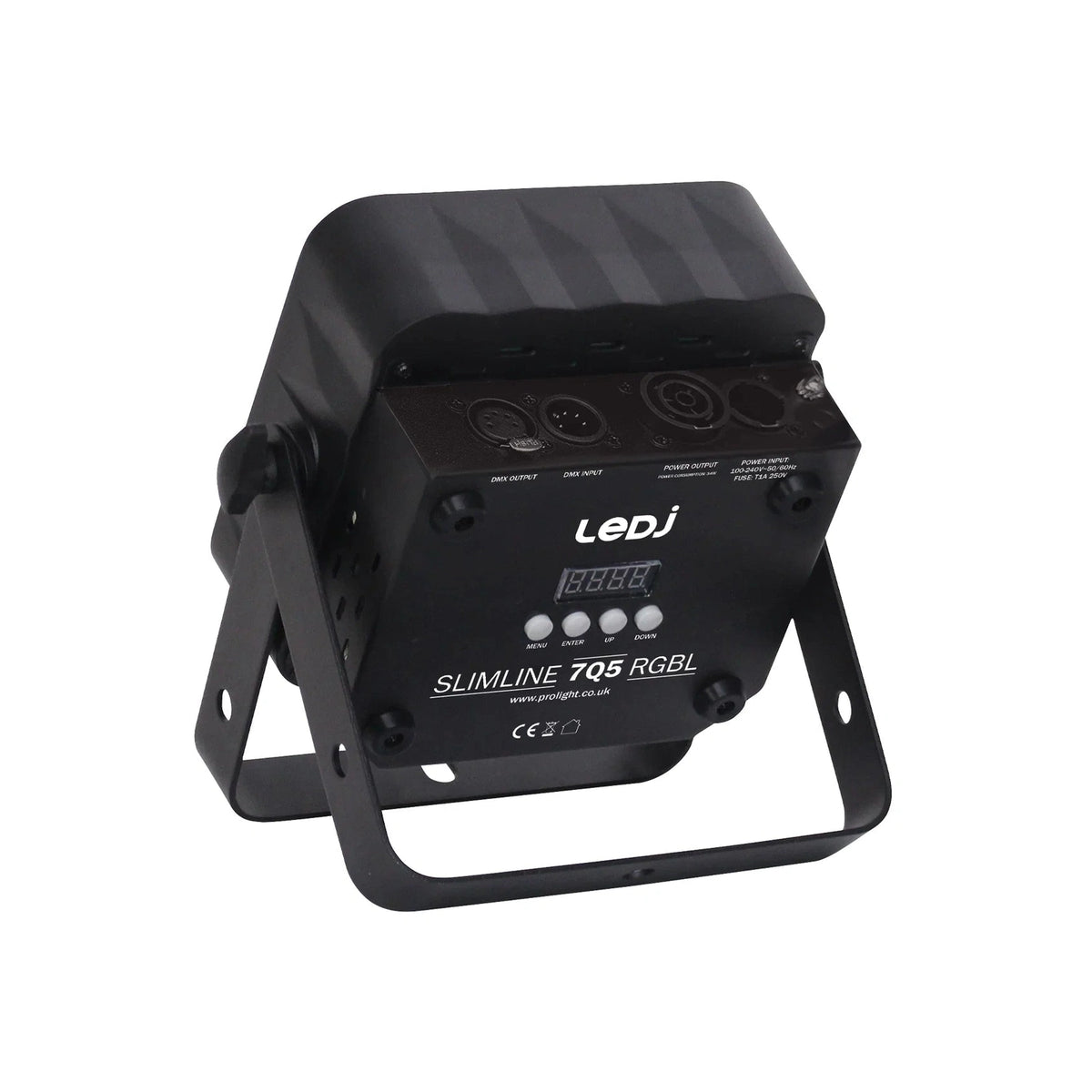

Convection cooling ensures completely silent running — an important consideration for theatre, corporate and house of worship applications where fan noise is unacceptable. PowerTwist TR1 and 5-pin XLR in/out connections provide flexible power and data linking within the rig, and the 4-button menu with LED display makes on-fixture programming straightforward. A bracket is included for rigging or floor-standing use, and rubber feet allow flat uplighting without additional hardware. An optional IR remote (LEDJ90C) adds further control convenience.

7 x 5W RGBL LEDs & Colour Temperature Control

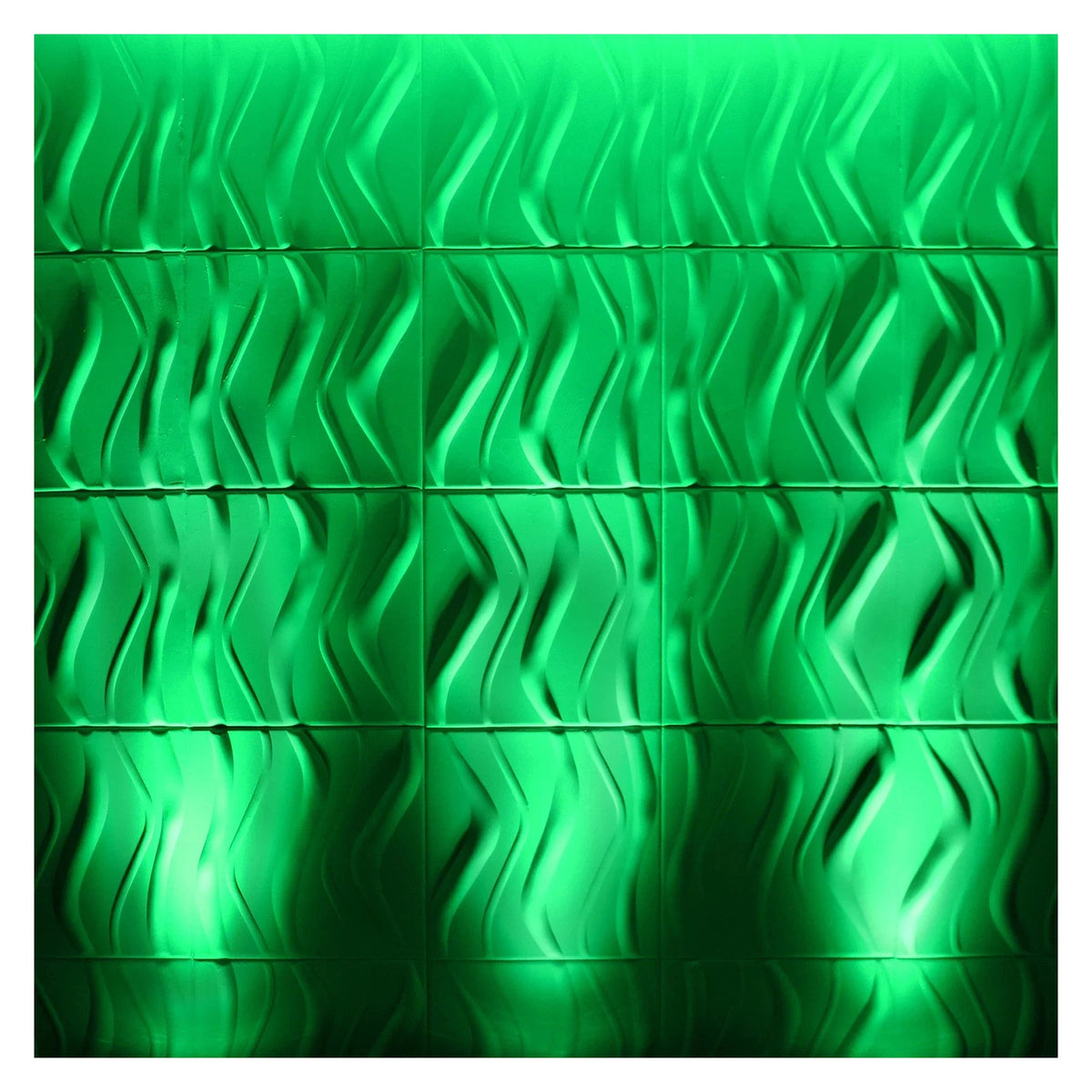

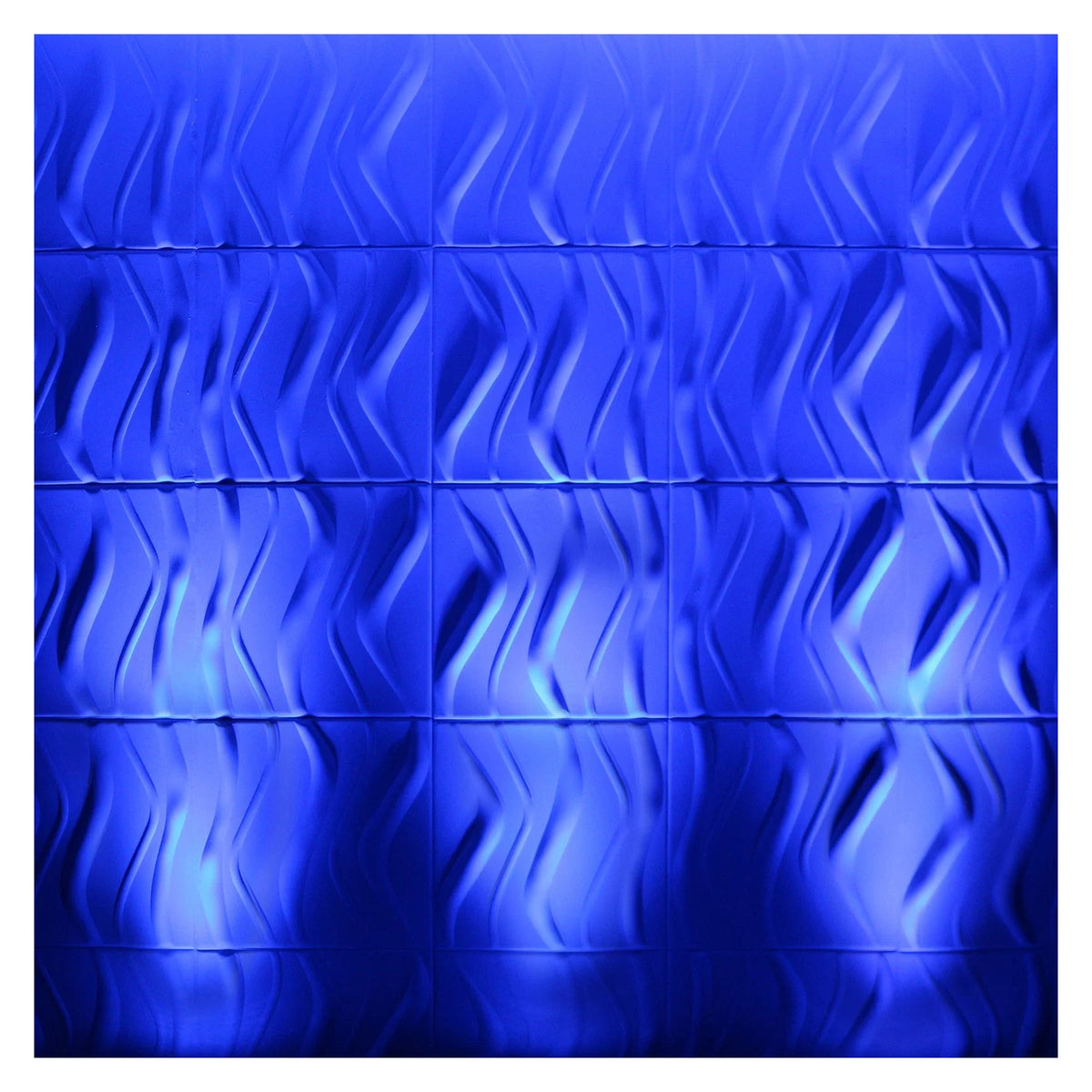

The 7Q5 combines seven 5W quad-colour RGBL LEDs with colour temperature macros spanning 2400K to 8500K, providing the flexibility to produce accurate warm white, neutral white and cool white tones alongside a full spectrum of saturated RGBL colours. The 25° beam angle delivers a well-defined and even output well suited to uplighting, stage wash and architectural colour applications, and the 3.6kHz refresh rate ensures flicker-free performance in broadcast and camera-facing environments.

Silent Convection Cooling For Noise-Sensitive Environments

Convection cooling eliminates fan noise entirely, making the 7Q5 an ideal choice for applications where silent operation is essential — including theatre productions, corporate events, houses of worship and broadcast studios. Despite its compact 105mm depth and lightweight 2.6kg construction, the all-metal housing provides effective passive thermal management for reliable continuous operation without compromise.

Flexible Connectivity & Control Options

PowerTwist TR1 and 5-pin XLR in/out connections provide versatile power and data linking for integration into professional lighting rigs, and six selectable DMX channel modes accommodate a wide range of control workflows from simple two-channel operation through to full 7-channel individual colour control. The 4-button menu with LED display simplifies on-fixture setup, the included bracket supports both rigging and floor-standing deployment, and rubber feet allow flat uplighting without additional accessories. An optional IR remote (LEDJ90C) provides convenient wireless control when needed.

KEY FEATURES: LEDj Slimline 7Q5 RGBL LED Par Can

• 7 x 5W RGBL LEDs: Quad-colour LED array delivers smooth, consistent colour mixing across a 25° beam angle with a 40° field angle.
• Colour Temperature Presets: Macros spanning 2400K–8500K provide flexible white balance control for a wide range of lighting applications.
• CRI 80 & 3.6kHz Refresh Rate: A CRI of 80 ensures natural colour rendition, and the 3.6kHz refresh rate delivers flicker-free performance in broadcast and camera-facing environments.
• 6 Selectable DMX Modes: 2/3/4/4/5 or 7 channel modes provide flexible integration into lighting rigs of all complexities.
• Multiple Operating Modes: DMX, static colour, colour change, colour fade, sound active, primary/secondary and stand-alone modes for versatile deployment.
• Convection Cooled: Completely silent passive cooling makes the 7Q5 ideal for noise-sensitive applications including theatre, corporate and broadcast environments.
• PowerTwist TR1 & 5-Pin XLR: In/out connections for flexible power and DMX data linking within the rig.
• Bracket & Rubber Feet: Included bracket supports rigging and floor-standing use; rubber feet allow flat uplighting without additional hardware.
• Optional IR Remote: Compatible with the LEDJ90C IR remote for convenient wireless control.
• Power Supply: 100–240V AC, 50/60Hz; 34W consumption; T1A 250V fuse; Dimensions: 220 x 212 x 105mm; Weight: 2.6kg.
