Soundcraft Ui16 16-Channel Digital Rack Mixer With Wireless Control

Professional Wireless Control With Full Connectivity – Soundcraft Ui16 Digital Mixer.

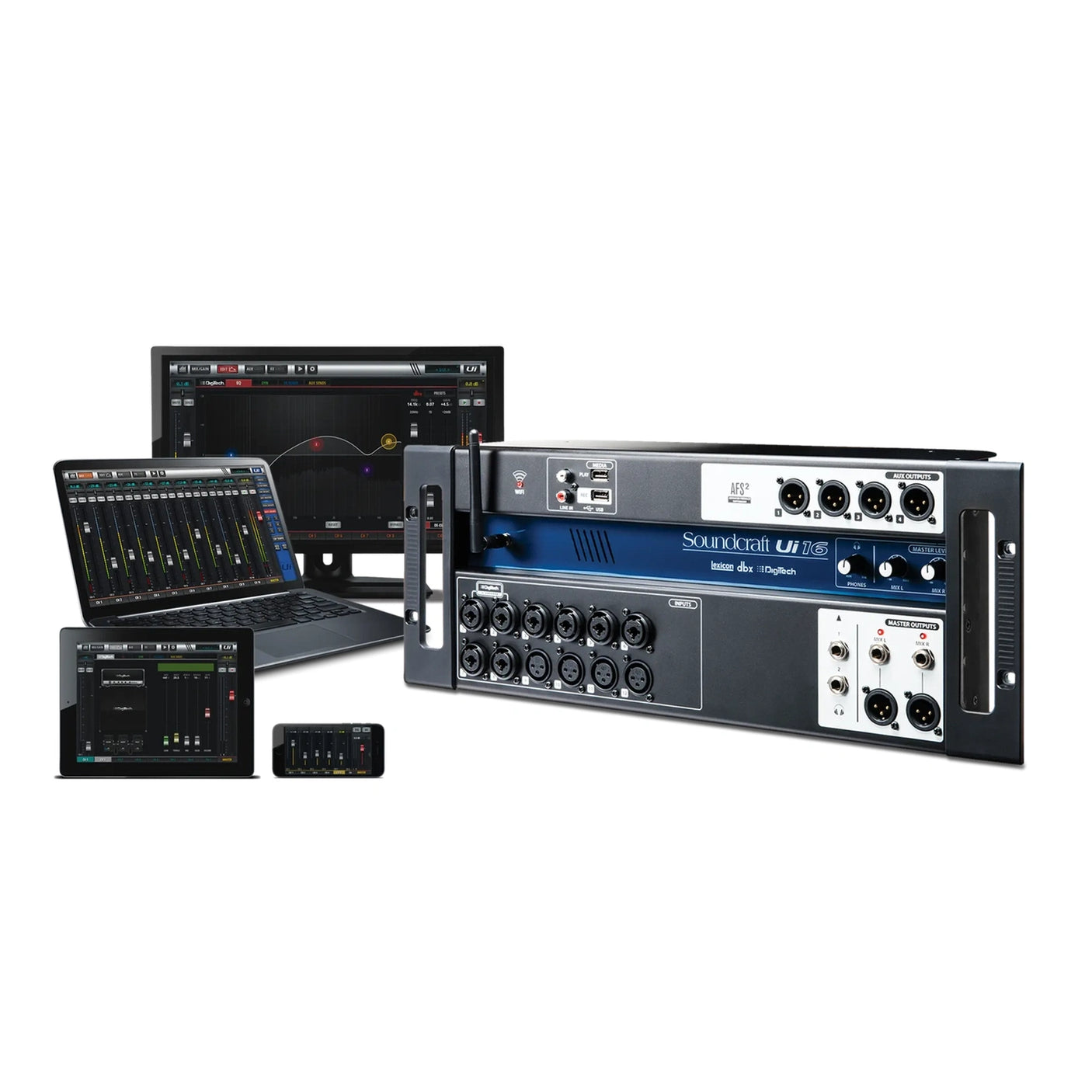

The Soundcraft Ui16 is a 16-channel digital rack mixer designed for professional live sound, recording, and installed applications. With integrated Wi-Fi, the Ui16 can be controlled wirelessly via tablet, smartphone, or PC, and supports up to ten devices simultaneously. Cross-platform compatibility across iOS, Android, Windows, Mac OS, and Linux ensures flexible control and collaboration, making it perfect for live performances, houses of worship, educational environments, and recording studios.

Featuring Harman signal processing from dbx®, Digitech®, and Lexicon®, the Ui16 delivers professional-grade audio with fully recallable mic preamps, phantom power, 4-band parametric EQ, high-pass filters, compressors, de-essers, and noise gates on all inputs. Outputs include 31-band graphic EQ, compressor, noise gate, and real-time frequency analysis for precise control of your live mix or recording.

Learn about the Soundcraft Ui16 in more detail...

Extensive Connectivity And Control Features

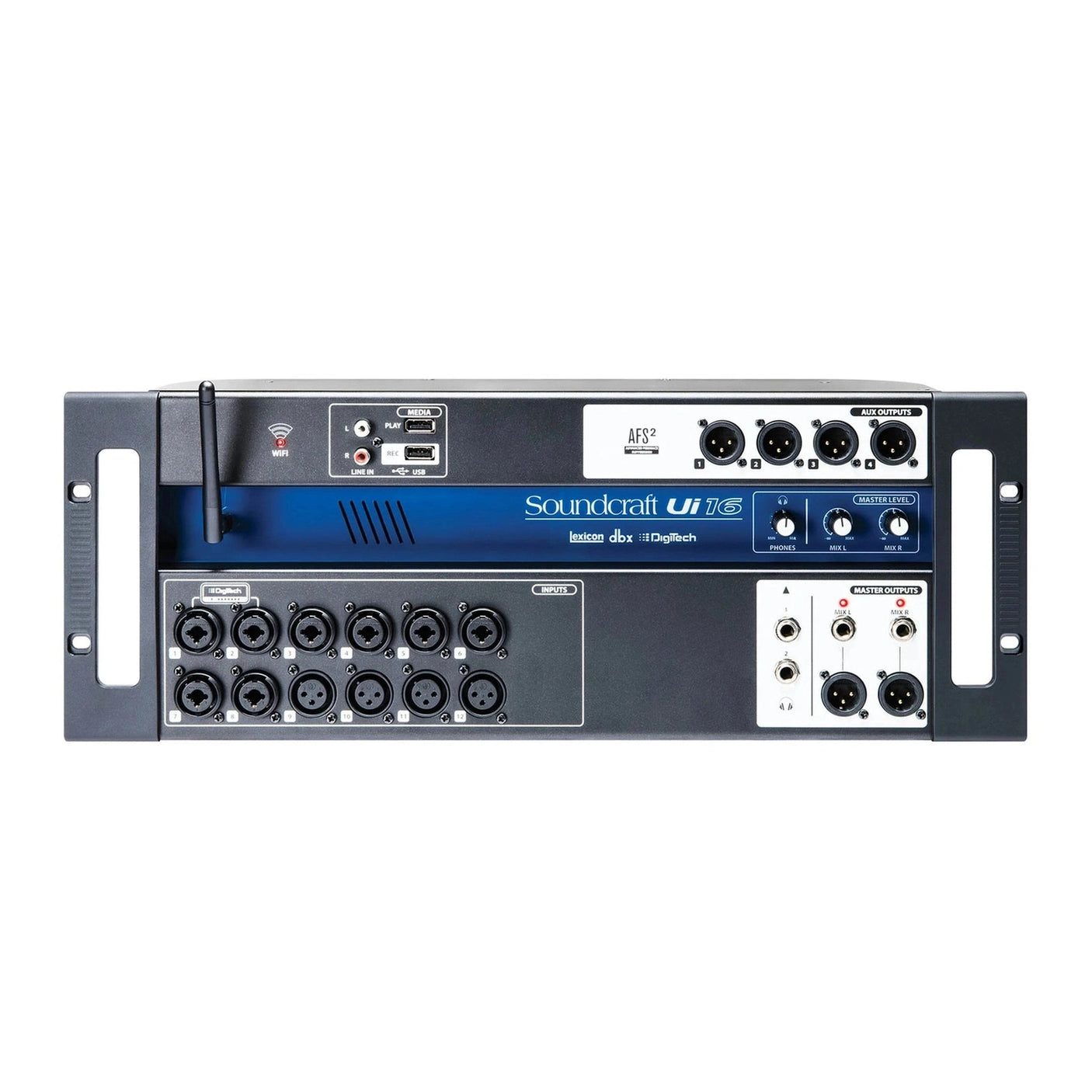

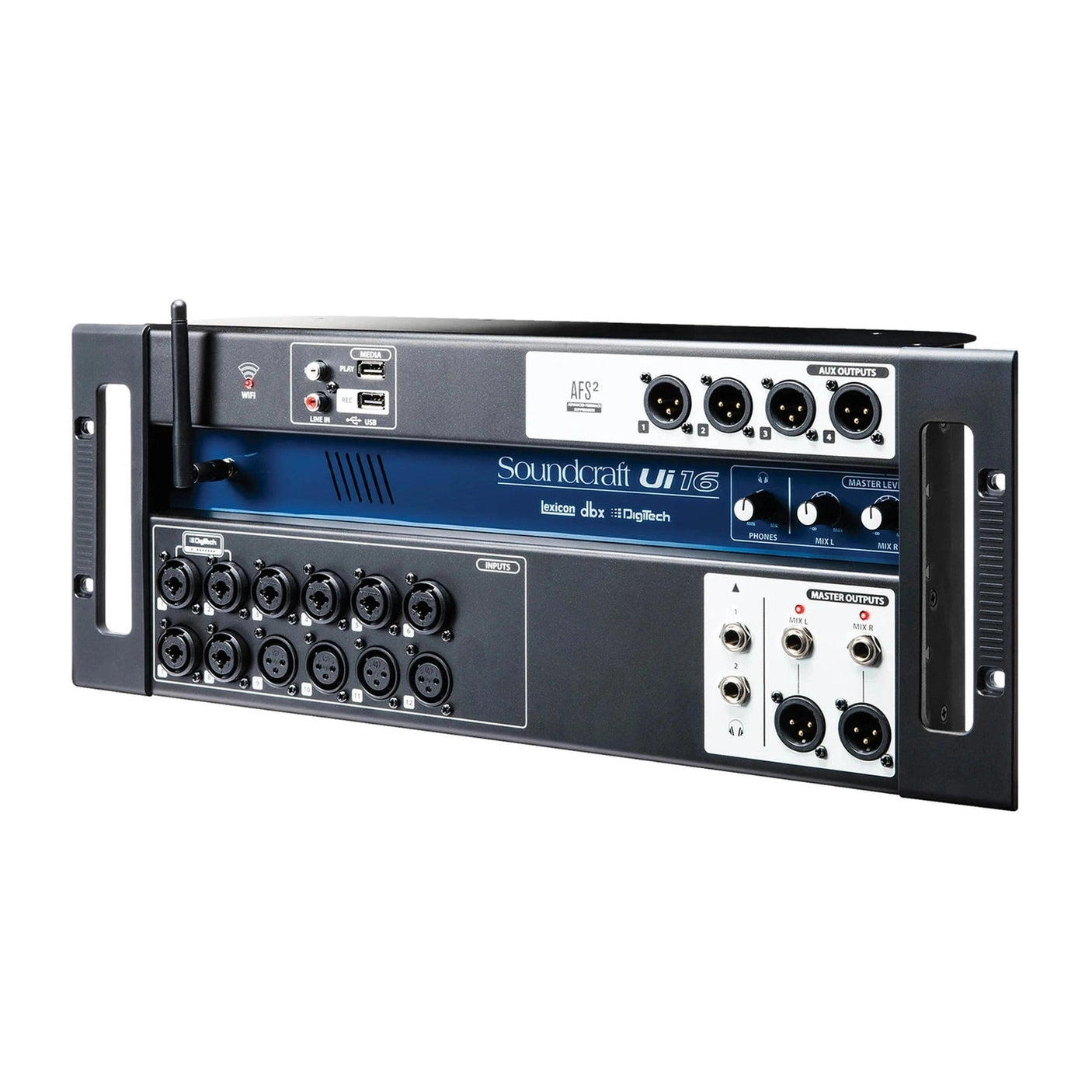

The Ui16 offers eight XLR combo mic/line inputs, four additional XLR mic inputs, two Hi-Z/instrument channels, and a stereo RCA line input. Outputs include four balanced XLR aux outputs, two quarter-inch headphone outputs with level control, and balanced stereo XLR and quarter-inch main outputs. A 2-channel USB media player supports MP3, WAV, and AIFF formats, and USB direct-to-memory recording allows for straightforward live capture.

Advanced Processing And Effects

Built-in Harman signal processing is complemented by three dedicated Lexicon FX busses for Reverb, Delay, and Chorus. Mixer functions include subgroups, mute groups, view groups, show/snapshot recall with channel safes, and password-protected access, allowing multiple users to safely control different aspects of the mix. Sync ID functionality ensures that multiple browser windows remain perfectly aligned during collaborative control.

Demo Software

View the demo software for the Ui-series mixers below.

KEY FEATURES: Soundcraft Ui16 16-Channel Digital Rack Mixer With Wireless Control

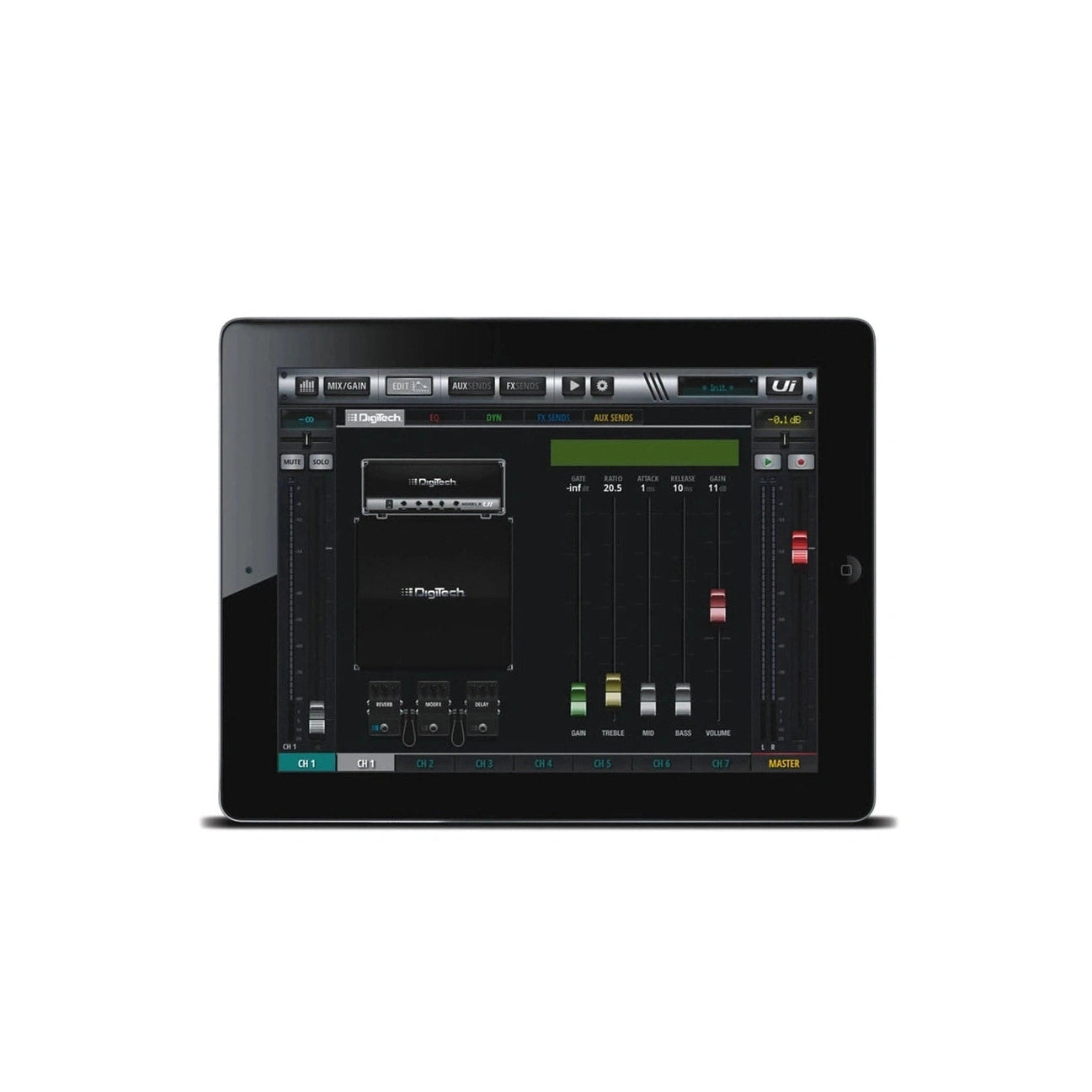

• Wireless Control: Tablet, PC, and smartphone operation via integrated Wi-Fi or Ethernet.
• Input Processing: Fully recallable mic preamps with 4-band parametric EQ, high-pass filter, compressor, de-esser, and noise gate.
• Output Processing: 31-band graphic EQ, compressor, noise gate, and real-time frequency analyser (RTA).
• Effects: Three Lexicon FX busses: Reverb, Delay, Chorus.
• Snapshots & Recall: Show/Snapshot memory with channel safes for reliable scene recall.
• Security & Access: Password protection and lockouts for device access.
• Connectivity: 8 XLR combo inputs, 4 XLR mic inputs, 2 Hi-Z channels, stereo RCA input, 4 balanced XLR aux outputs, 2 headphone outputs, stereo XLR and quarter-inch main outputs, 2-channel USB media player.
• USB Playback & Recording: Supports MP3, WAV, AIFF, and direct-to-memory recording.
• Multi-User Support: Up to 10 devices can control the mixer simultaneously with Sync ID alignment.
