Studiomaster DigiLive 16 16-Input Digital WiFi Mixer With Advanced DSP

Studiomaster DigiLive 16 16-Input Digital Mixer with Motorised Faders & Advanced DSP.

The Studiomaster DigiLive 16 is a compact yet powerful 16-input digital mixer designed for serious live and studio applications. With 12 mic inputs, 2 stereo channels, 16 internal busses, and a full suite of DSP features, it delivers professional-level performance in a format that’s easy to operate both on the desk and remotely via iPad. The combination of a 7" high-resolution touchscreen, 9 motorised 100mm faders, and assignable smart outputs makes the DigiLive 16 a versatile, all-in-one mixing solution for demanding environments.

Designed from the ground up for intuitive operation, the DigiLive 16 blends tactile control with cutting-edge digital processing. Whether you're running front of house at a live event or recording multitrack sessions in a studio, this mixer offers extensive I/O, a flexible effects engine, and crystal-clear 24-bit, 192kHz AD/DA conversion—all in a space-efficient, road-ready design.

Comprehensive Input, Output & Control Options

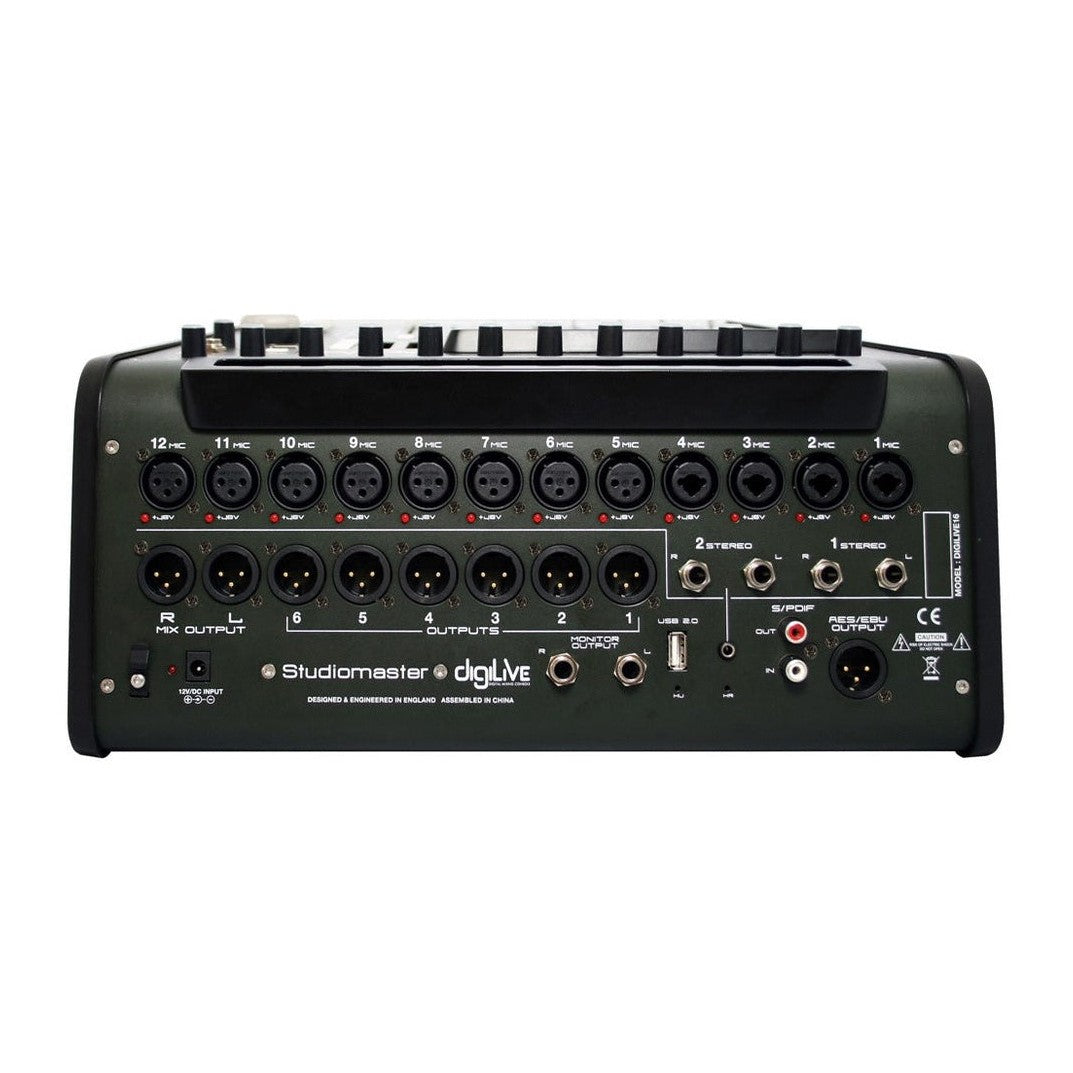

The DigiLive 16 provides 16 input channels—12 mic inputs (via 8 XLR and 4 combo XLR/jack sockets) and 2 stereo channels, one of which offers both 6.5mm and 3.5mm jack options. Outputs include a pair of balanced XLR main outs, six assignable smart outputs (also XLR), stereo monitor and headphone outputs (TRS), plus digital AES/EBU and S/PDIF connectivity.

Control is fast and flexible, thanks to the responsive 7" HD touchscreen, 8 motorised channel faders and a dedicated master fader, as well as compatibility with the DigiLive Blackbox remote app for iOS. Whether operated directly or remotely, the interface is designed for speed, precision, and ease of access.

High-End DSP, Effects & Scene Management

Audio processing is handled by a high-powered 40-bit SHARC DSP, offering up to 8 assignable effects modules including reverb, delay, modulation, and a 31-band graphic EQ with RTA. The system also supports 16 internal busses (4 stereo FX, 2 mono AUX, main mix), ensuring complete routing flexibility across complex setups.

Scene recall, USB playback/recording, and dual USB ports for system updates and show files make this mixer ideal for touring professionals and fixed installations alike. The ultra-quiet 192kHz converters and 48kHz sample rate guarantee exceptional audio clarity in all situations.

KEY FEATURES: Studiomaster DigiLive 16 Digital WiFi Mixing Console

• 16 Input Channels – 12 mic (8 XLR, 4 combo) + 2 stereo channels

• 9 Motorised Faders – 8 channels + 1 master (all 100mm)

• 7" HD Touchscreen – Fast, intuitive control and scene access

• DSP Processing – SHARC 40-bit engine with up to 8 assignable FX

• 16 Internal Busses – 4 stereo FX, 2 mono AUX, and main mix

• 8 Smart Outputs – 2 main outs + 6 assignable balanced XLR outputs

• USB Interfaces – 2 ports for playback, recording, and firmware updates

• Digital I/O – AES/EBU (XLR) and S/PDIF (RCA phono)

• Remote Operation – Via iPad using DigiLive Blackbox app

• Stereo Monitoring – TRS stage monitor and headphone outputs

• High-Resolution Conversion – 192kHz AD/DA, 24-bit resolution

• Wide Range Power Supply – 90–240V ~ 50/60Hz with 24VDC output

• Compact & Lightweight – Ideal for mobile rigs and tight control booths
