Citronic CSP-410 2 x 200W 10-Input Powered Mixer With DSP Effects

Compact & Comprehensive 10-Input 2 x 200W Powered Mixer With DSP Effects & 7-Band Graphic EQ For Mobile PA, Bars & Events – Citronic CSP-410.

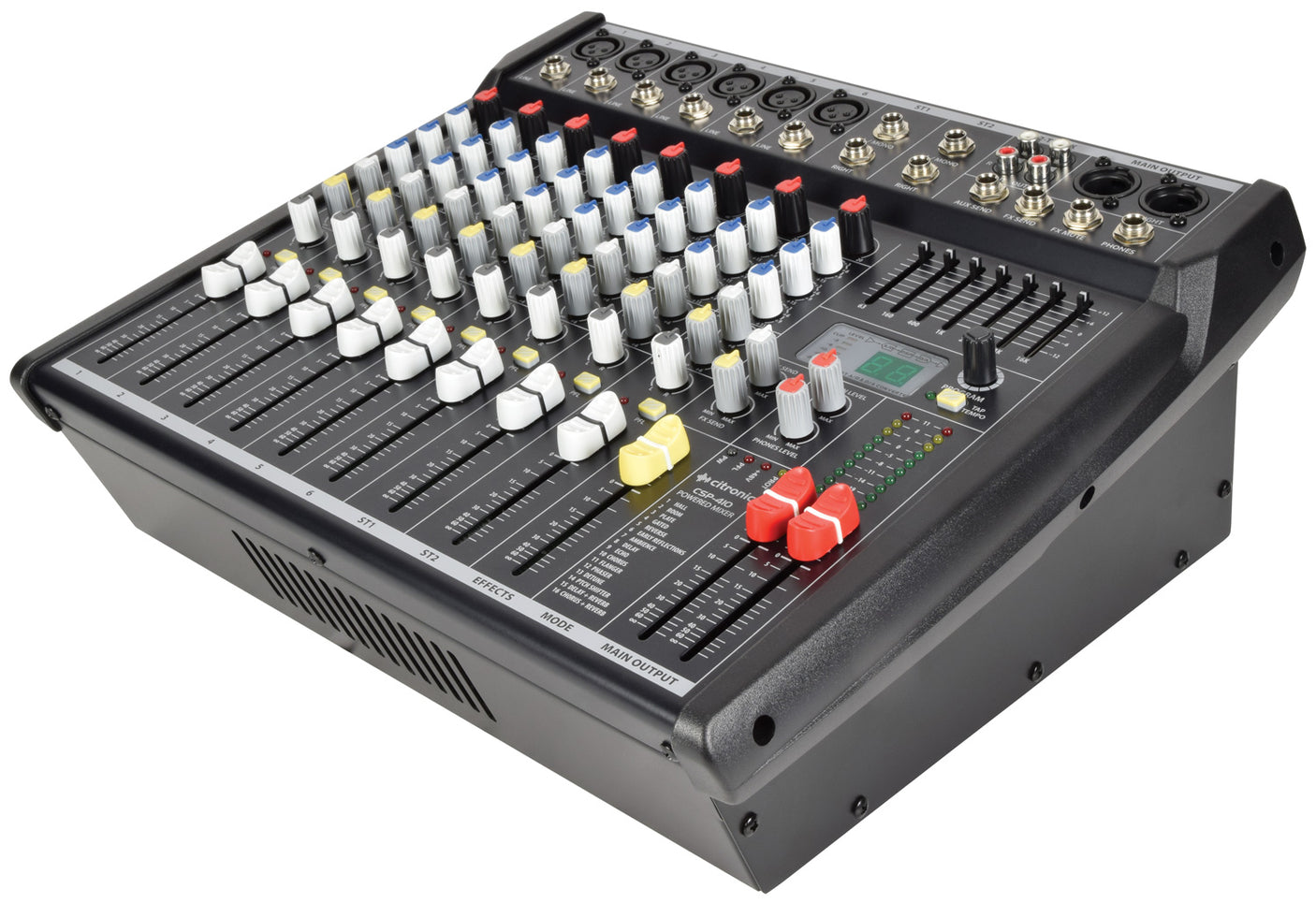

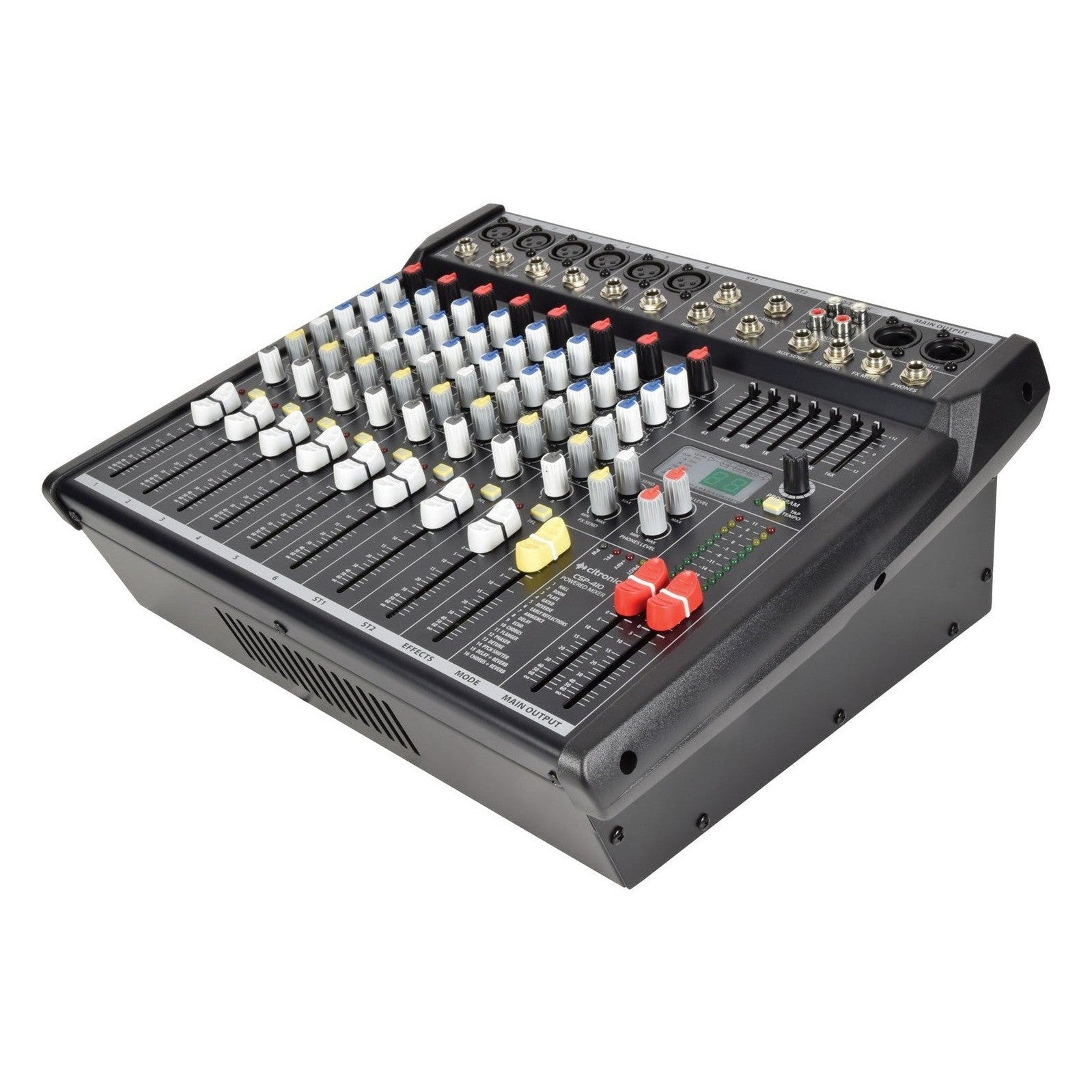

The Citronic CSP-410 is a compact and fully featured 10-input 2 x 200W powered mixer designed to provide a comprehensive audio solution for mobile PA, bars, special events and medium-sized venues. Building on the CSP-408 with an expanded input count, it features six balanced XLR/TRS combo mic/line inputs each with 3-band EQ and aux send, alongside two stereo inputs — providing a total of 10 inputs for a flexible and well-specified input stage capable of accommodating a wide variety of sources. Switchable +48V phantom power supports condenser microphones on the XLR inputs, and a 7-band global graphic EQ provides effective overall tone shaping across the main output. The internal stereo amplifier delivers 2 x 200W RMS at 4 Ohms — enough to drive two or four speaker cabinets comfortably for solid coverage in medium-sized venues.

A 24-bit 16-program DSP effects section with tap tempo provides a versatile range of vocal and instrument effects, and balanced main XLR outputs allow connection to additional amplification or recording equipment. A 2-track RCA input and output and a headphone output on a 6.3mm jack add further flexibility, making the CSP-410 an ideal step up from the CSP-408 for those requiring a higher input count without sacrificing compactness or ease of use. With a frequency response of 20Hz–30kHz and THD+N of less than 0.01%, it delivers clean and reliable audio performance throughout.

Expanded 10-Input Stage With Per-Channel EQ

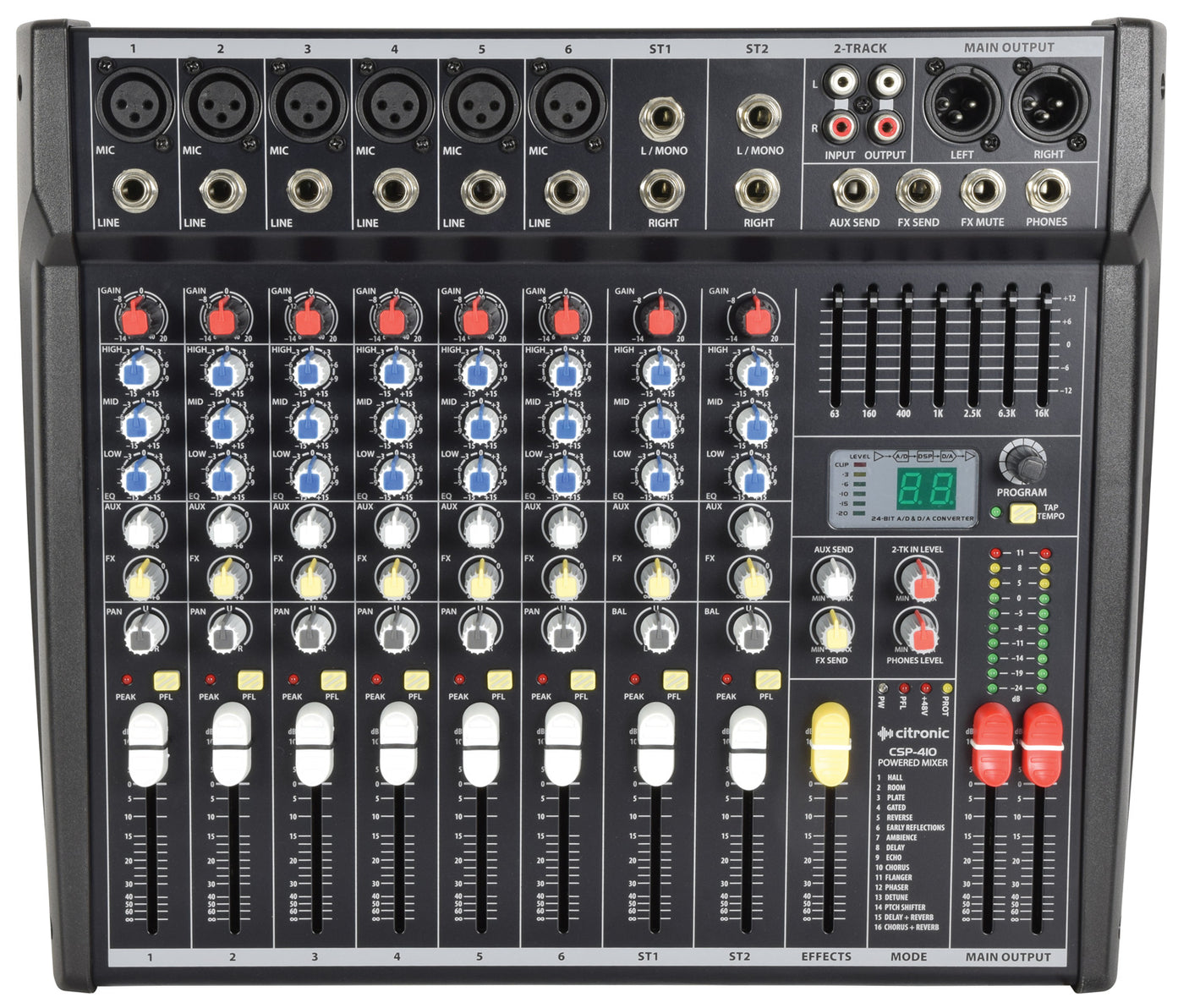

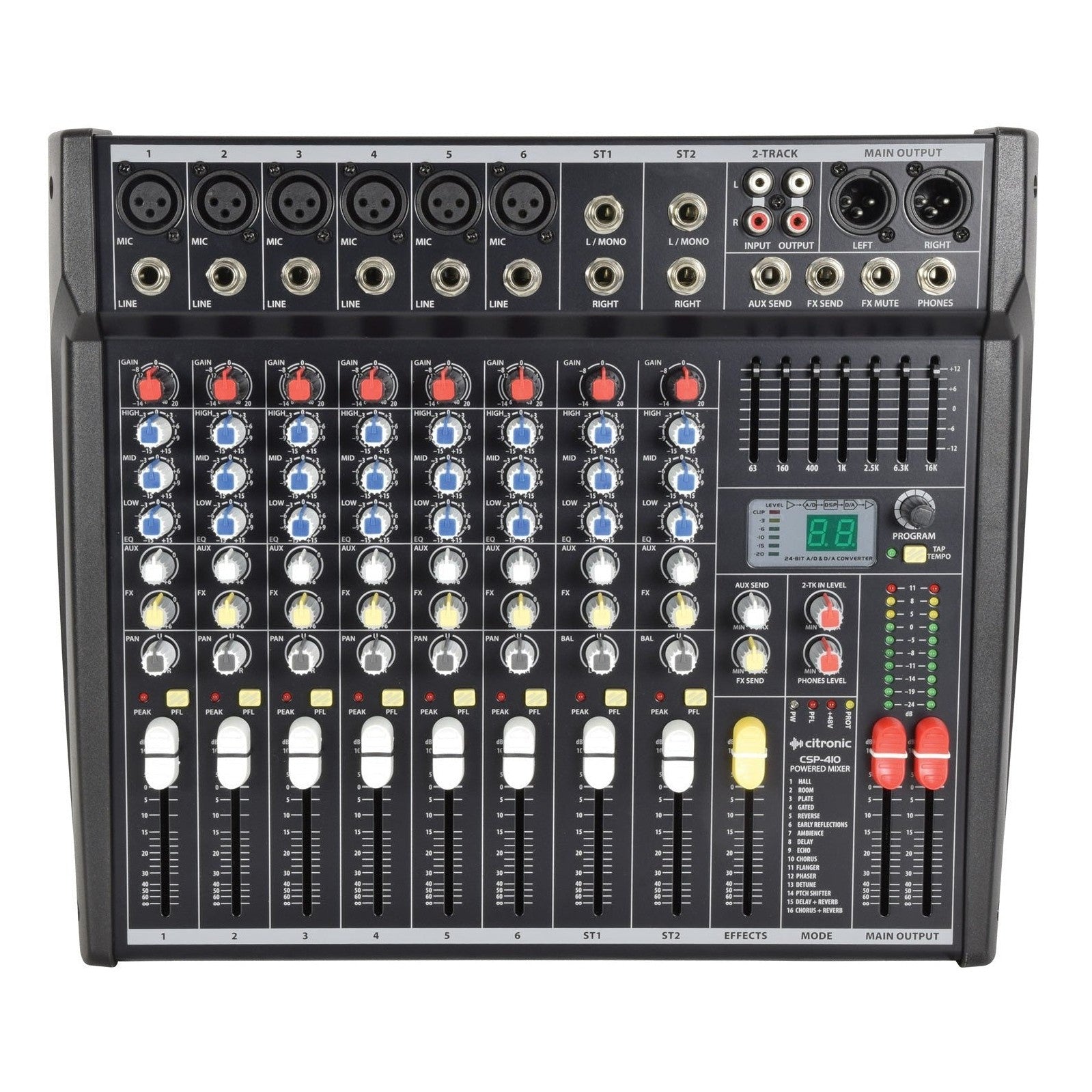

The CSP-410 features six balanced XLR/TRS combo mic/line inputs alongside two stereo inputs for a total of 10 inputs, making it a more capable solution than the CSP-408 for productions requiring a higher source count. Each mic/line channel is equipped with 3-band EQ (80Hz shelving, 2.5kHz band pass and 12kHz shelving, all ±15dB) and an aux send for monitor or effects routing. Switchable +48V phantom power on the XLR inputs ensures compatibility with condenser microphones, and with a mic sensitivity range of -60 to +14dBu the input stage handles both dynamic and condenser microphones with ease.

7-Band Graphic EQ & DSP Effects

The 7-band global graphic EQ provides straightforward and effective tone control across the main output, making it easy to compensate for room acoustics and optimise the sound for different venues and environments. The 24-bit 16-program DSP effects section operates at 40kHz with sigma-delta conversion, offering a clean and high-quality effects signal chain with tap tempo for time-based effects such as delay. The combination of per-channel EQ, global graphic EQ and DSP effects gives operators a high degree of control over the final sound without the need for external processing equipment.

Powerful Amplifier & Versatile Connectivity

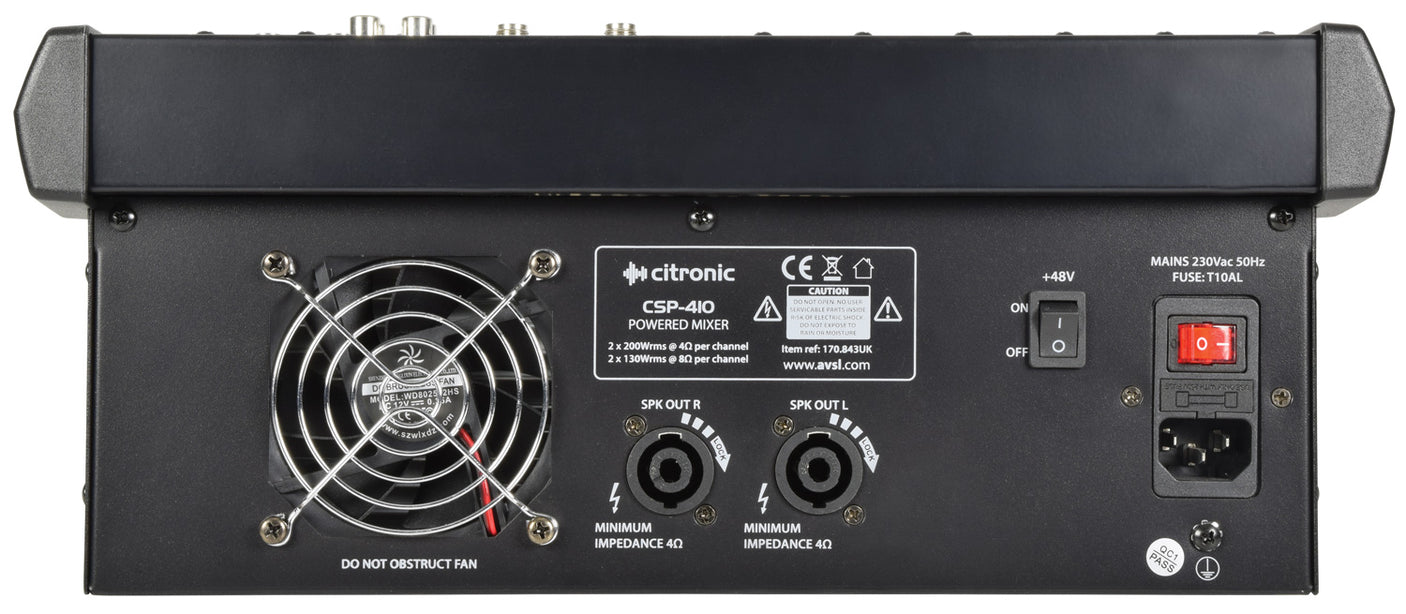

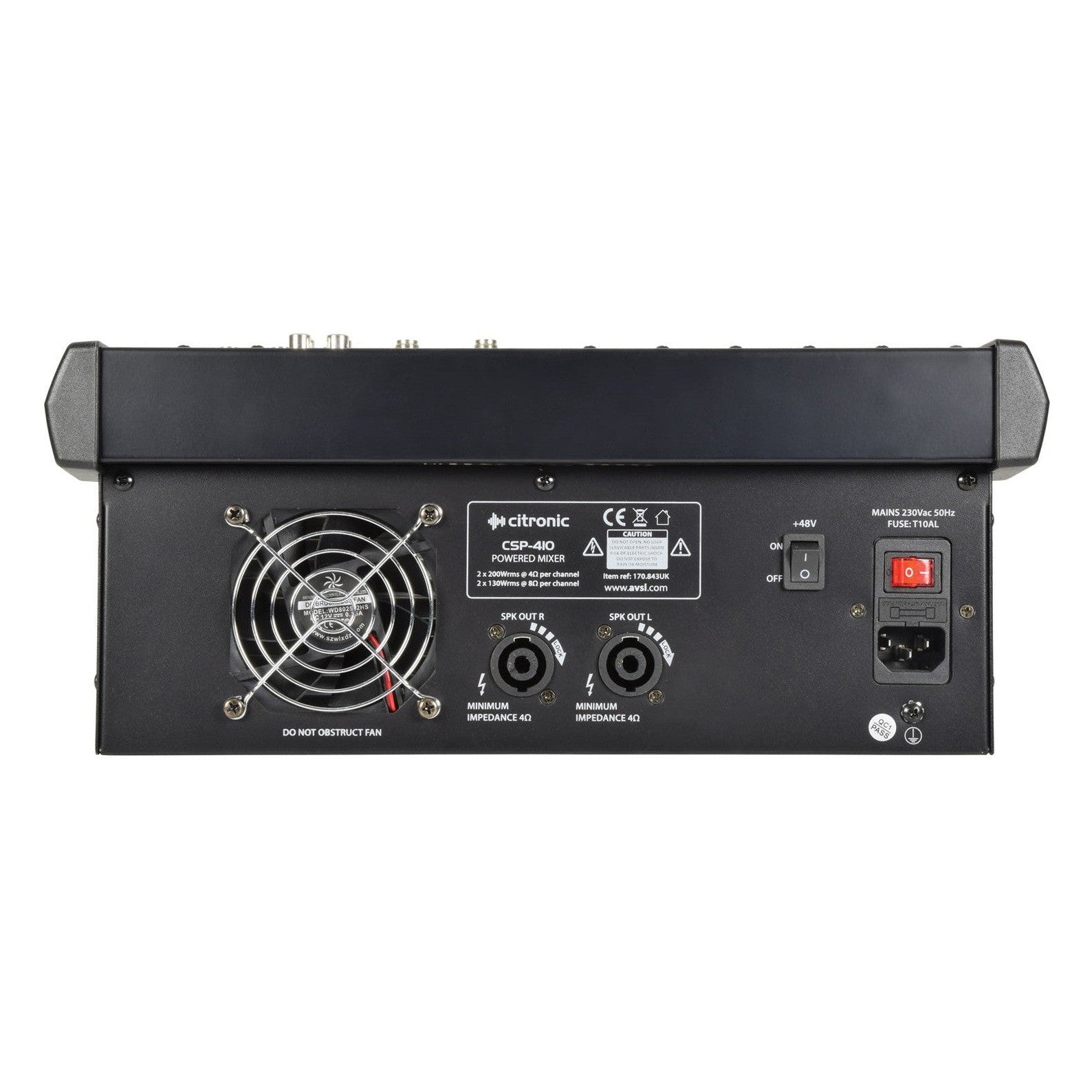

The internal stereo amplifier delivers 2 x 200W RMS at 4 Ohms or 2 x 130W RMS at 8 Ohms via L+R SPK connectors, providing ample power to drive two or four passive speaker cabinets for medium-sized venue coverage. Balanced main XLR outputs allow connection to additional power amplifiers or recording equipment, and 2-track RCA inputs and outputs provide convenient playback and recording connectivity. A 6.3mm headphone output supporting 30–600 Ohms impedance allows for private monitoring, and the standard IEC power connection ensures straightforward integration into any existing setup.

KEY FEATURES: Citronic CSP-410 10-Input 2 x 200W Powered Mixer

• 2 x 200W RMS Powered Amplifier: Ample power to drive two or four passive speaker cabinets for solid coverage in medium-sized venues.
• 6 x Balanced Combo Mic/Line Inputs: XLR/TRS combo inputs with switchable +48V phantom power for both dynamic and condenser microphones.
• 10 Inputs Total: Six mic/line and two stereo inputs for a flexible and well-equipped source count.
• 3-Band EQ Per Channel: Individual high, mid and low EQ controls on every channel for precise per-source tone shaping.
• 7-Band Global Graphic EQ: Overall tone control across the main output for straightforward room and venue acoustic compensation.
• Aux Send Per Channel: Flexible aux routing on every channel for monitor or effects sends.
• 24-Bit DSP Effects With Tap Tempo: 16 high-quality effects programs with tap tempo, ideal for vocals and instruments without the need for external processing.
• Balanced Main XLR Outputs: Connect to additional amplifiers or recording equipment for flexible system expansion.
• L+R SPK Speaker Outputs: Direct speaker outputs for straightforward connection to passive cabinets.
• 2-Track RCA Input & Output: Convenient playback and recording connectivity for music sources and recording devices.
• Headphone Output: 6.3mm jack output for private monitoring during setup and performance.

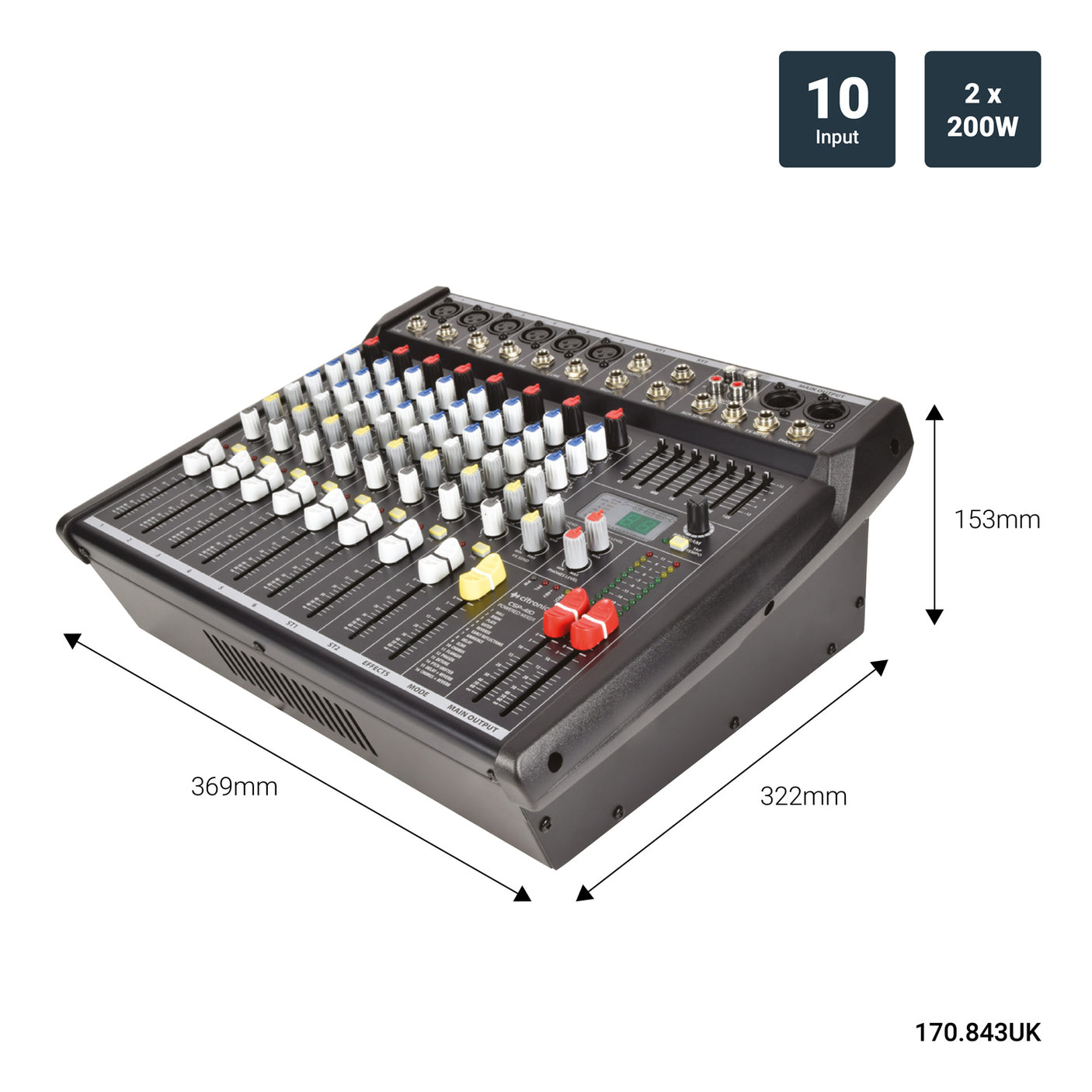

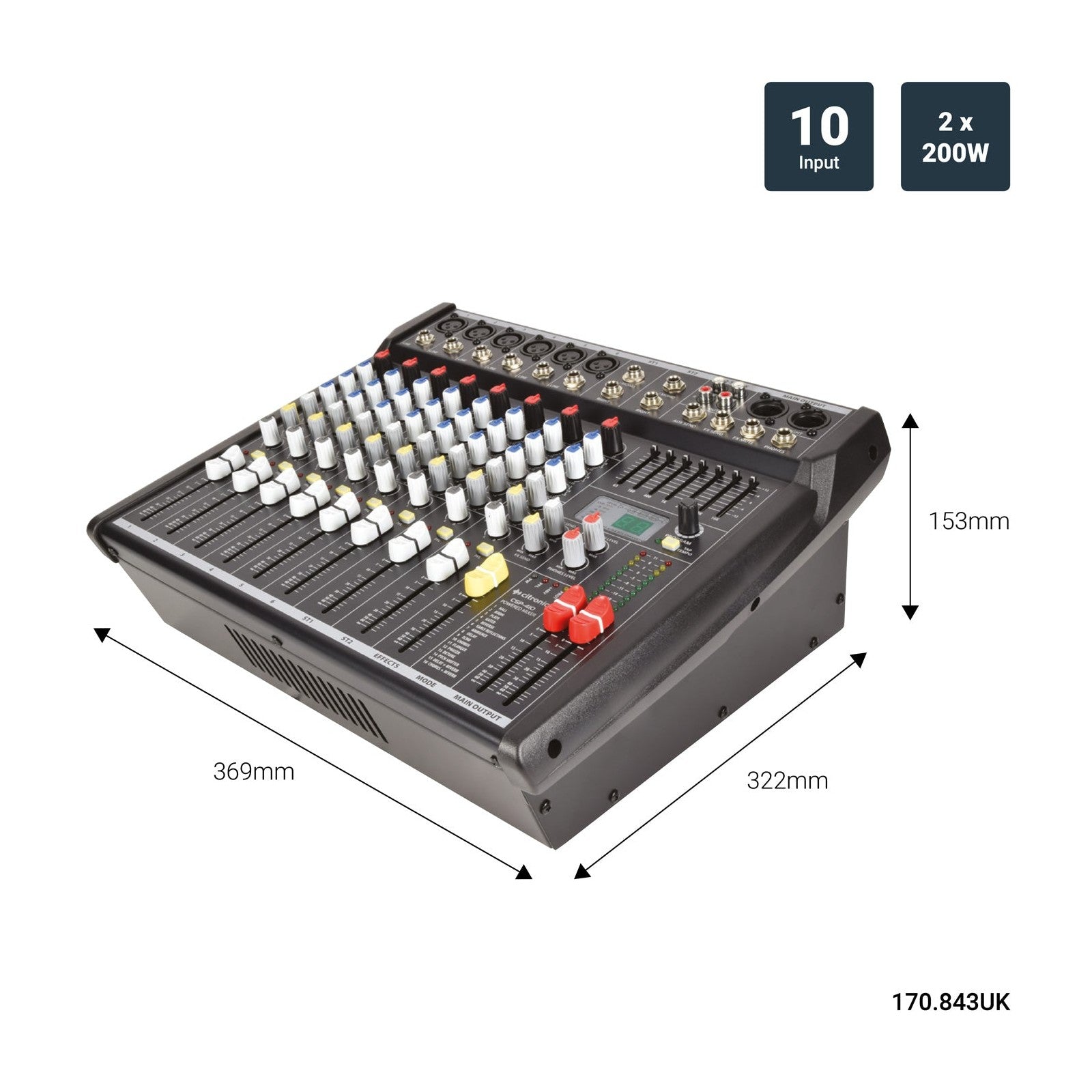

• Compact & Portable: At just 7.35kg, easy to transport across a wide range of venues and events.
