Equinox Gigabar Compact Duo Bar System - Twin LED T-Bar With Stands, Bags & Foot Control

Twin LED Bars, One Synchronised Setup - Equinox Gigabar Compact Duo Bar System.

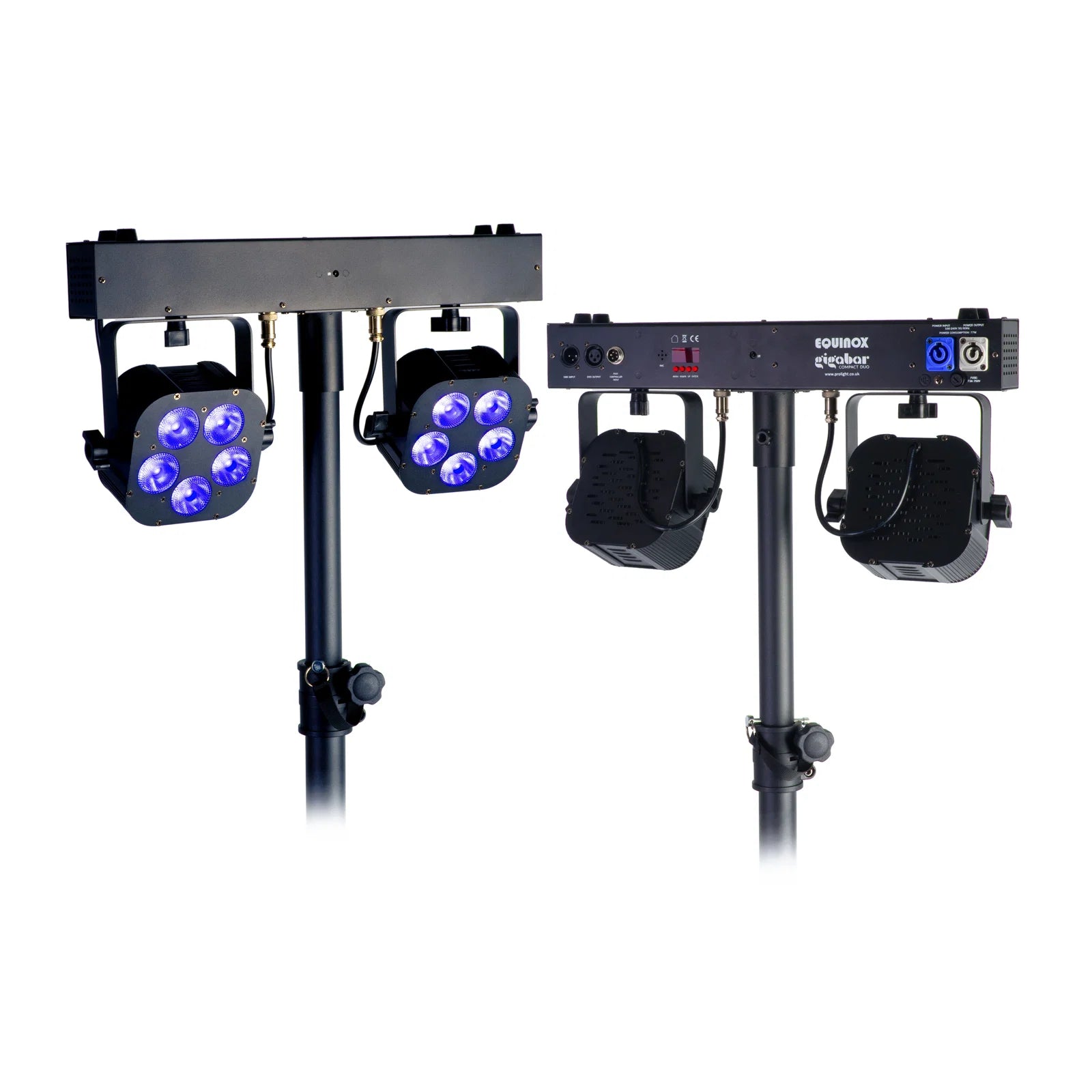

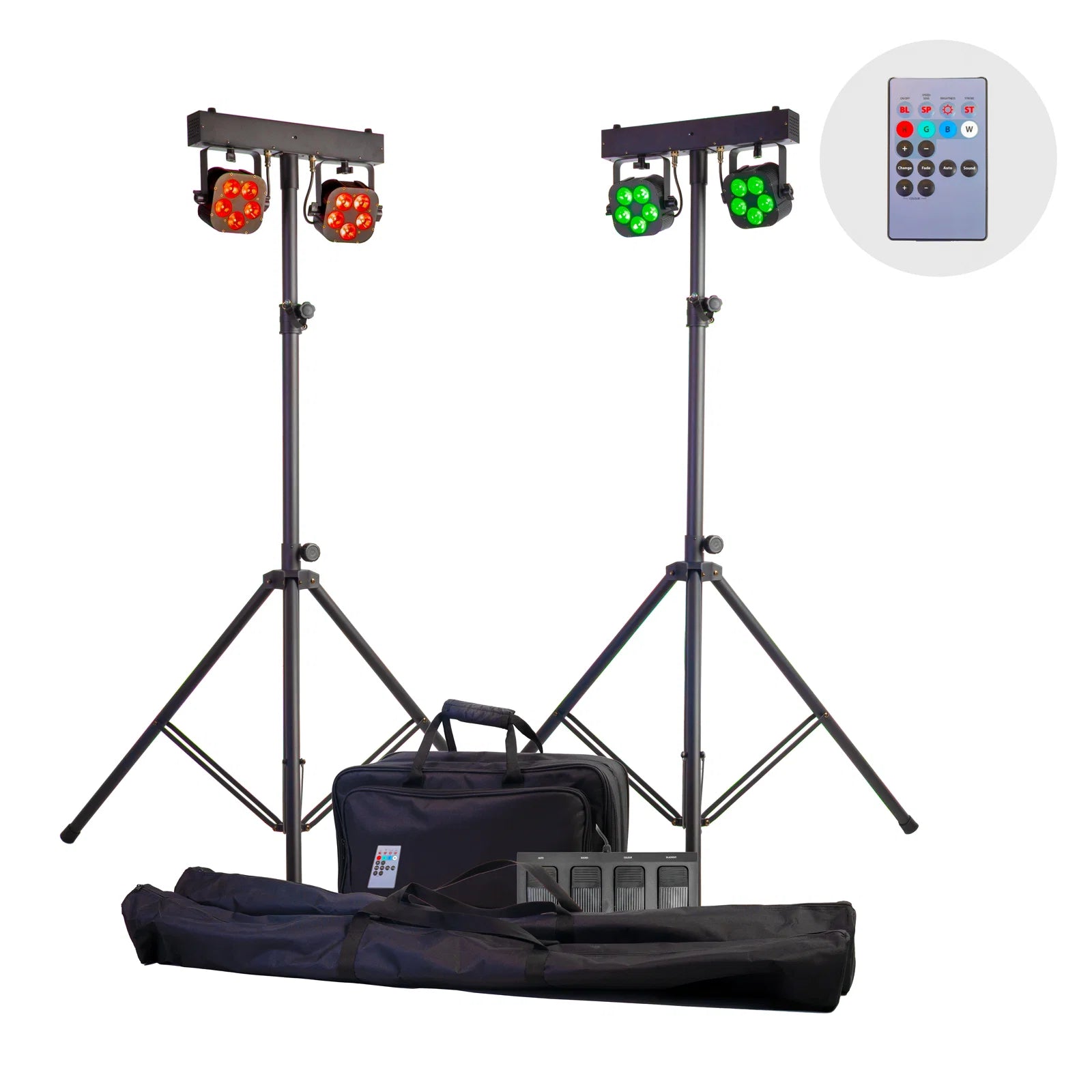

The Equinox Gigabar Compact Duo Bar System is a powerful, all-in-one lighting solution built for DJs, entertainers, and events, pairing two independently controllable powered T-bars in a single package designed for fast deployment and reliable, synchronised operation.

Light Output And Coverage

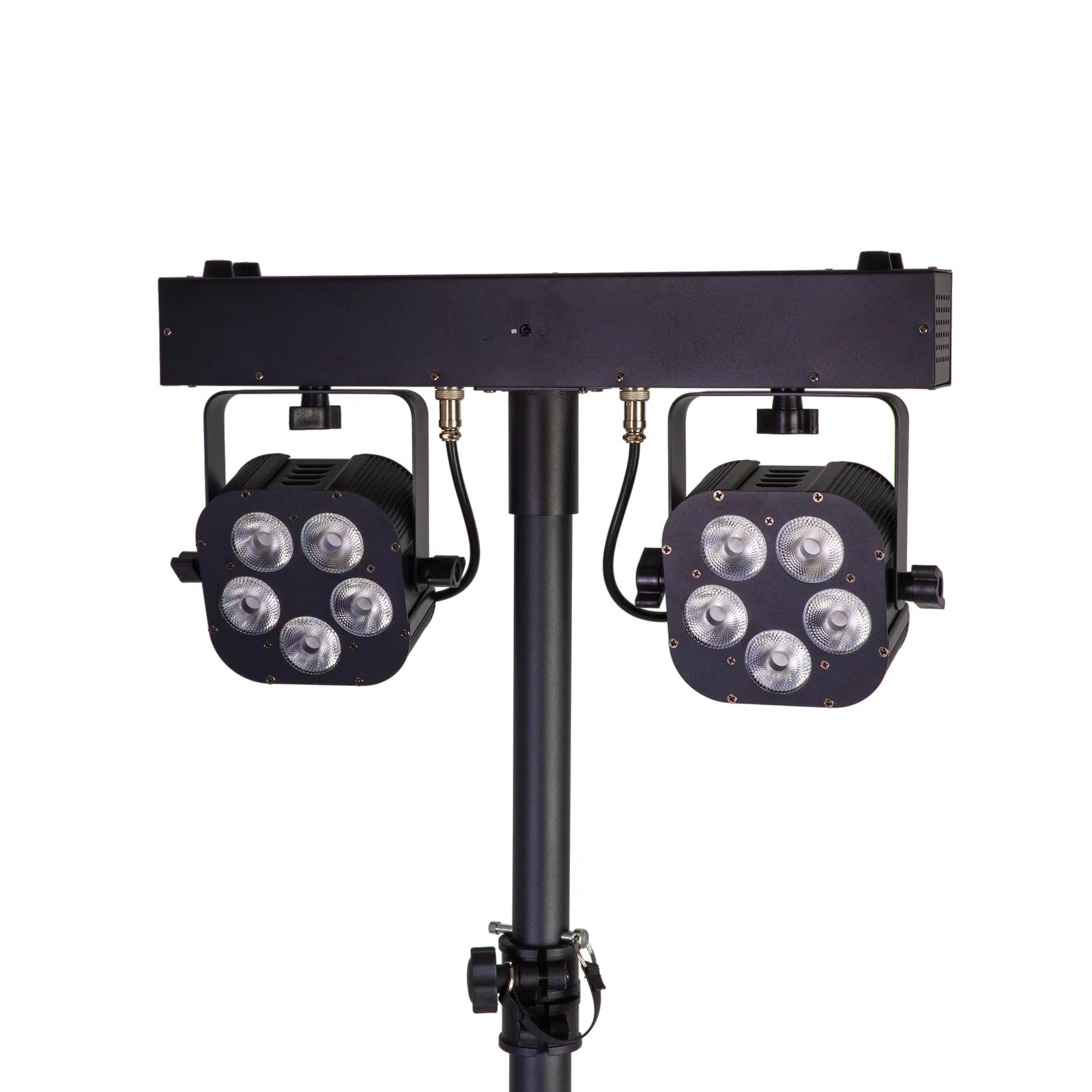

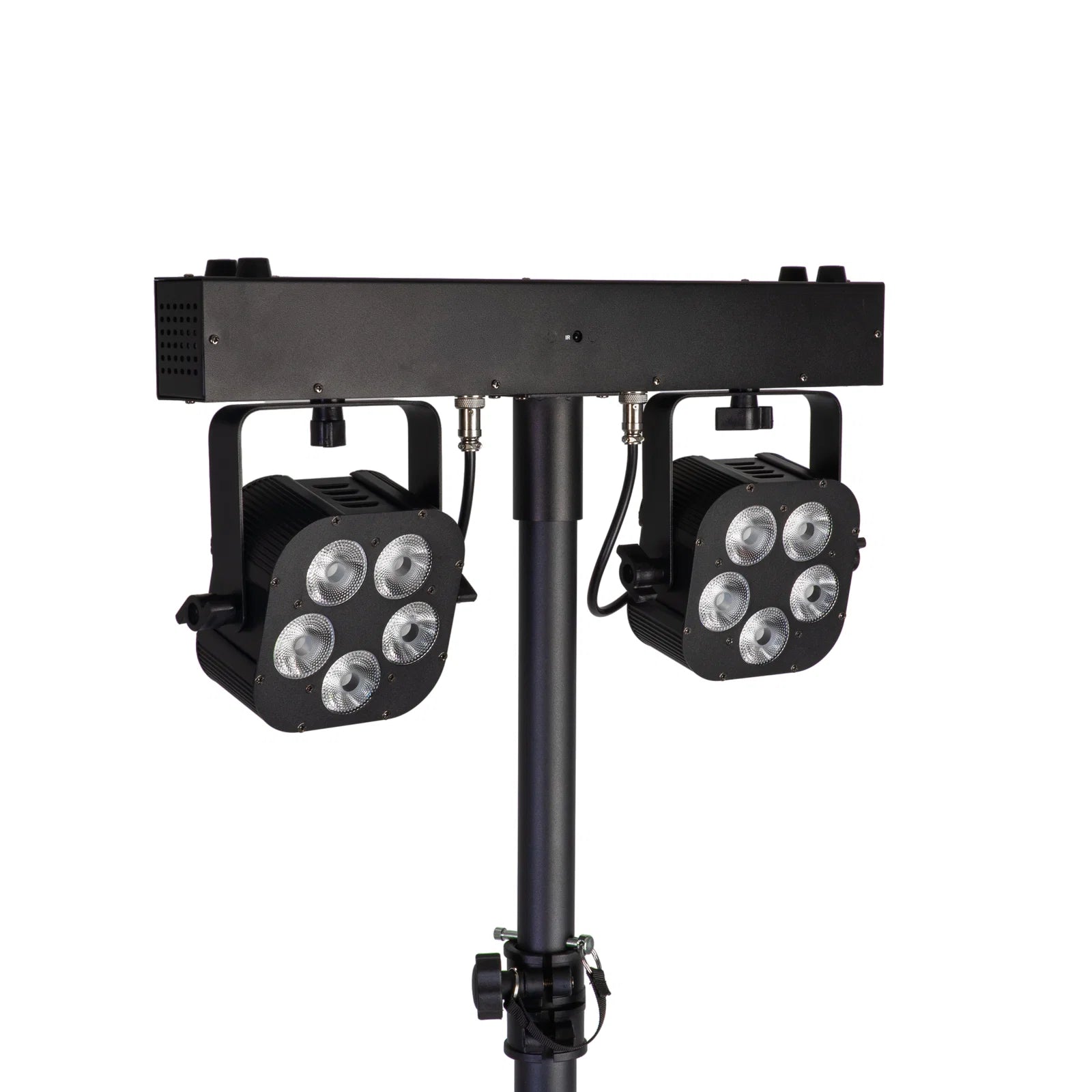

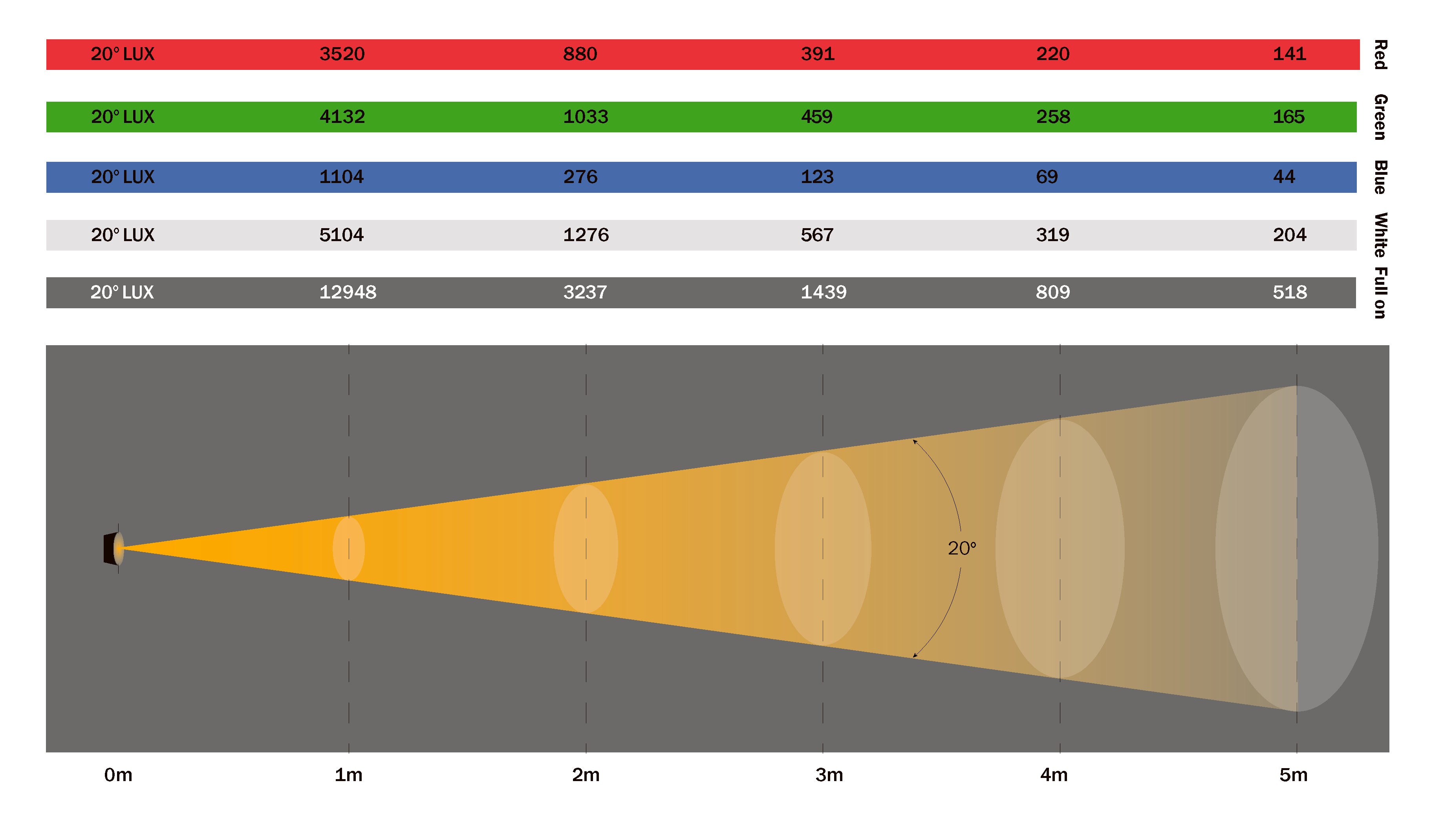

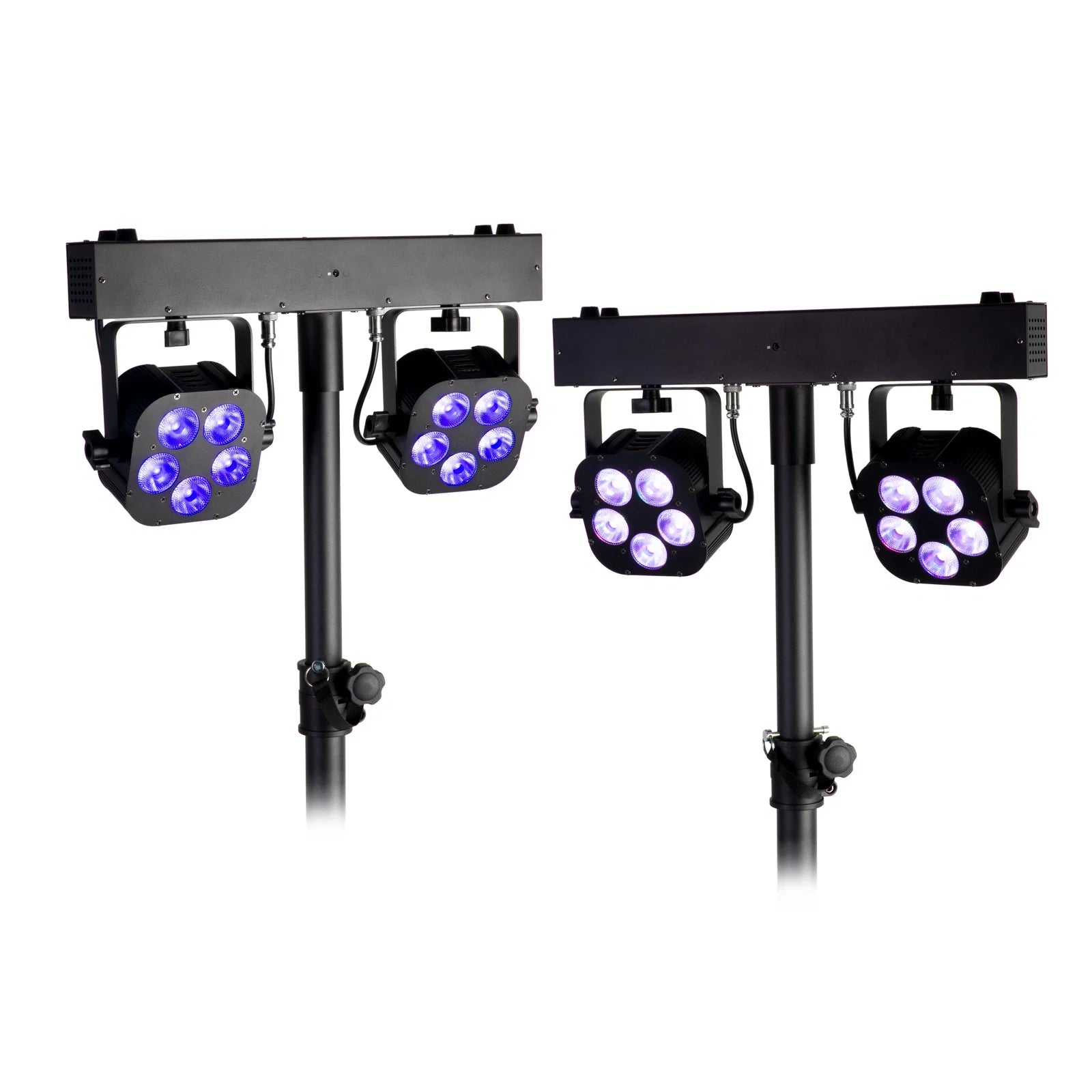

Each bar carries 10 x 8W quad-colour RGBW LEDs, producing a wide range of colour washes and effects through a 20-degree beam angle rated at 3237 Lux at 2 metres per par section at full output. Both bars adjust independently, allowing coverage to be angled and spread across a room or stage exactly as needed rather than committed to a single fixed throw.

Control Options

DMX operation is selectable across 1, 2, 4, 6, 9, or 12 channel modes depending on how much control a show requires, while Auto, Sound Active, and Primary/Secondary modes plus a set of built-in programs let the system run entirely standalone without a controller.

Dimming runs from 0-100% with variable strobe, and a 4-button menu with an LED digital display handles all onboard setup directly on the unit.

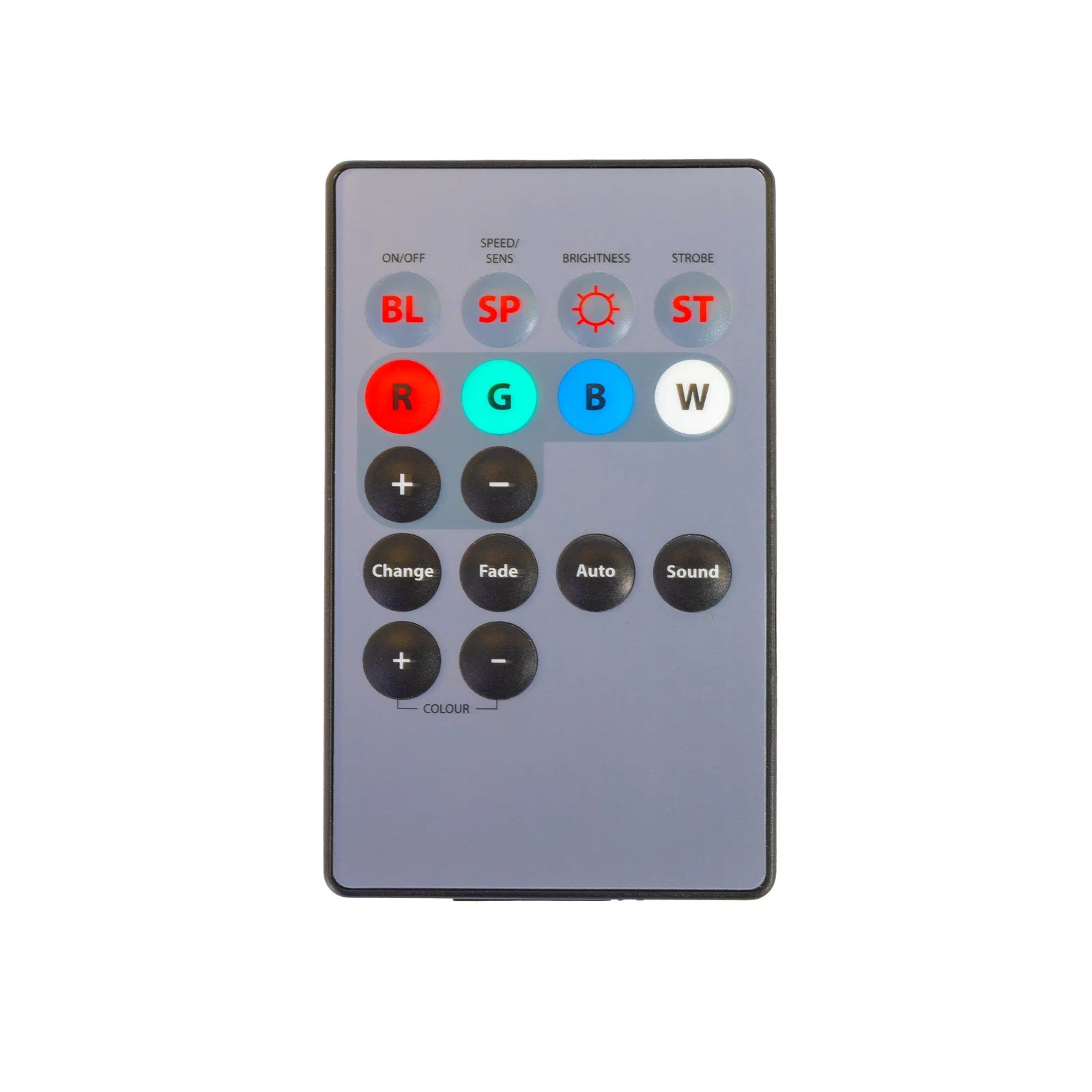

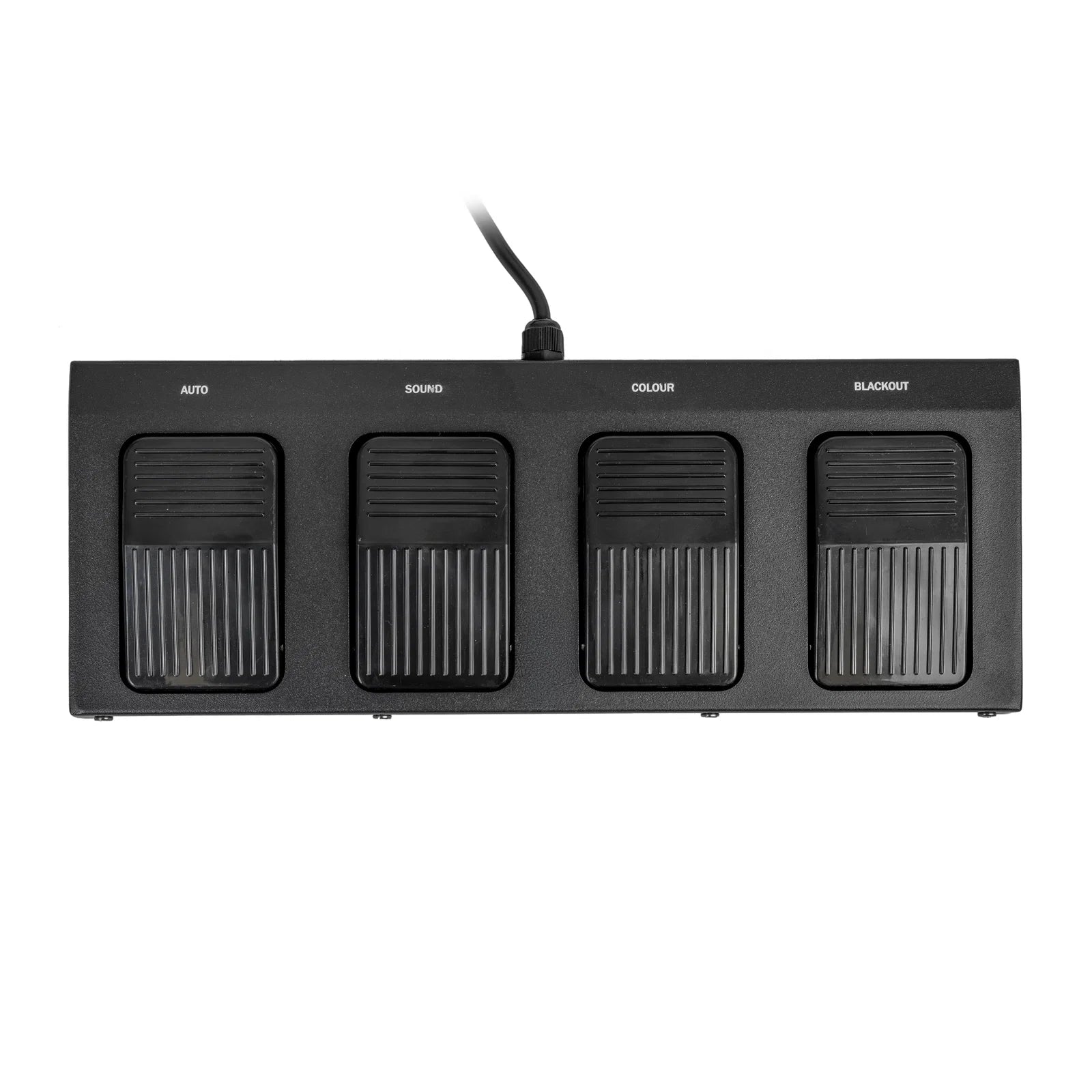

A 5-pin input accepts the included foot controller for hands-free operation mid-set, and both bars ship with an IR remote, backed by receivers built into the front and rear of each unit for reliable reception from any position in the room.

Linking And Synchronisation

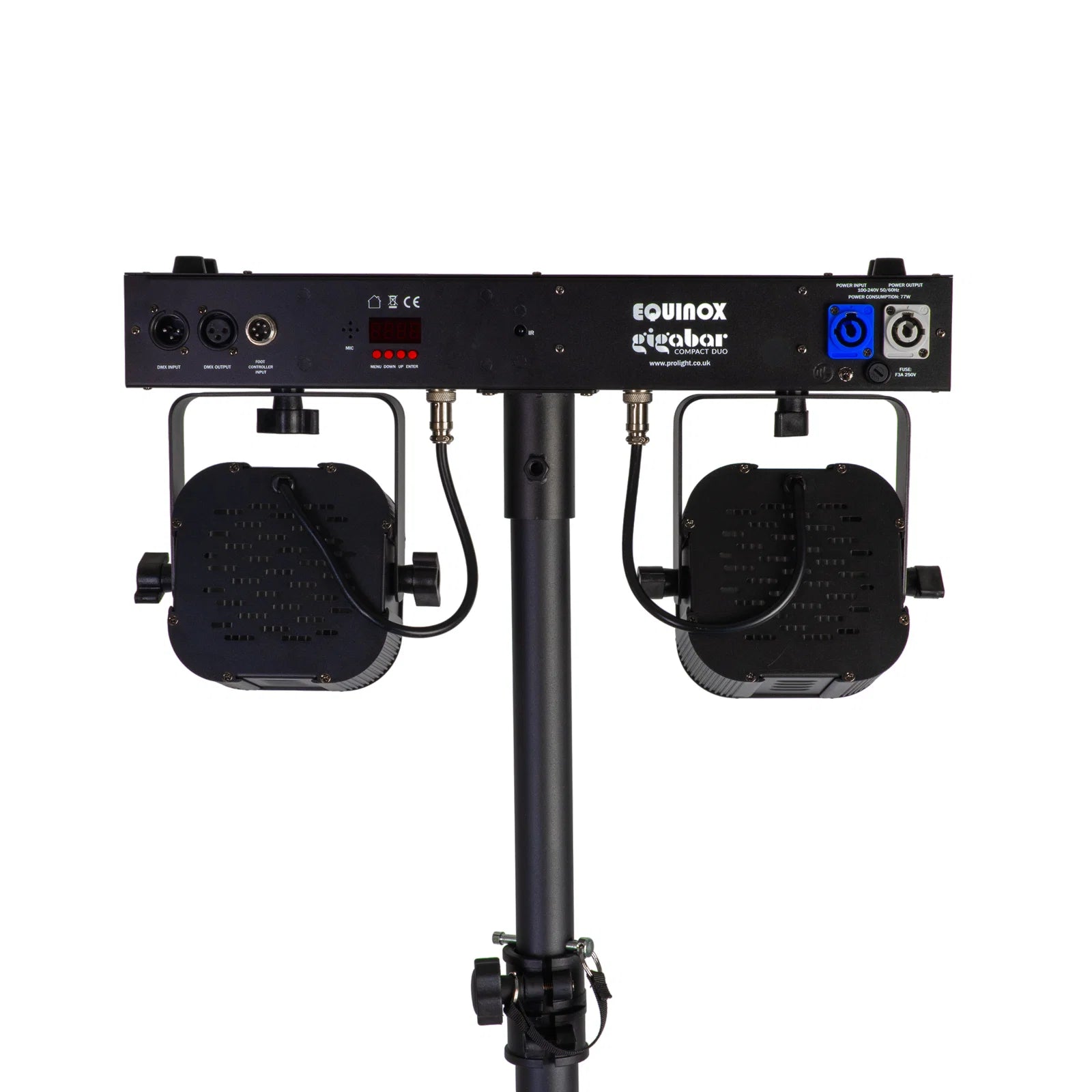

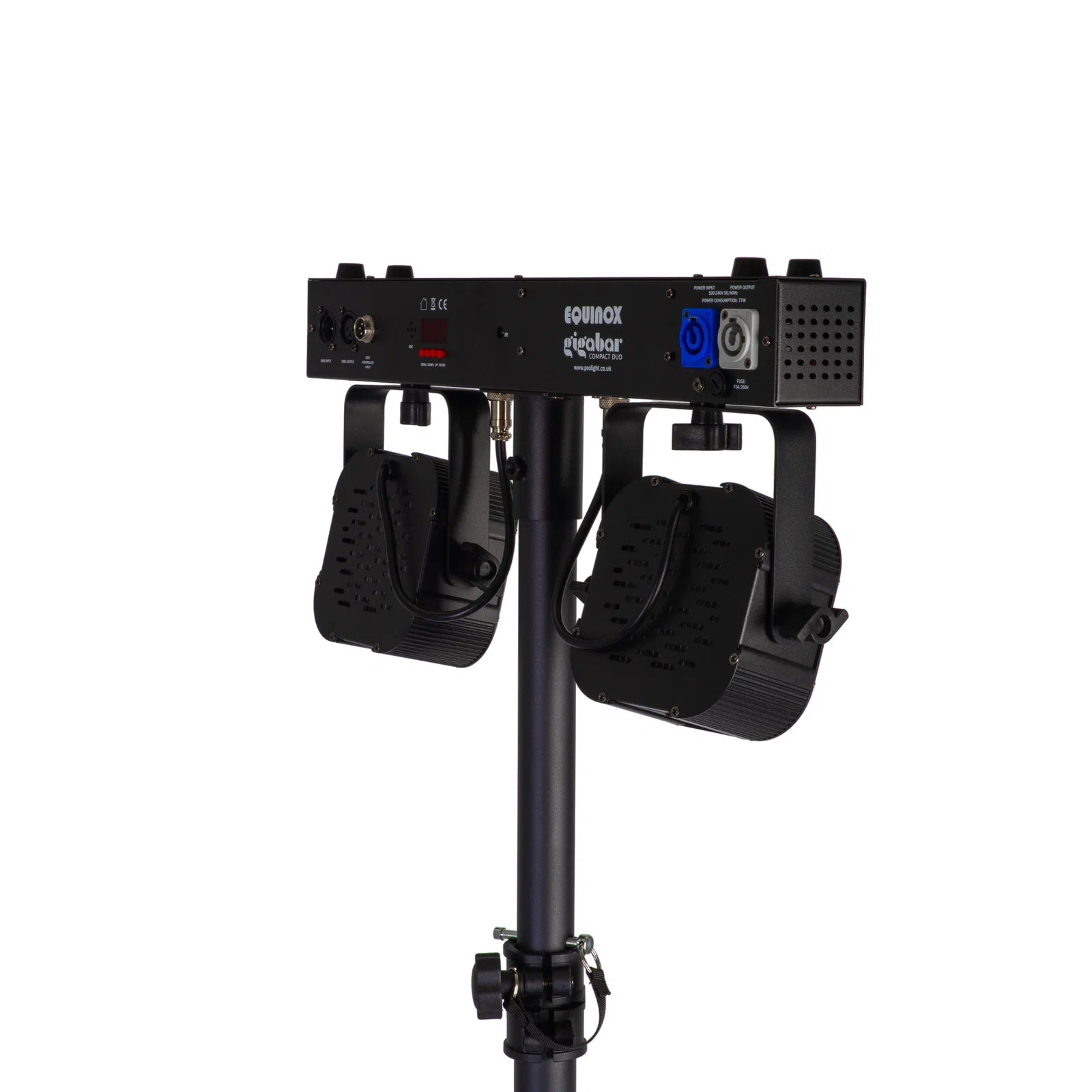

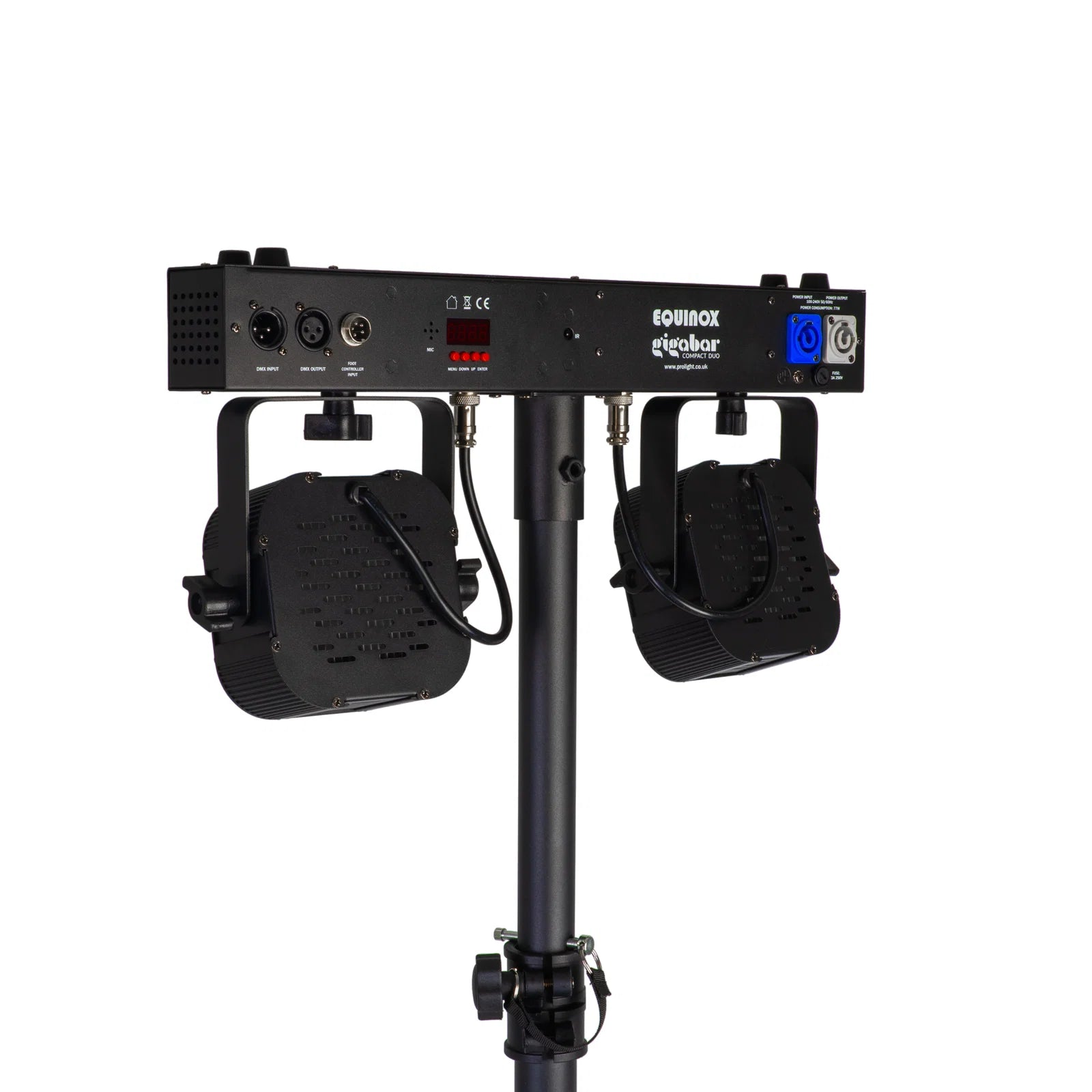

3-pin XLR DMX in/out and PowerTwist power in/out connections allow the two bars to be linked, powered, and synchronised together, with a 10m DMX cable supplied specifically for that purpose — no separate cable purchase needed to get both units running in tandem.

Setup, Transport, And Build

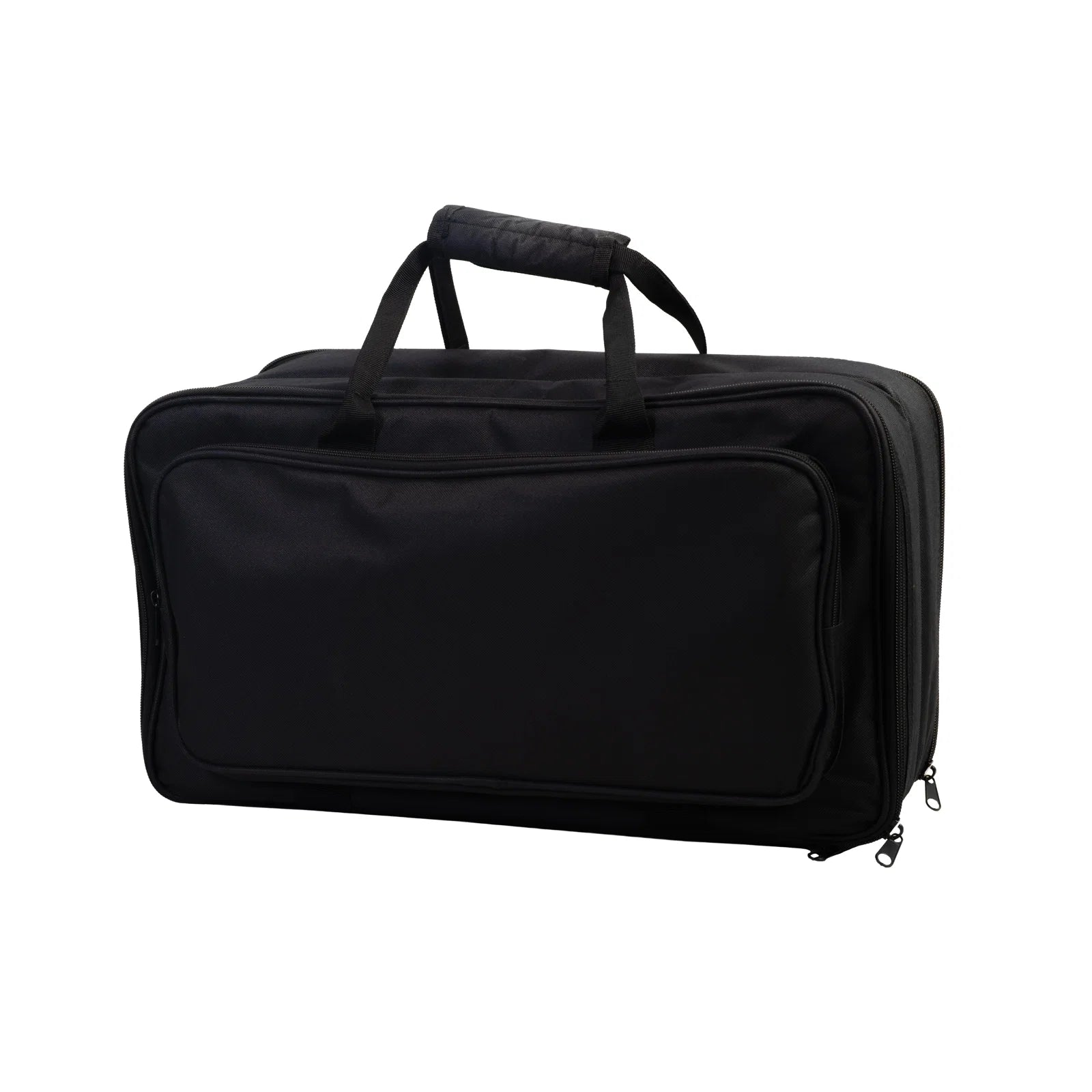

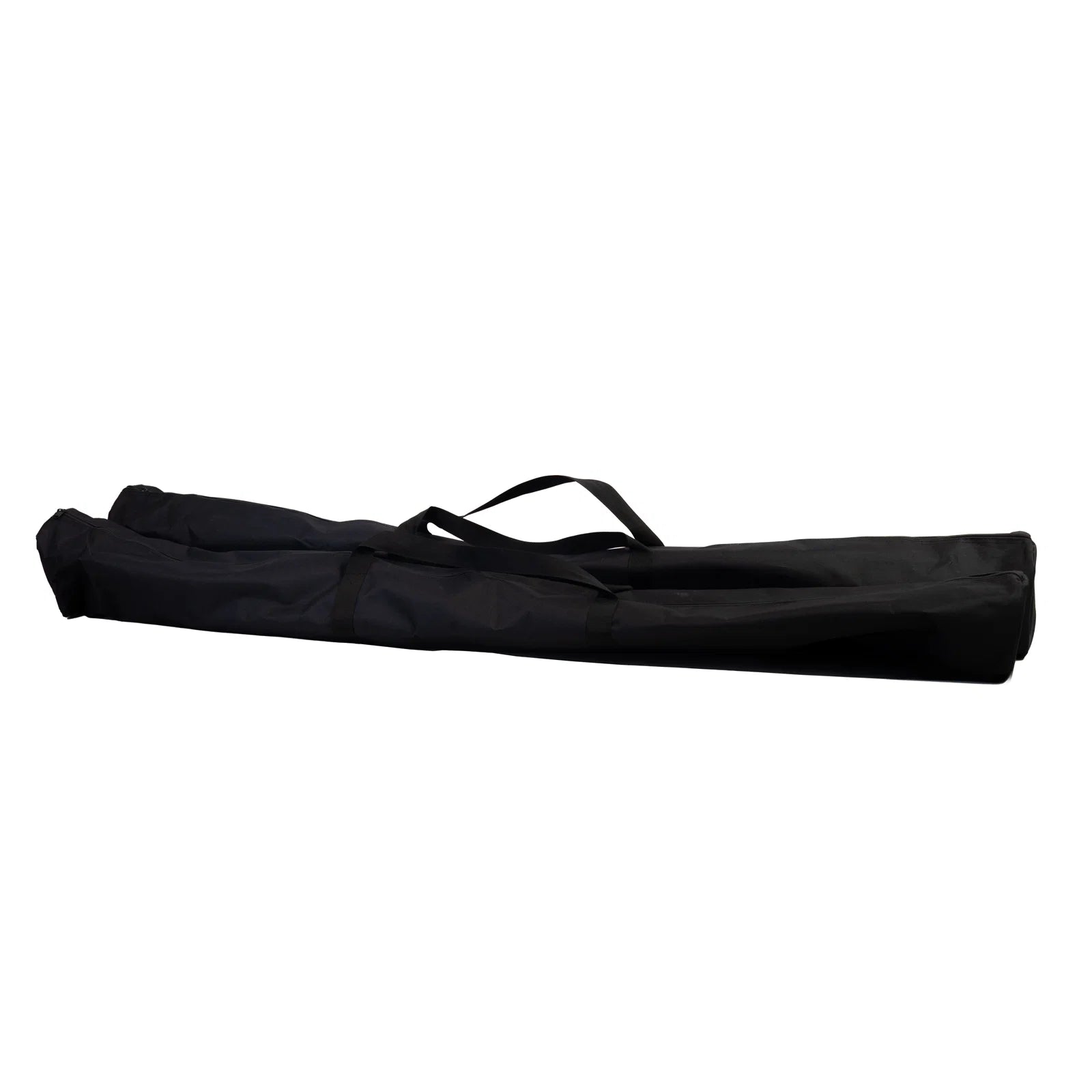

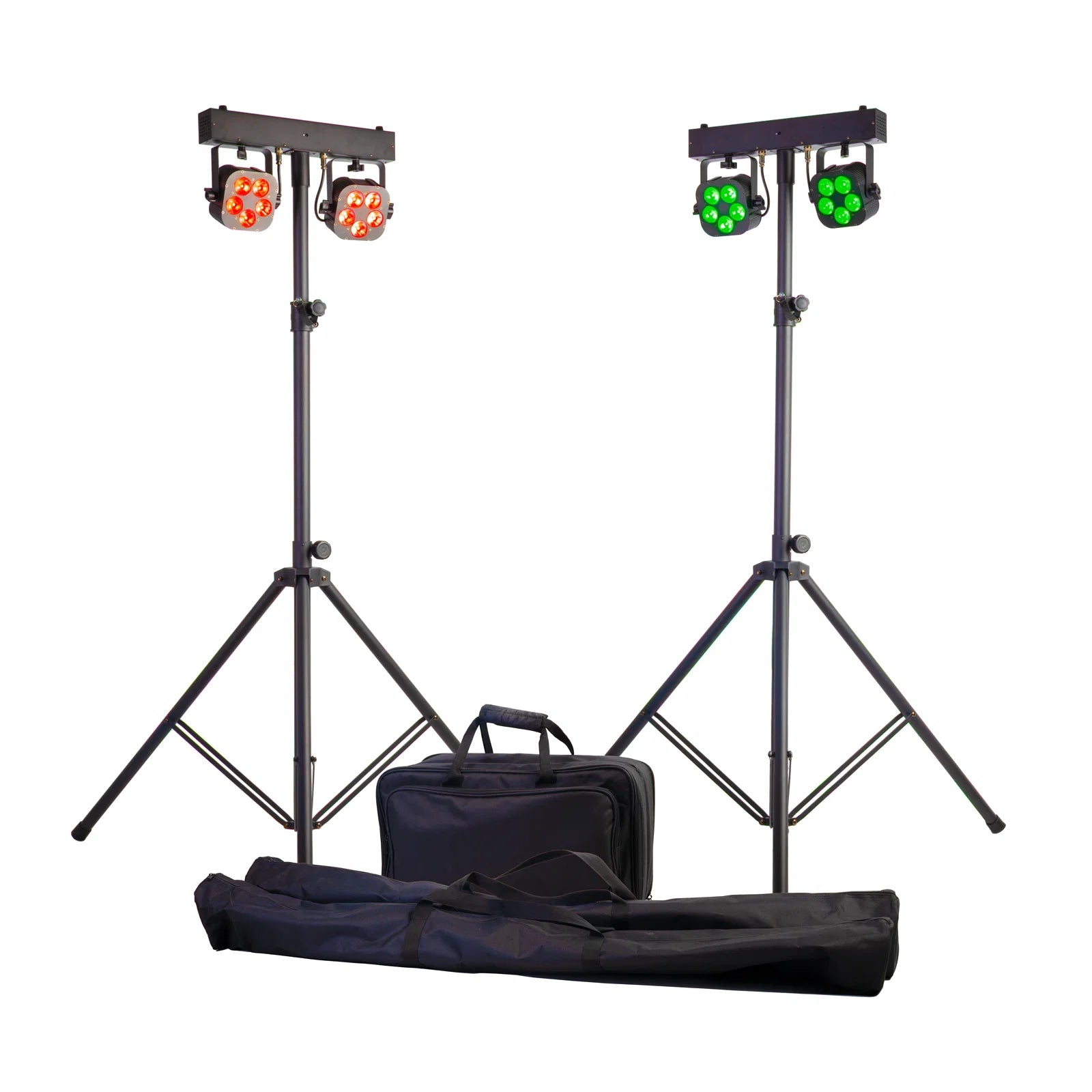

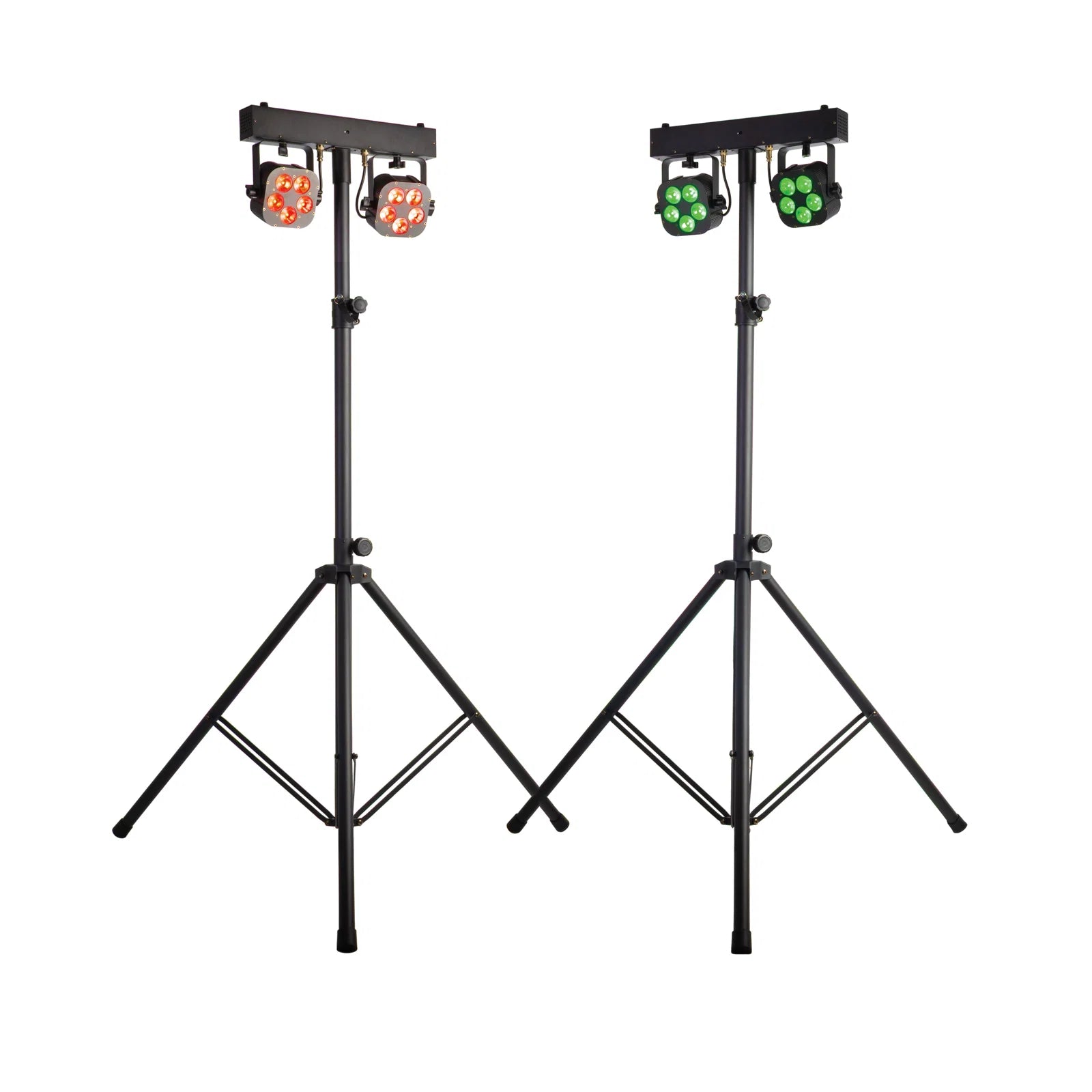

The included stands adjust fully between 1.82m and 2.64m to suit different venue heights and stage layouts, and the supplied carry bags keep both bars protected in transit between bookings.

Construction is all-metal throughout, and the system is convection cooled rather than fan-cooled, keeping it silent in operation. Combined with its compact footprint and fast setup and take-down, the Gigabar Compact Duo is particularly well suited to mobile entertainers working in venues with limited space or limited time.

KEY FEATURES: Equinox Gigabar Compact Duo Bar System

• 2 x Powered T-Bars: 10 x 8W quad-colour RGBW LEDs each, independently adjustable.
• 20° Beam Angle: 3237 Lux @ 2m per par, full output.
• Selectable DMX Channels: 1/2/4/6/9/12 channel modes.
• Auto, Sound Active, And Primary/Secondary Modes: Plus built-in programs for standalone operation.
• 0-100% Dimming And Variable Strobe.
• 4-Button Menu With LED Digital Display.
• 3-Pin XLR DMX In/Out.
• 5-Pin Foot Controller Input: Foot controller included.
• PowerTwist In/Out: Power linking between bars.
• IR Remote Included: With front and rear IR receivers on each unit.
• 10m DMX Link Cable Included.
• Height-Adjustable Stands Included: 1.82m to 2.64m.
• Carry Bags Included: For both bars.
• All-Metal Construction, Convection Cooled: Silent, fan-free operation.
• Compact, Fast Setup And Take-Down: Ideal for mobile entertainers.
