LD Systems DAVE 10 G4X Compact 2.1 Active PA System With Bluetooth – Black

Compact 2.1 Active PA System With 10" Subwoofer, 2 x Double 4" Satellites, 6-Channel Mixer, DynX DSP Gen.2 & Bluetooth – LD Systems DAVE 10 G4X Black.

The LD Systems DAVE 10 G4X is a fully redesigned compact 2.1 active PA system combining a 10" subwoofer with two double 4" satellite speakers for a total output of 340W RMS (680W peak) and 120dB peak SPL — completely developed from scratch with new dome tweeters, purpose-designed waveguides for homogeneous dispersion, FIR filters and DynX DSP Gen.2 for transparent, distortion-free sound across a full 37Hz–20kHz frequency range. The compact and versatile format makes the DAVE 10 G4X an ideal everyday PA for DJs, solo entertainers, live combos, parties and presentations, delivering professional-grade sound quality with the convenience of an integrated 6-channel mixer that eliminates the need for external mixing equipment across most common applications.

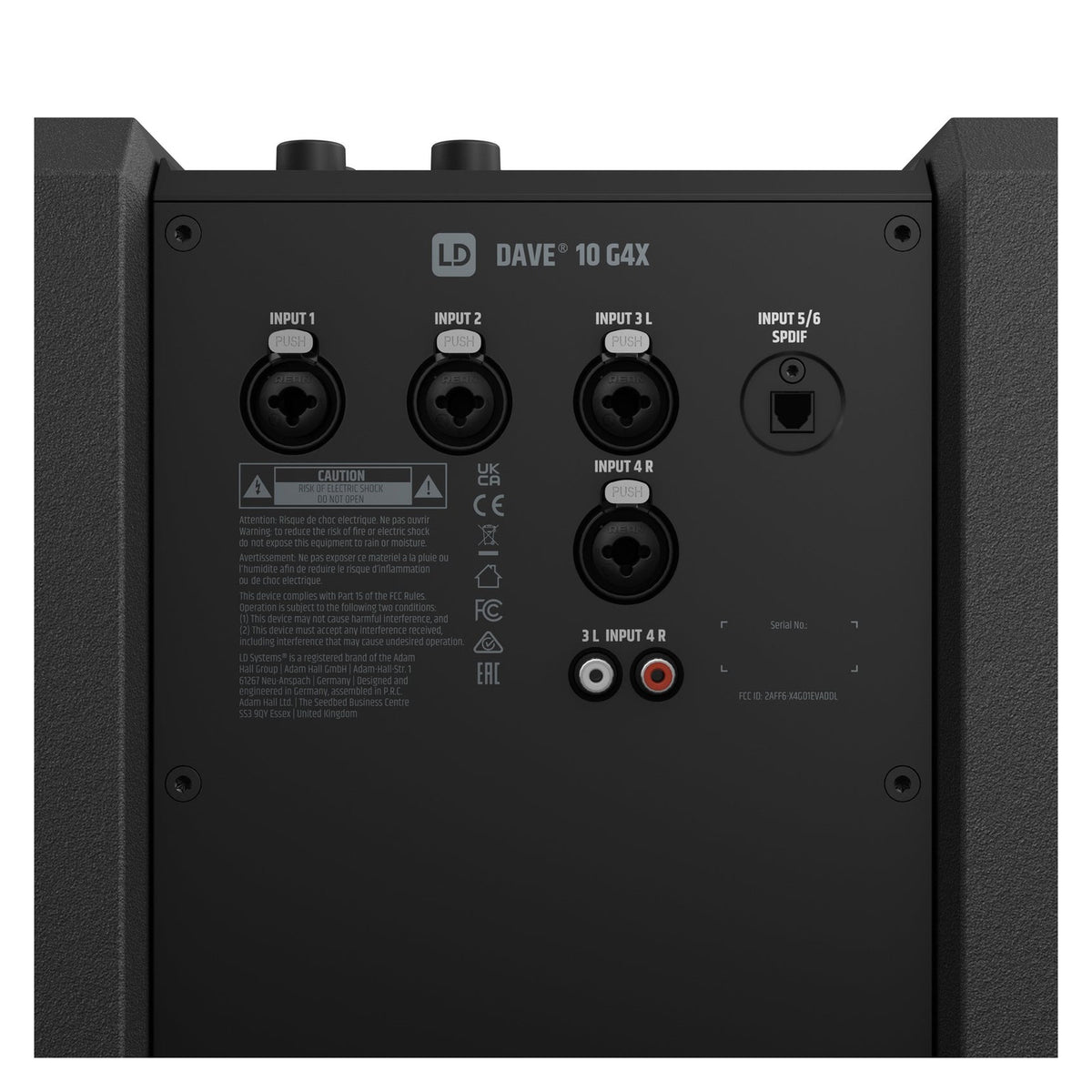

The 6-channel mixer covers virtually every performance input scenario. Channels 1 and 2 are full channel strips with switchable mic, Hi-Z and line inputs via combo XLR/6.3mm jack, a 2-band bass and treble EQ and adjustable reverb with three presets — small, large and plate. Channels 3 and 4 accept stereo line sources via combo XLR/6.3mm for keyboards, synths and electronic instruments, while channels 5 and 6 support digital SPDIF TOSLINK input or Bluetooth streaming for media players, computers and smartphones — ideal for backing tracks, sound effects, interval music and karaoke. Two selectable system presets optimise performance for different configurations: stereo mode for conventional left/right satellite placement, and cluster mode using M/S distribution for interference-free satellite coupling above the subwoofer on a T-stand, providing more headroom and directivity in tighter spaces. Durable polyurea coating on both the subwoofer and satellite cabinets ensures road-ready durability throughout.

Discover The LD Systems DAVE 10 G4X In More Detail...

Completely Redesigned Acoustics & DynX DSP Gen.2

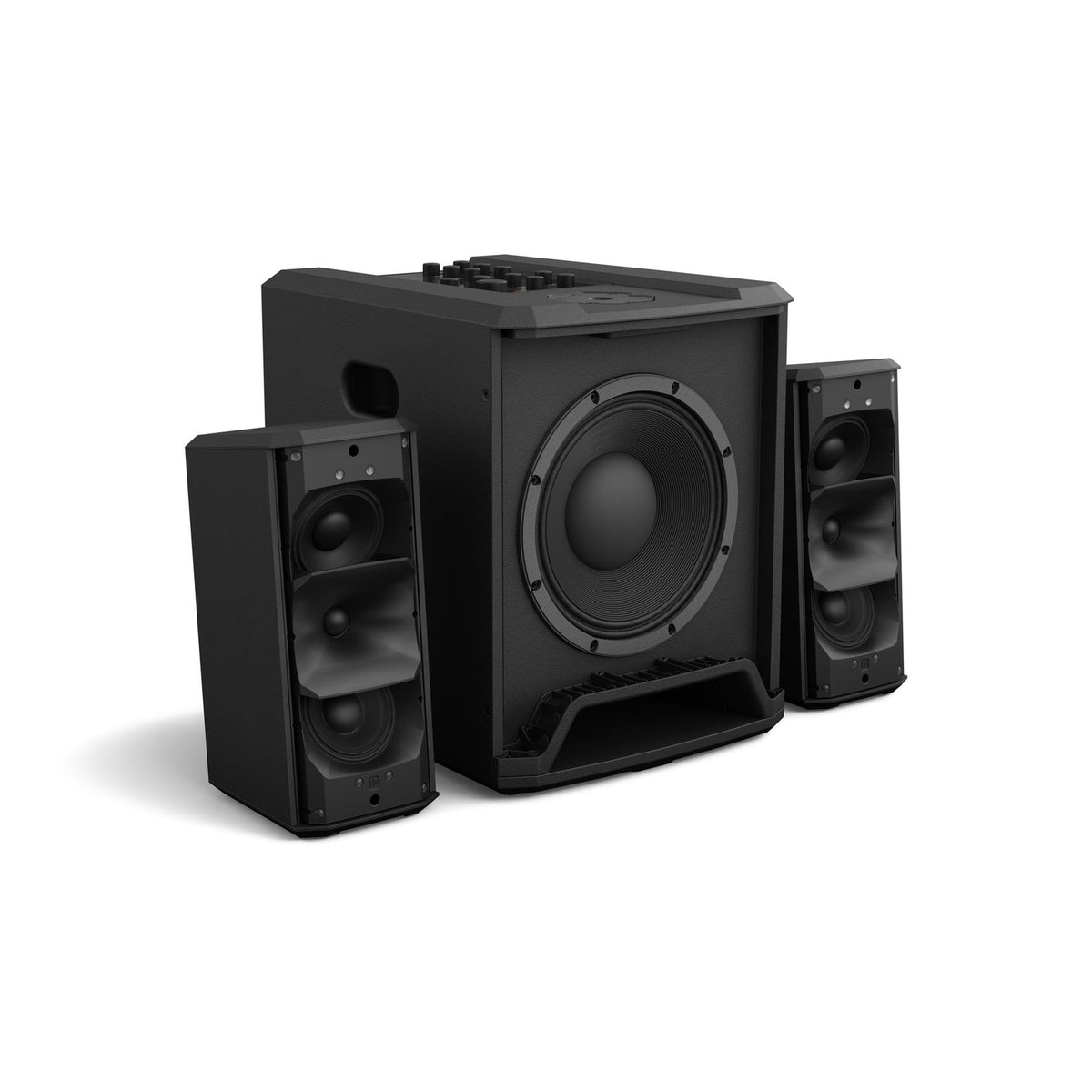

The DAVE 10 G4X has been engineered from the ground up with a focus on acoustic precision, transparency and speech intelligibility. New neodymium dome tweeters and midrange waveguides deliver homogeneous and directional sound dispersion across a 100° x 96° coverage pattern — unusually wide for a compact 2.1 system — and FIR filters alongside DynX DSP Gen.2 ensure distortion-free, transparent sound at all output levels. The optimised bass reflex system in the 10" subwoofer reduces air flow noise for cleaner, more musical low-end reproduction reaching down to 37Hz.

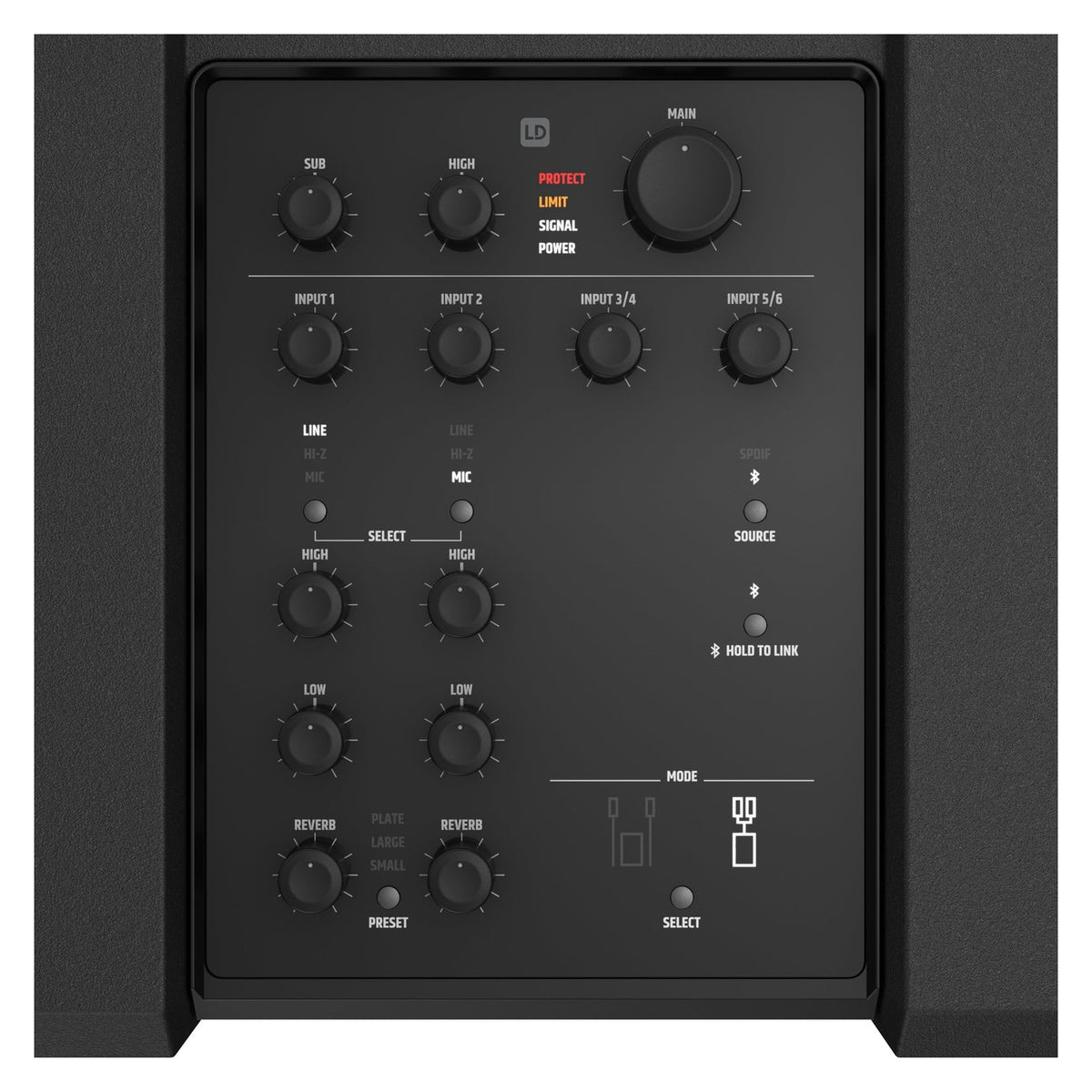

6-Channel Mixer With EQ, Reverb & Digital Connectivity

The fully integrated 6-channel mixer provides a self-contained mixing solution for a wide range of live performance and event applications. Channels 1 and 2 offer switchable mic, Hi-Z and line inputs with 2-band EQ and three reverb presets, channels 3 and 4 provide stereo line inputs for keyboards, synths and electronic instruments, and channels 5 and 6 support SPDIF TOSLINK digital input and Bluetooth streaming for computers, media players and smartphones. The result is a complete, self-contained PA system that handles virtually every common input source without additional equipment.

Stereo & Cluster Mode Presets For Any Setup

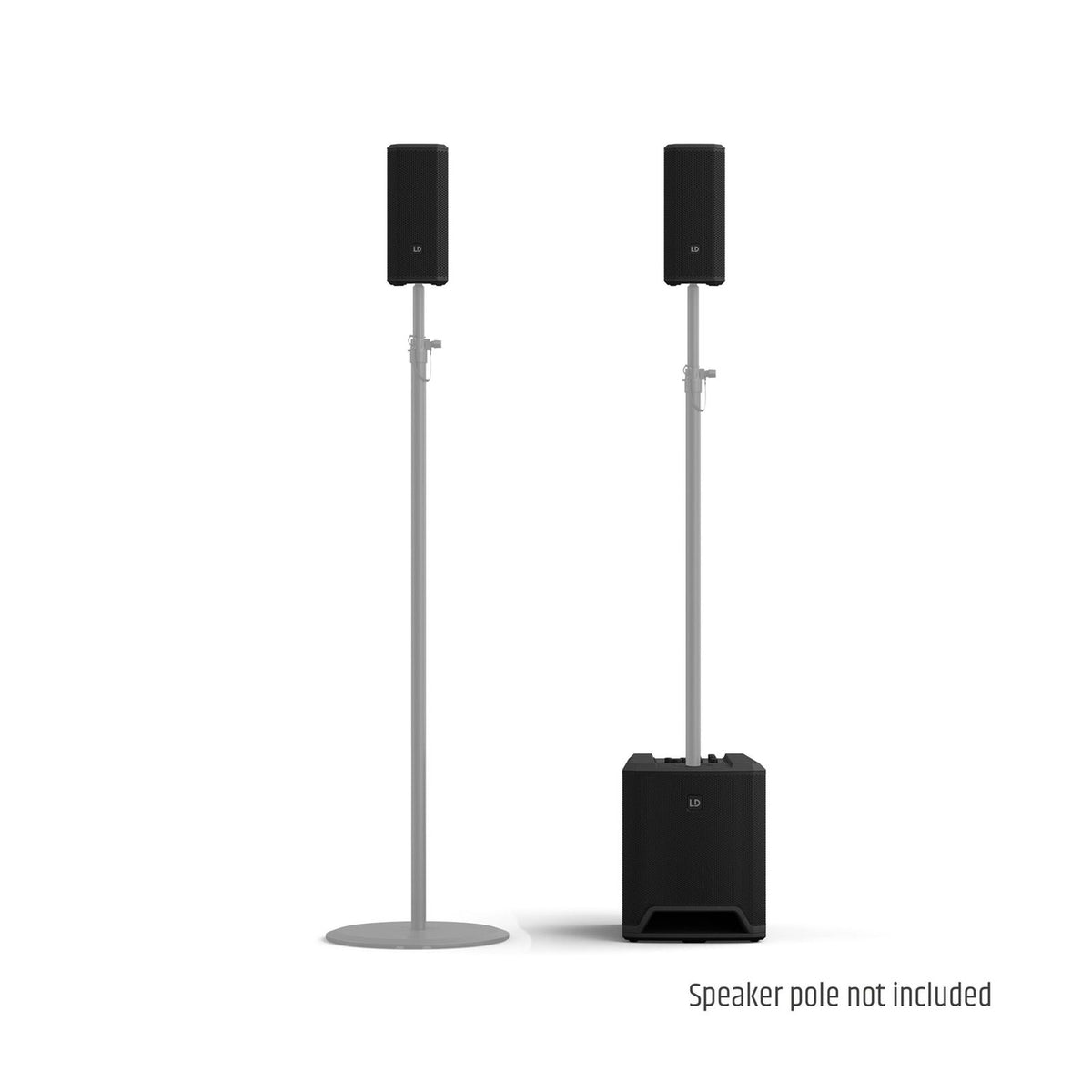

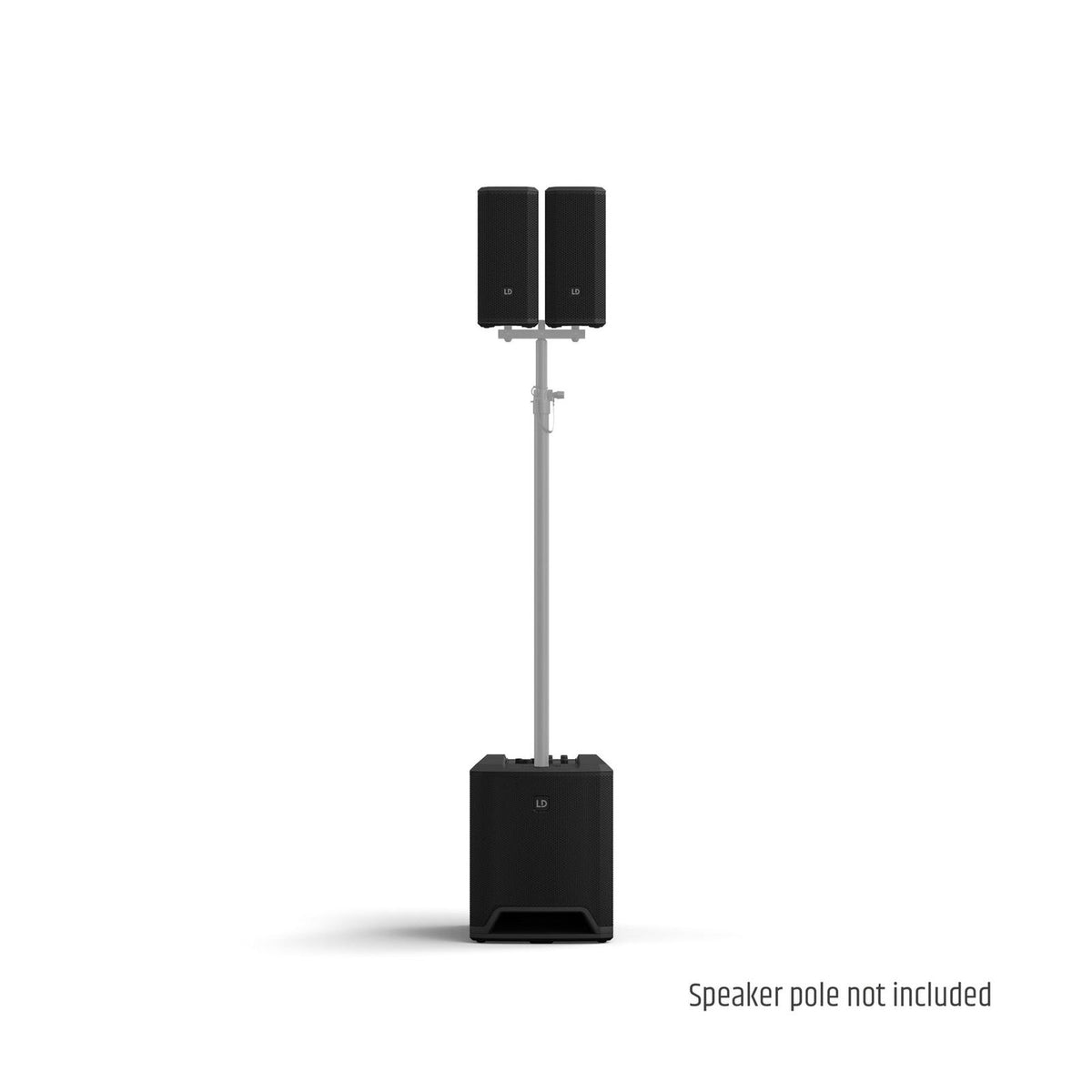

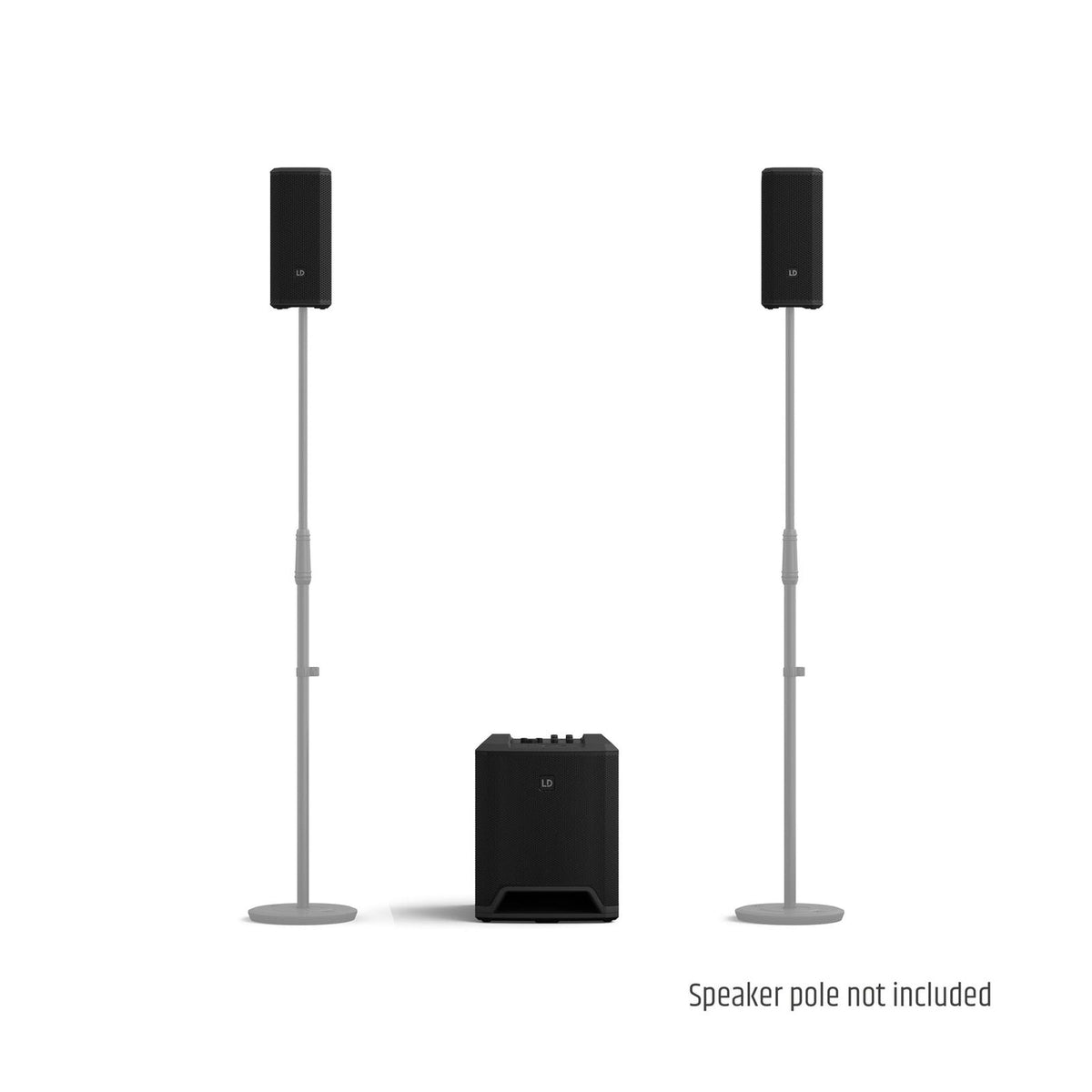

Two selectable system presets optimise DAVE 10 G4X performance for different physical configurations. Stereo mode is designed for classic left/right satellite placement, while cluster mode applies a special M/S distribution for interference-free coupling of both satellites positioned closely together on a T-stand above the subwoofer — delivering more headroom and directivity in compact or space-restricted setups. A range of optional accessories including transport bags, a trolley, T-stand, pole-mount stand and satellite wall mount are available for further deployment flexibility.

KEY FEATURES: LD Systems DAVE 10 G4X Compact PA System

• 340W RMS / 680W Peak: 120dB peak SPL from a compact and portable 2.1 PA system.
• 10" Bass Reflex Subwoofer: Clear, tight low end from 37Hz with optimised airflow design and polyurea coating.
• 2 x Double 4" Satellites: Neodymium tweeter and midrange waveguide for homogeneous 100° x 96° dispersion.
• DynX DSP Gen.2 & FIR Filters: Distortion-free, transparent sound reproduction for music, vocals and speech.
• 6-Channel Mixer: Switchable mic/Hi-Z/line on channels 1–2 with 2-band EQ and 3-preset reverb; stereo line on channels 3–4.
• 3-Preset Reverb: Small, large and plate reverb for vocal and instrument enhancement.
• Digital SPDIF TOSLINK Input: Channels 5–6 support digital stereo input from media players and computers.
• Bluetooth Streaming: Wireless audio from smartphones and tablets on channels 5–6.
• Stereo & Cluster Mode: Selectable presets for optimised performance in different satellite configurations.

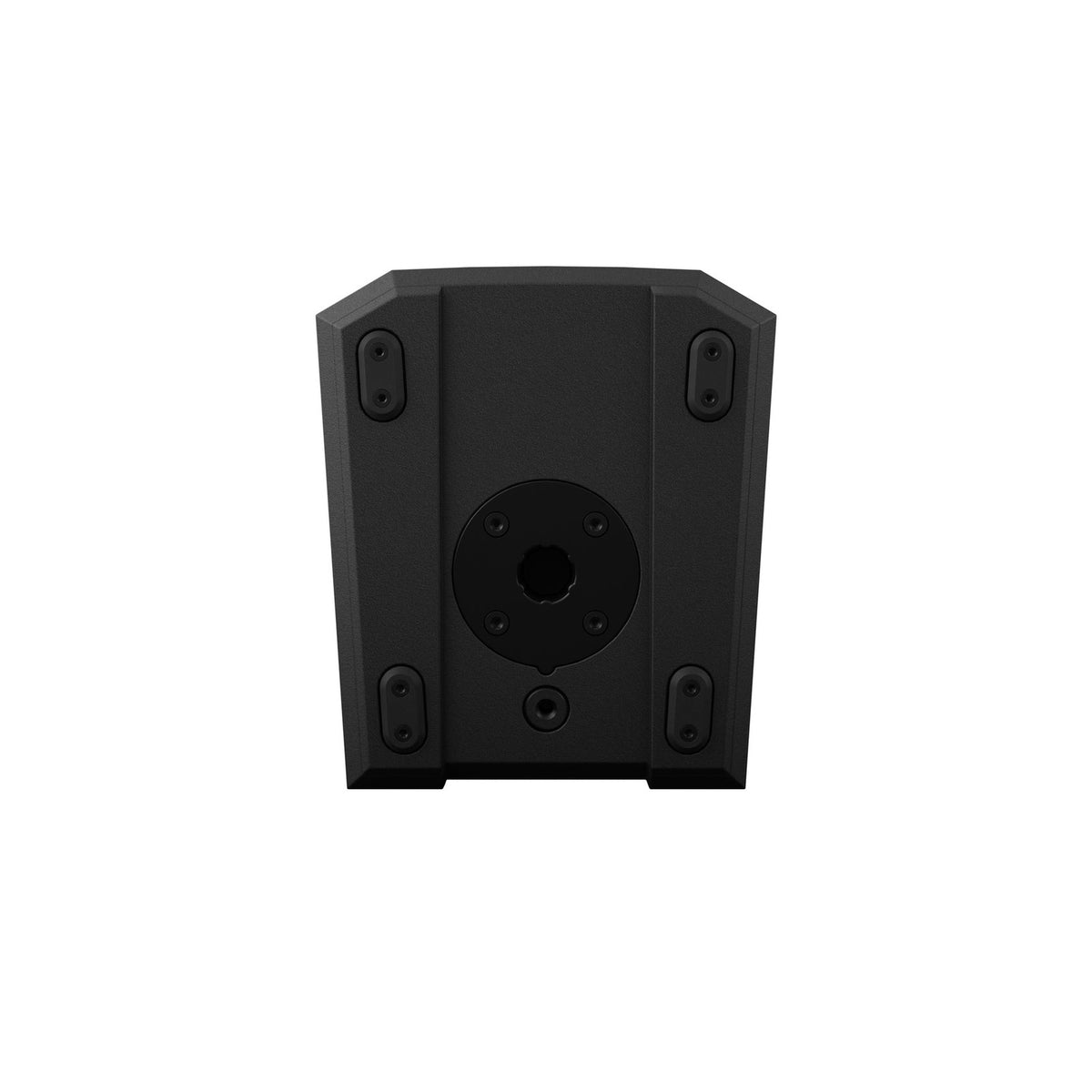

• Subwoofer M20 Thread: Stand mounting capability for elevated subwoofer deployment.
• Polyurea-Coated Cabinets: Durable road-ready finish on both subwoofer and satellites.
