LD Systems ICOA PRO 12A 1000W Active PA Speaker With Bluetooth

Professional 1,000W RMS Active Coaxial PA Speaker With Rotatable CD Horn, SysCore DSP, Bluetooth 5.1 & App Control For Live Events, Clubs & Installations – LD Systems ICOA PRO 12A.

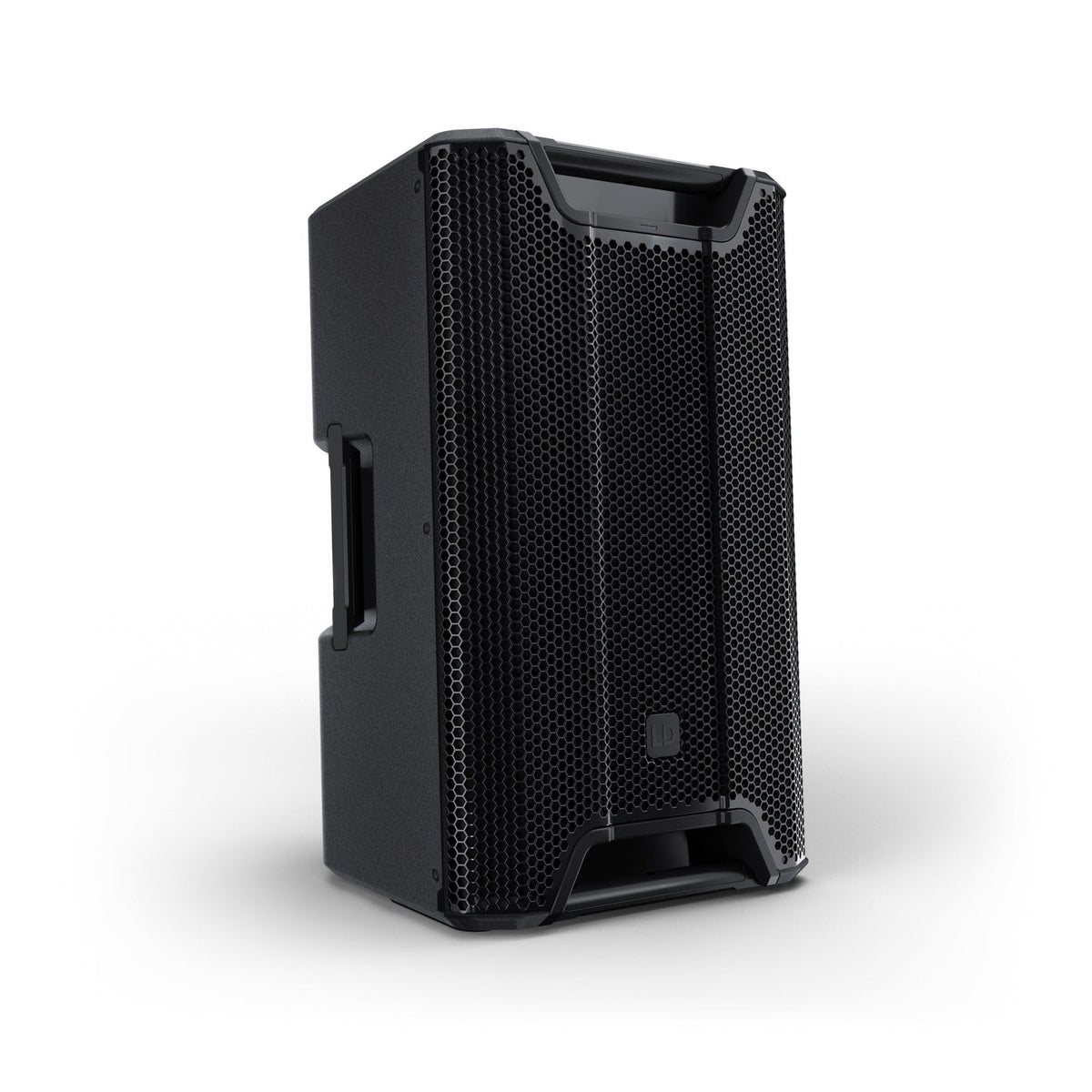

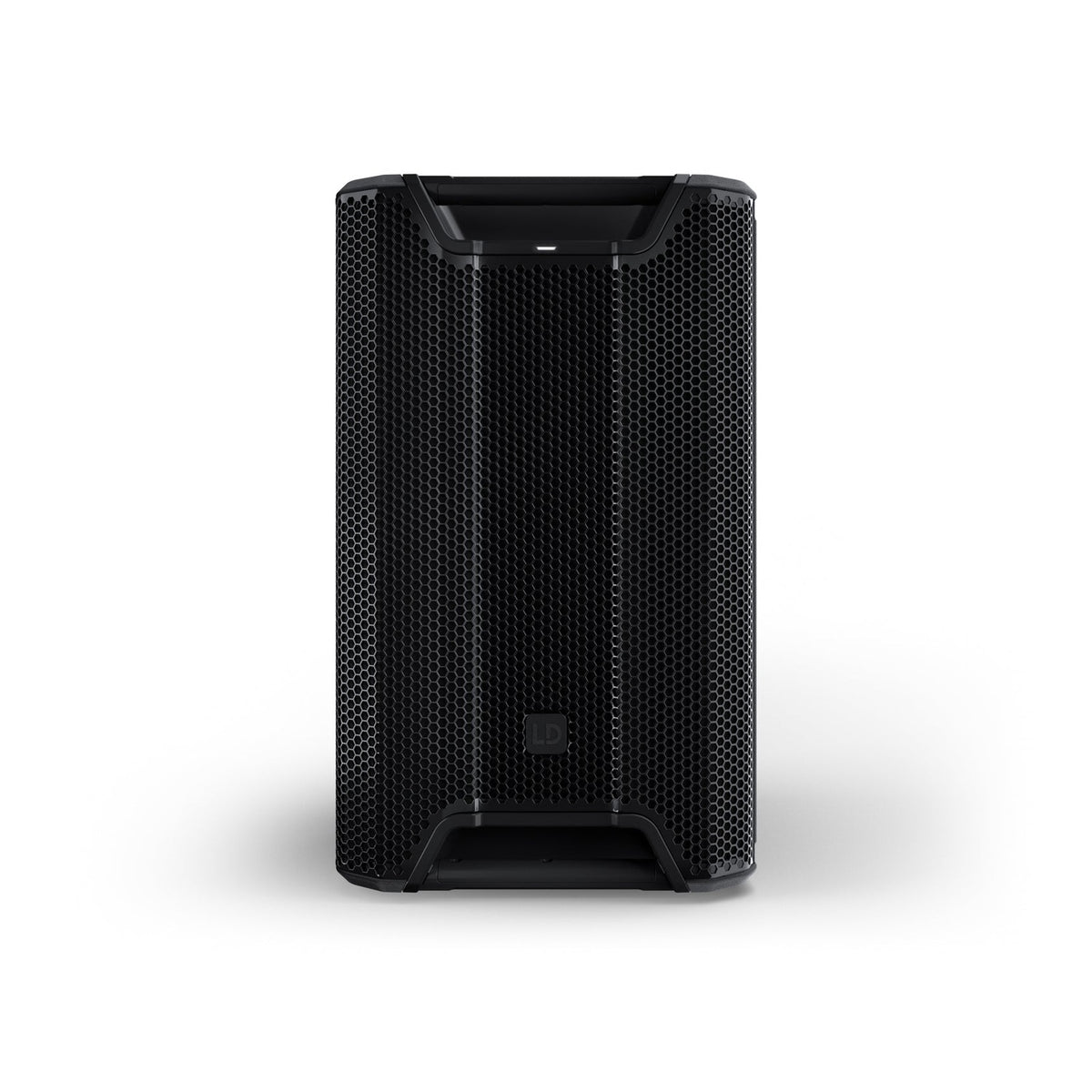

The LD Systems ICOA PRO 12A is a high-performance 1,000W RMS (2,000W peak) active coaxial PA speaker combining a 12" woofer with a 3" titanium HF driver in a common motor coaxial design — creating a true point source that delivers exceptional coherence, time accuracy and natural, detailed sound reproduction across the full frequency range. The large, rotatable BEM-optimised CD horn provides precise 90° x 50° dispersion characteristics with double horn loading for both the woofer and tweeter, focusing sound energy accurately into the mid-range from approximately 600Hz upward — a decisive advantage in acoustically demanding environments where controlled directivity is essential. Flow-optimised bass reflex ports extend the low end to 50Hz for a solid and impressive full-range performance, and the powerful Class-D amplifier delivers up to 133dB peak SPL with a 108dB signal-to-noise ratio for distortion-free output even at maximum volume.

At the heart of the ICOA PRO 12A is the SysCore DSP with FIR/IIR filters, advanced limiters, a 4-band parametric EQ for both input and master channels, four application presets including a dedicated low-latency monitor preset, and a delay function — all navigated via an intuitive colour display with one-knob control. Bluetooth 5.1 with TWS enables stereo pairing of up to two ICOA PRO 12A speakers alongside direct music streaming, and the free ICOA PRO app for iOS and Android provides wireless remote control of all settings and multi-speaker pairing from a smartphone or tablet. Two combo XLR mic/line inputs with individual gain control and an XLR mono mix output provide flexible signal connectivity, and a front-panel LED indicator shows power, identification and limiter status at a glance. Multiple deployment options include a 50° floor monitor angle, a 35mm dual-tilt stand mount with 0° and 5° tilt selection, EasyMount tool-free truss mounting and six M10 flying points — making the ICOA PRO 12A equally at home as a main PA, stage monitor, club speaker or installed loudspeaker.

Discover The LD Systems ICOA PRO 12A In More Detail...

Coaxial Common Motor Design & Rotatable BEM Horn

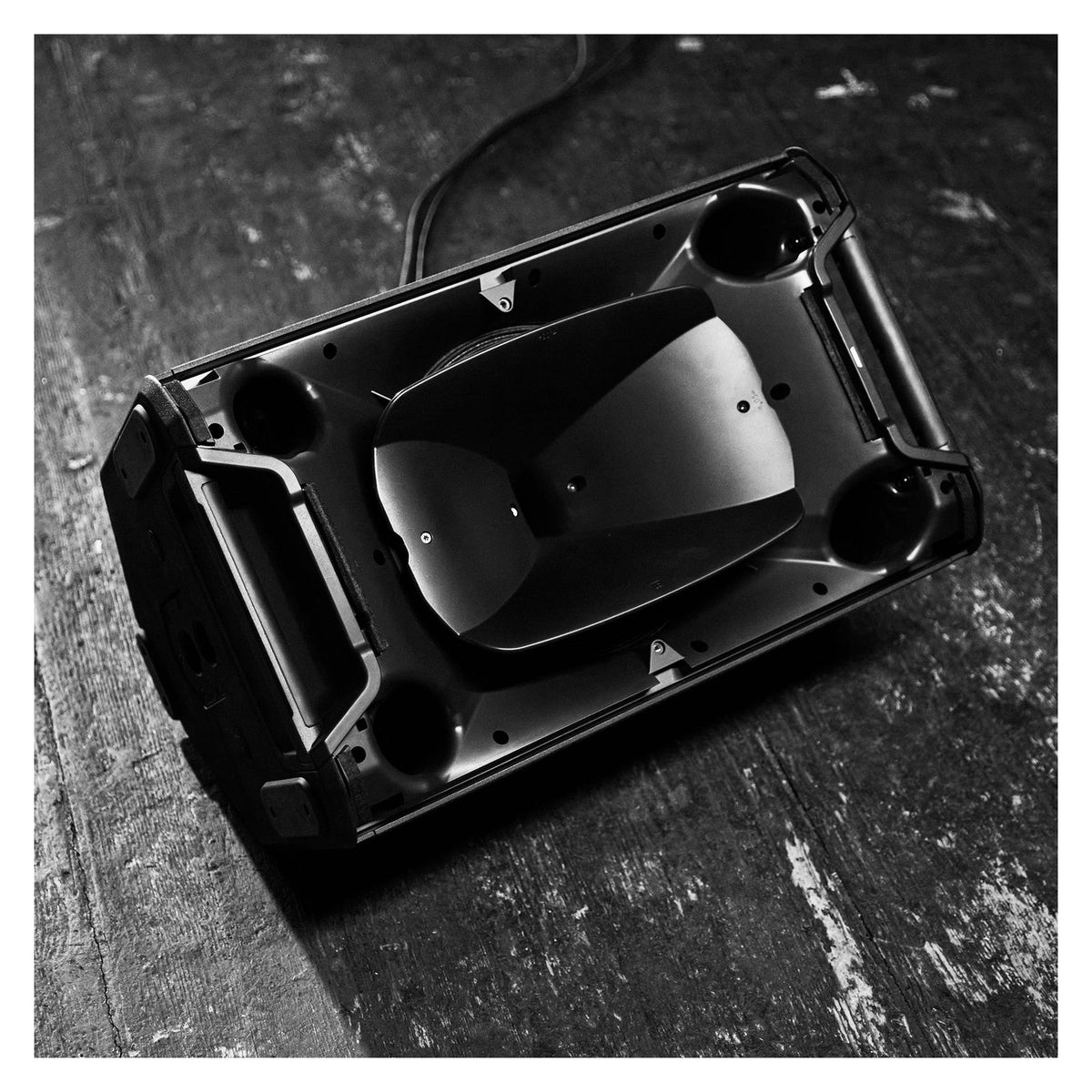

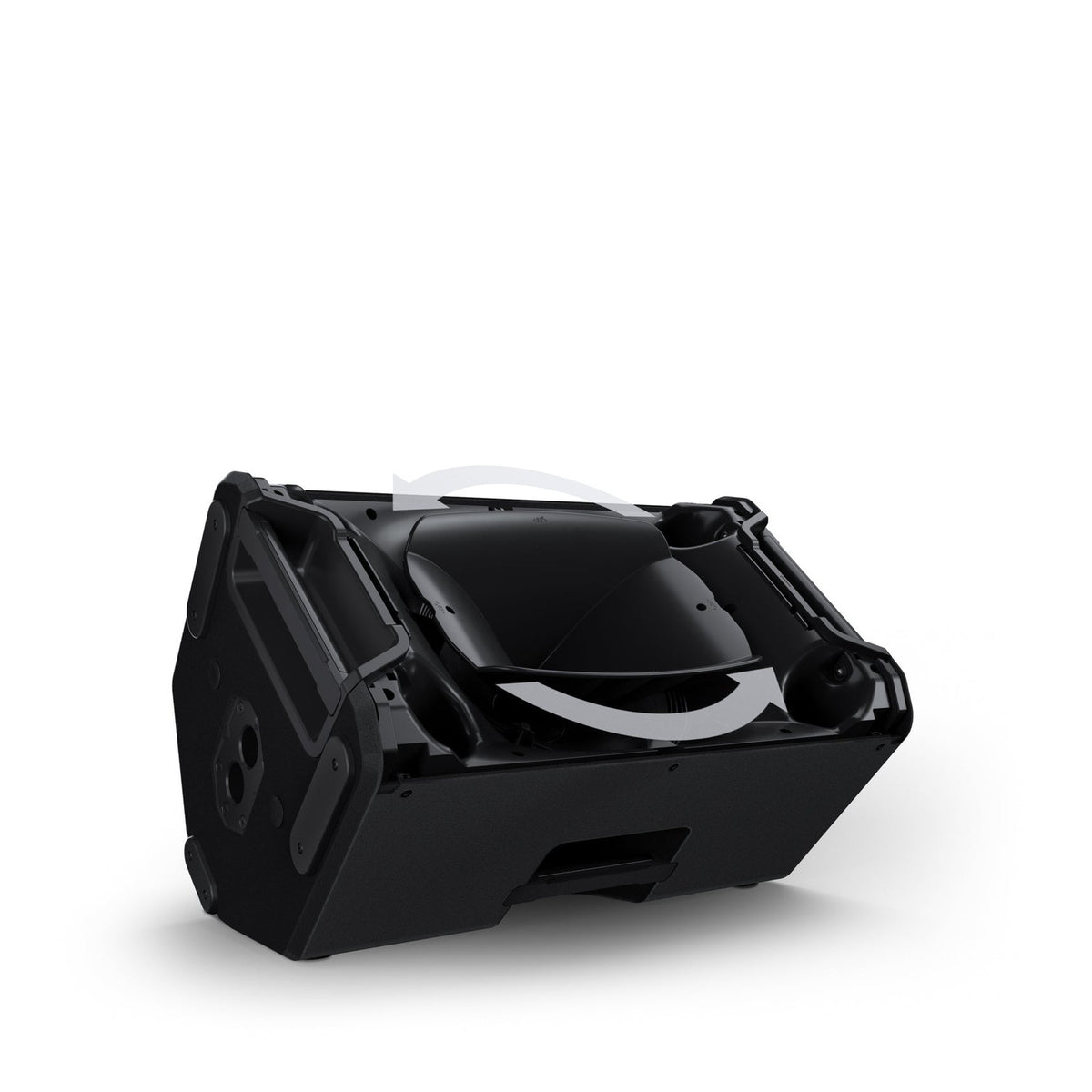

The ICOA PRO 12A’s coaxial common motor design places the 3" titanium HF driver concentrically within the 12" woofer, sharing a single motor system for improved phase coherence and time accuracy that conventional 2-way designs cannot match. The large, rotatable BEM-optimised CD horn provides double horn loading for both drivers, extending precise directional control deep into the mid-range from approximately 600Hz and delivering consistent, homogeneous 90° x 50° dispersion in any orientation — rotatable to suit vertical or horizontal cabinet positioning. The result is a natural, detailed and spatially accurate sound that performs exceptionally across music, vocals and speech applications.

SysCore DSP, FIR/IIR Filters & App Control

The SysCore DSP engine provides a comprehensive suite of processing tools for precise system optimisation in any environment. FIR/IIR filters and advanced multi-band limiters ensure distortion-free operation at all output levels, and the 4-band parametric EQ for both input and master channels — alongside four application presets including a low-latency monitor mode — allows the ICOA PRO 12A to be quickly configured for different applications without compromise. The intuitive colour display with one-knob navigation provides straightforward on-board control, and the free ICOA PRO app for iOS and Android enables full wireless remote control of all parameters and multi-speaker pairing from a smartphone or tablet.

Versatile Deployment & Robust Construction

The ICOA PRO 12A is designed for genuinely versatile deployment across live events, club installations and touring applications. A 50° floor monitor angle, 35mm dual-tilt stand mount with selectable 0° and 5° tilt, EasyMount-compatible tool-free truss mounting and six M10 flying points cover virtually every common deployment scenario, and the rotatable horn accommodates both vertical and horizontal cabinet orientation. The ultra-robust ABS cabinet with integrated steel reinforcement, shock-resistant front grille and four ergonomic carry handles provide the durability and practicality required for regular road use and permanent installation alike.

KEY FEATURES: LD Systems ICOA PRO 12A Active PA Speaker

• 1,000W RMS / 2,000W Peak Class-D: 133dB peak SPL with 108dB SNR for powerful, distortion-free performance at all output levels.
• Coaxial Common Motor Design: True point source with improved coherence and time accuracy for natural, detailed sound reproduction.
• 12" Woofer With 3" Voice Coil & 3" Titanium HF Driver: Premium coaxial driver combination for full-range performance from 50Hz to 20kHz.

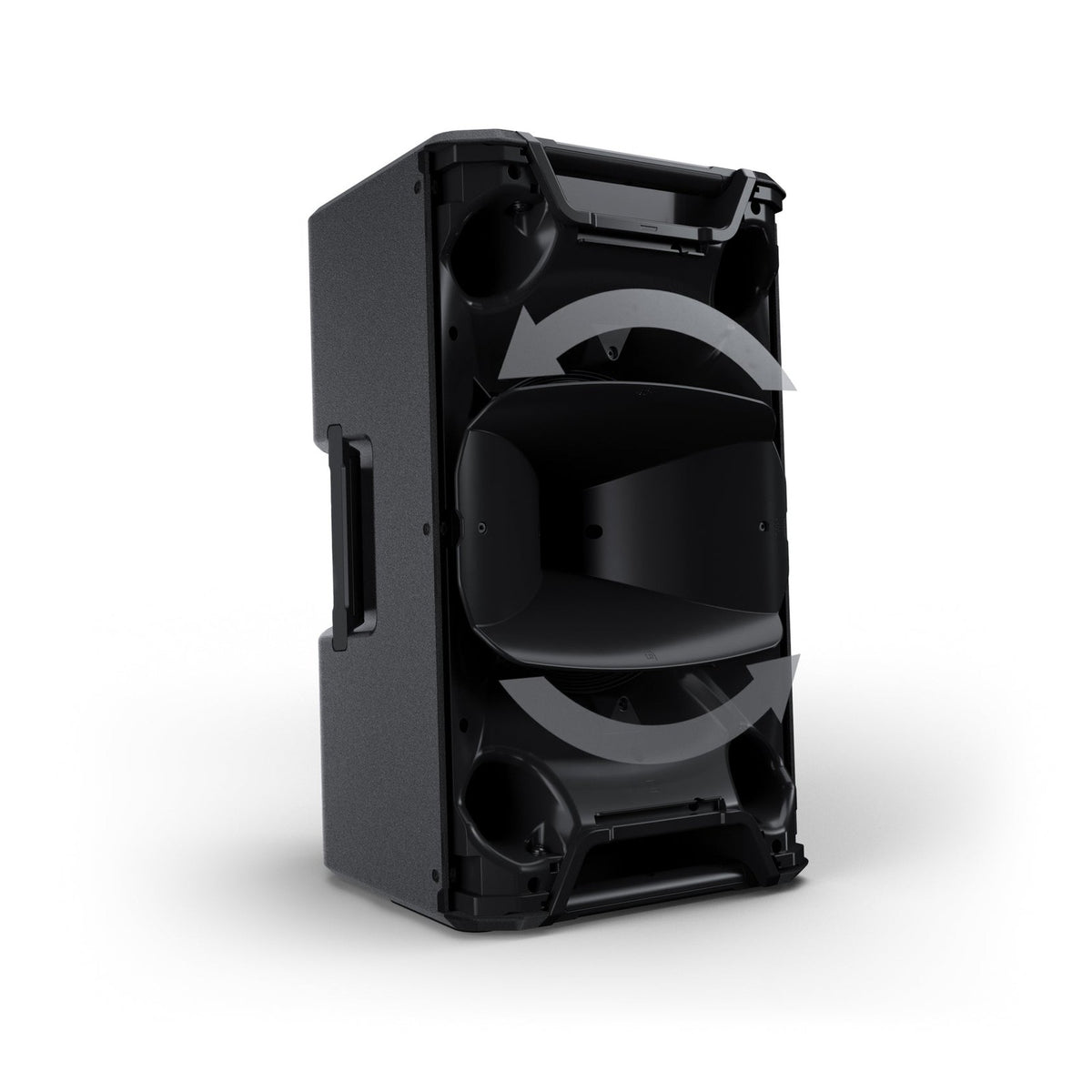

• Rotatable BEM-Optimised CD Horn: 90° x 50° dispersion with double horn loading extending directional control to approximately 600Hz.
• SysCore DSP With FIR/IIR Filters: Distortion-free sound at all levels with advanced multi-band limiters for safe, reliable operation.
• 4-Band Parametric EQ: Independent EQ for both input and master channels for precise tonal control.
• 4 Application Presets: Including a dedicated low-latency monitor preset for quick, optimised configuration.
• Delay Function: Precision time alignment for complex multi-speaker setups.

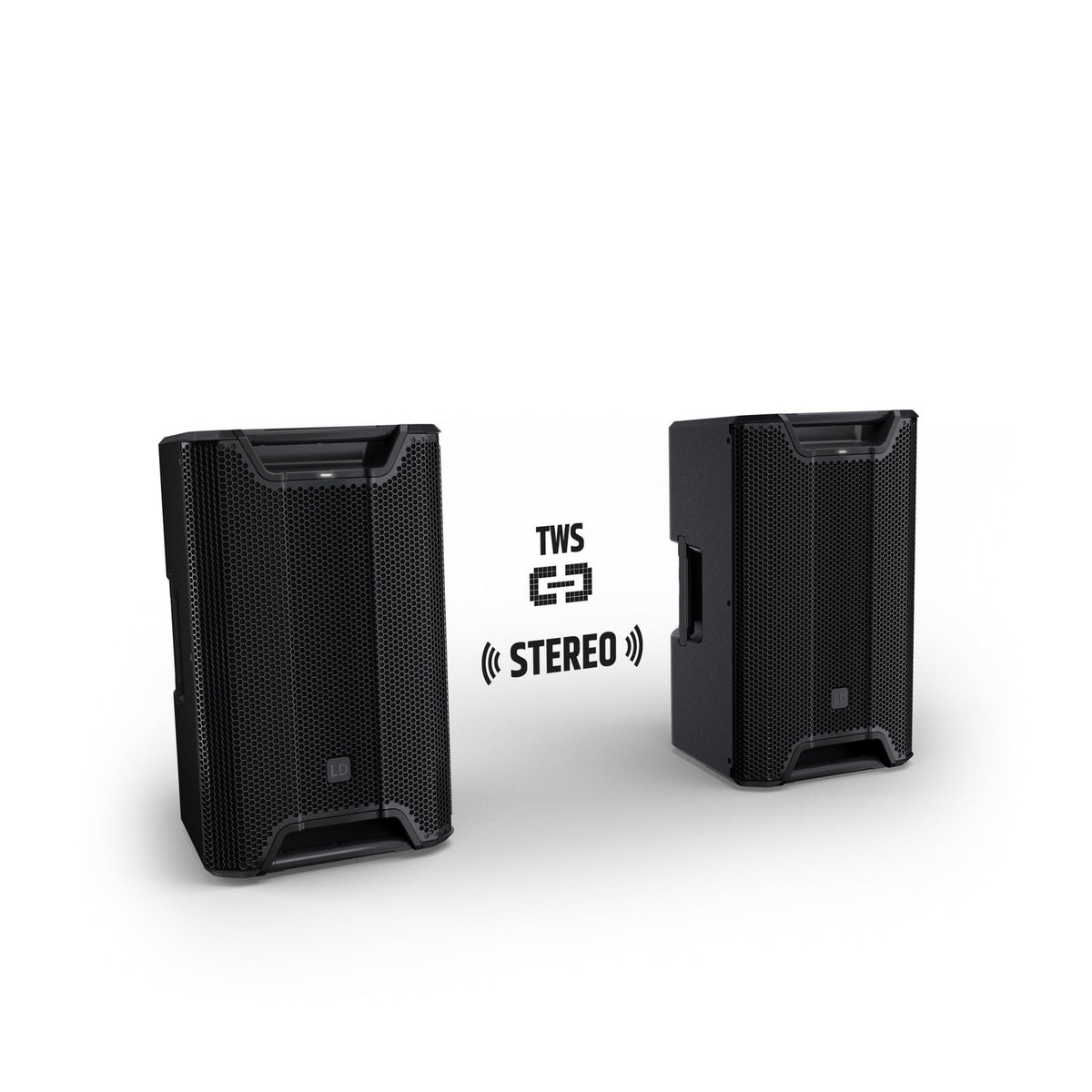

• Bluetooth 5.1 With TWS: Stereo pairing of two ICOA PRO 12A speakers and direct music streaming via A2DP (SBC, AAC).

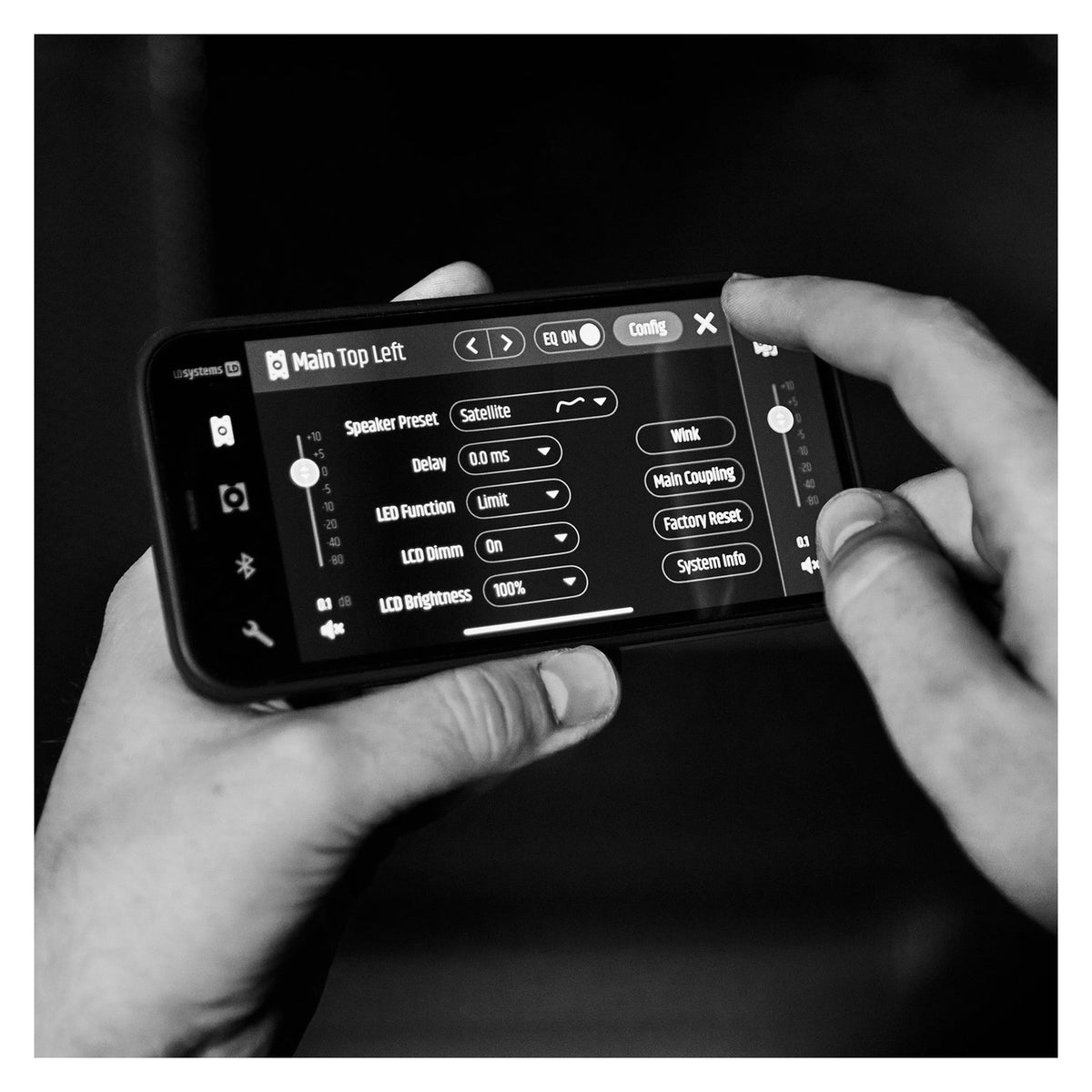

• Free ICOA PRO App: Full wireless remote control of all settings and multi-speaker pairing via iOS and Android.

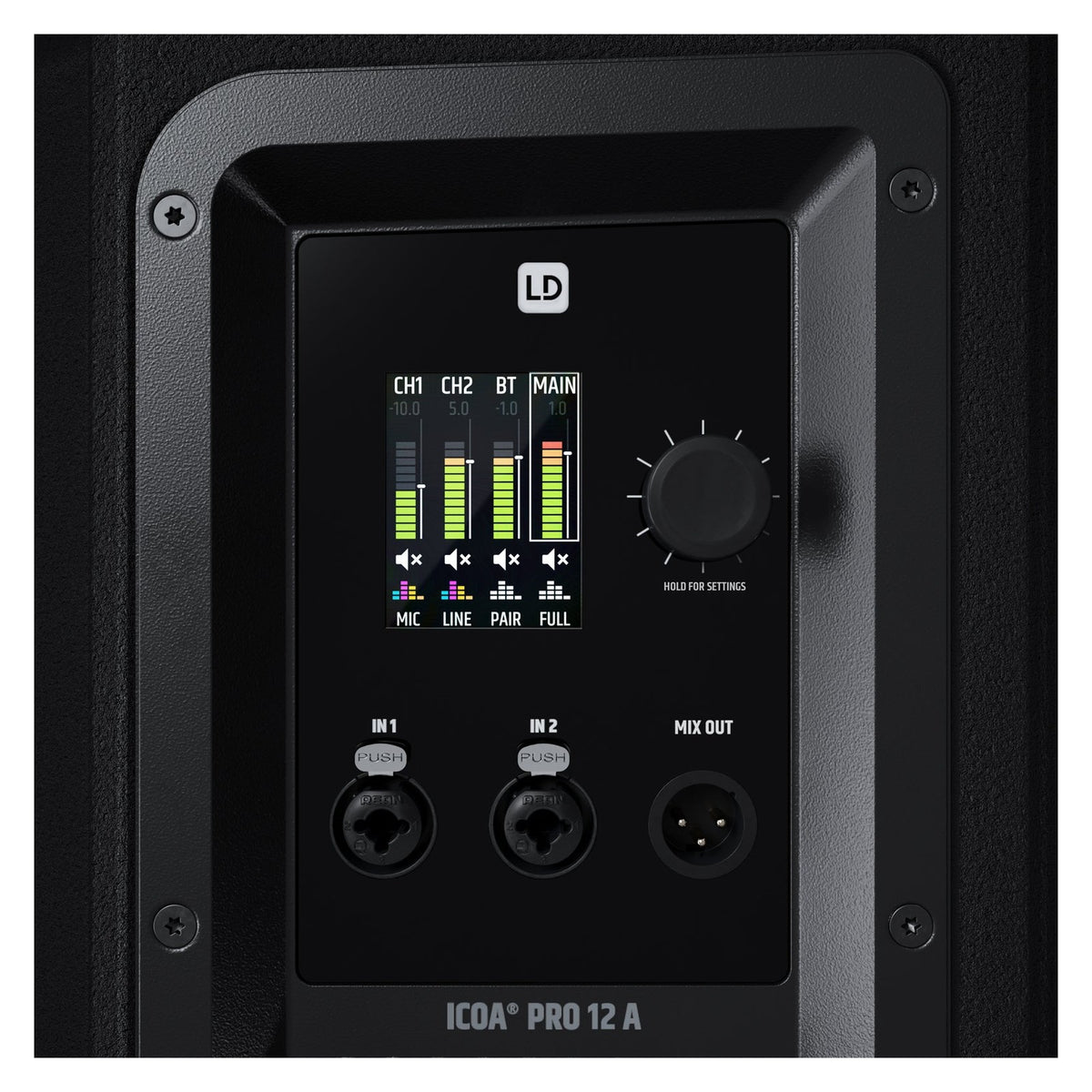

• 2 x Combo XLR Inputs & XLR Mix Output: Flexible mic and line connectivity with individual gain control and mono mix output.

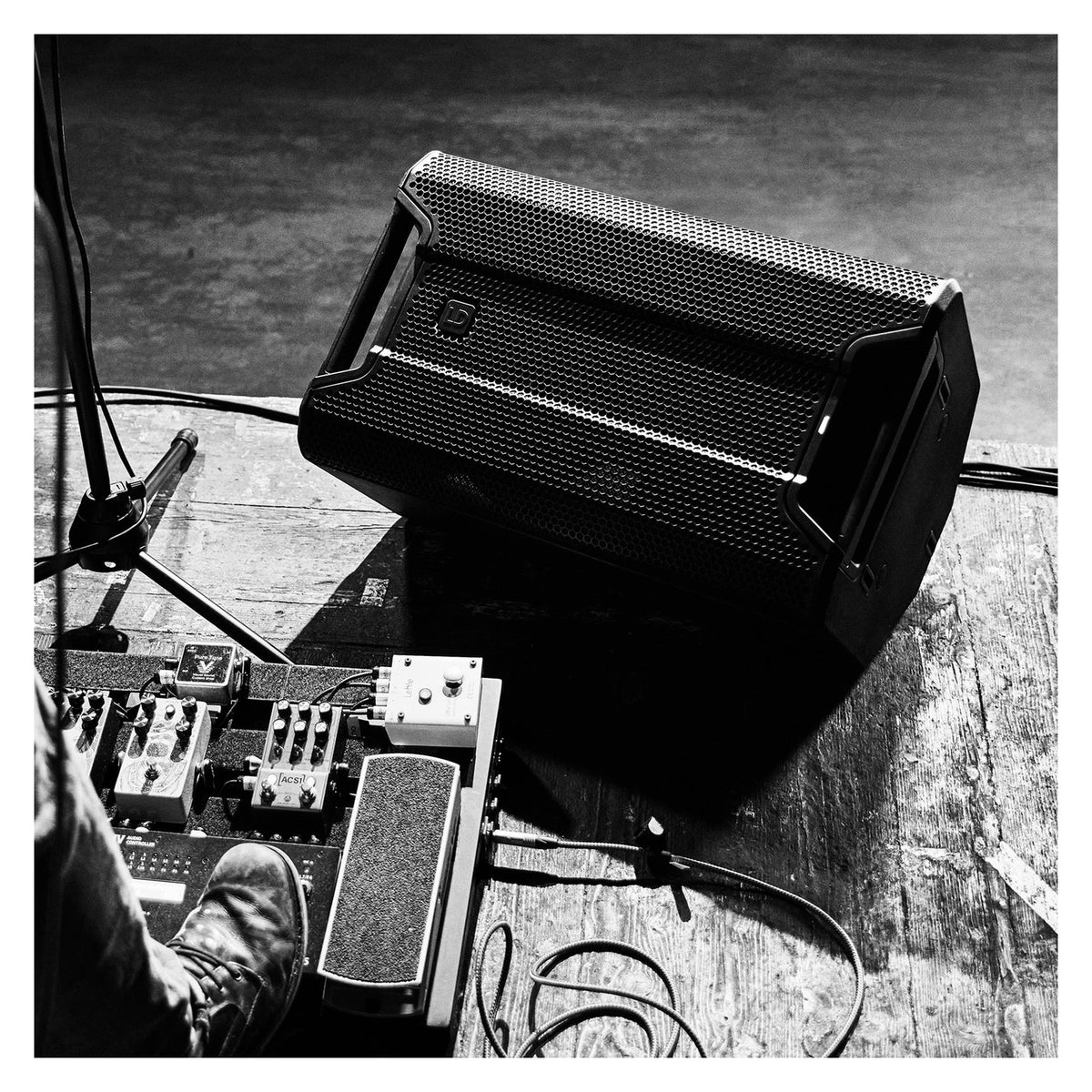

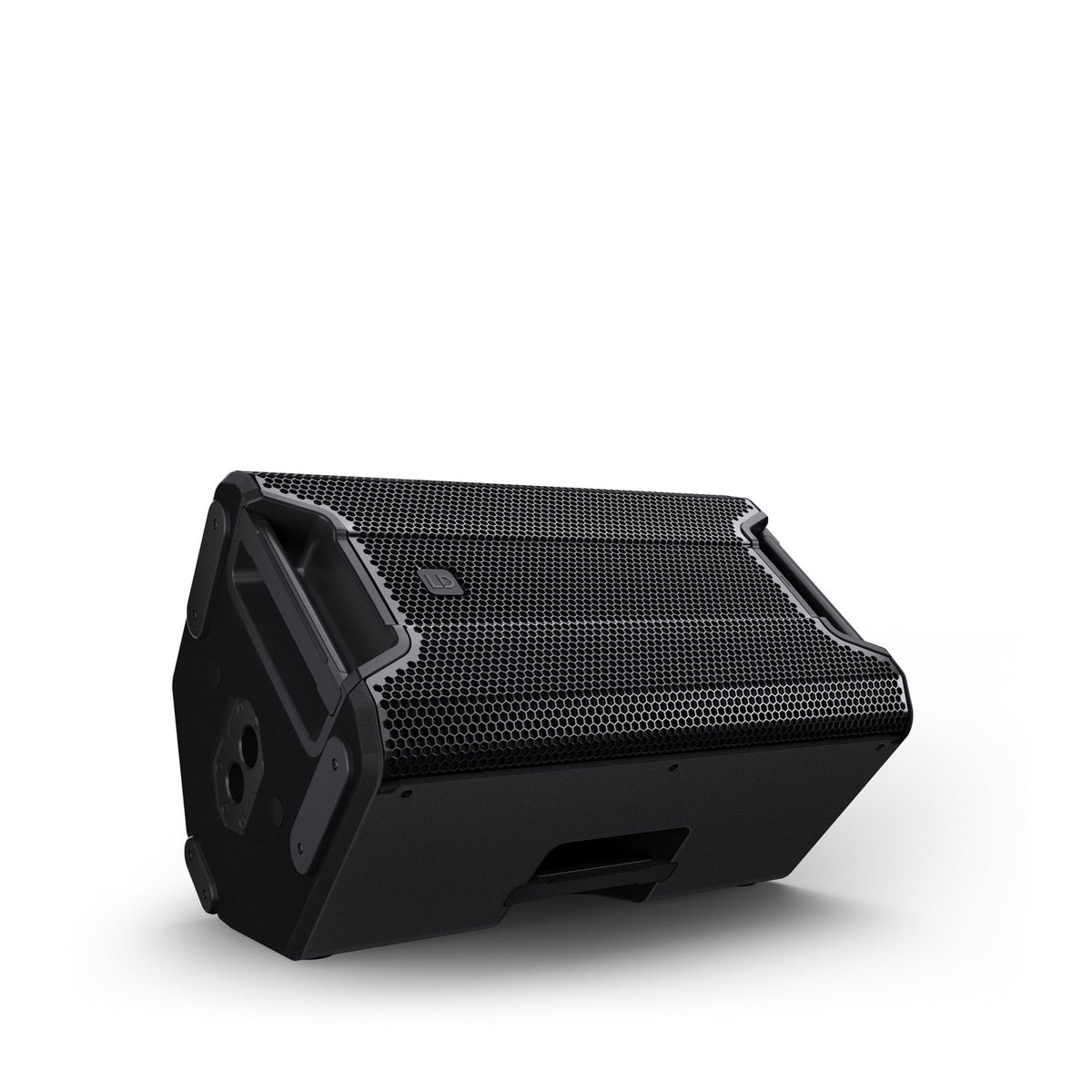

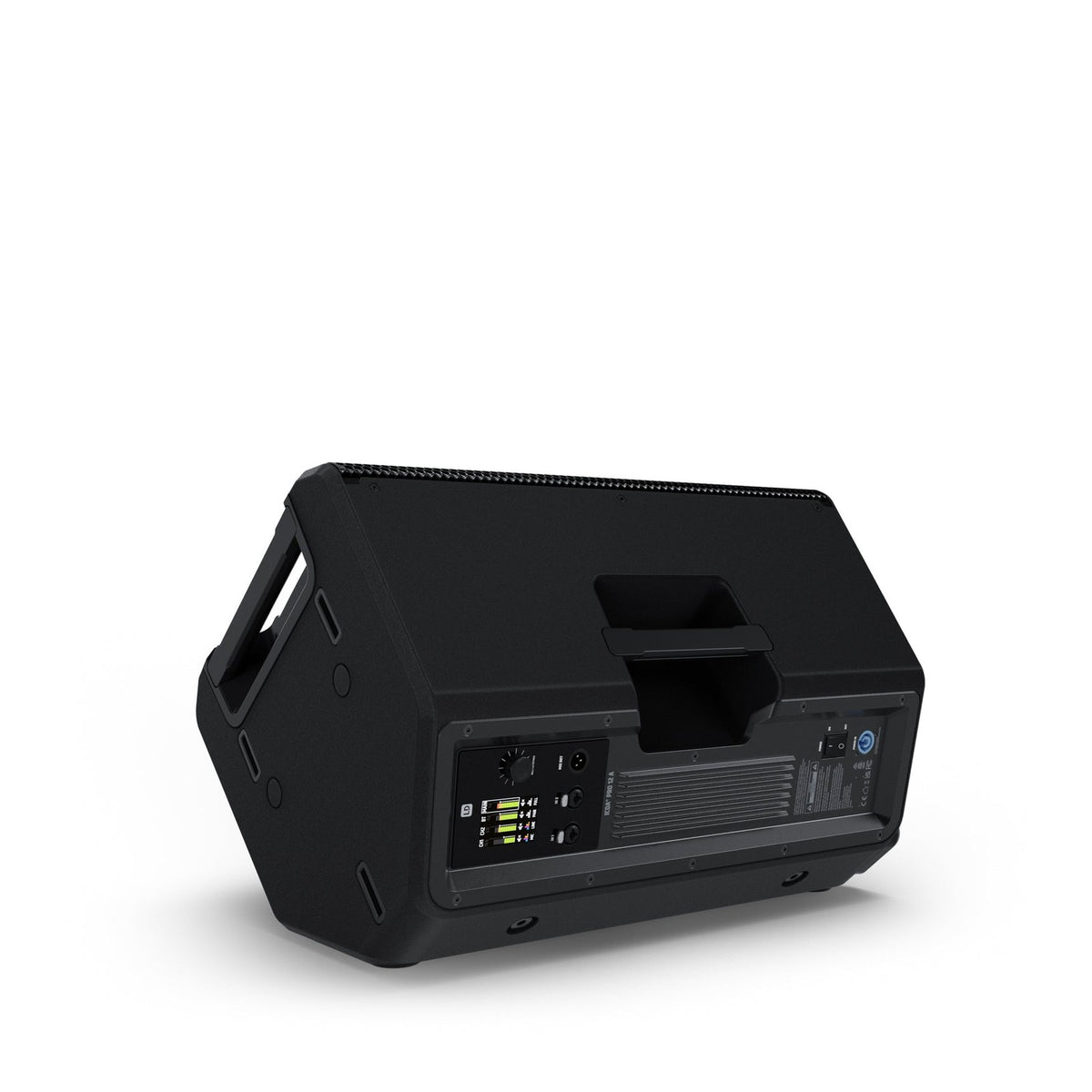

• 50° Floor Monitor Angle: Robust ABS cabinet with steel reinforcement optimised for floor monitor use.

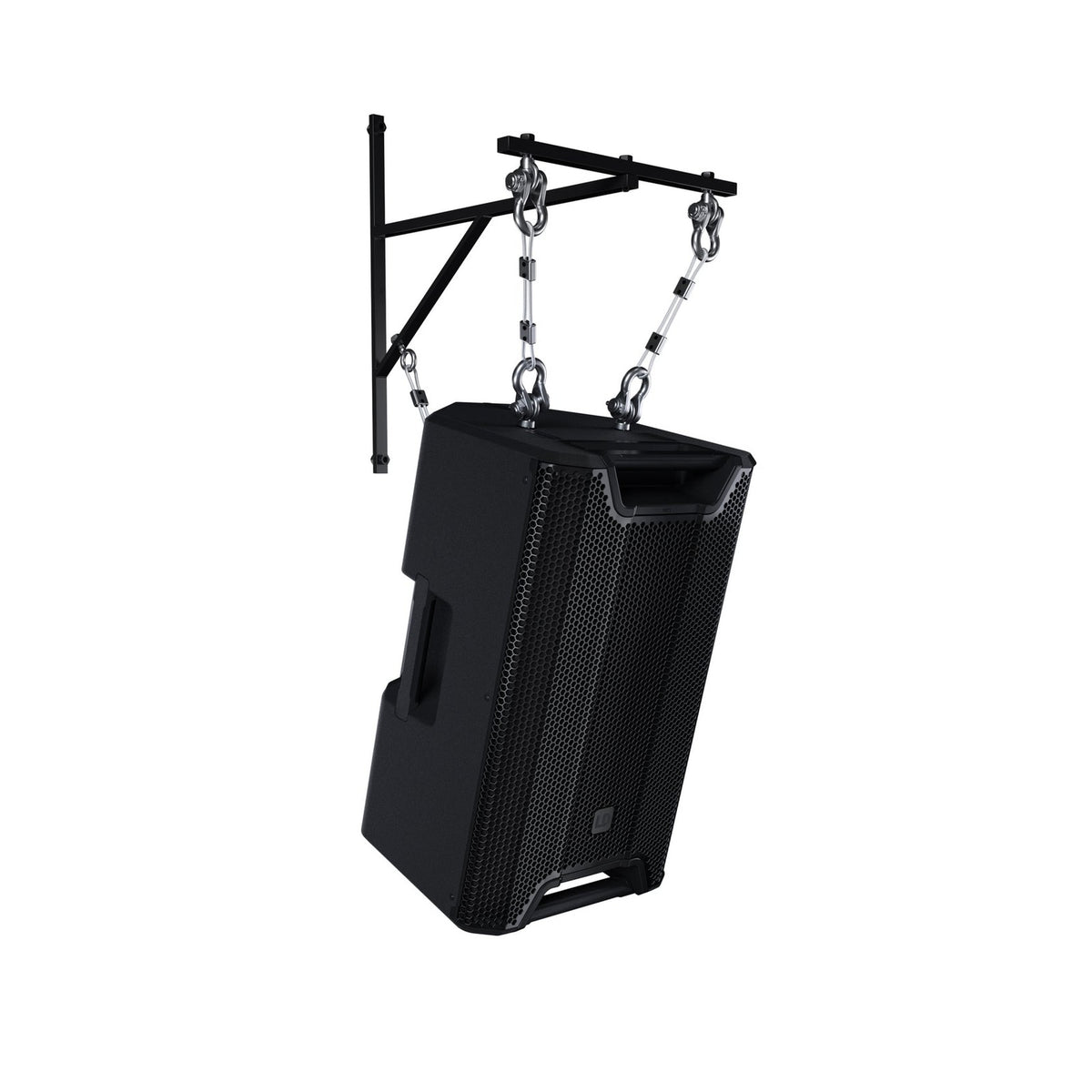

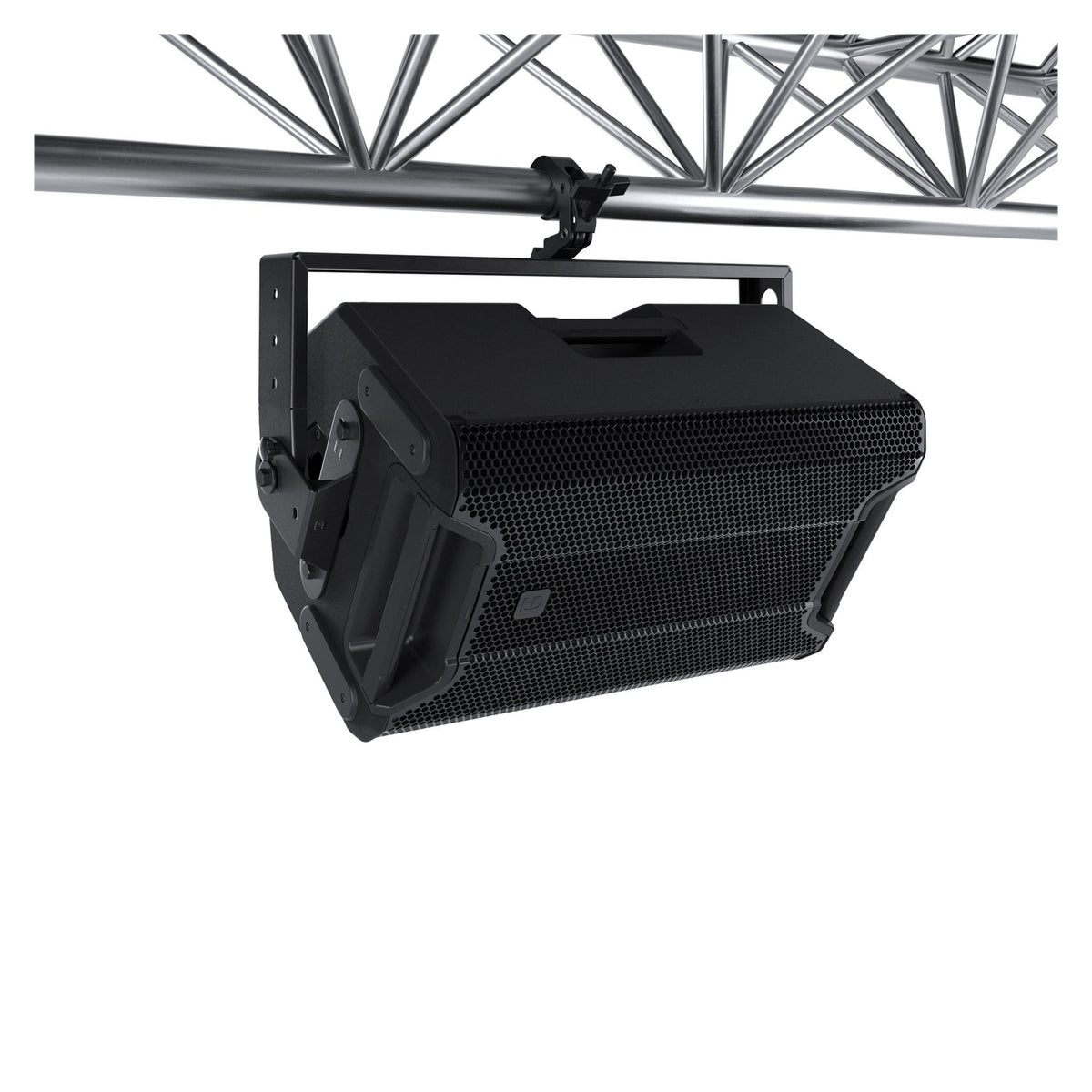

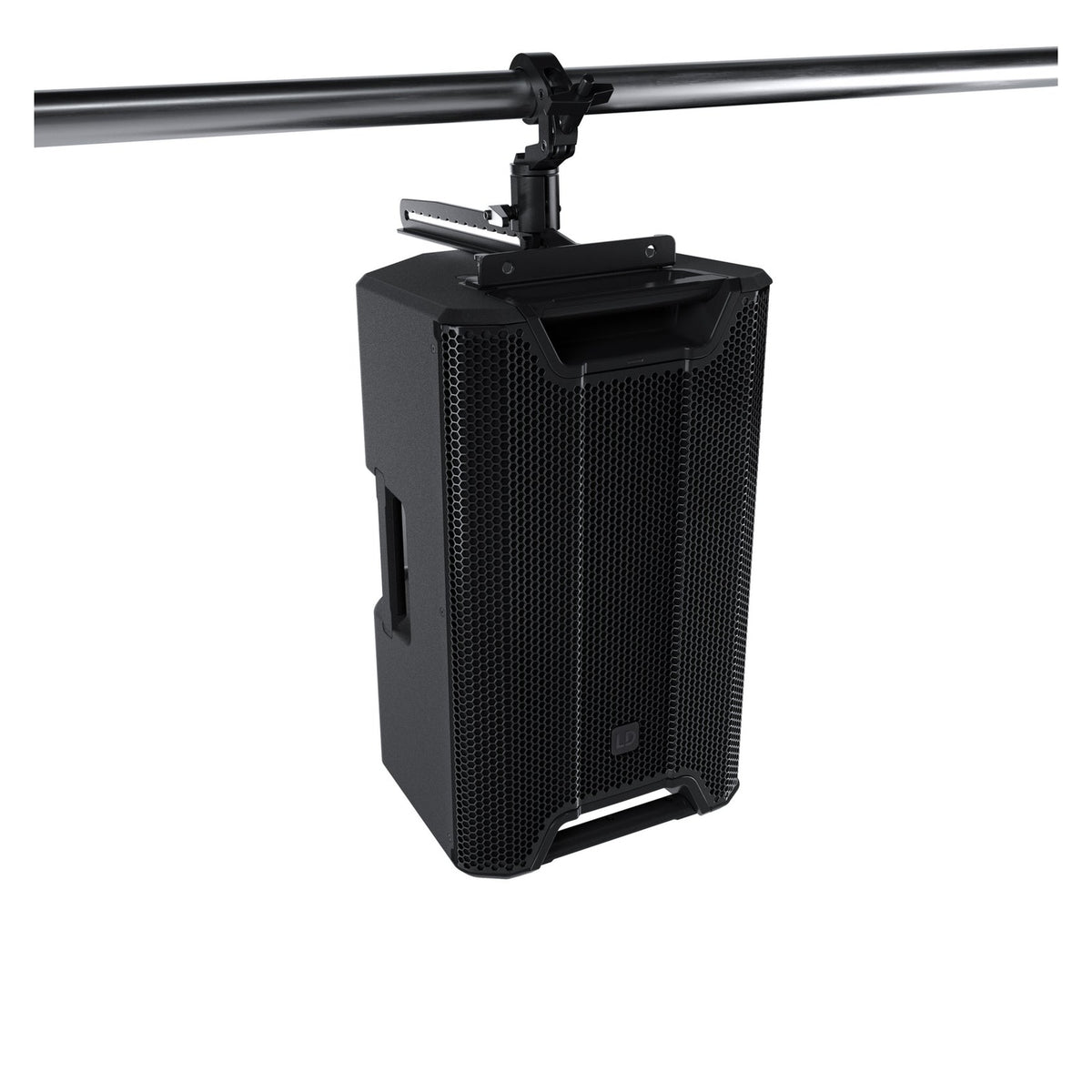

• EasyMount & M10 Flying Points: Tool-free truss mounting and six M10 rigging points for installation flexibility.

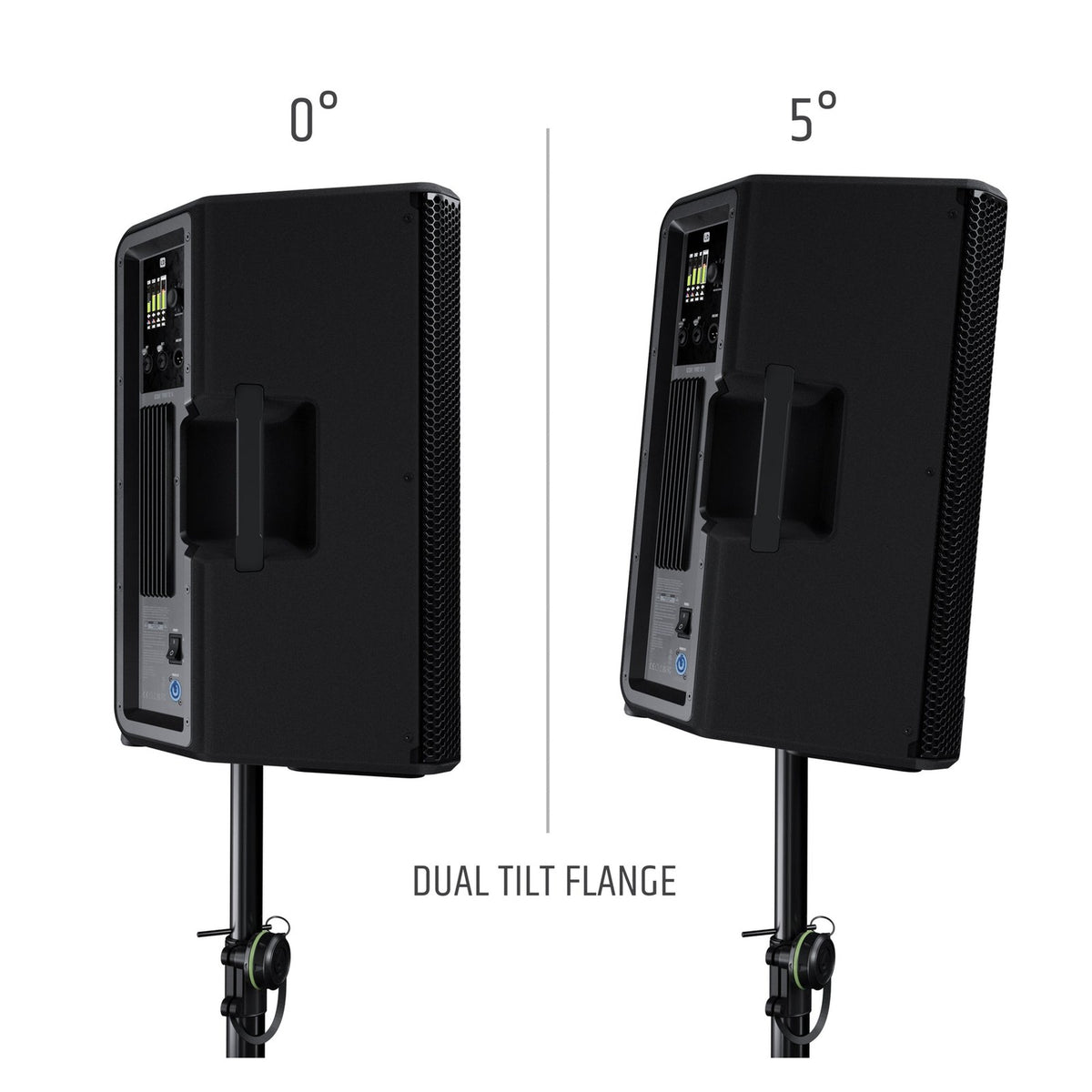

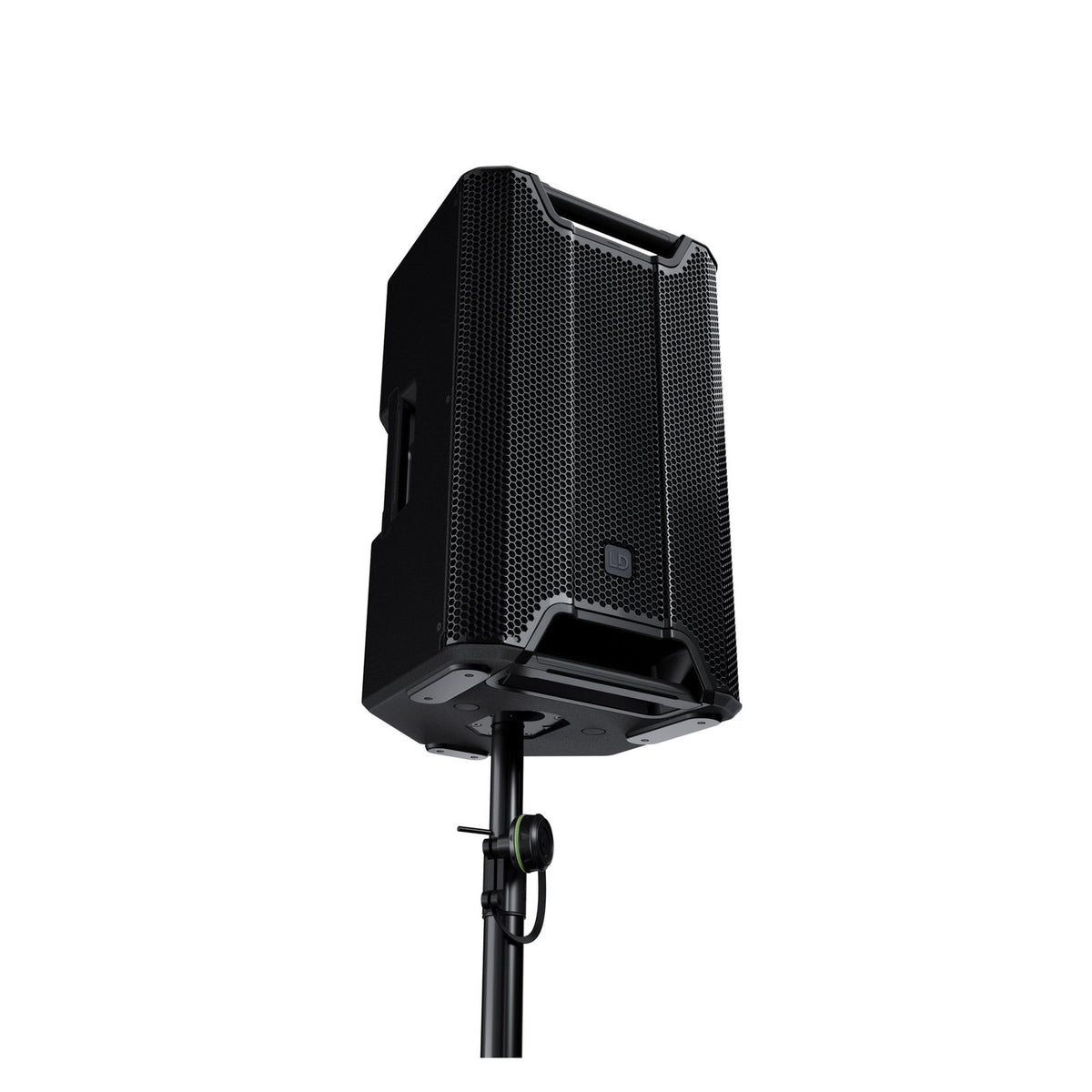

• 35mm Dual-Tilt Mount: Selectable 0° and 5° tilt for optimised speaker angle on a standard stand.
• Front LED Indicator: Power, identification and limiter status at a glance.

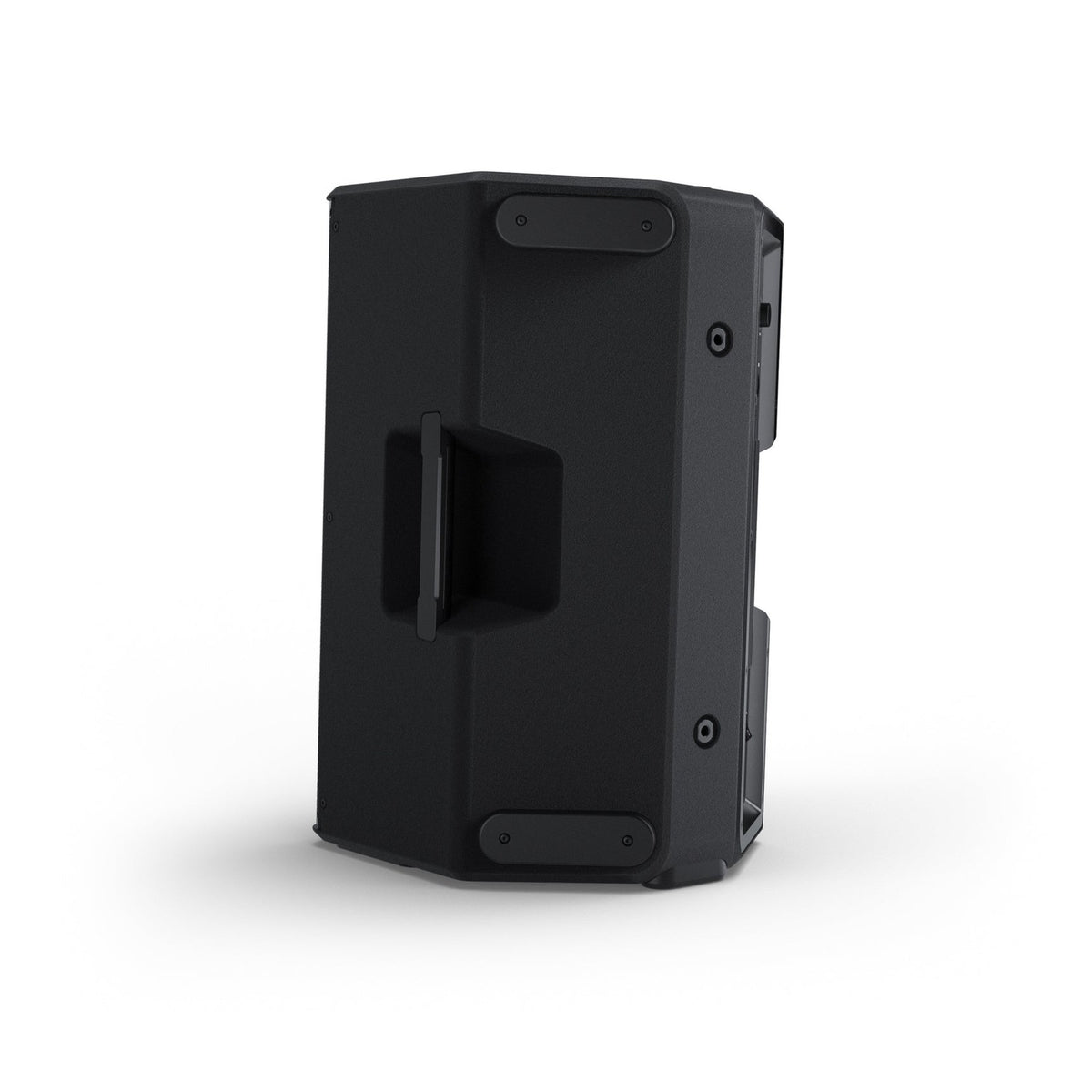

• 4 Carry Handles: Ergonomic handles for safe and secure transport during setup and dismantling.
