LD Systems MAUI 28 G3 Column PA System With Bluetooth – Black

Powerful & Elegant 1,030W RMS Column PA System With Cardioid Dispersion, 12" Subwoofer, Bluetooth 5.0 & Dynx DSP Gen.2 – LD Systems MAUI 28 G3 Black.

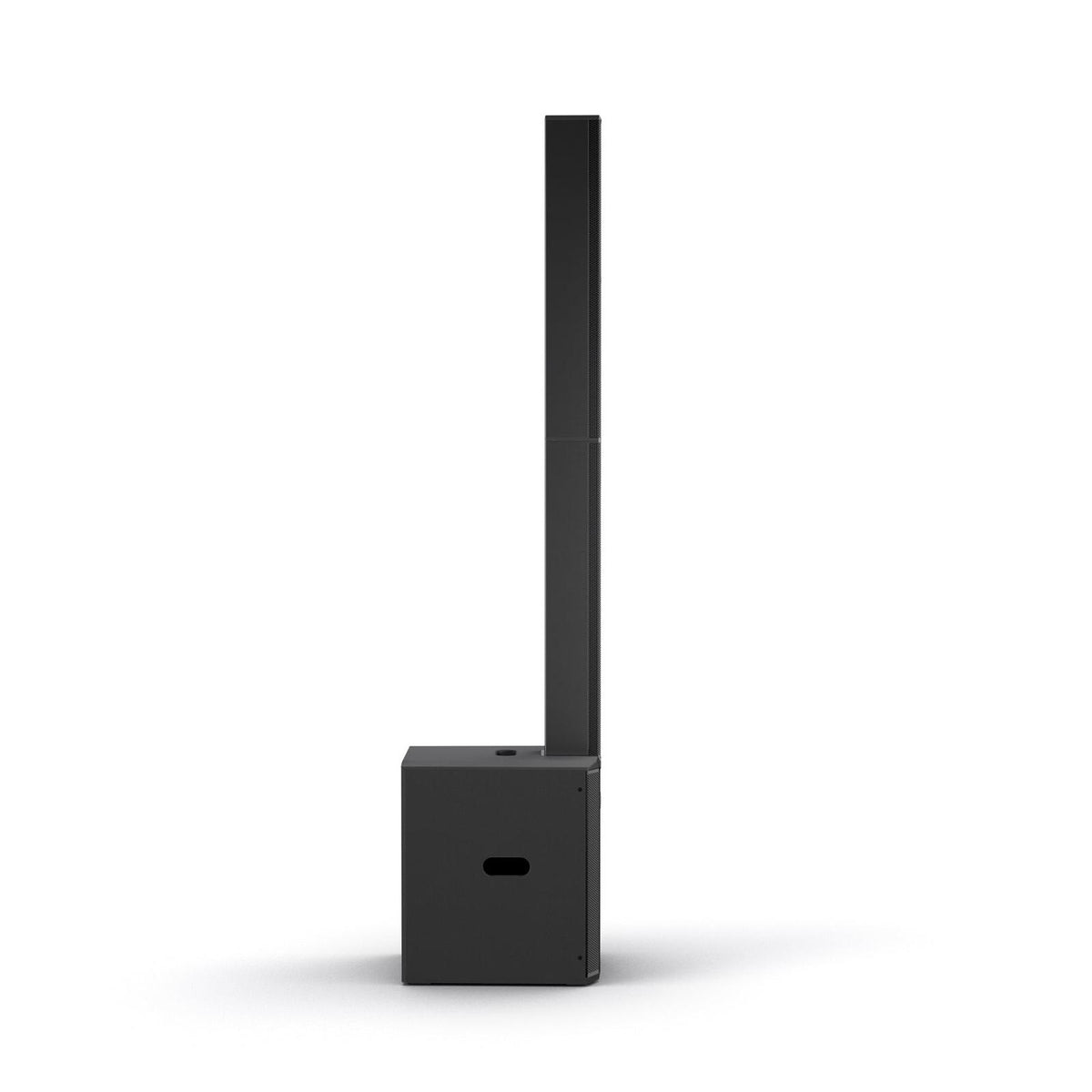

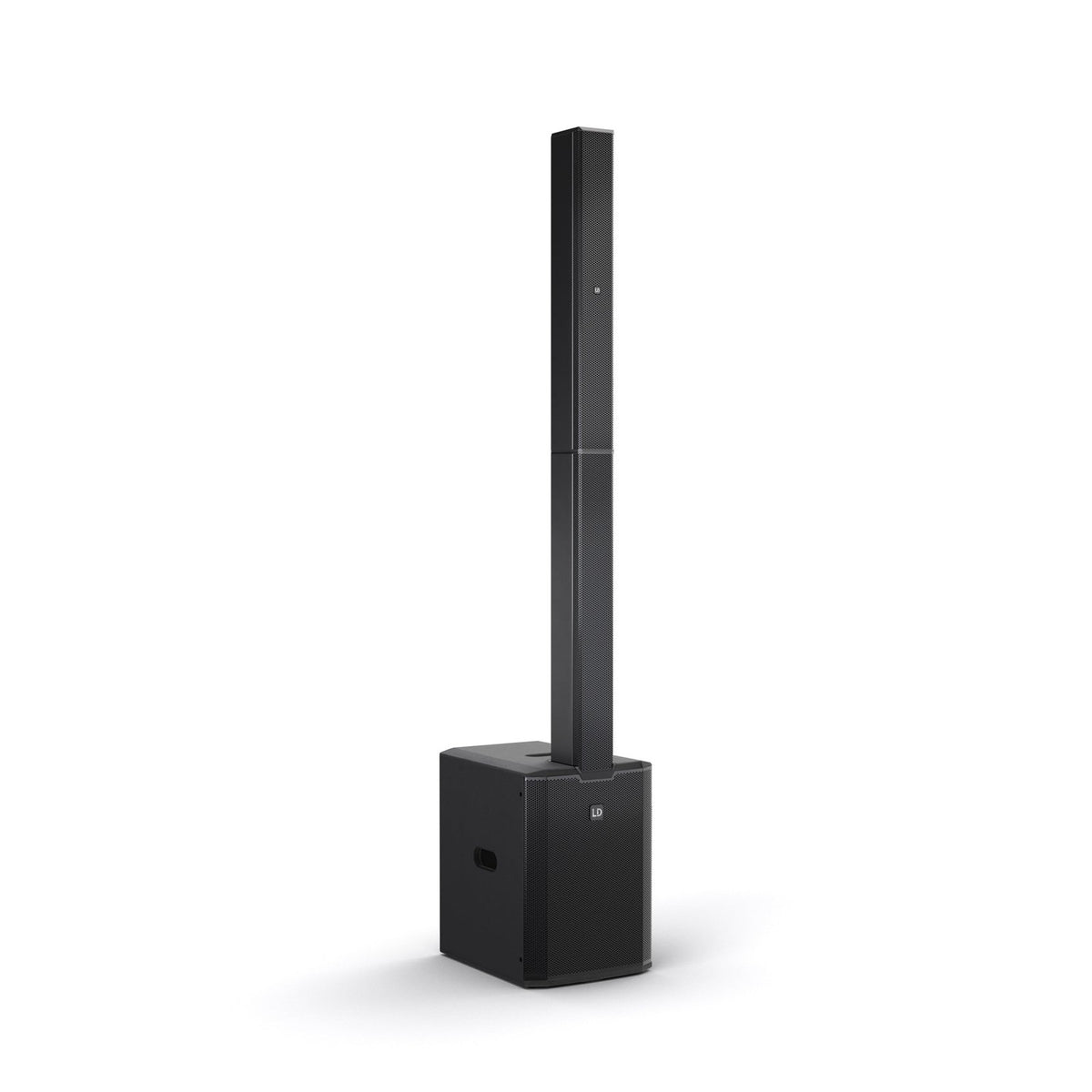

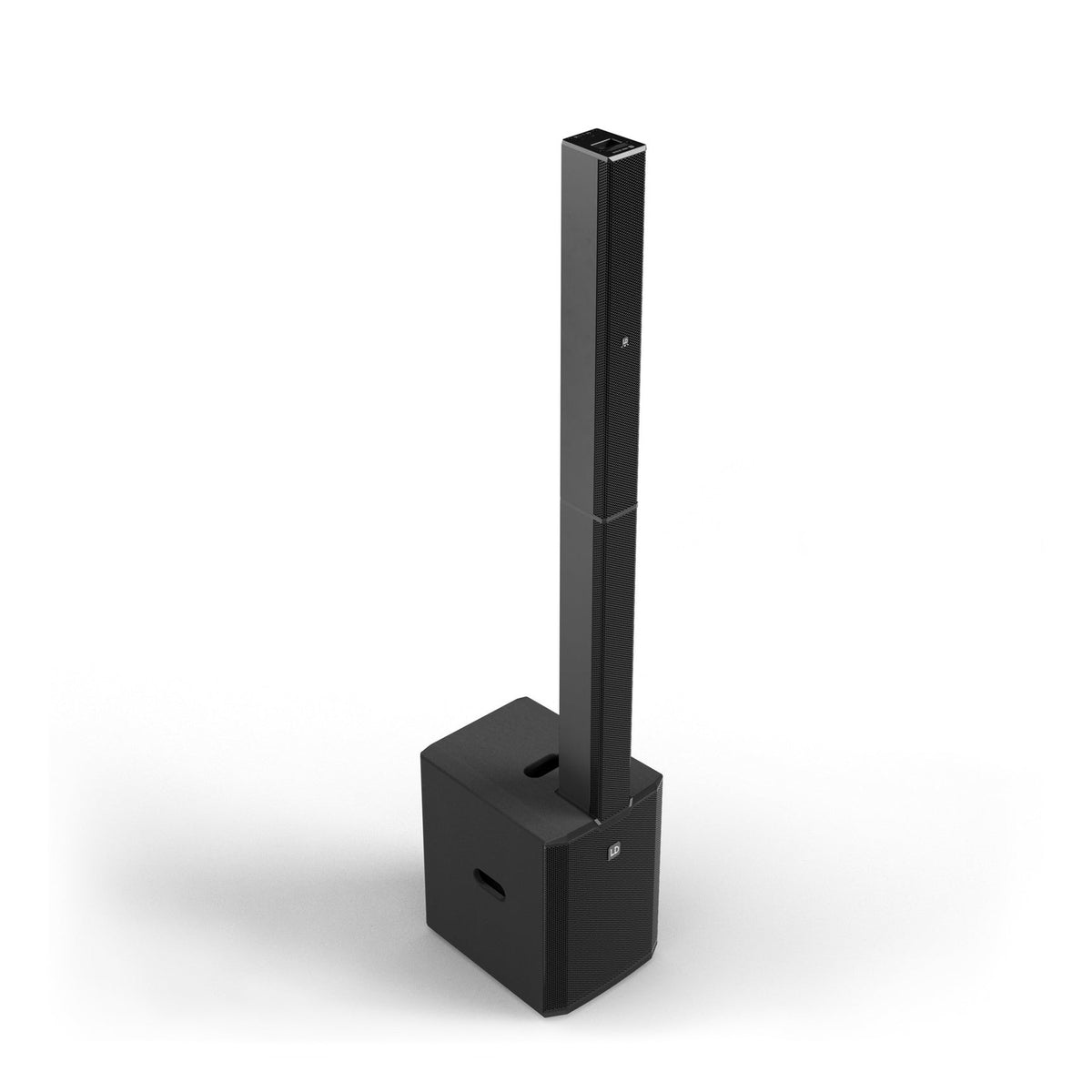

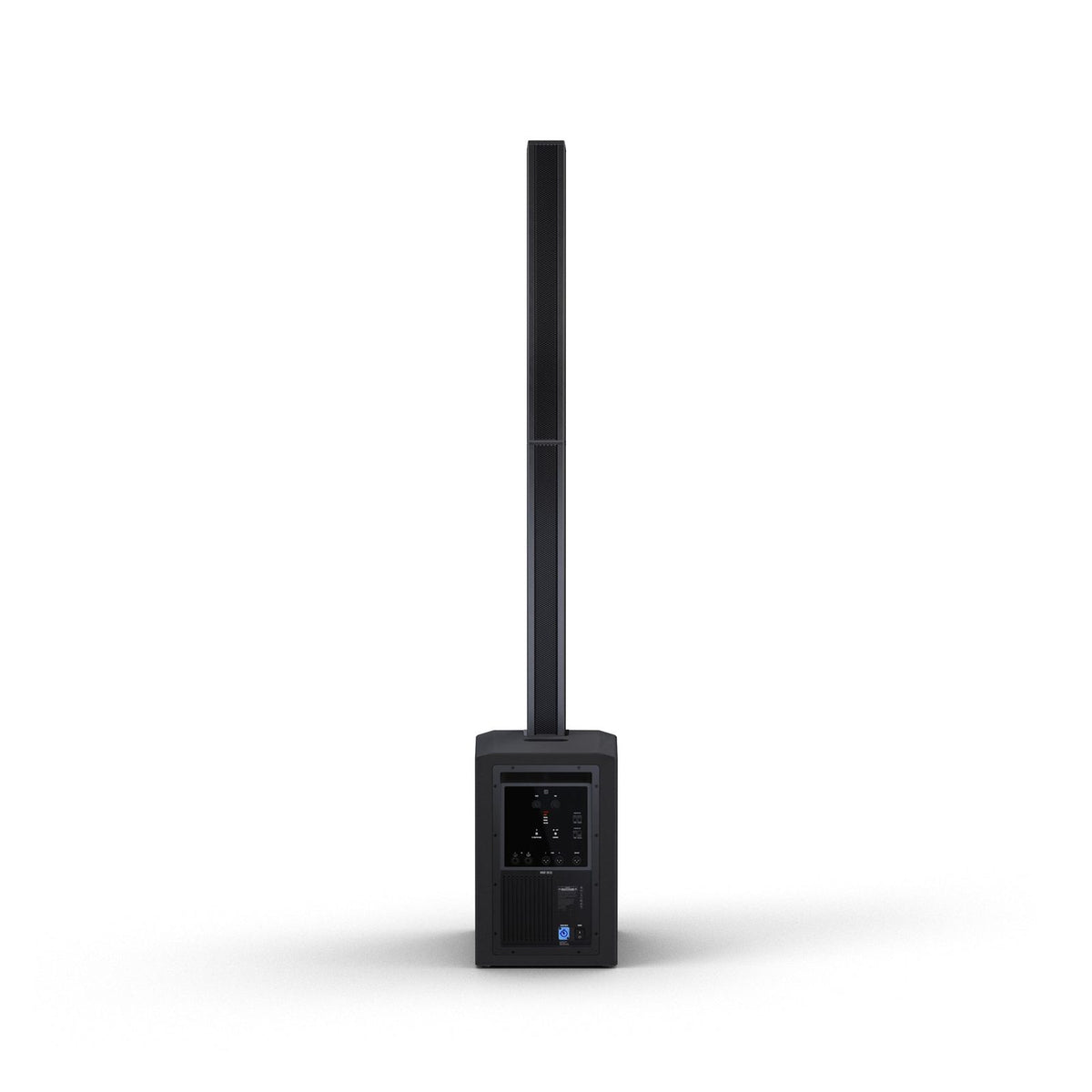

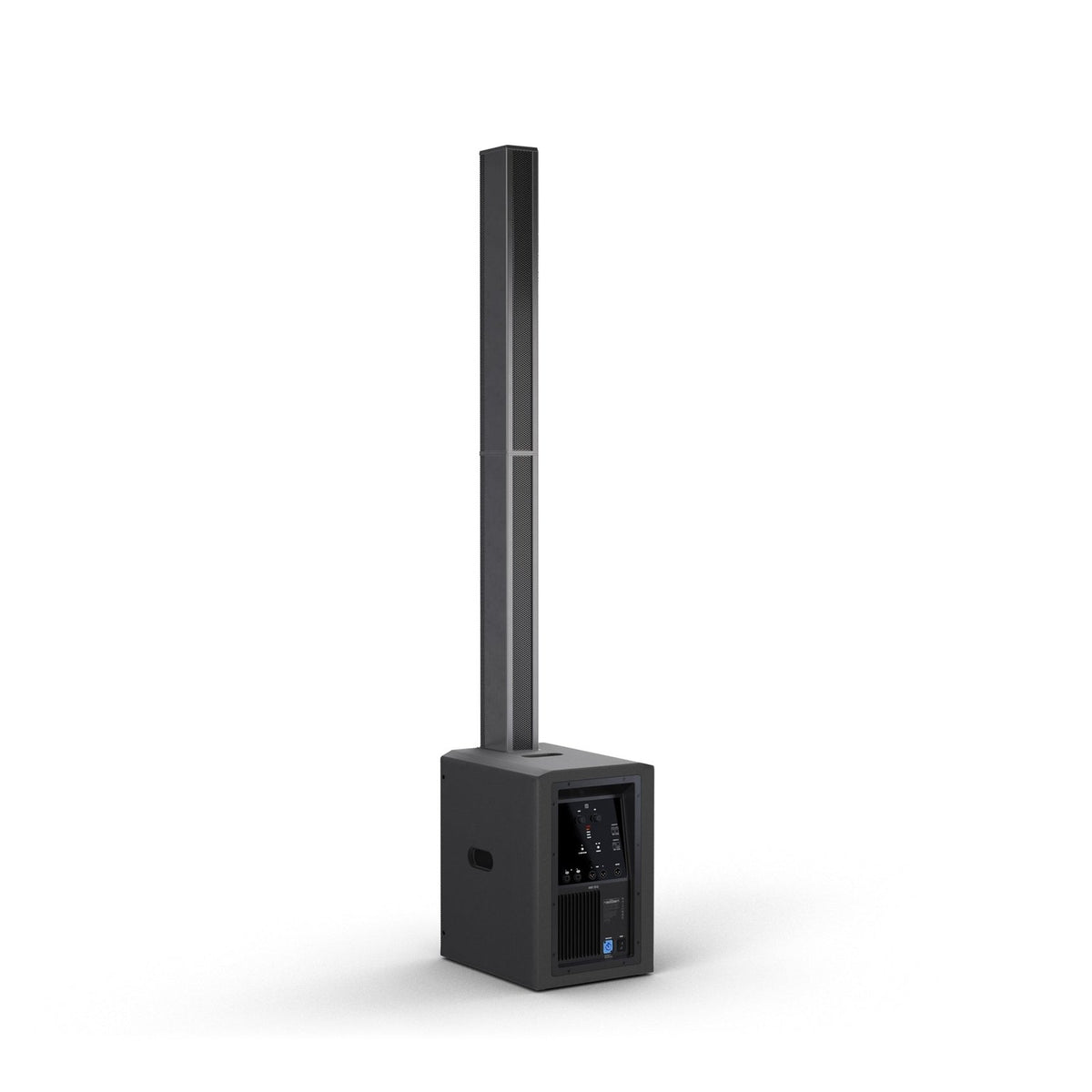

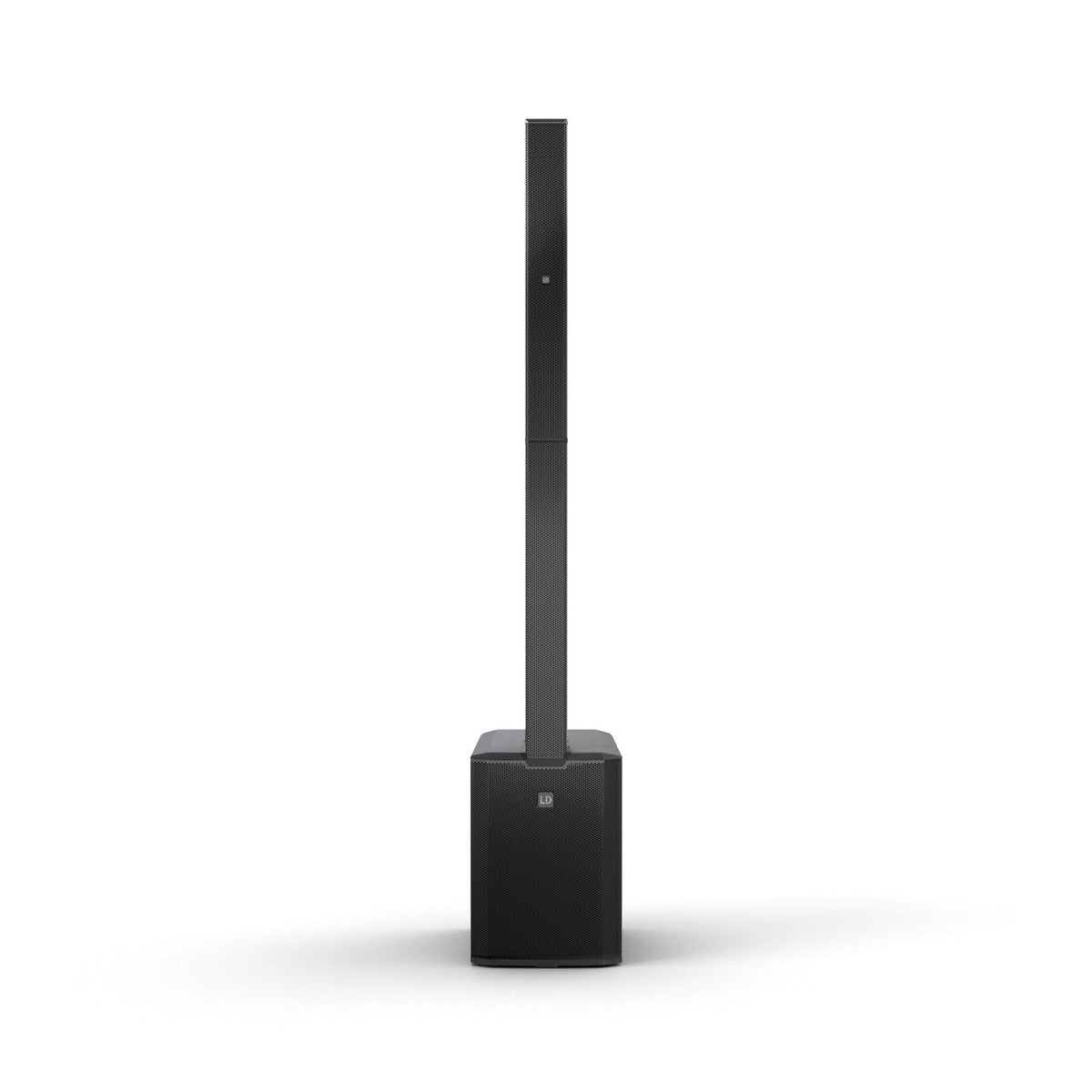

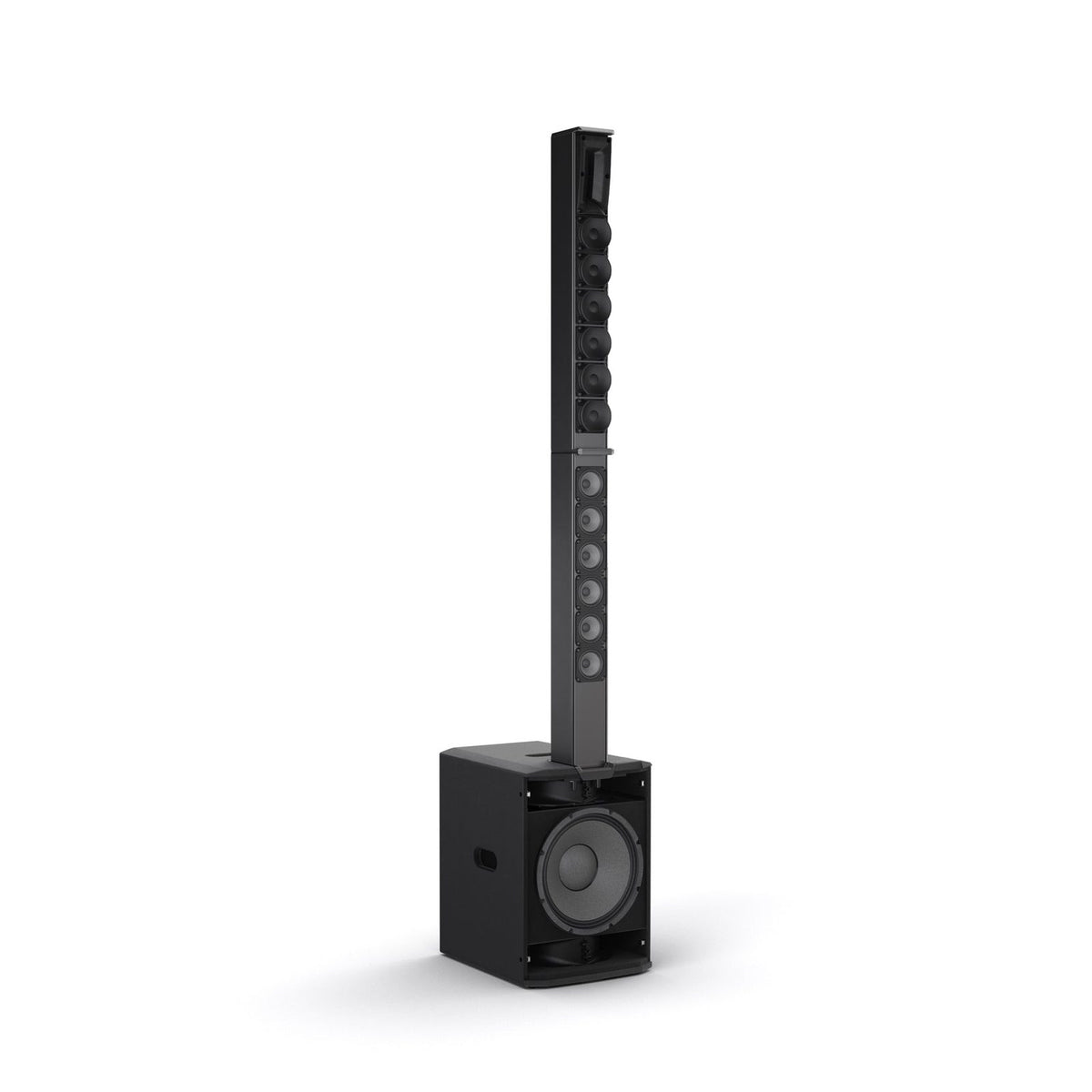

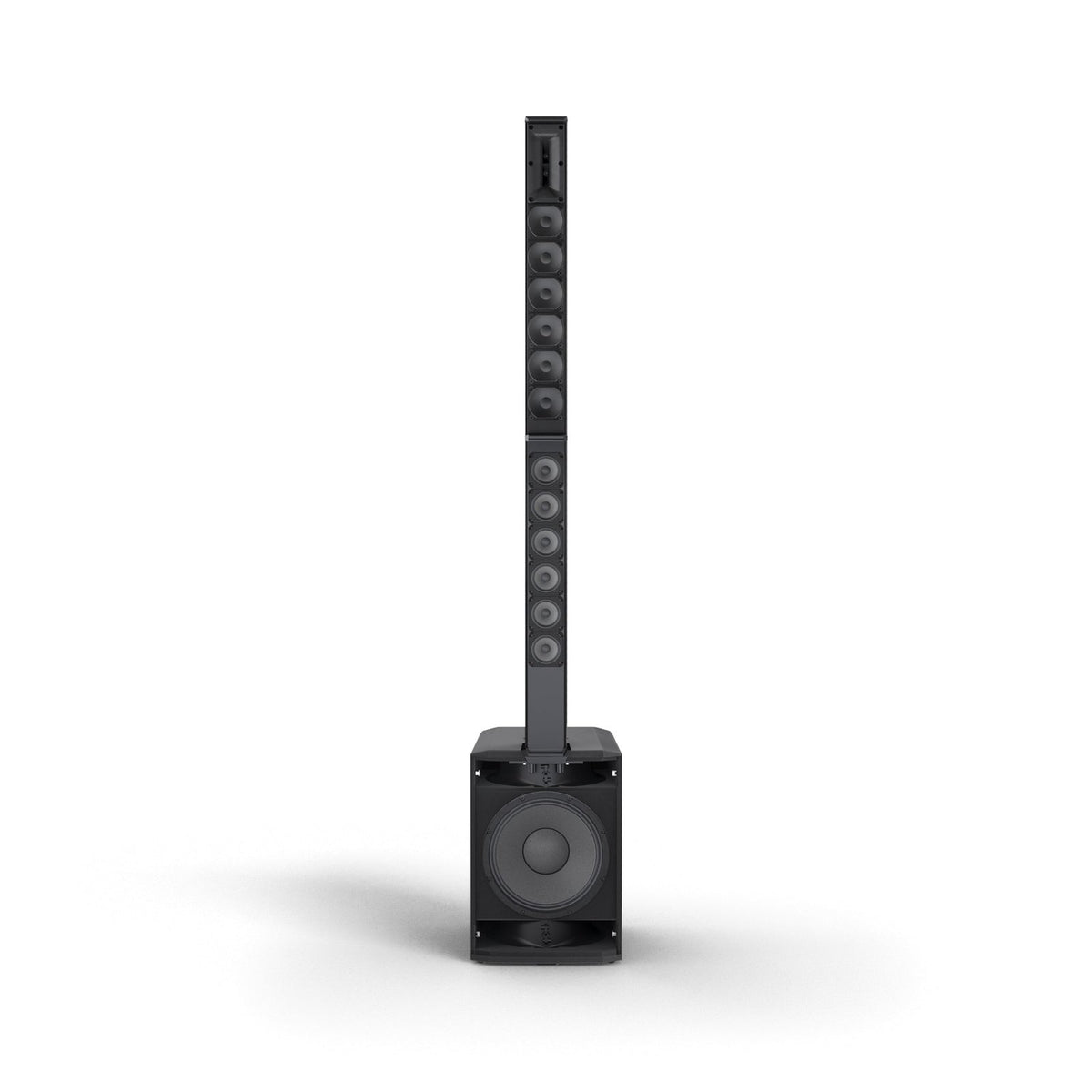

The LD Systems MAUI 28 G3 is a compact, powerful and elegantly designed column PA system delivering 1,030W RMS (2,060W peak) and 127dB maximum SPL in a fast-assembling, all-in-one package that requires no stands or additional cables to deploy. Ideal for DJs, smaller bands, mobile entertainers and event sound at weddings, corporate events and concerts, the MAUI 28 G3 combines a 12" bass reflex subwoofer with two aluminium column elements each housing 12 x 3.5" midrange drivers and 2 x 1" neodymium tweeters — delivering a wide, precise and homogeneous sound across a 120° x 30° dispersion field from 37Hz all the way to 20kHz. The columns are designed as cardioid speakers, providing controlled low-mid and midrange sound at the front with up to 18dB of attenuation at the rear for a clean stage sound and reduced monitor bleed.

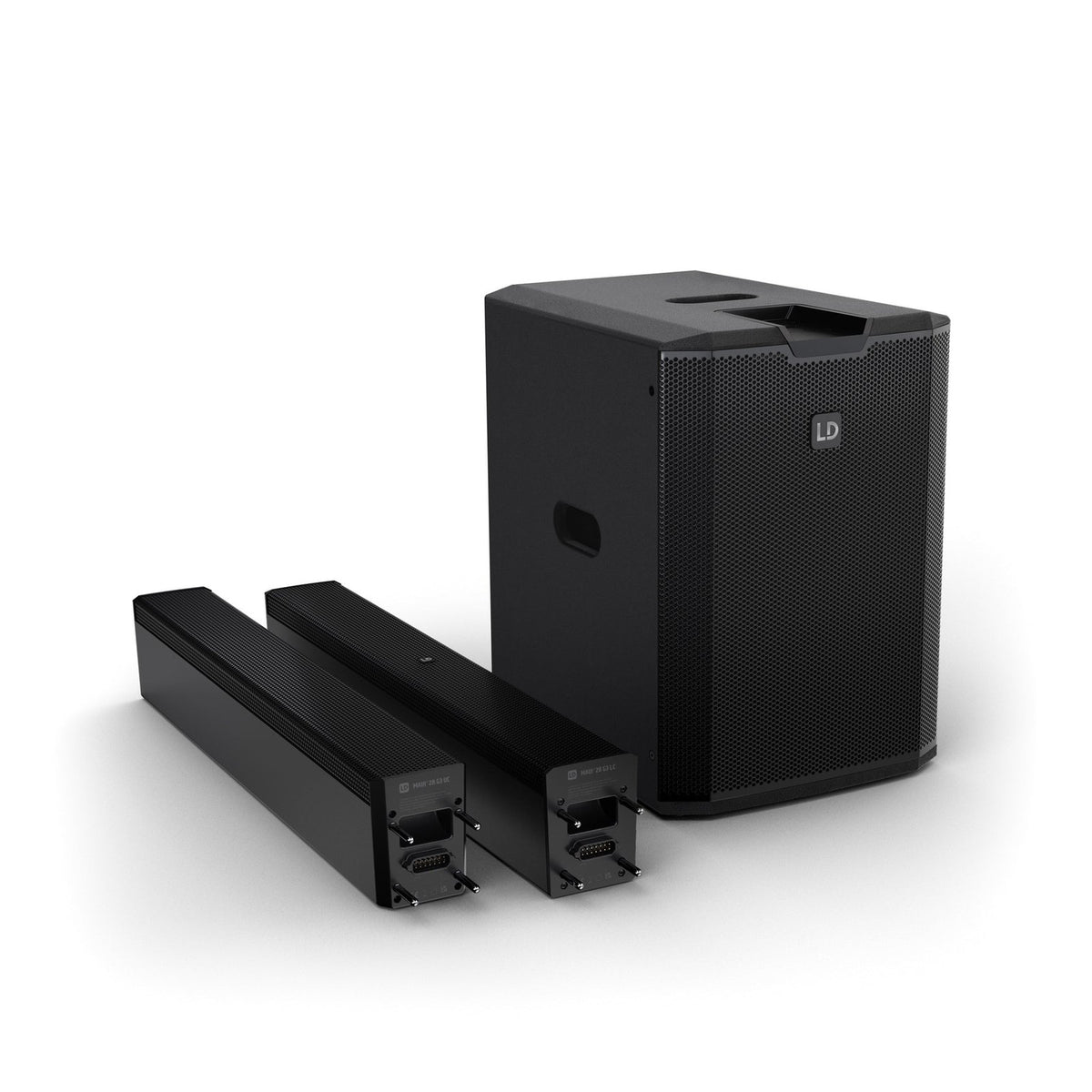

The BEM-optimised HF waveguide carries high frequencies to the very rear of the audience area, and midrange phase plugs ensure even, consistent sound distribution across the full dispersion field. LD Systems’ Dynx DSP Gen.2 provides distortion-free sound reproduction even at maximum volume, with automatic setup detection for fast and intuitive operation. Bluetooth 5.0 with AAC and SBC decoding adds wireless streaming versatility, and connectivity includes two combo XLR/TRS inputs, XLR line outputs, a Sub Out and a RJ45 SysLink port for system linking. The 12" subwoofer is housed in a 15mm birch plywood cabinet with a rugged polyurea coating for road-ready durability, while the column elements feature a lightweight powder-coated aluminium housing. A second MAUI 28 G3 subwoofer can be added for up to 6dB of additional bass, or configured in cardioid subwoofer mode at the press of a button.

Discover The LD Systems MAUI 28 G3 In More Detail...

Cardioid Column Design & BEM-Optimised Waveguide

The MAUI 28 G3’s column elements are engineered as cardioid speakers, concentrating sound projection towards the audience while attenuating rear-facing output by up to 18dB — resulting in a cleaner stage environment with reduced feedback risk and improved overall system intelligibility. The BEM-optimised waveguide ahead of the tweeters ensures high frequencies are projected consistently across the full audience area including the very rear rows, and midrange phase plugs work alongside the crossover filter to minimise harmonic distortion and interference for a transparent, vibrant and detailed sound across the entire 120° x 30° dispersion field.

12" Bass Reflex Subwoofer & Dynx DSP Gen.2

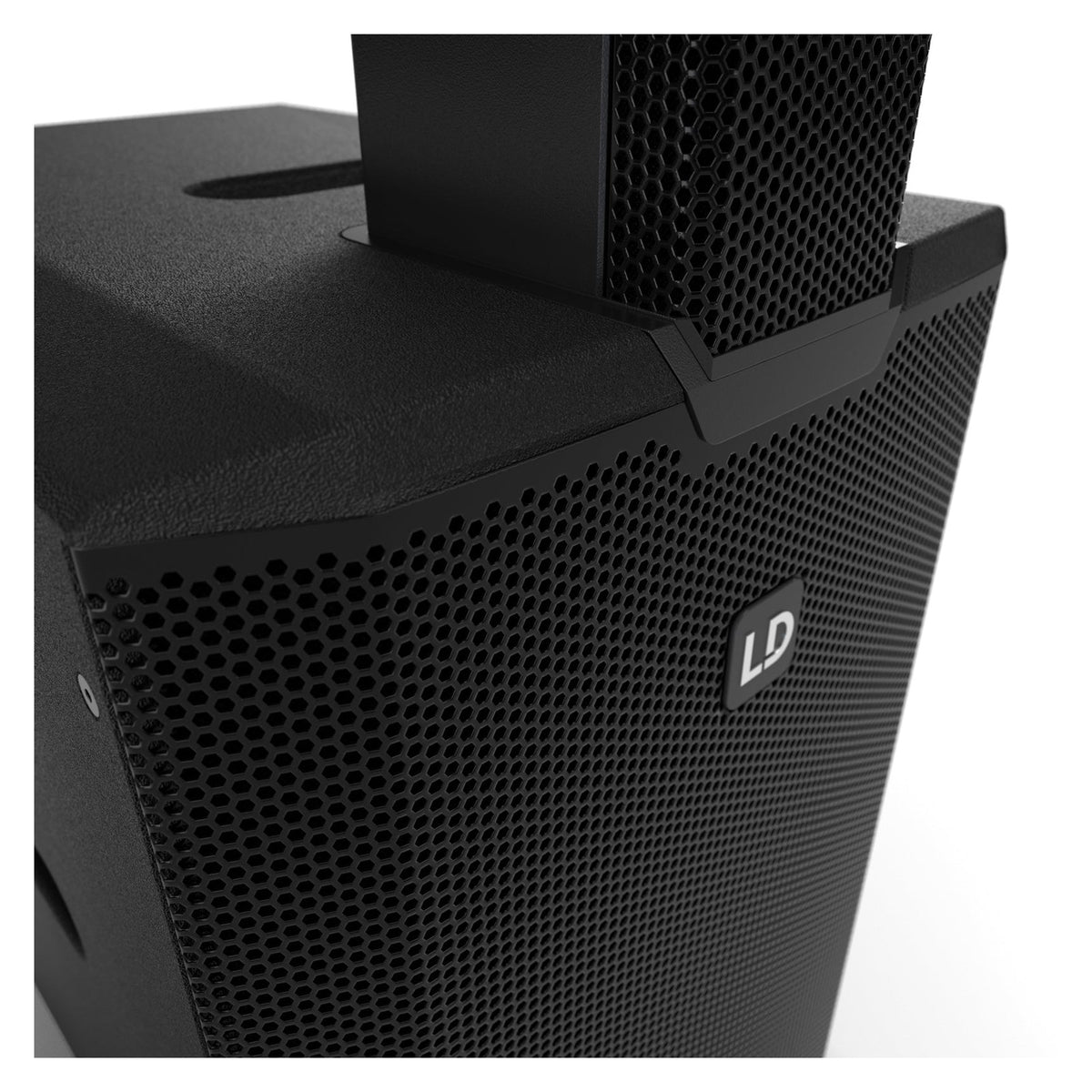

The optimised bass reflex design of the 12" subwoofer delivers clear, tight and punchy low end down to 37Hz with reduced air flow noise, housed in a rugged birch plywood cabinet with polyurea coating that withstands the demands of regular gigging and touring. LD Systems’ Dynx DSP Gen.2 ensures precise, distortion-free sound reproduction at all output levels, with automatic setup detection for immediate, intuitive operation. For applications requiring greater bass output, a second MAUI 28 G3 subwoofer can be paired for up to 6dB of additional low end, or configured in cardioid subwoofer mode at the push of a button.

Bluetooth 5.0, Fast Assembly & Versatile Connectivity

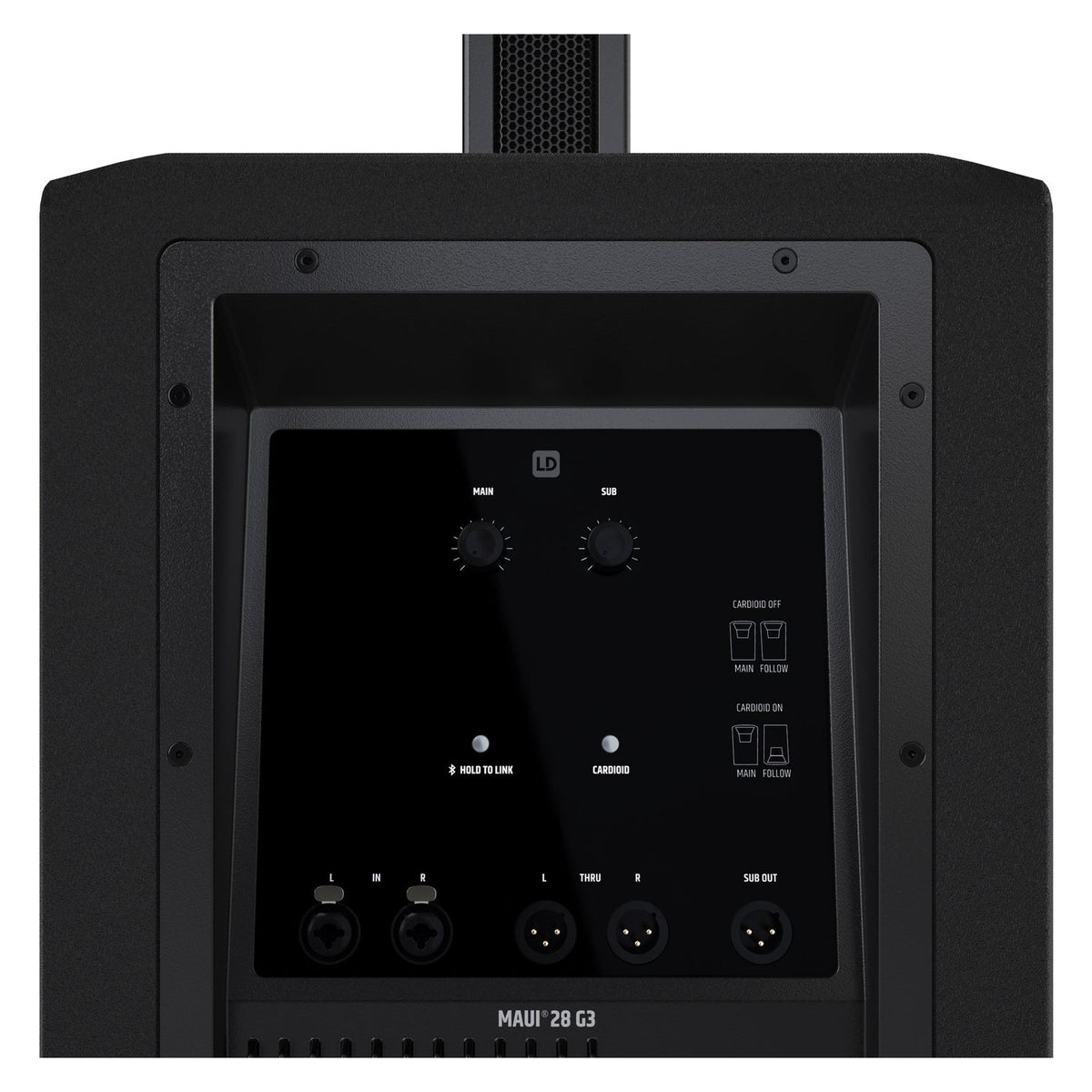

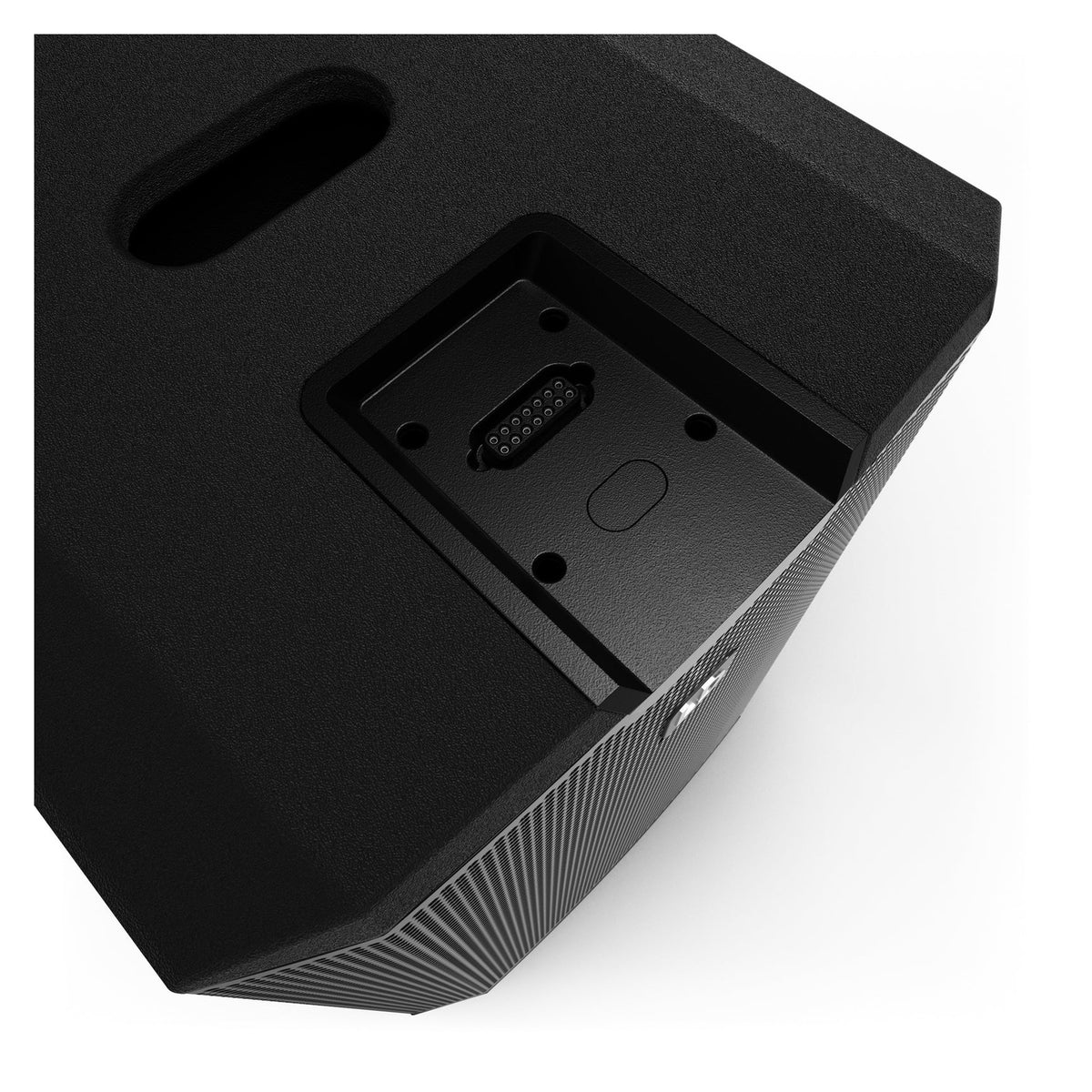

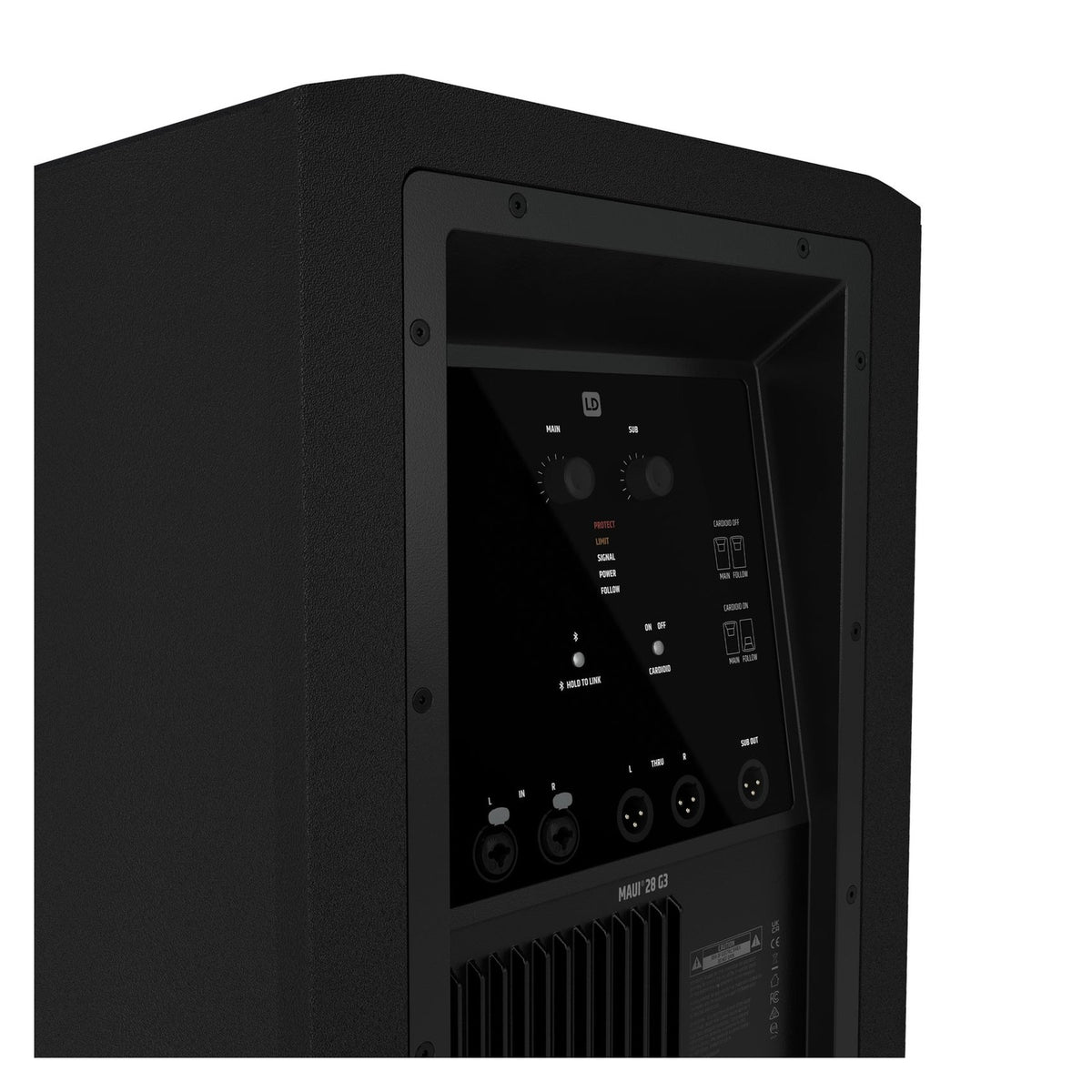

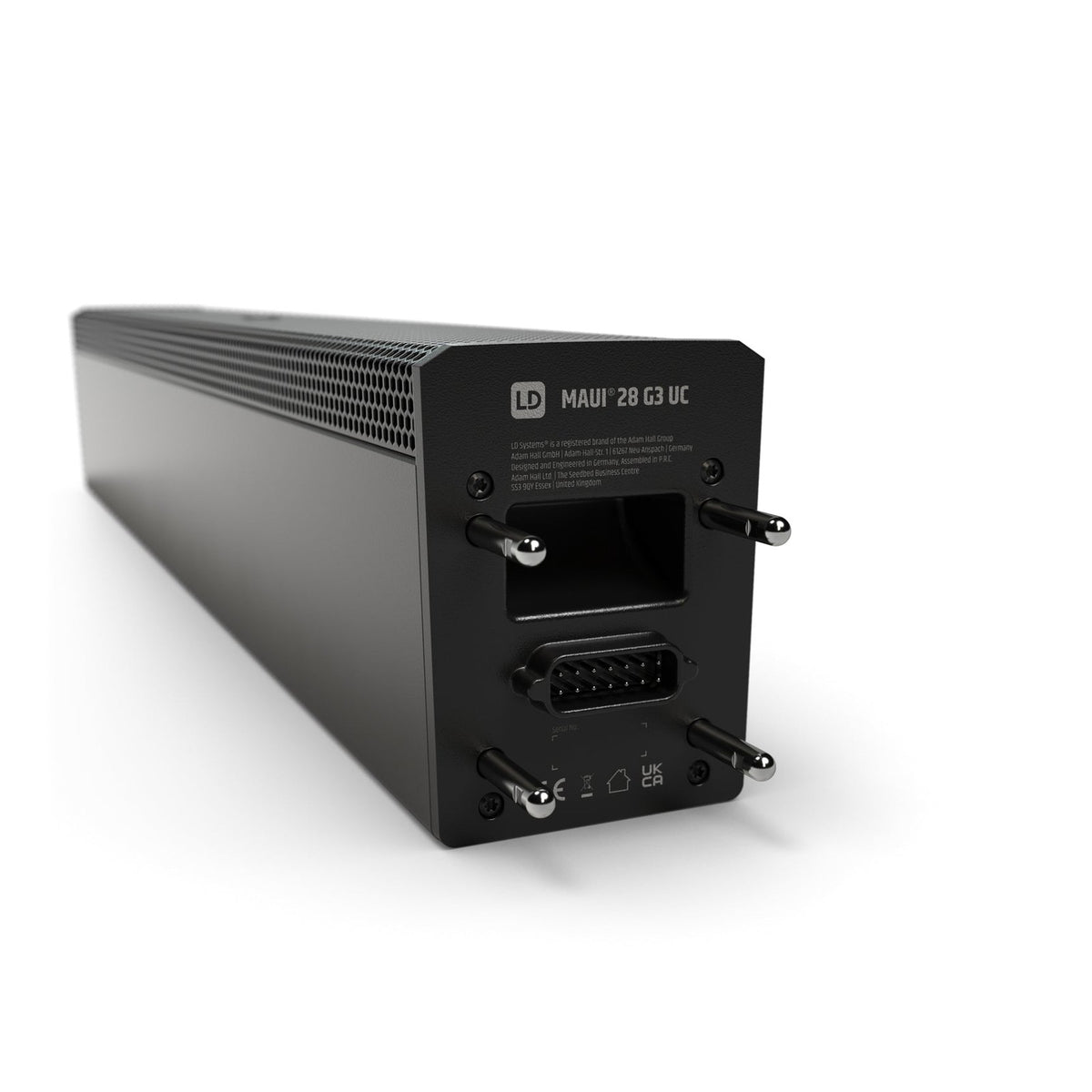

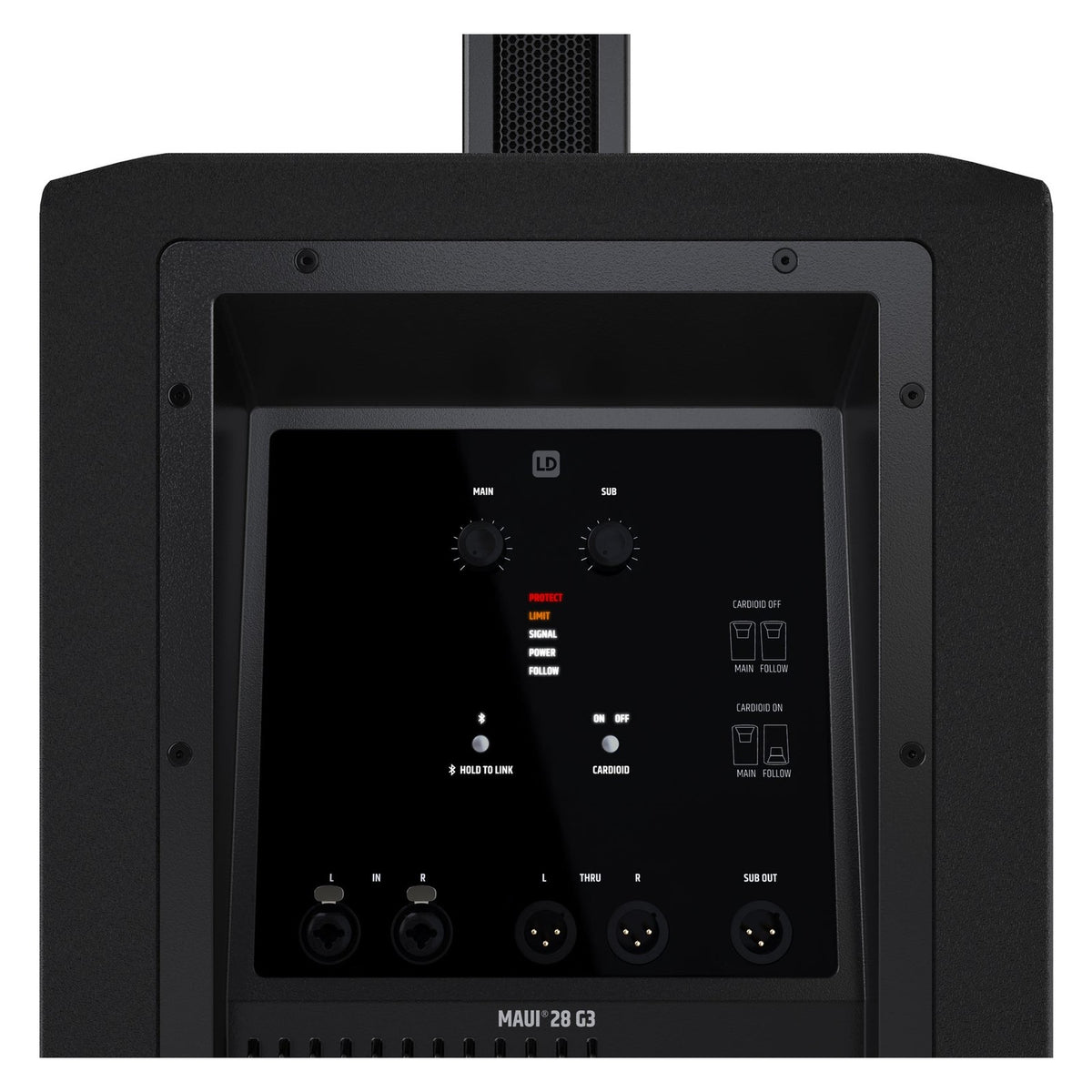

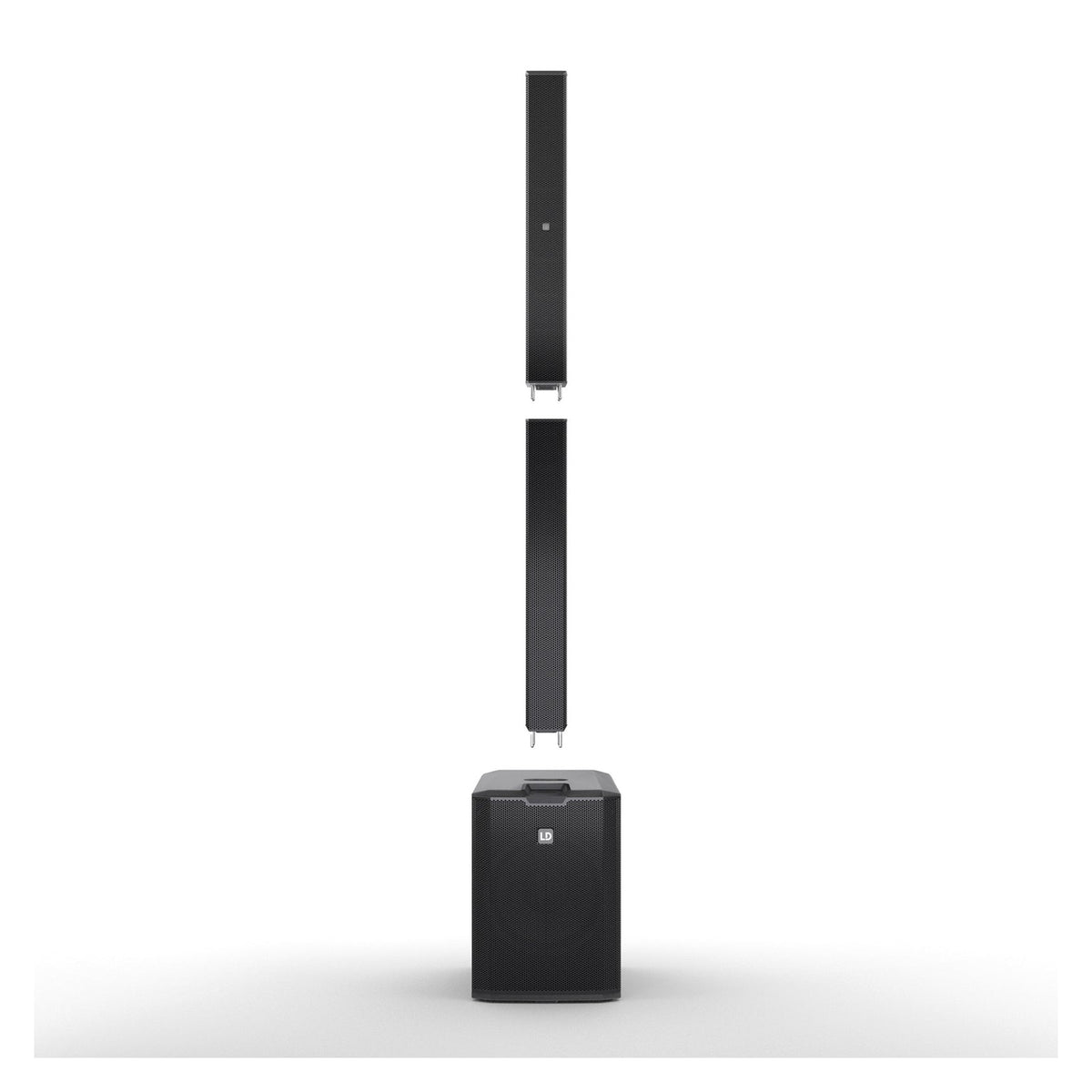

Bluetooth 5.0 with AAC and SBC audio decoding enables wireless streaming from smartphones, tablets and laptops for added versatility at any event. Hidden multi-pin connections between the column elements and subwoofer provide enhanced stability during assembly, and the entire system sets up quickly without the need for stands or cables — making the MAUI 28 G3 one of the fastest-deploying professional column PA systems available. Two combo XLR/TRS inputs, XLR thru outputs, a sub output and an RJ45 SysLink port provide comprehensive connectivity for any professional audio setup.

KEY FEATURES: LD Systems MAUI 28 G3 Column PA System

• 1,030W RMS / 2,060W Peak: High-output Class-D amplification delivering 127dB maximum SPL for events of all sizes.
• 12" Bass Reflex Subwoofer: Clear, tight and punchy low end down to 37Hz in a polyurea-coated birch plywood cabinet.

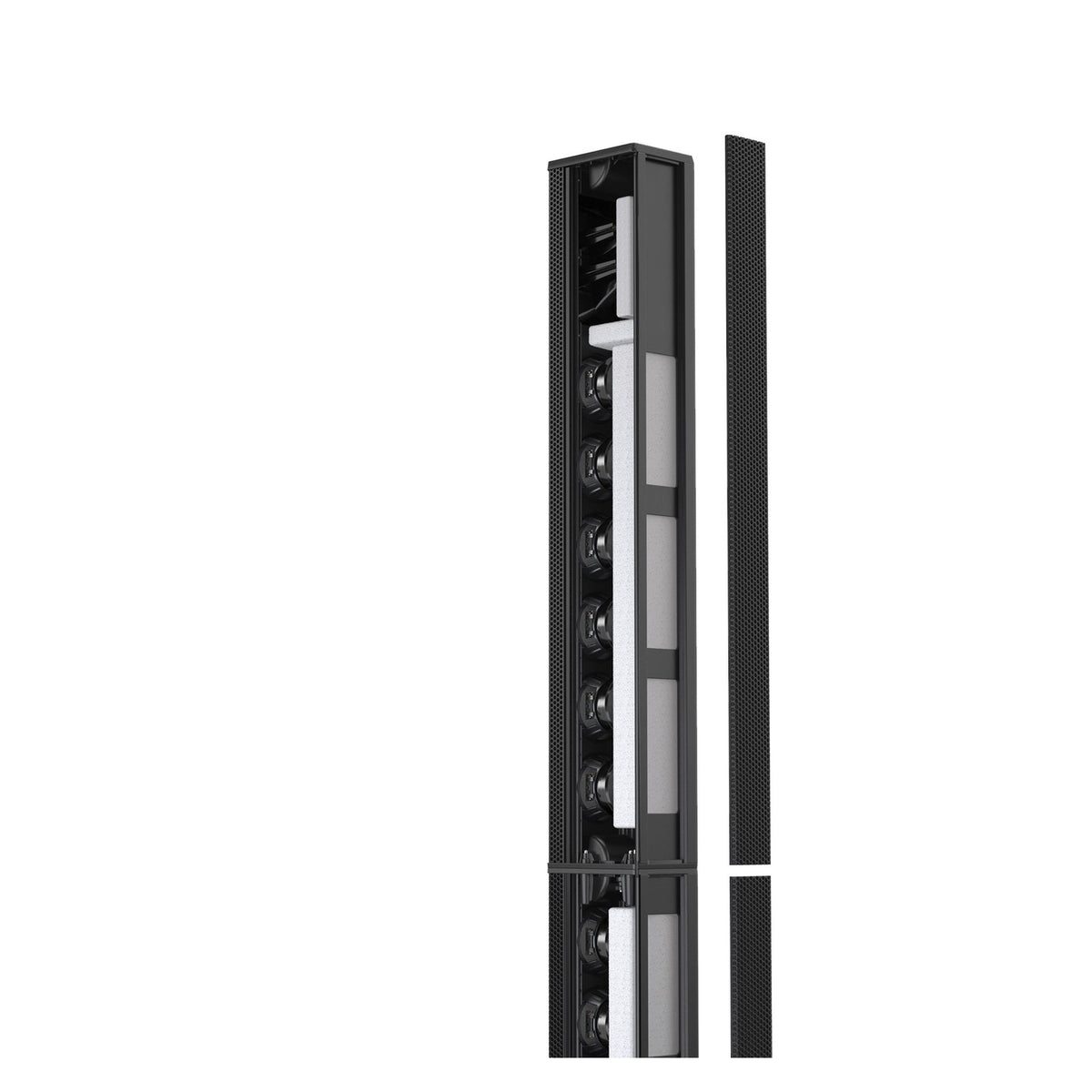

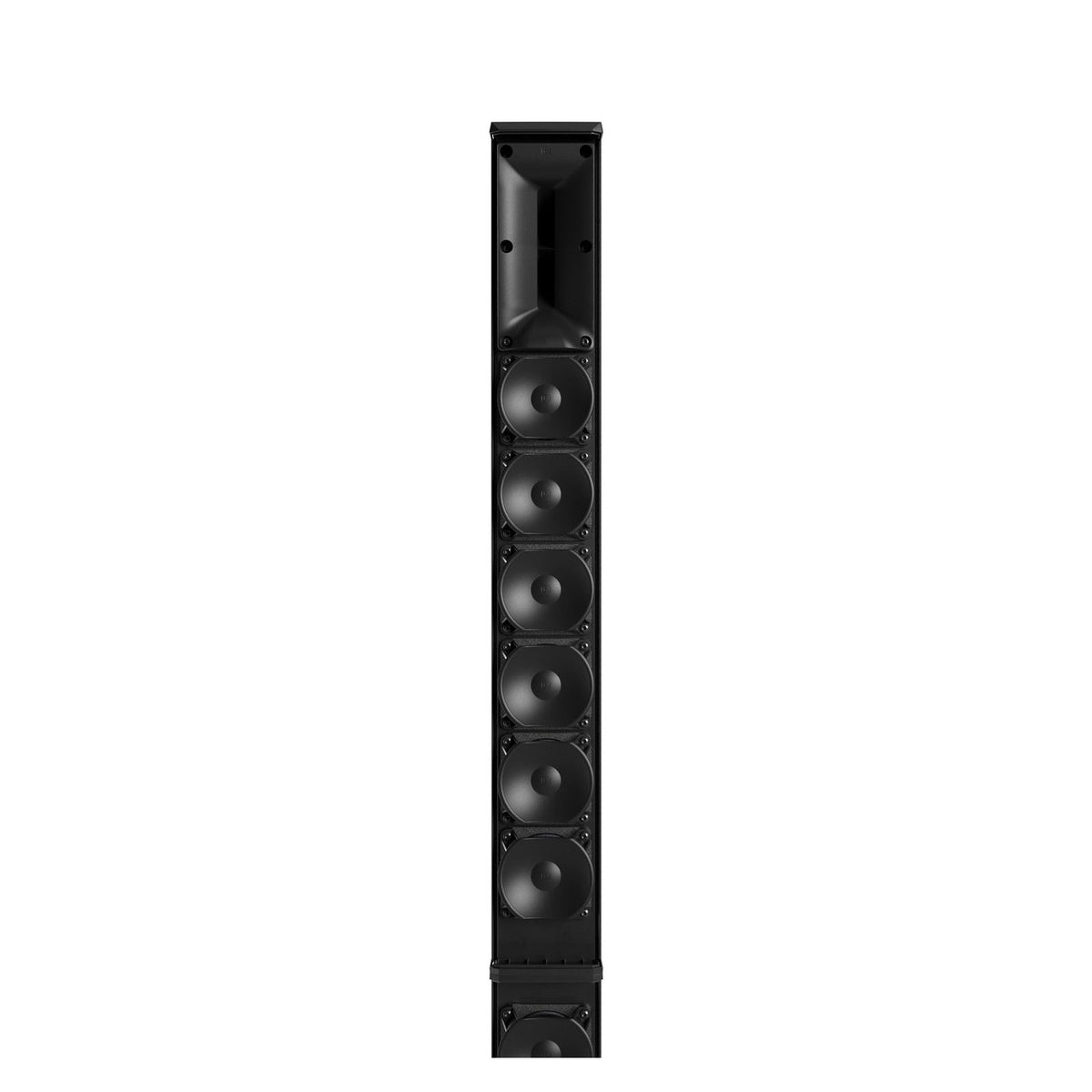

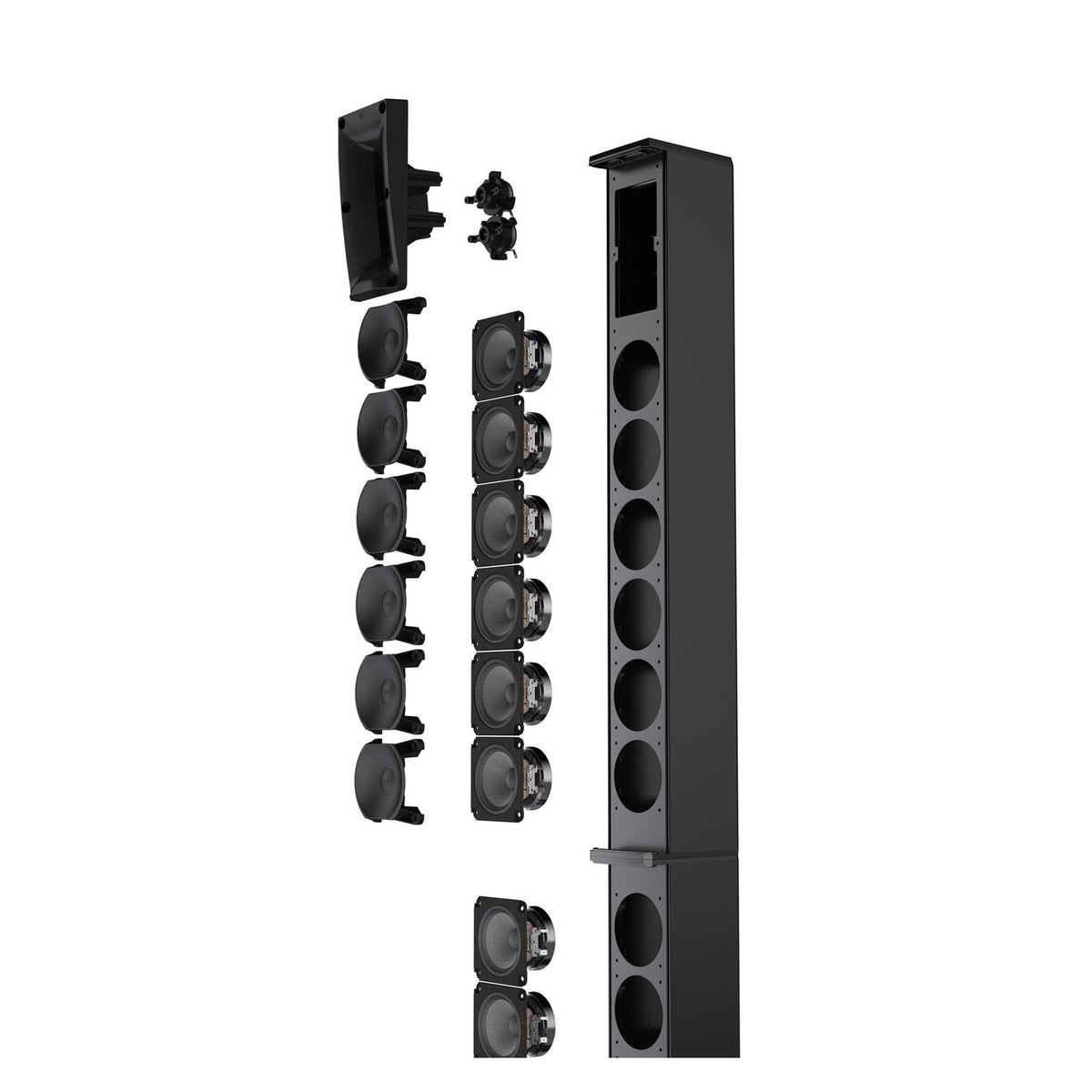

• 12 x 3.5" Midrange Drivers: Balanced, precise midrange reproduction with phase plug design for homogeneous dispersion.
• 2 x 1" Neodymium Tweeters: Detailed, silky high-frequency reproduction with BEM-optimised waveguide for extended coverage.
• Cardioid Column Design: 120° x 30° dispersion with up to 18dB rear attenuation for clean stage sound and reduced feedback.
• Dynx DSP Gen.2: Distortion-free sound at all output levels with automatic setup detection.
• Bluetooth 5.0: Wireless audio streaming with AAC and SBC decoding at 24-bit/48kHz.
• Expandable Bass: Add a second MAUI 28 G3 subwoofer for up to 6dB additional low end or cardioid subwoofer configuration.
• Fast Assembly: Hidden multi-pin connections and tool-free setup with no stands or cables required.
• Rugged Construction: Polyurea-coated birch plywood subwoofer and powder-coated aluminium column housing.

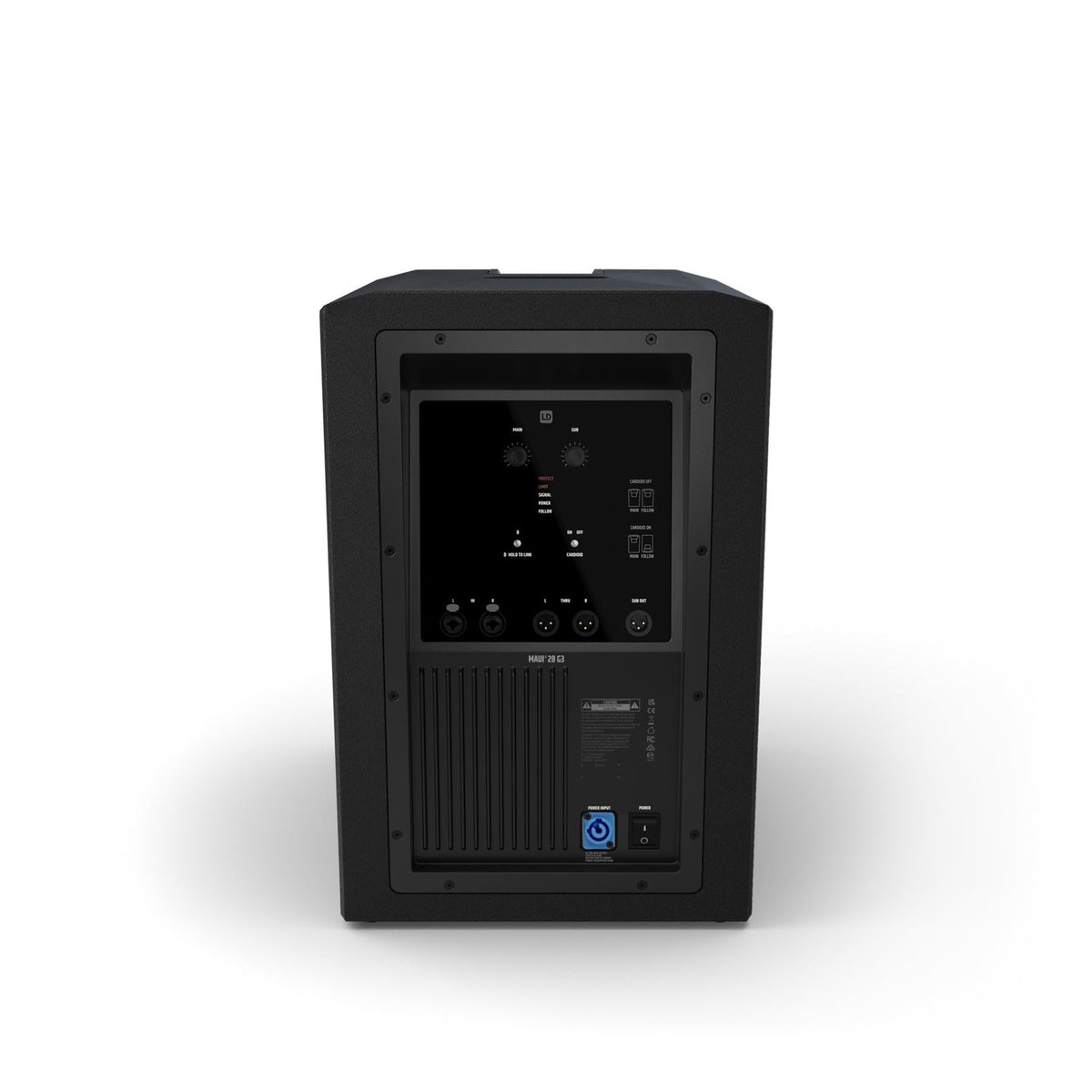

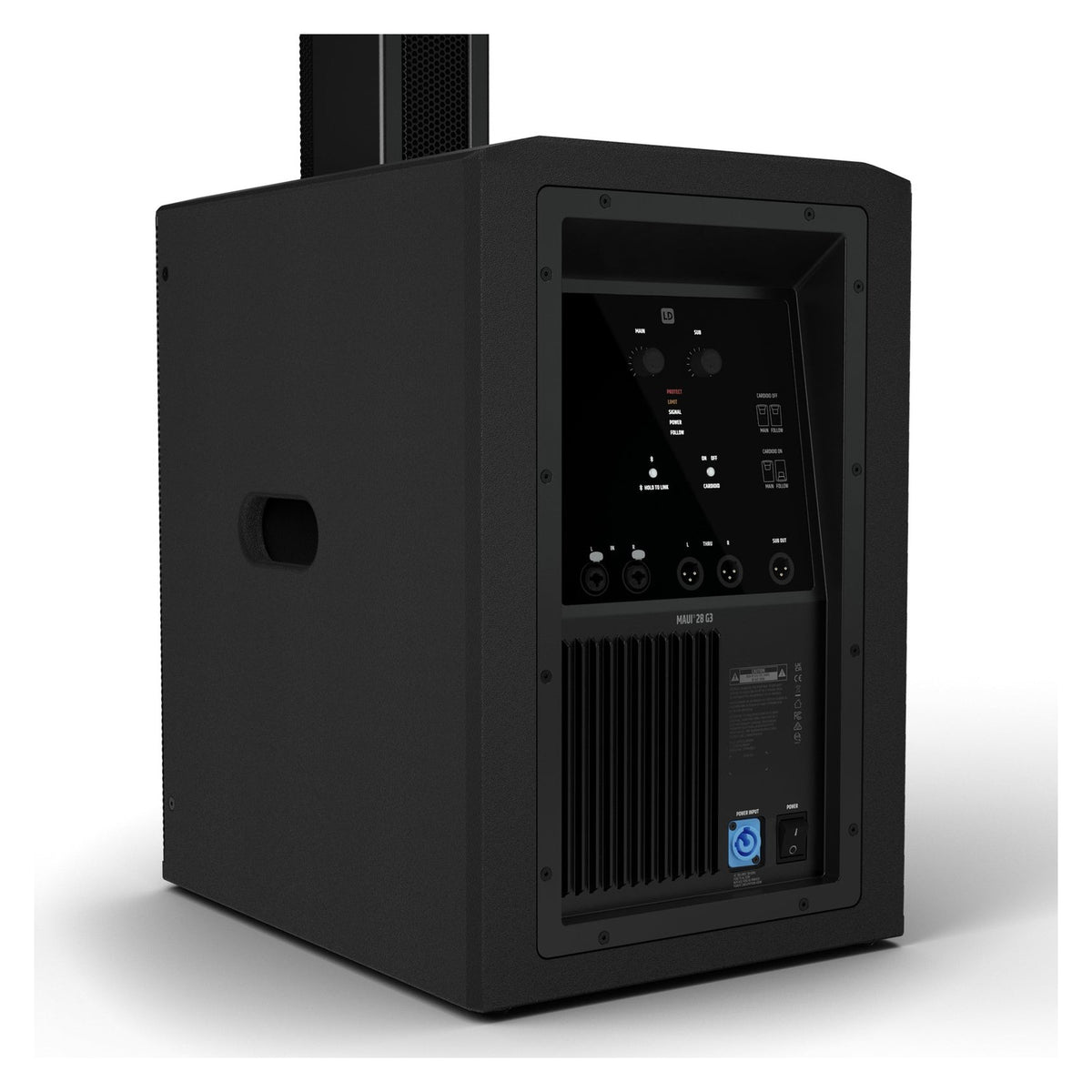

• Comprehensive Connectivity: 2 x combo XLR/TRS inputs, XLR thru & sub outputs, RJ45 SysLink port, PowerCon mains connector.
