LD Systems MAUI 5 Column PA System With 4-Channel Mixer & Bluetooth – Black

Ultra-Compact All-In-One Column PA & Monitor System With 4-Channel Mixer, Bluetooth & LECC DSP In A 11.3kg Package – LD Systems MAUI 5 Black.

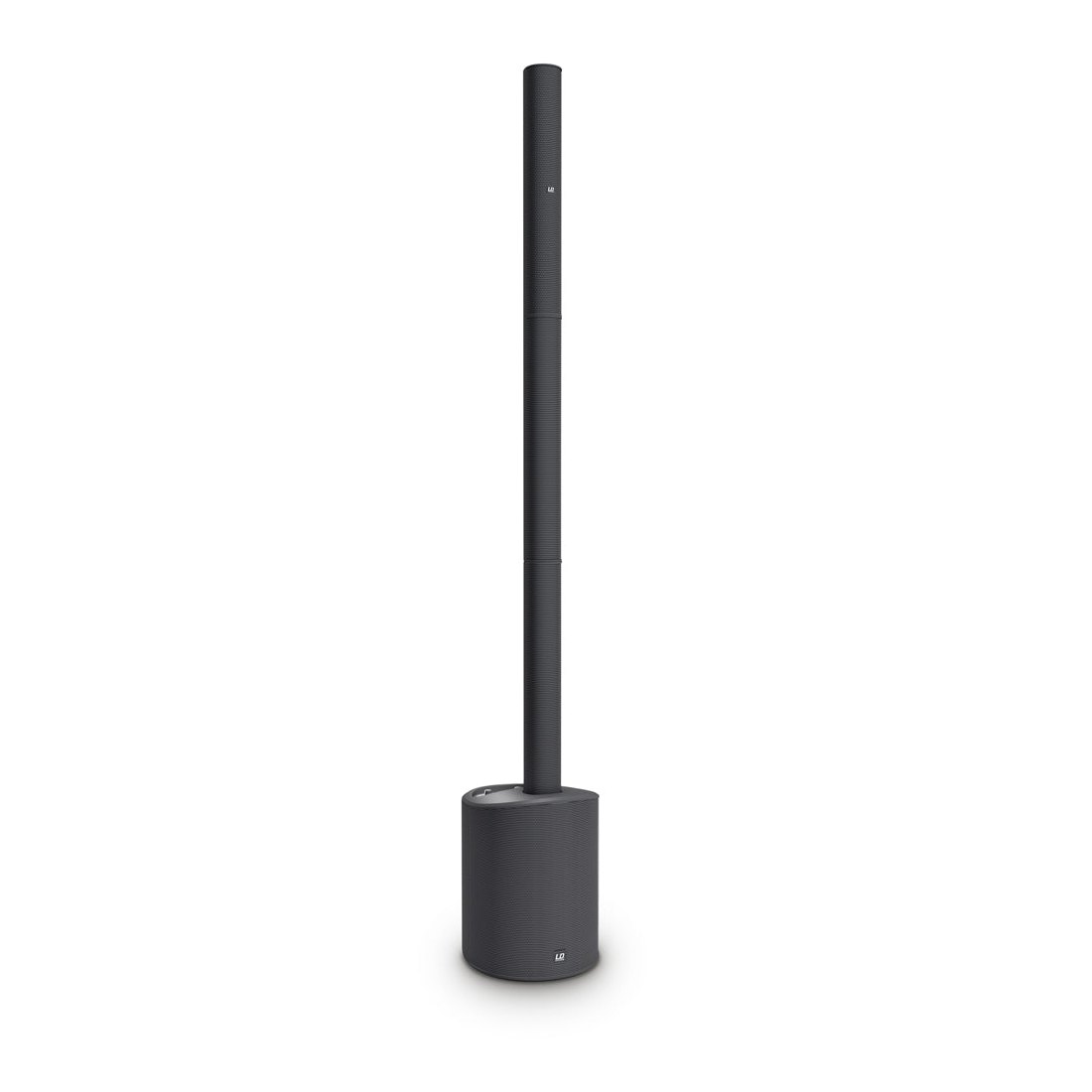

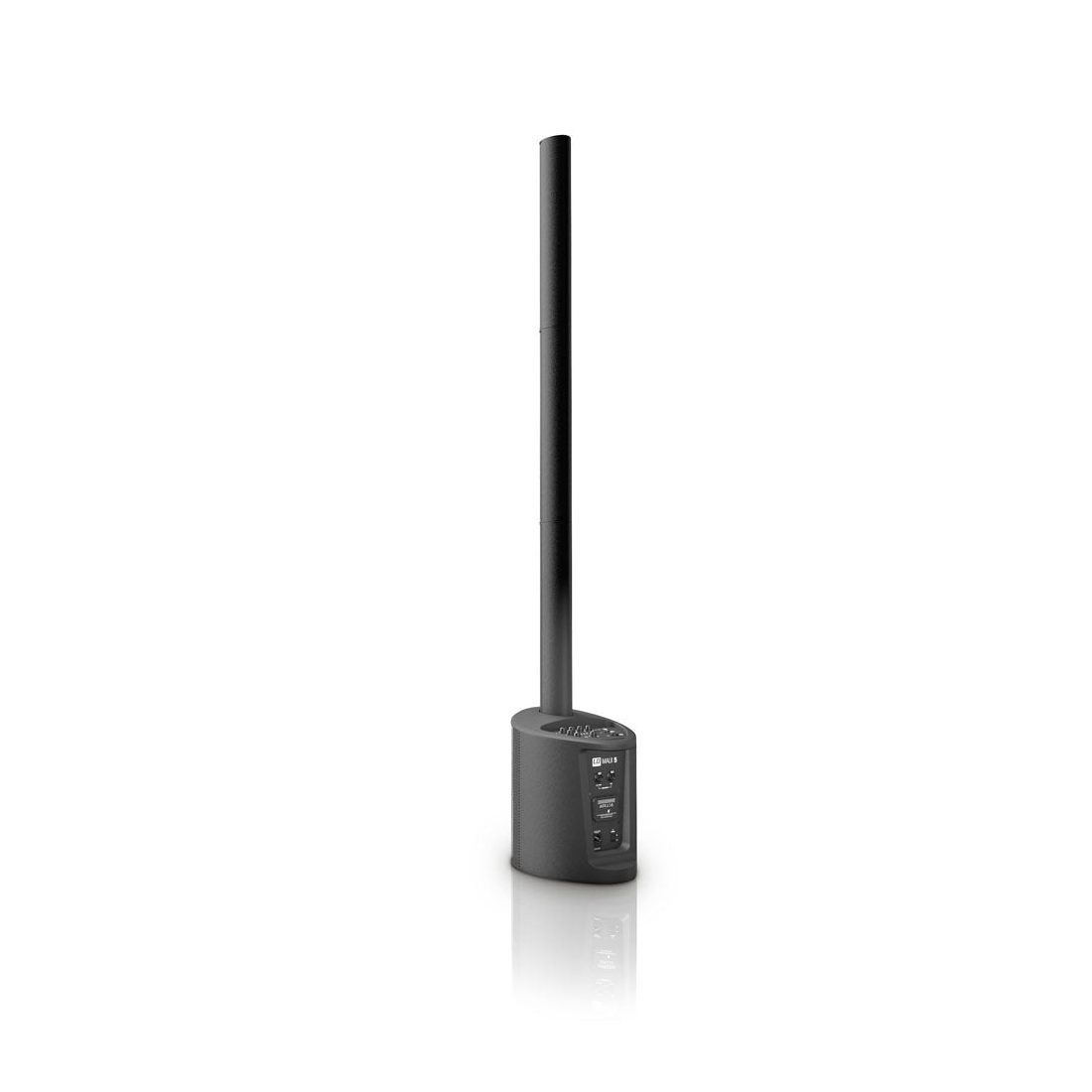

The LD Systems MAUI 5 is an ultra-compact column PA and monitor system in one, delivering 200W RMS (800W peak) and 120dB maximum SPL in a lightweight 11.3kg, four-component package that assembles in seconds via specially developed multi-pin connectors — no stands, cables or tools required. The smallest member of the MAUI family, the MAUI 5 is designed for musicians, presenters and mobile performers who need professional-grade column PA performance in the most compact and portable format possible, with the convenience of a built-in 4-channel mixer eliminating the need for any external mixing equipment.

The 8" bass reflex ABS subwoofer cabinet houses the Class-D amplifier, LECC digital signal processing and the 4-channel mixer, with the column element housing four 3" neodymium midrange drivers for wide, even sound distribution across a 120° x 20° dispersion field from 50Hz to 20kHz. Built-in Bluetooth streaming, two stereo line inputs via XLR and 6.3mm jack, a mic input, a 3.5mm MP3 input and a Hi-Z instrument input provide comprehensive connectivity for a wide range of sources including microphones, instruments, keyboards, guitars and playback devices. Separate level controls for each input channel, dedicated subwoofer and main volume controls and a high-shelf filter for treble adjustment ensure perfectly tuned performances in any environment. Also available in white (LDMAUI5W).

Watch The LD Systems MAUI 5 In Action...

Ultra-Compact PA & Monitor In One

The MAUI 5 is designed to be the ultimate all-in-one solution for performers and presenters who need professional column PA performance without the size, weight or complexity of a traditional speaker and mixer setup. Weighing just 11.3kg across four components that connect via multi-pin connectors and assemble in seconds, the MAUI 5 is compact enough to fit on a car seat and easy enough for a single operator to carry and deploy without assistance. Its wide 120° x 20° dispersion and high feedback resistance make it equally effective as a front-of-house PA and as a floor monitor — a genuine dual-purpose system in one compact unit.

4-Channel Mixer, LECC DSP & Bluetooth

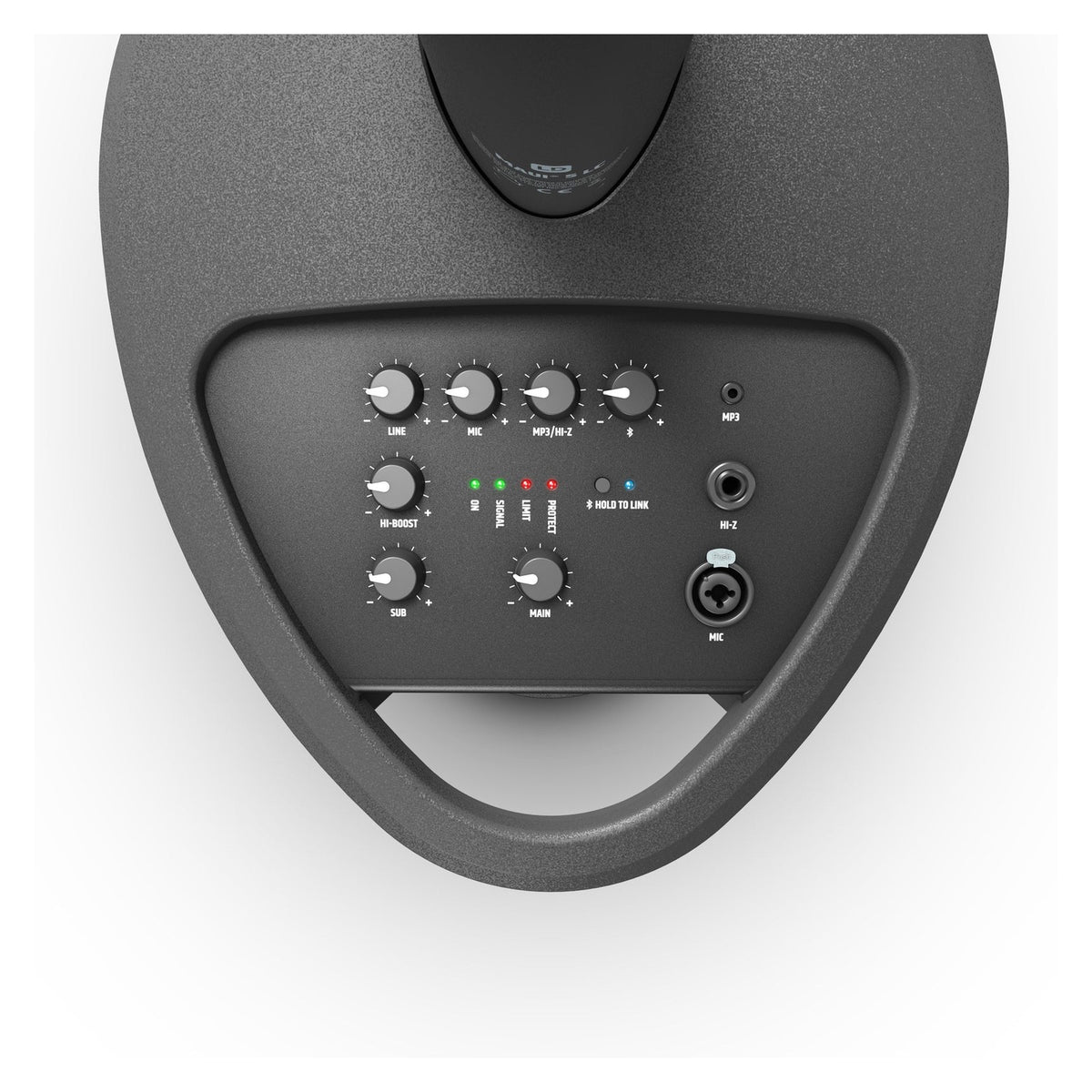

The integrated 4-channel mixer eliminates the need for external mixing equipment, providing dedicated level controls for the mic input, line inputs, MP3/Hi-Z input and Bluetooth alongside subwoofer and main volume controls and a high-shelf filter for treble adjustment. LD Systems’ LECC digital signal processing ensures controlled, dynamic and distortion-free operation at all output levels, and built-in Bluetooth streaming with a dedicated Bluetooth level control adds wireless source connectivity for seamless playback from smartphones and tablets alongside wired inputs.

Comprehensive Input Connectivity

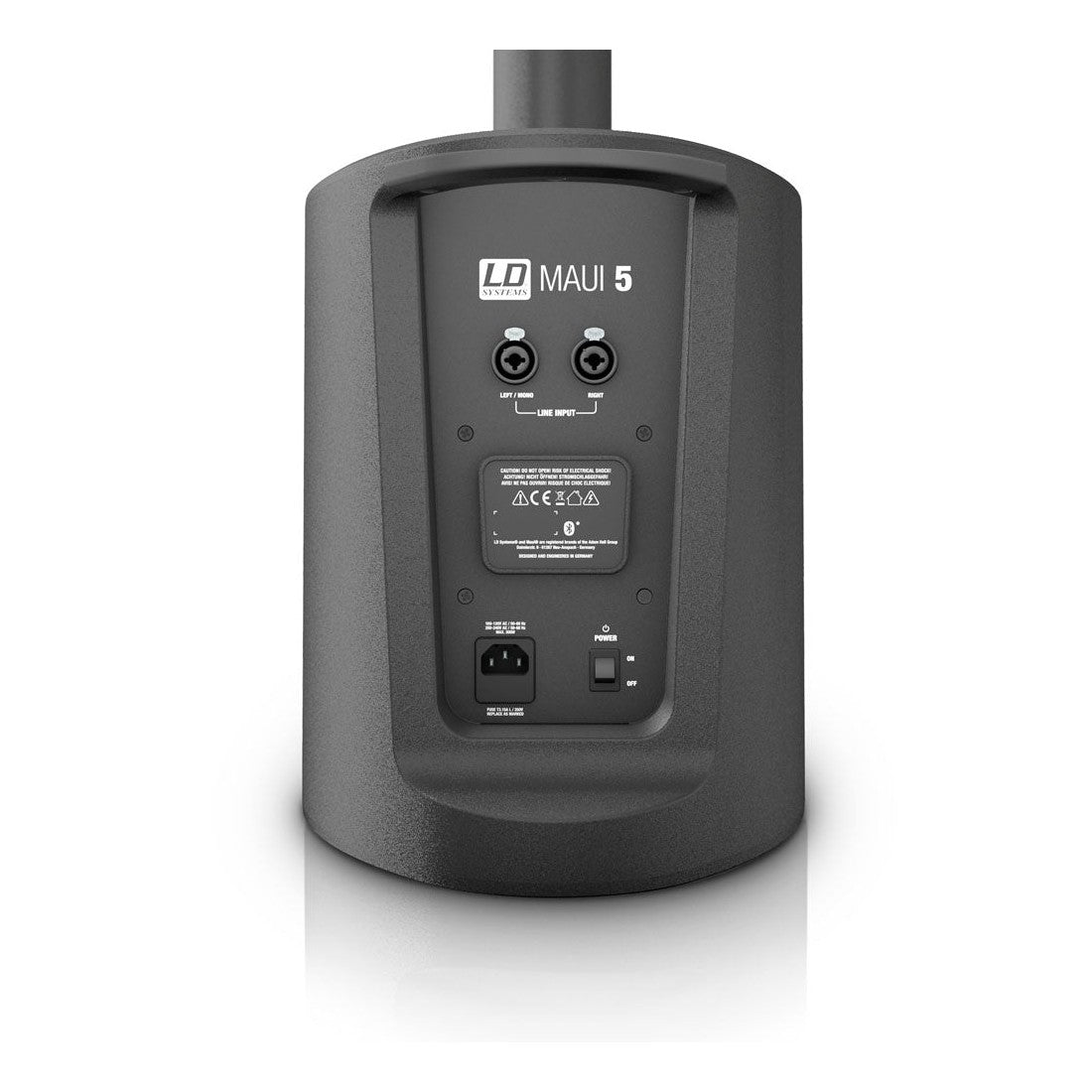

The MAUI 5 accommodates a wide range of audio sources through its versatile input section. Two stereo line inputs accept connections via XLR or 6.3mm jack, a combined XLR/6.3mm mic input handles microphone connections, a 3.5mm jack MP3 input accommodates media players and smartphones, and a Hi-Z 6.3mm jack input provides a direct instrument connection for guitars, basses and keyboards — all feeding into the integrated 4-channel mixer for a complete and self-contained performance solution.

KEY FEATURES: LD Systems MAUI 5 Column PA System

• 200W RMS / 800W Peak Class-D: 120dB maximum SPL from an ultra-compact 11.3kg system.

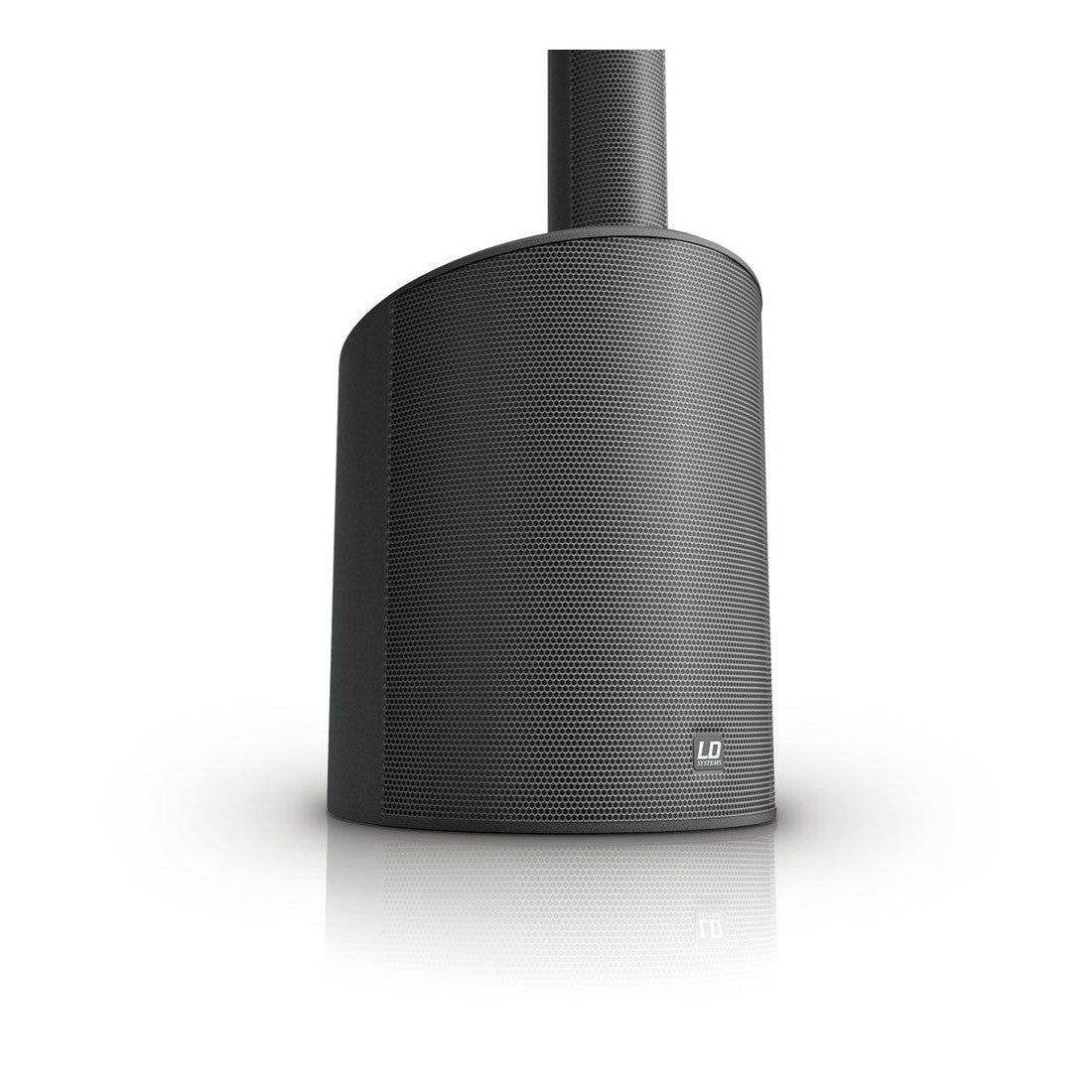

• 8" Bass Reflex Subwoofer: Clear, punchy low end from 50Hz in an ABS plastic cabinet housing the amplifier, DSP and mixer.

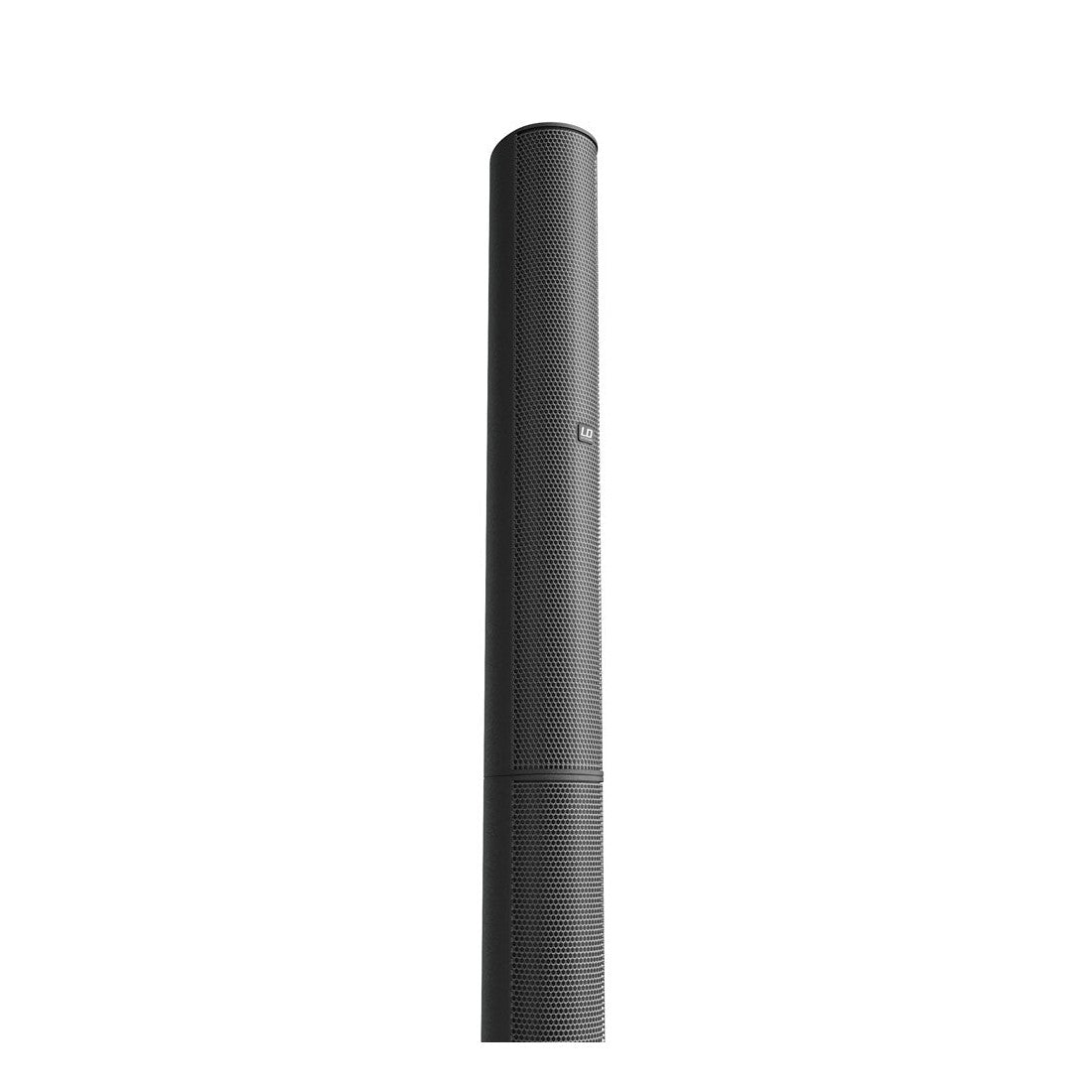

• 4 x 3" Neodymium Midrange Drivers: Wide, even sound distribution across a 120° x 20° dispersion field.

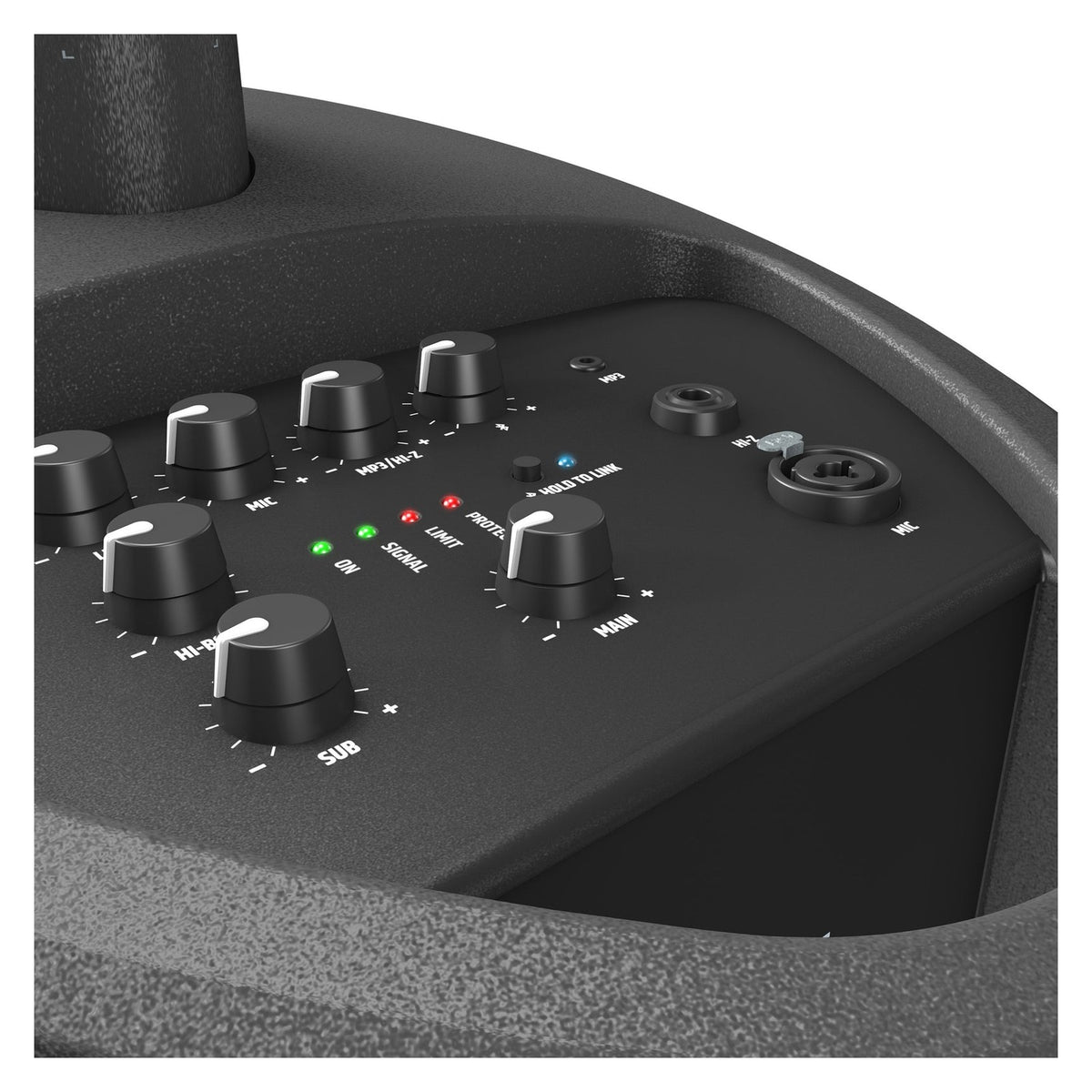

• Integrated 4-Channel Mixer: Dedicated level controls for mic, line, MP3/Hi-Z and Bluetooth inputs with sub and main volume controls.
• LECC DSP: LD Systems’ digital signal processing for controlled, dynamic and distortion-free operation at all levels.
• High-Shelf Filter: Treble adjustment to suit different room acoustics and performance environments.
• Bluetooth Streaming: Wireless audio playback from smartphones and tablets with dedicated level control.
• Comprehensive Inputs: XLR & 6.3mm mic input, 2 x stereo line inputs (XLR/6.3mm), 3.5mm MP3 input, Hi-Z 6.3mm instrument input.

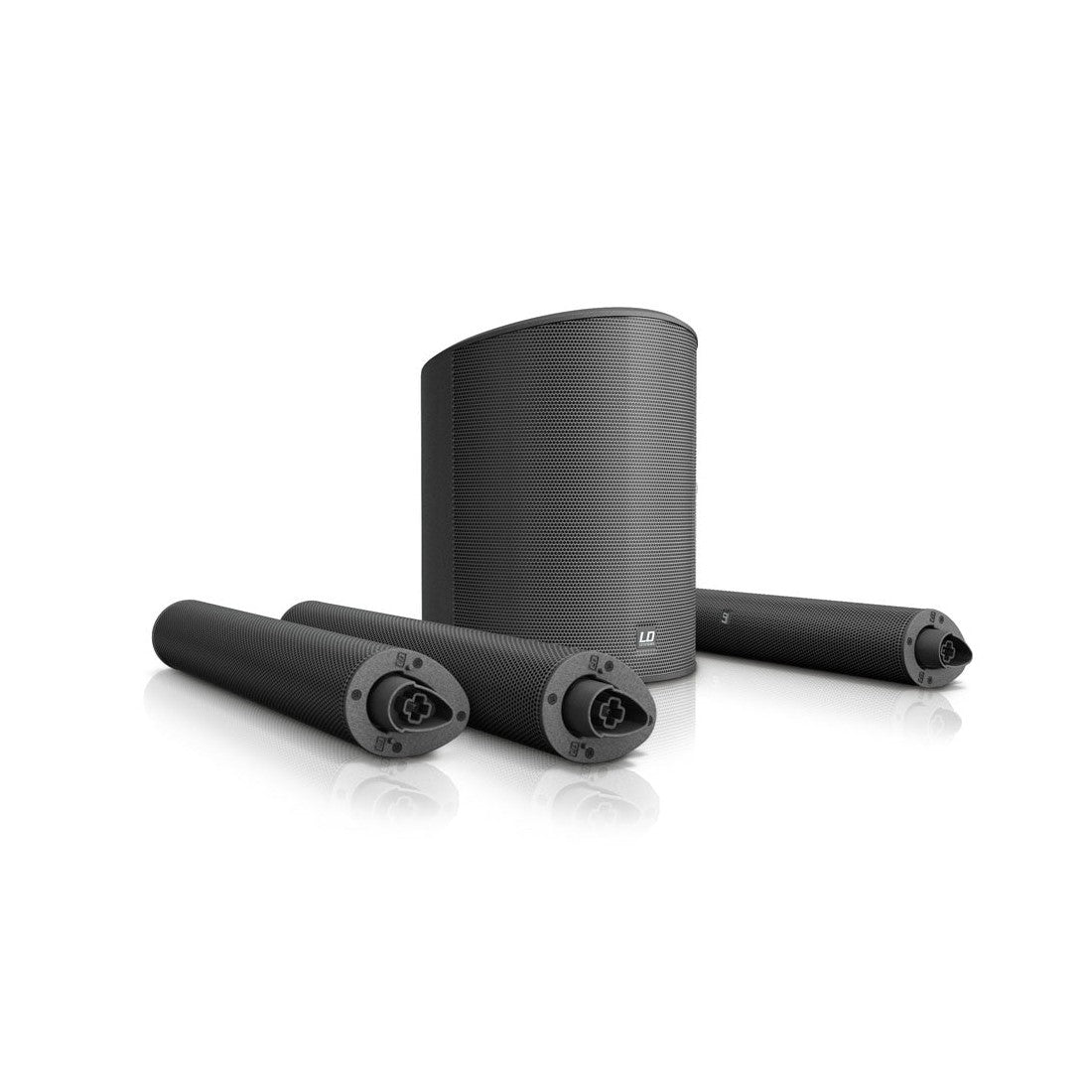

• Four-Component Assembly: Multi-pin connectors enable tool-free setup in seconds — no stands or cables required.
• Ultra-Portable: 11.3kg total weight, compact enough to fit on a car seat for easy single-operator transport.
• PA & Monitor In One: Wide dispersion and high feedback resistance for dual front-of-house and monitor use.
• Also Available In White: LDMAUI5W for events where a white finish is preferred.
