LD Systems U308 HHD Wireless Handheld Microphone System – 823–832MHz & 863–865MHz

Professional UHF Diversity Wireless Handheld Microphone System With Dynamic Cardioid Mic, 100 Metre Range & ASC Infrared Sync – LD Systems U308 HHD.

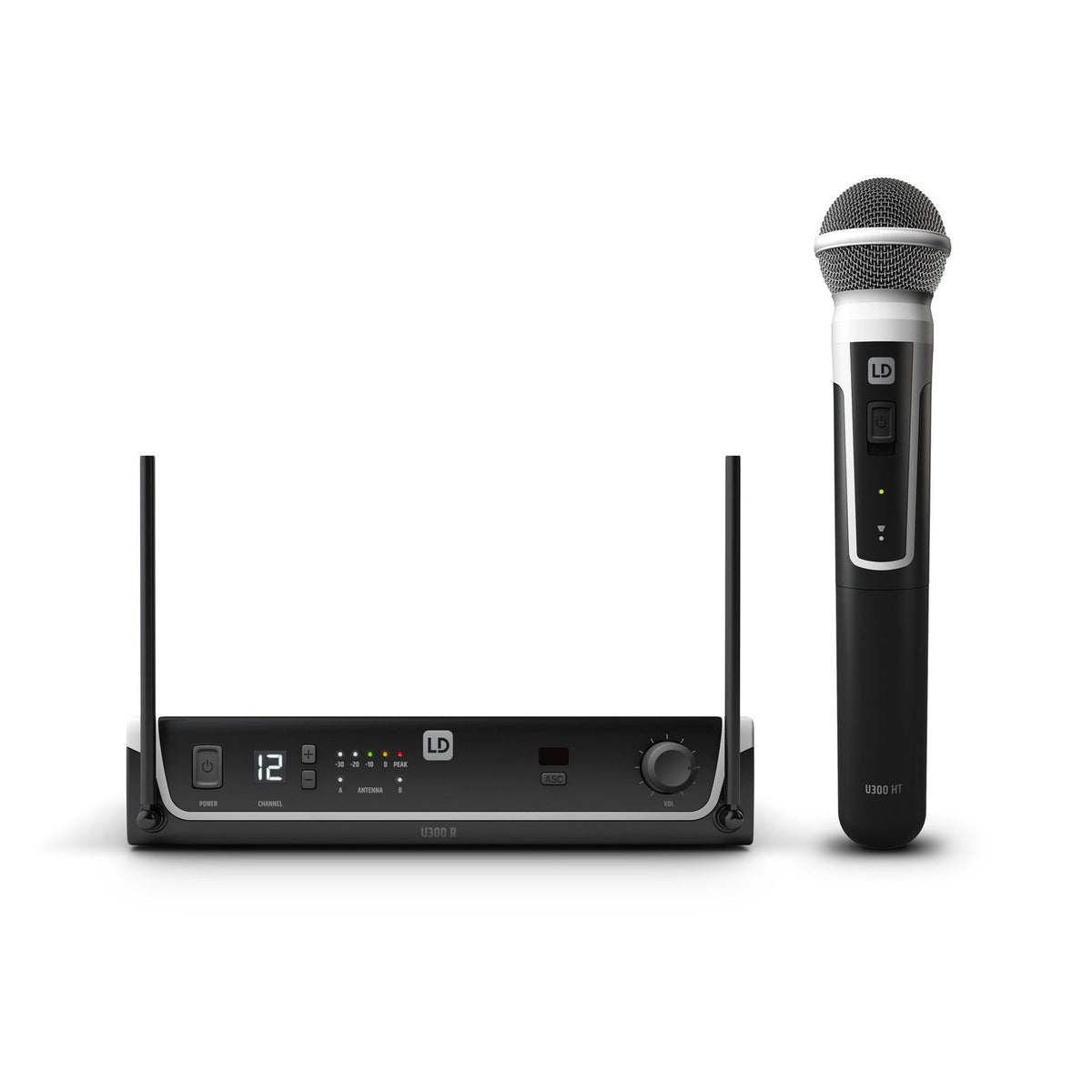

The LD Systems U308 HHD is a professional UHF diversity wireless handheld microphone system from LD Systems’ U300 series, developed in Germany and delivering excellent audio performance with a reliable transmission range of up to 100 metres across 12 selectable channels in the 823–832MHz and 863–865MHz frequency bands. Up to six U300 systems can be operated simultaneously in the same frequency band without interference, and convenient one-touch ASC infrared synchronisation between the transmitter and receiver makes setup fast and problem-free. Pilot tone squelch ensures disruption-free operation throughout the performance, and the FM diversity receiver provides a strong, stable wireless signal with a 104dB signal-to-noise ratio.

The included U308 MD dynamic cardioid handheld microphone transmitter delivers a frequency response of 55Hz–16kHz, 10mW RF output power and over 10 hours of operation from two AA batteries, with a power LED and standby-capable power switch for convenient stage use. The compact metal-housed receiver features a bright LCD channel display, an LED audio signal chain, a balanced XLR output and a switchable unbalanced 6.3mm jack output — switchable between line and instrument level for direct connection to guitar and bass amplifiers as well as standard mixing desk inputs. The U308 HHD is also compatible with U500 series replacement mic heads, providing further tonal flexibility, and an optional rack mount kit is available separately for 19" installation.

Discover The LD Systems U300 Series In More Detail...

UHF Diversity With ASC Infrared Sync & Pilot Tone Squelch

The U308 HHD’s UHF diversity receiver maintains stable and consistent reception by using two fixed antennas to select the strongest available signal, significantly reducing the risk of dropout and interference in demanding RF environments. One-touch ASC infrared synchronisation pairs the handheld transmitter and receiver instantly without manual frequency matching, and the pilot tone squelch system ensures the output remains silent when no transmitter signal is present — eliminating unwanted noise between songs and during setup. Up to six U300 series systems can operate simultaneously in the same frequency band for multi-system live event deployment.

Dynamic Cardioid Handheld Microphone

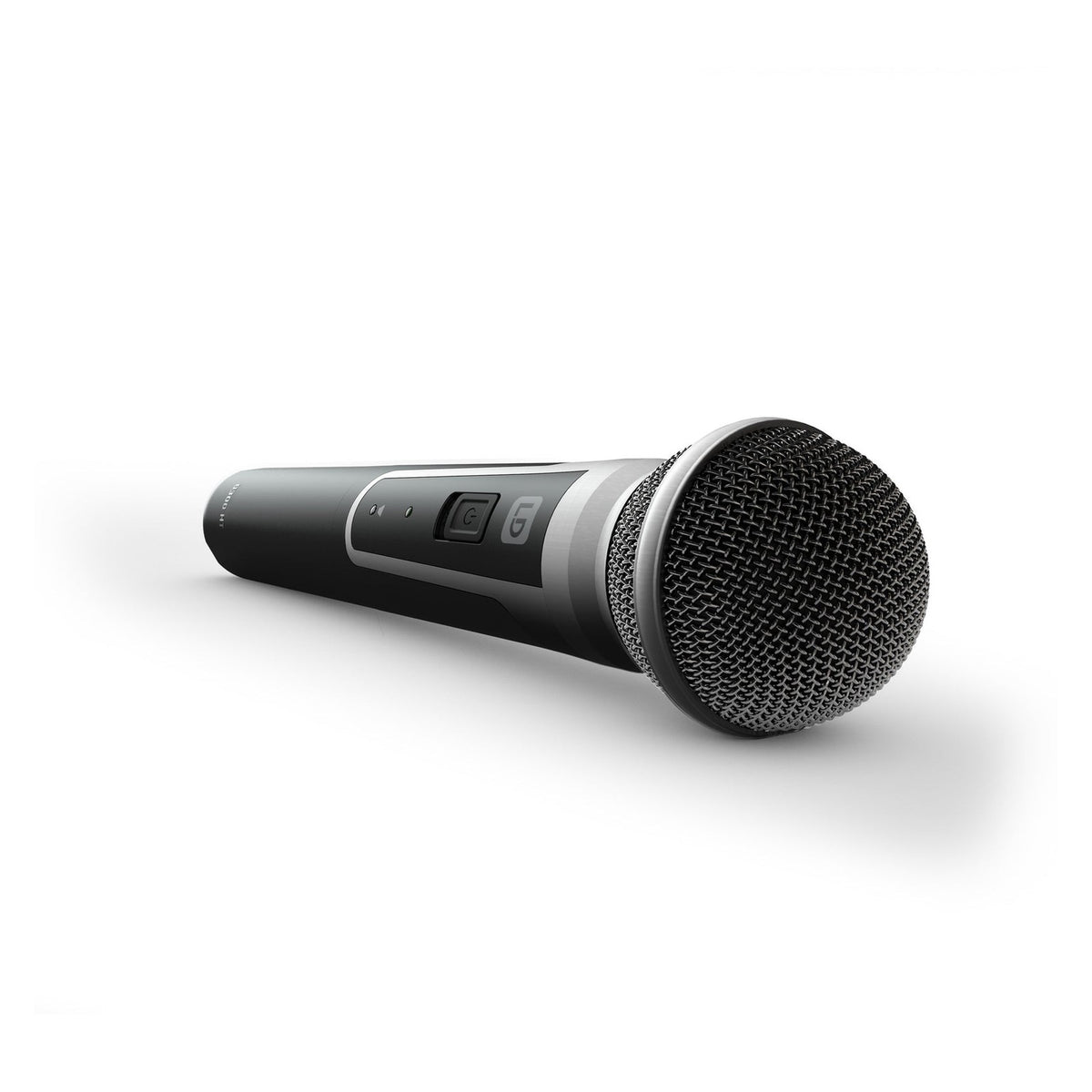

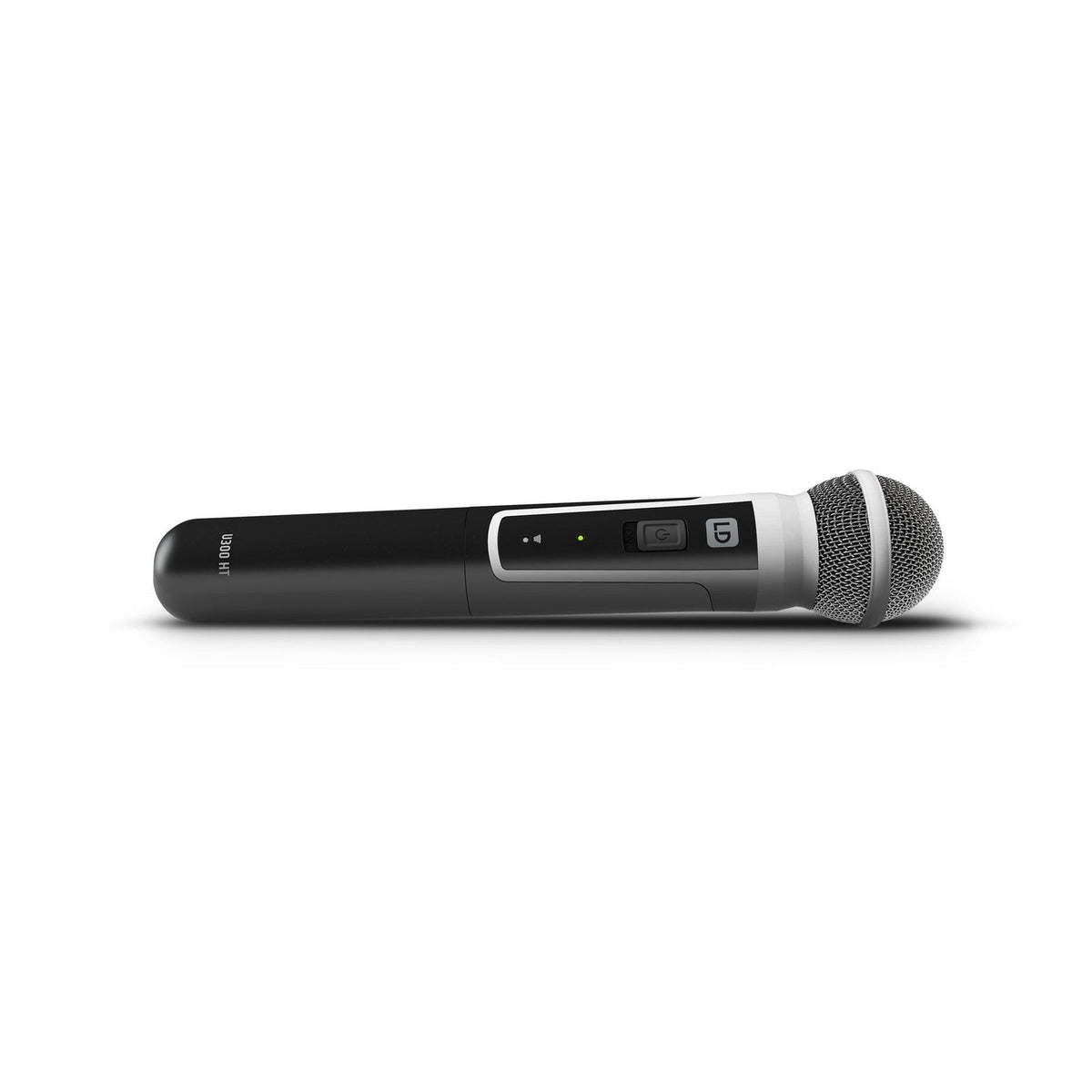

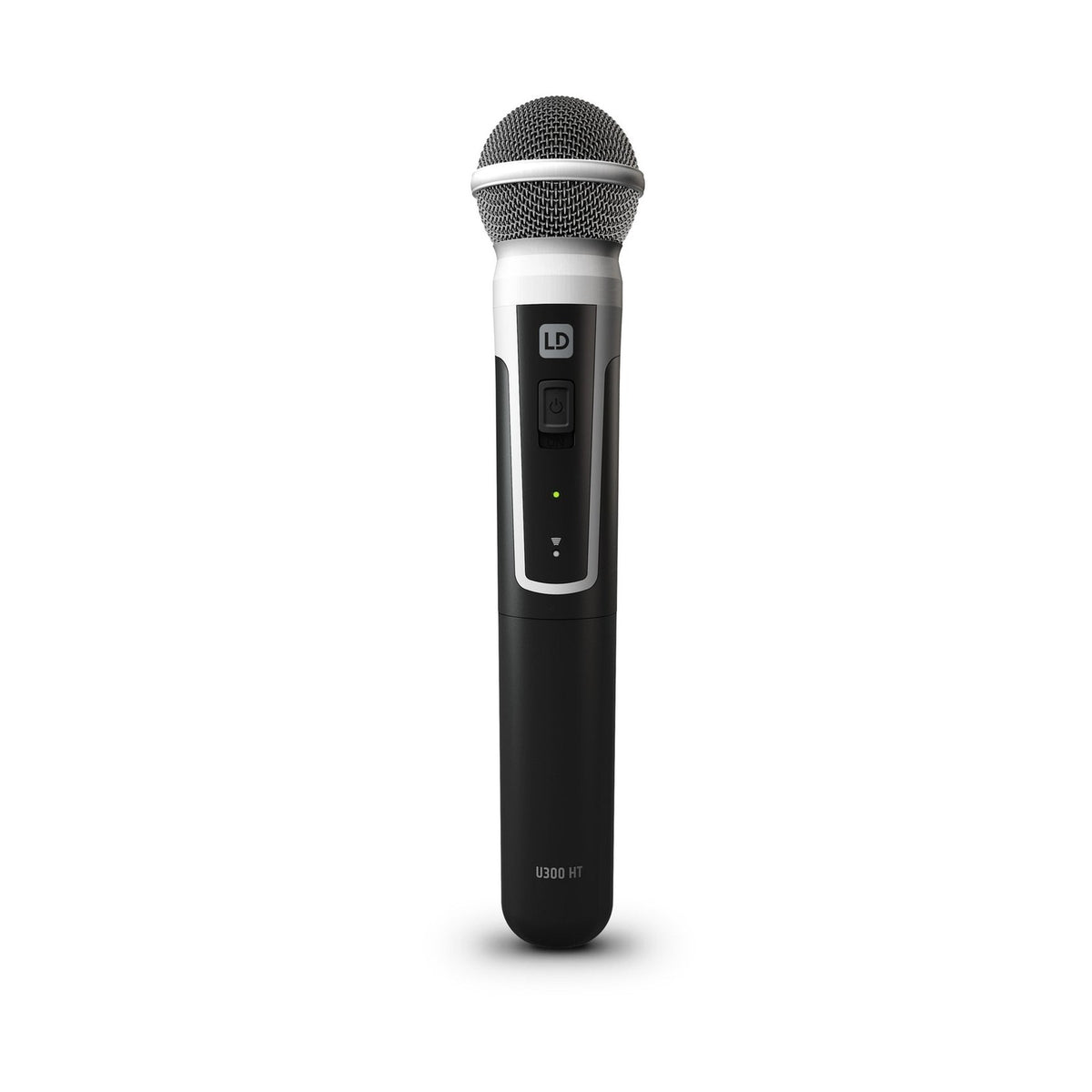

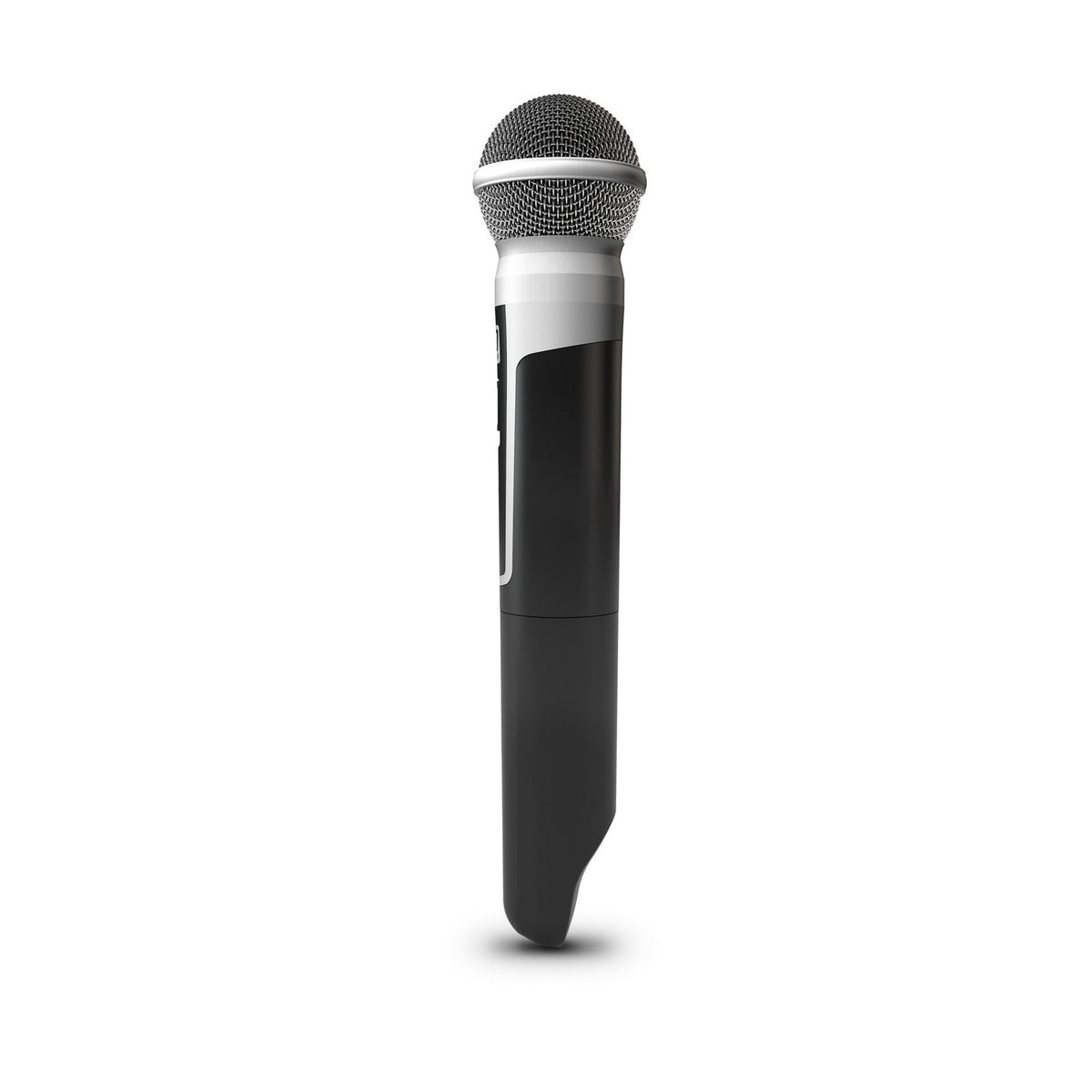

The included U308 MD dynamic cardioid handheld microphone transmitter provides clear and focused vocal pickup across a 55Hz–16kHz frequency response, with a cardioid polar pattern that rejects off-axis sound sources for reduced feedback risk in live performance environments. 10mW RF output power, a power indicator LED and a power switch with standby mode for temporary muting provide practical on-stage control, and over 10 hours of operation from two AA batteries ensures reliable coverage throughout even the longest events. The U308 HHD is also compatible with U500 series replacement capsule heads for tonal customisation.

Switchable Output Level & Instrument Level Mode

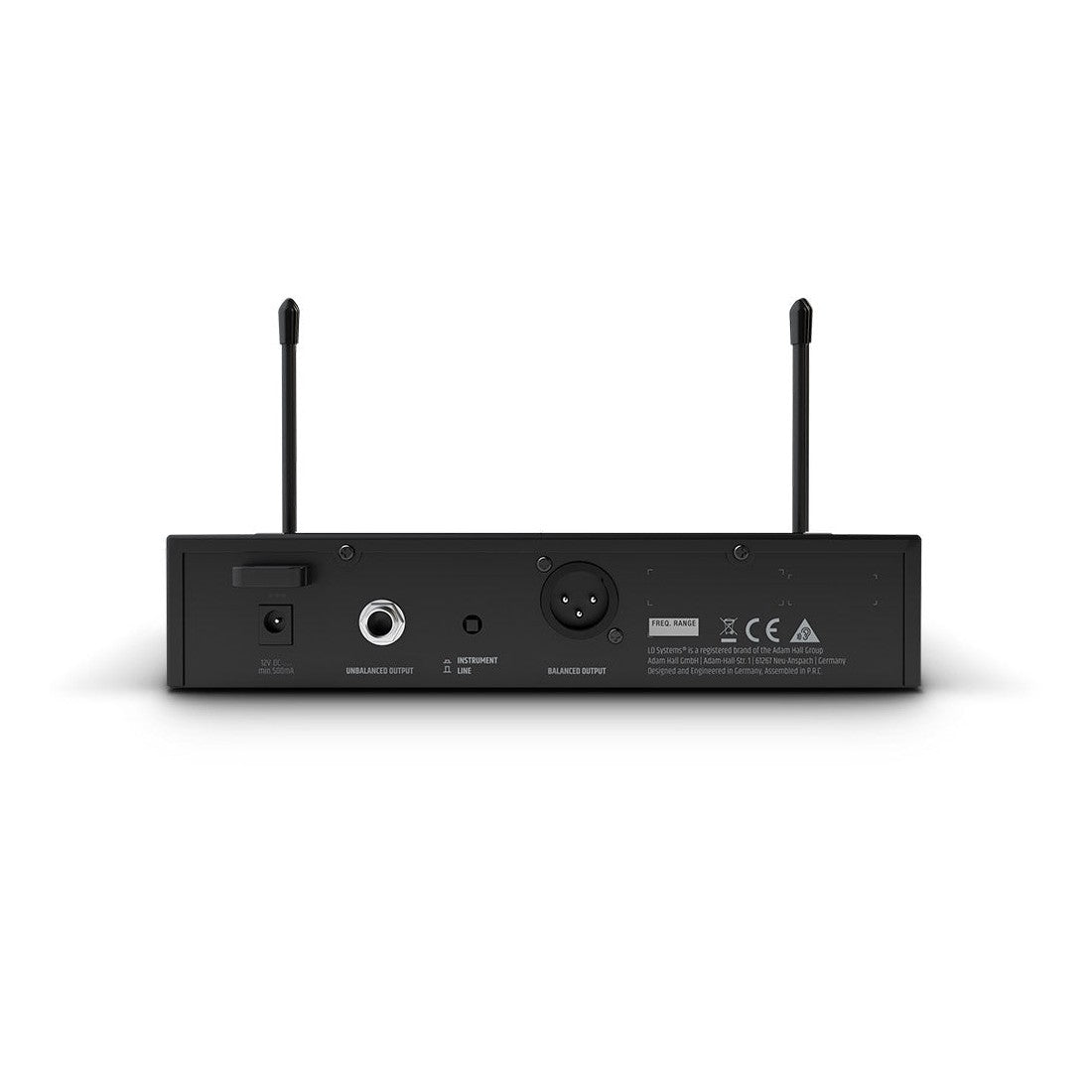

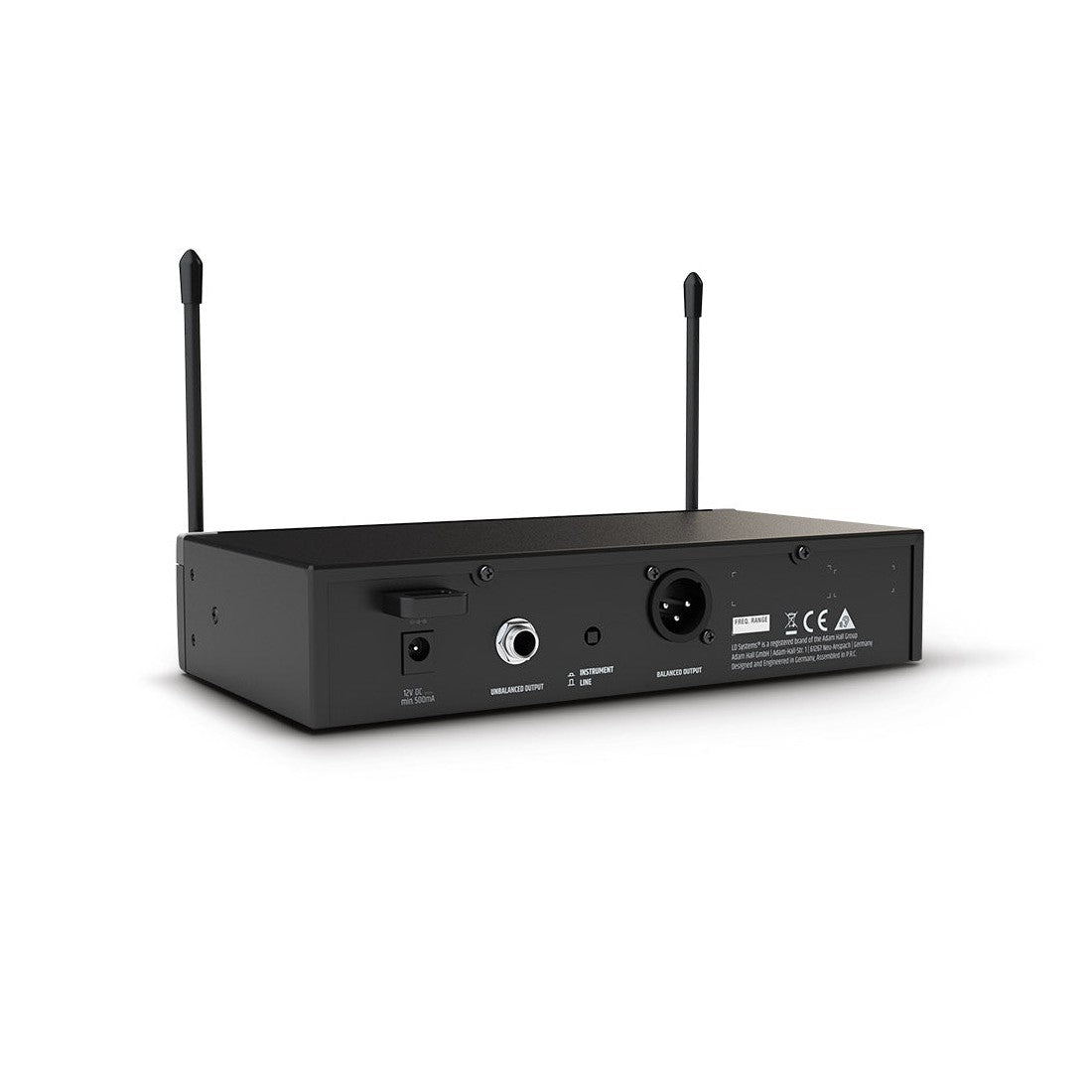

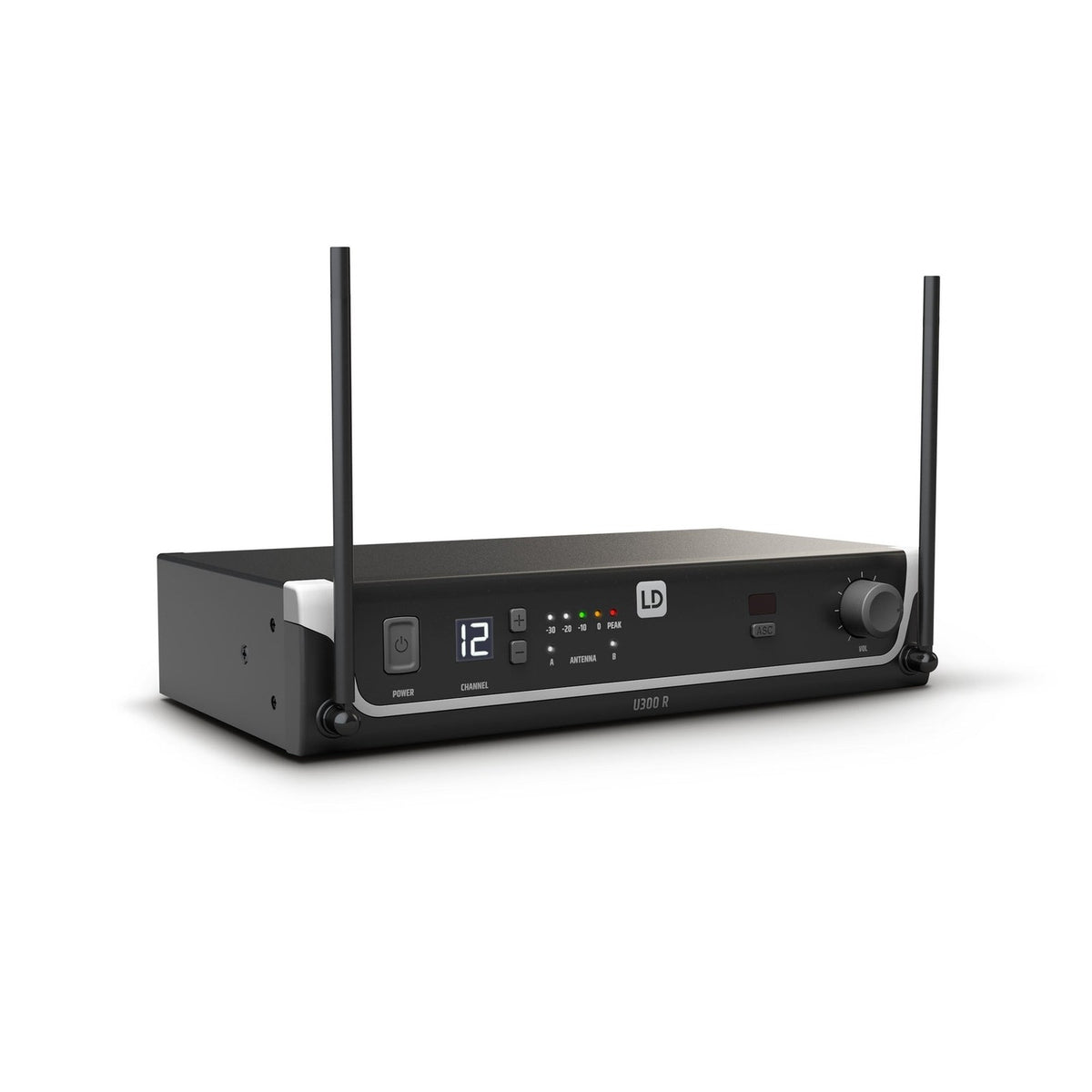

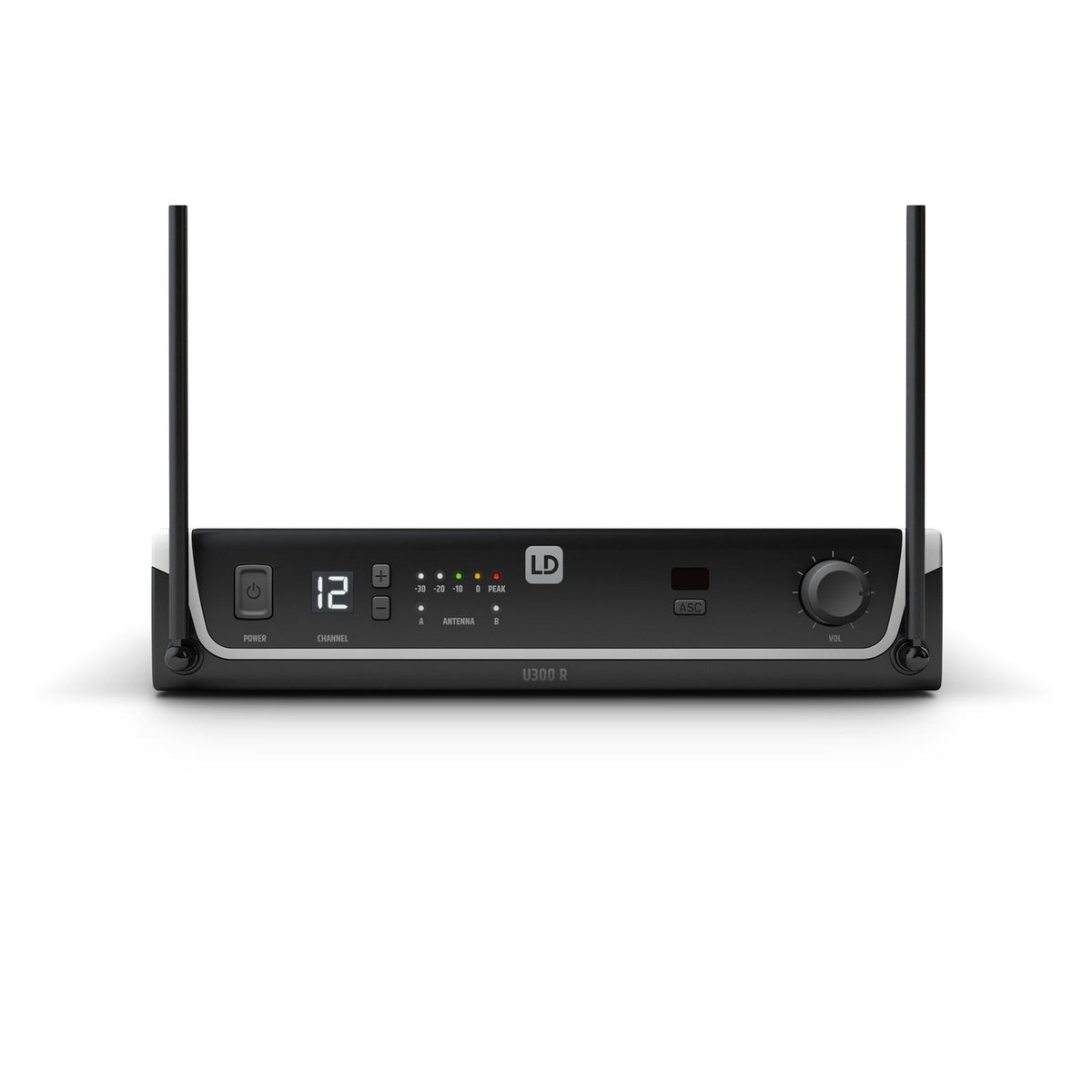

The U308 HHD receiver provides both a balanced XLR output and a switchable unbalanced 6.3mm jack output, with the jack output switchable between line level and instrument level for direct connection to guitar and bass amplifiers — a practical and useful feature for guitarists and bassists using the system for instrument wireless as well as vocal applications. The receiver’s LCD display shows channel selection clearly, and the LED audio chain provides real-time signal level monitoring throughout performance.

KEY FEATURES: LD Systems U308 HHD Wireless Microphone System

• UHF Diversity Receiver: Two fixed antennas provide stable, interference-resistant reception with FM modulation.
• 823–832MHz & 863–865MHz / 12 Channels: Flexible frequency selection for up to 6 simultaneous systems.
• 100 Metre Transmission Range: Reliable wireless coverage across venues and stages of all sizes.
• ASC Infrared Sync: One-touch transmitter-receiver pairing for fast and problem-free setup.
• Pilot Tone Squelch: Disruption-free operation — output remains silent when no transmitter signal is present.
• Dynamic Cardioid Capsule: Clear, focused vocal pickup with cardioid rejection for reduced feedback.
• 55Hz–16kHz Frequency Response: Natural and detailed vocal and speech reproduction.

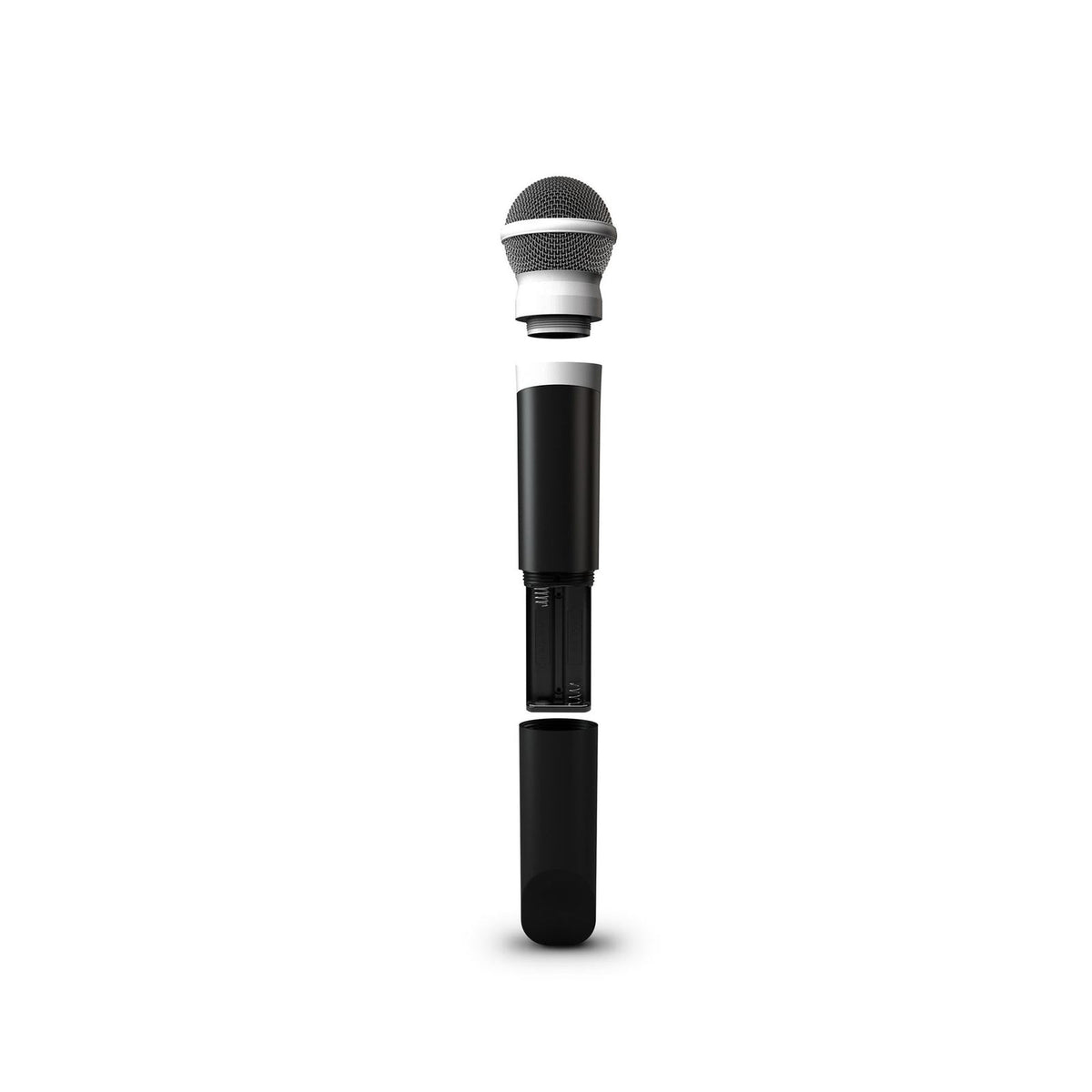

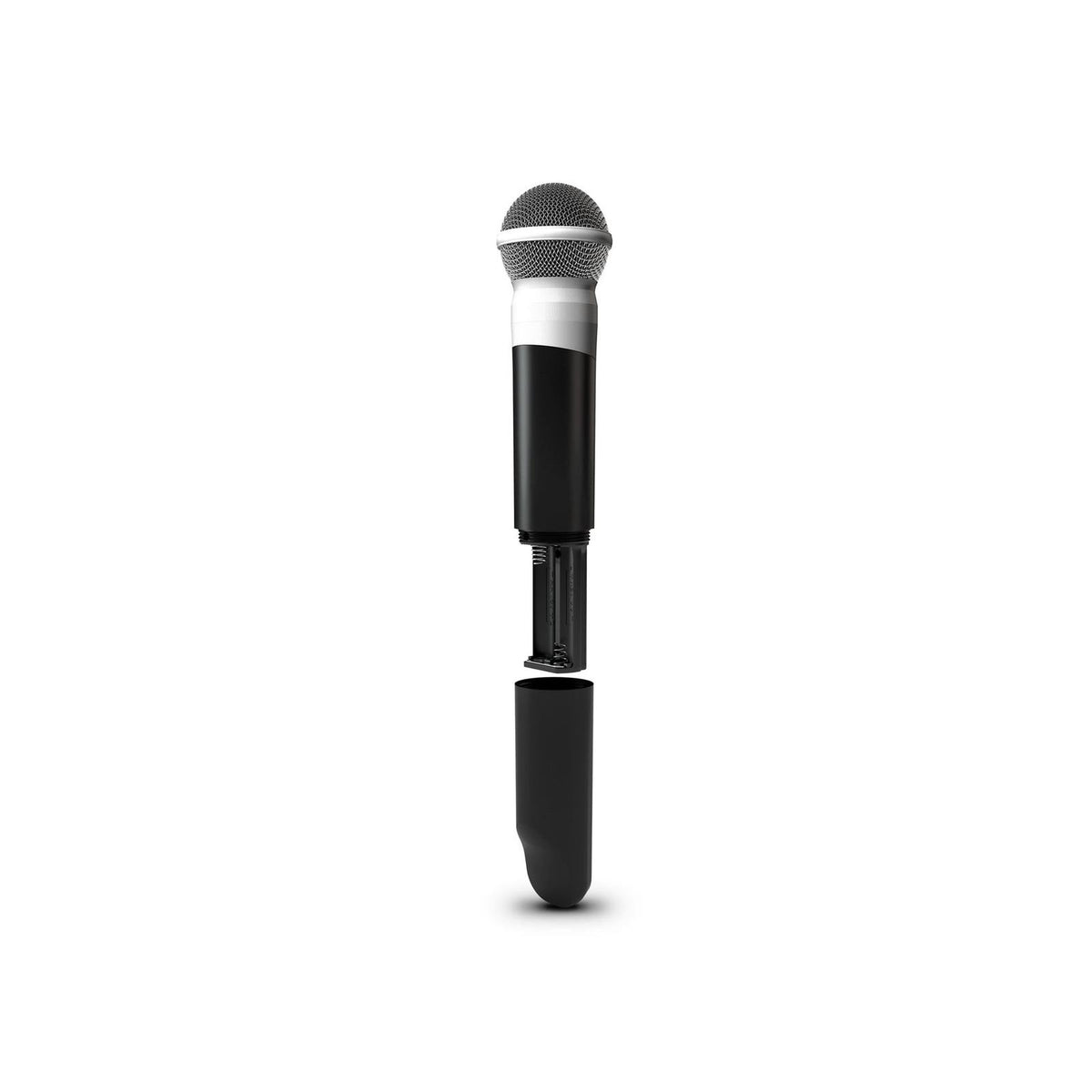

• 10mW RF Output / Over 10 Hours Battery Life: Reliable transmitter performance from 2 x AA batteries.
• Balanced XLR Output: Professional balanced output for mixing desk connectivity — max +10dBu.
• Switchable 6.3mm Jack Output: Unbalanced output switchable between line (+7dBV) and instrument (+2.5dBV) level.
• 104dB Signal-To-Noise Ratio: Clean, professional-grade audio reproduction throughout.

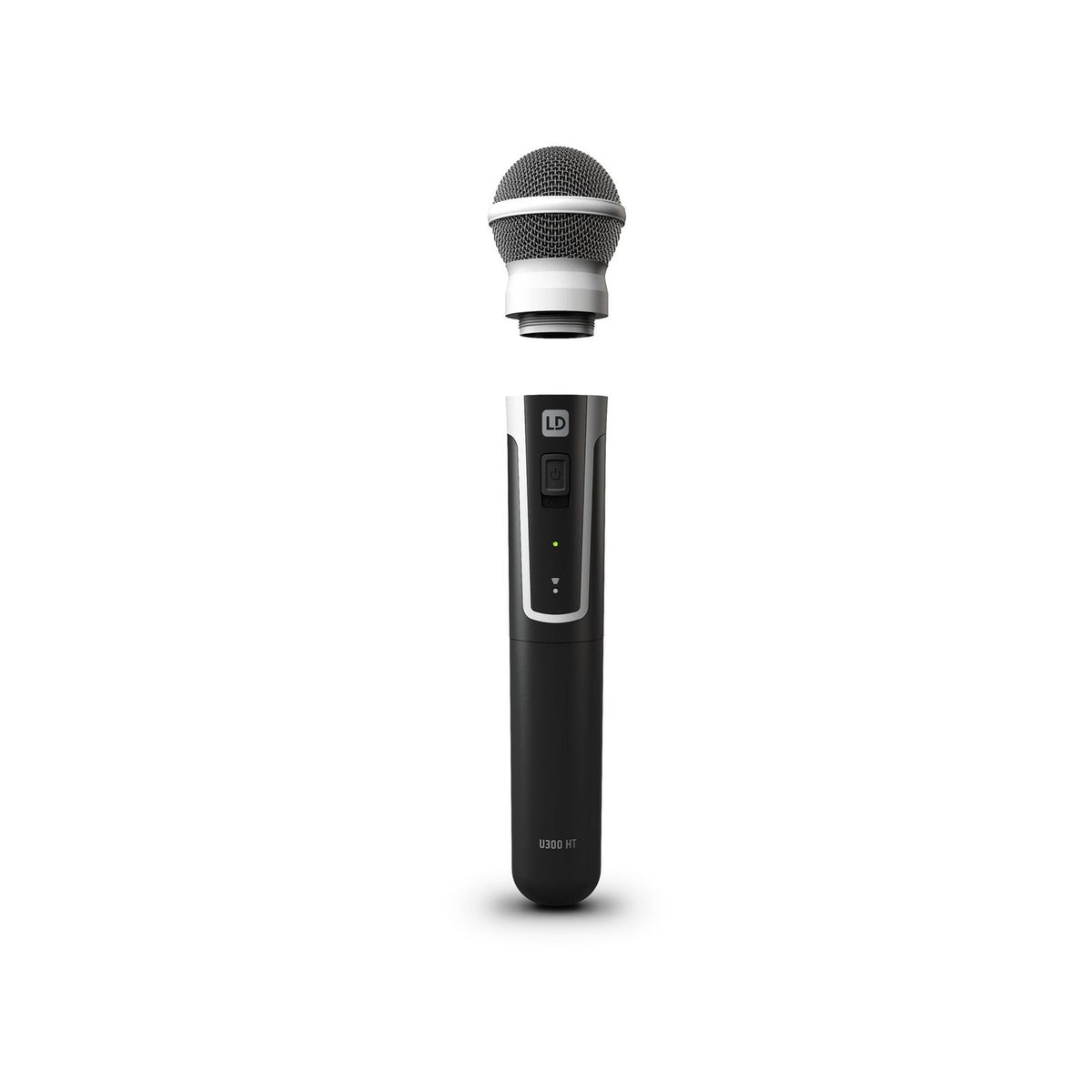

• U500 Compatible: Accepts U500 series replacement capsule heads for tonal flexibility.

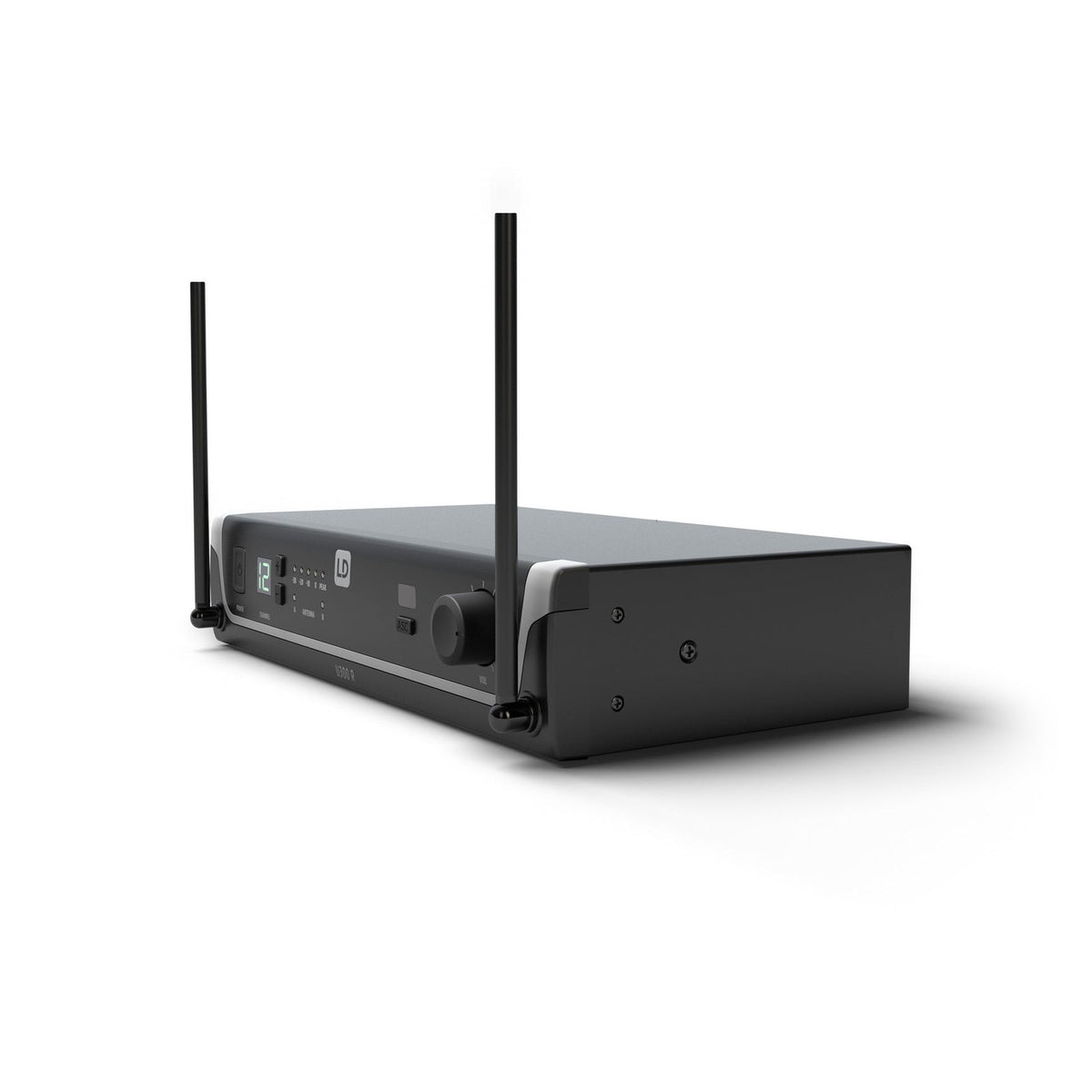

• Metal Receiver Housing: Robust construction for demanding live performance and touring use.
• Optional Rack Mount Kit: 19" rack installation available as a separately available accessory.
