Q-Audio QWM 1970 HH+BP UHF Dual Diversity Wireless Handheld + Beltpack System

Professional UHF Dual Diversity Wireless System With One Dynamic Handheld & One Beltpack Transmitter – Maximum Flexibility For Performers & Presenters – Q-Audio QWM 1970 HH+BP.

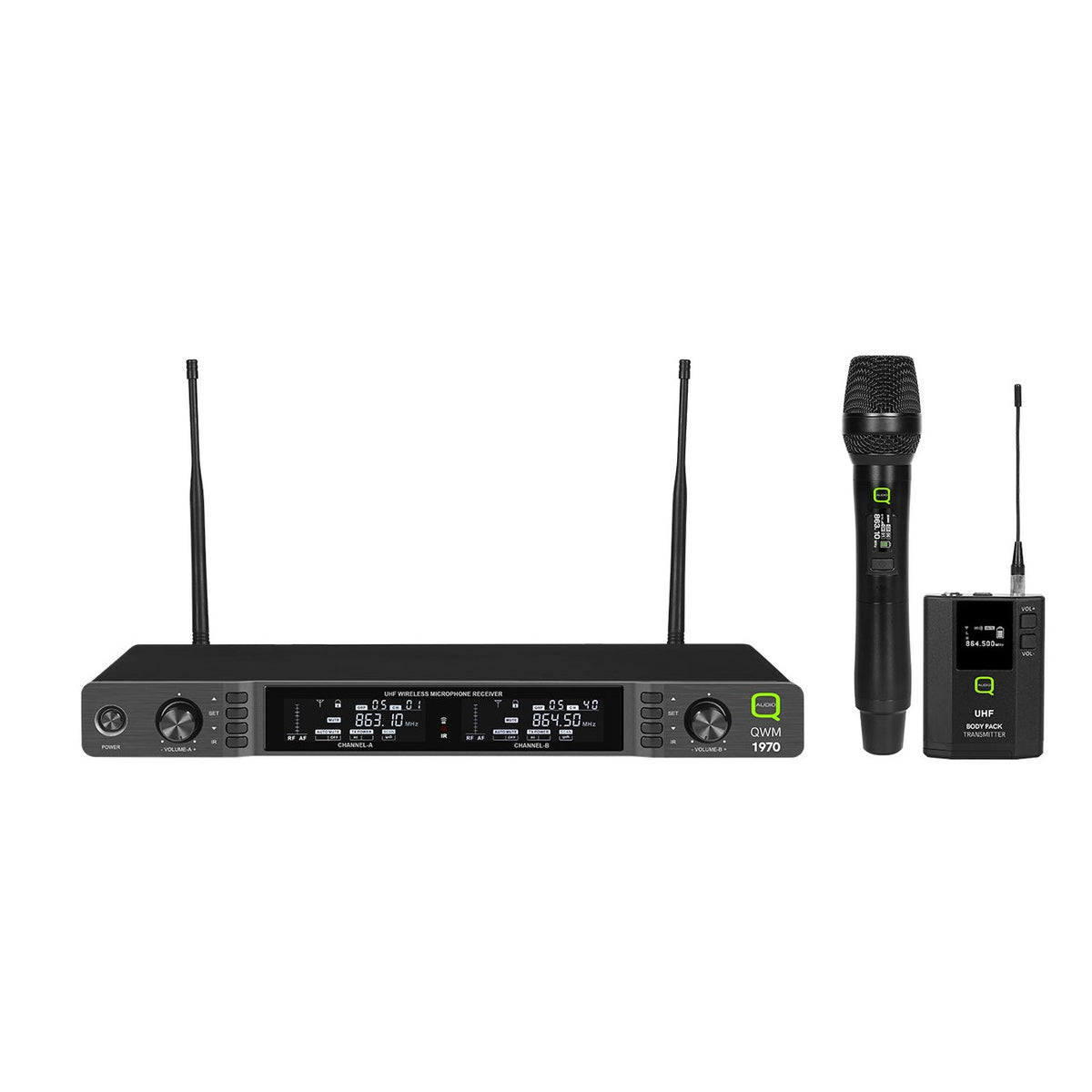

The Q-Audio QWM 1970 HH+BP is a professional UHF dual diversity wireless system combining one dynamic handheld transmitter and one beltpack transmitter with TA-4 connector, providing the most versatile configuration in the QWM 1970 range for setups where both handheld and hands-free microphone options are required simultaneously. The mixed handheld and beltpack configuration makes it an ideal solution for live performances where one performer needs a handheld microphone while another requires the freedom of a lavalier or headworn microphone, as well as corporate events, theatre productions and presentations where different microphone types are needed on the same channel system.

Operating on selectable frequencies across 863–865MHz or 606–614MHz with a 96dB dynamic range, less than 0.1% distortion and a signal-to-noise ratio of 96dB, the QWM 1970 HH+BP delivers professional-grade audio fidelity and reliability across a full 30Hz–20kHz frequency response. IR sync frequency switching makes setup fast and straightforward, and the receiver provides both balanced XLR and unbalanced 6.3mm jack outputs for flexible integration into any audio system. Rack mounting hardware is included for 19" installation, and each transmitter delivers over 5 hours of operation from two AA batteries.

Mixed Handheld & Beltpack Configuration For Maximum Flexibility

The QWM 1970 HH+BP's combination of one dynamic handheld and one beltpack transmitter makes it the most flexible configuration in the QWM 1970 range, accommodating scenarios where two performers or presenters need different microphone types on the same dual-channel wireless system. The beltpack's TA-4 connector is compatible with a wide range of lavalier and headworn microphone capsules, giving the second channel complete hands-free freedom, while the handheld transmitter provides the traditional vocal microphone experience for the first channel — making this system ideal for live music, theatre, corporate events and educational applications alike.

Professional UHF Performance At An Accessible Price

Like all models in the QWM 1970 series, the HH+BP delivers exceptional professional-grade audio performance without the premium price tag typically associated with this specification level. A dynamic range and signal-to-noise ratio of 96dB alongside less than 0.1% distortion ensure clean, clear and distortion-free audio reproduction in any environment, and selectable frequency operation across 863–865MHz or 606–614MHz provides flexibility across different regulatory environments. Output power of up to 30mW ensures reliable and consistent signal transmission.

19" Rack Integration & Versatile Connectivity

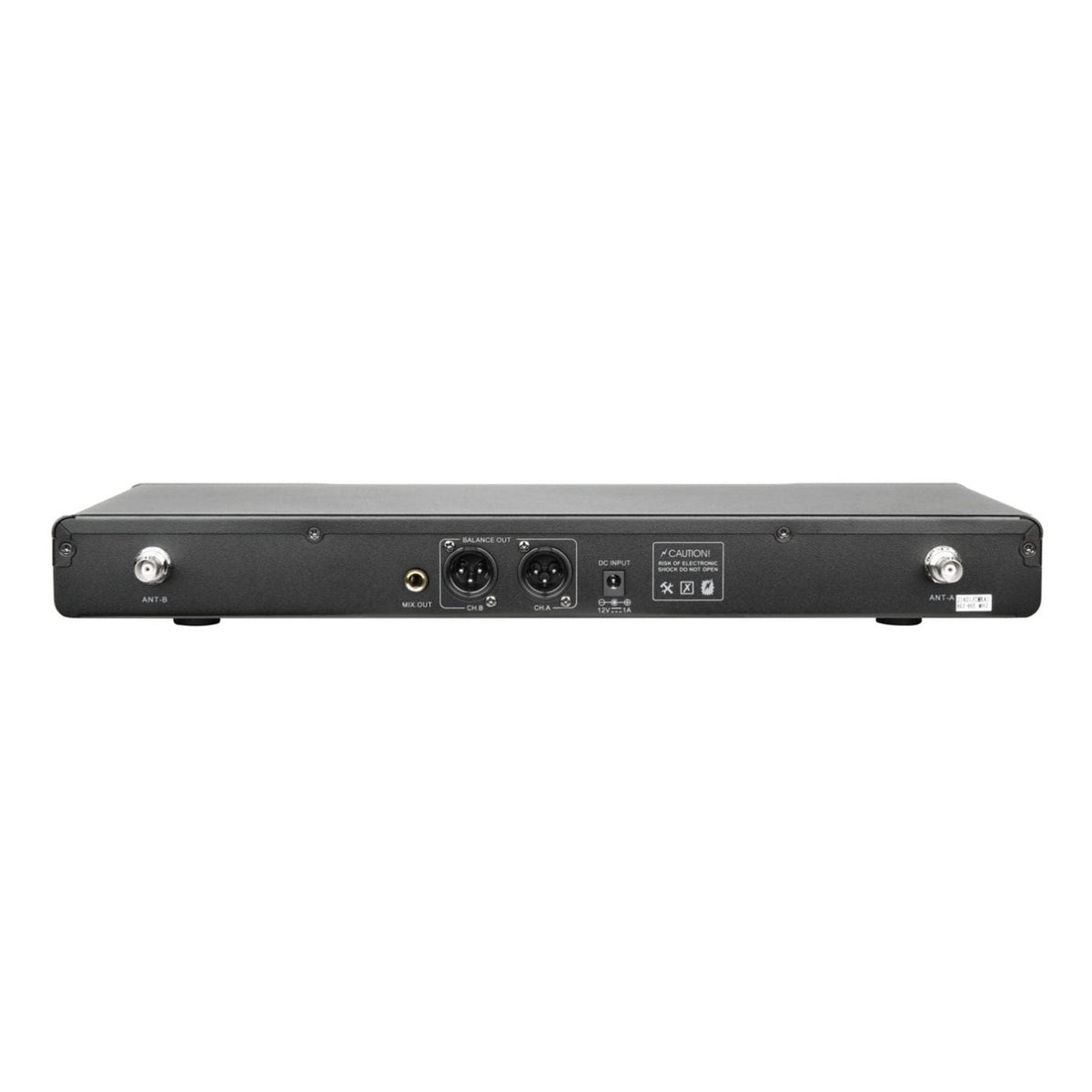

The included 19" rack mounting hardware allows the QWM 1970 HH+BP receiver to be integrated seamlessly into any professional audio rack setup, and the combination of two balanced XLR outputs and an unbalanced 6.3mm jack mixed output provides flexible connectivity to mixers, PA systems and recording equipment. Each transmitter delivers over 5 hours of operation from two standard AA batteries, making the QWM 1970 HH+BP a practical and dependable choice for events and installations where reliable long-running wireless performance is essential.

KEY FEATURES: Q-Audio QWM 1970 HH+BP Dual Wireless Handheld + Beltpack System

• Mixed Dual-Channel System: One dynamic handheld transmitter and one beltpack transmitter with TA-4 connector for maximum microphone flexibility.

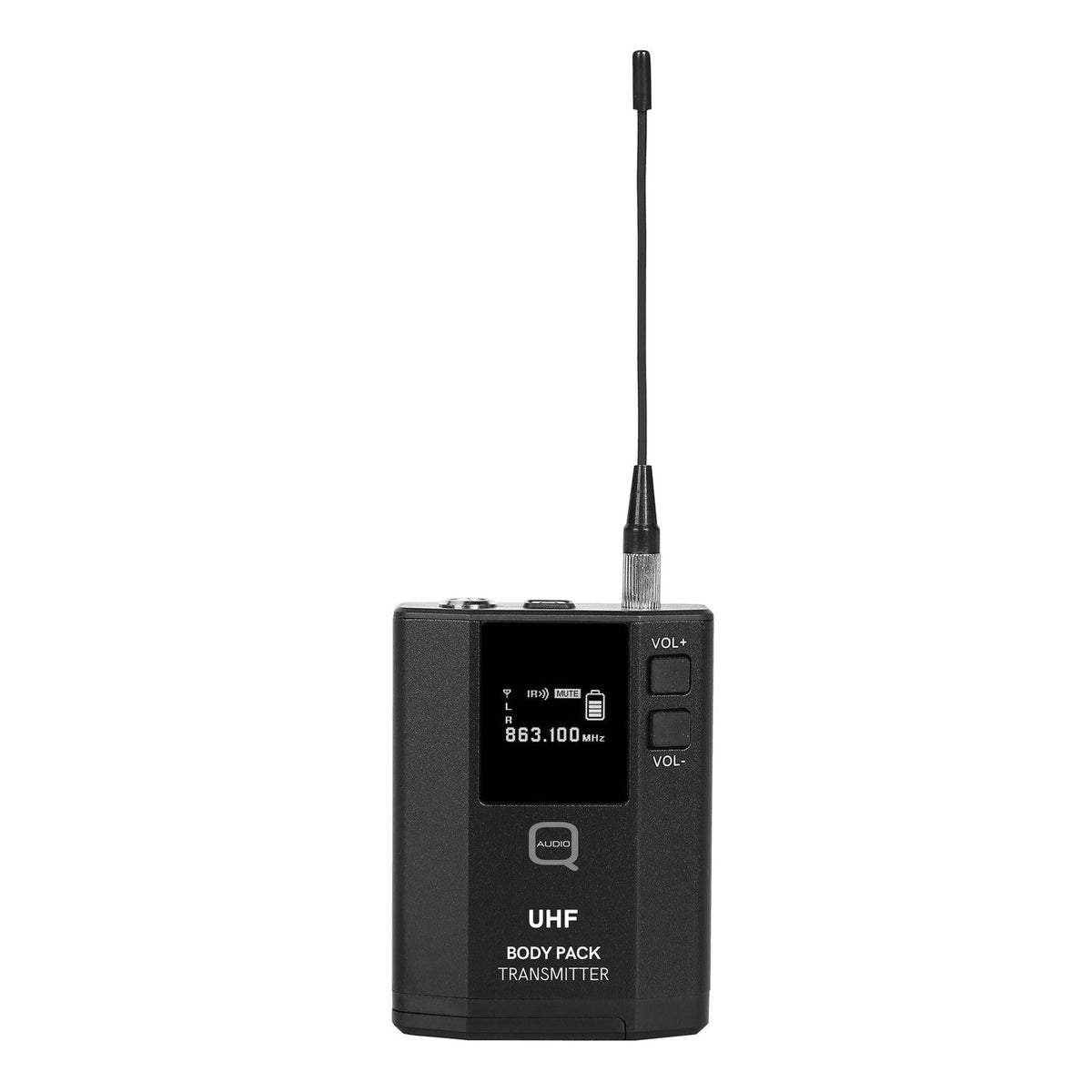

• TA-4 Beltpack Connector: Compatible with a wide range of lavalier and headworn microphone capsules for hands-free operation.
• Selectable Frequencies: 863–865MHz or 606–614MHz with 2MHz or 8MHz bandwidth depending on frequency selection.
• 96dB Dynamic Range & SNR: Professional-grade signal clarity with less than 0.1% distortion across all operating conditions.
• 30Hz–20kHz Frequency Response: Full-range audio reproduction across the complete audio spectrum.
• IR Sync Frequency Switching: Fast and straightforward transmitter-receiver frequency synchronisation.
• Balanced XLR Outputs: Two balanced XLR outputs for professional system integration.
• Unbalanced 6.3mm Jack Output: Mixed unbalanced output for flexible connectivity to a wide range of equipment.
• 19" Rack Mountable: Rack hardware included for seamless integration into professional audio setups.
• Over 5 Hours Battery Life: Each transmitter operates for over 5 hours from 2 x AA batteries.
